BACnet: Setting Node_Offset to Assign Specific Device Instances

• Follow the steps outlined in Section
• The Node_Offset field shows the current value (default = 50,000).
◦ The values allowed for a BACnet Device Instance can range from 1 to 4,194,303
• To assign a specific Device Instance (or range); change the Node_Offset value as needed using the calculation
below:
Device Instance (desired) = Node_Offset + Node_ID
For example, if the desired Device Instance for the device 1 is 50,001 and the following is true:
n Device 1 has a Node-ID of 1
Device 2 has a Node-ID of 22
n
Device 3 has a Node-ID of 33
n
Then plug the device 1's information into the formula to find the desired Node_Offset:
50,001 = Node_Offset + 1
50,000 = Node_Offset

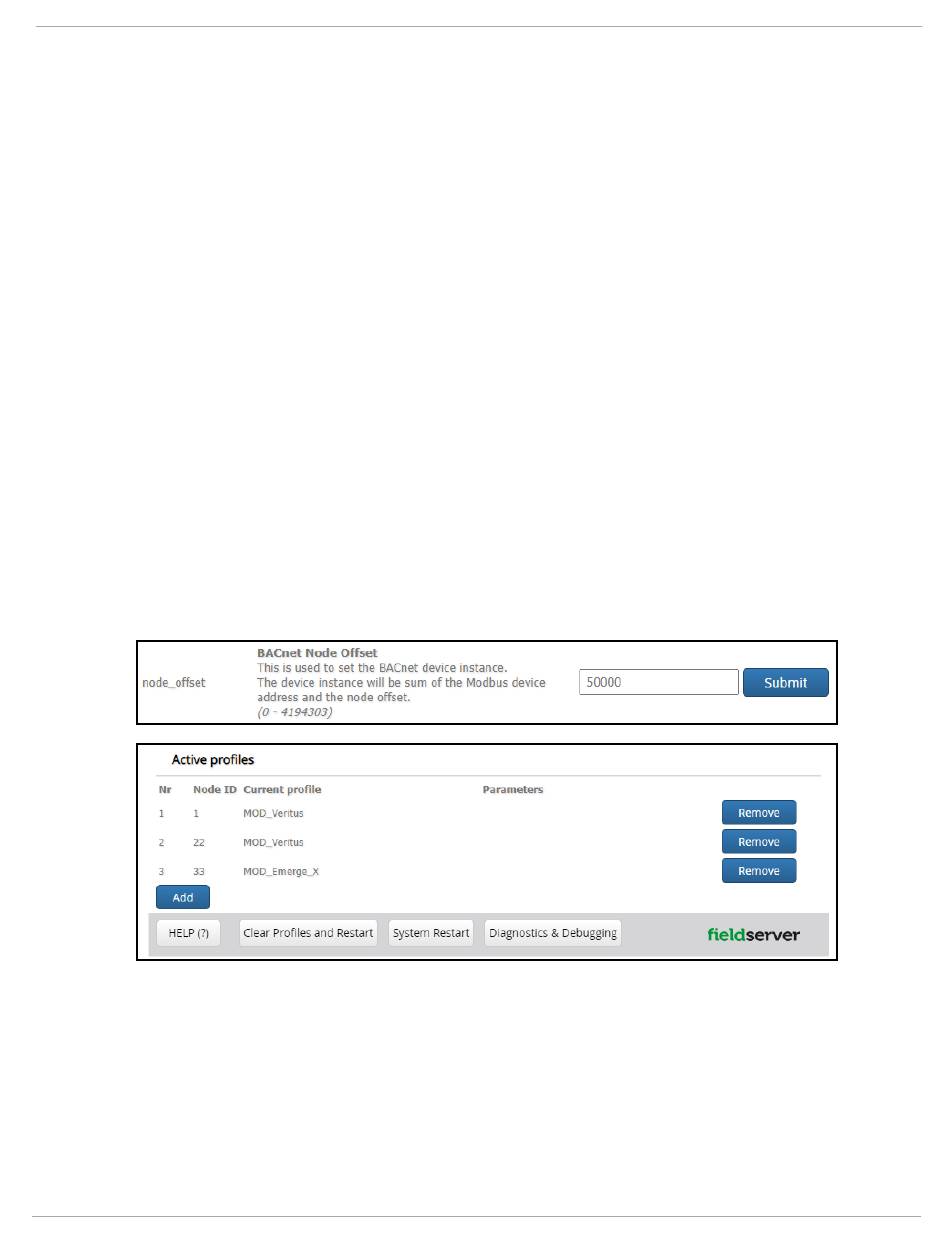

Once the Node_Offset value is input, it will be applied as shown below:
n Device 1 Instance = 50,000 + Node_ID = 50,000 + 1 = 50,001
Device 2 Instance = 50,000 + Node_ID = 50,000 + 22 = 50,022
n
Device 3 Instance = 50,000 + Node_ID = 50,000 + 33 = 50,033
n
Click "Submit" once the desired value is entered.
6.6

How to Start the Installation Over: Clearing Profiles

• Follow the steps outlined in Section
• At the bottom-left of the page, click the "Clear Profiles and Restart" button.
• Once restart is complete, all past profiles discovered and/or added via Web Configurator are deleted. The unit can
now be reinstalled.
