Ethernet Network: Setting IP Address for the Field Network

• Follow the steps outlined in Section
• To access the FS-GUI, click the "Diagnostics & Debugging" button at the bottom of the page.

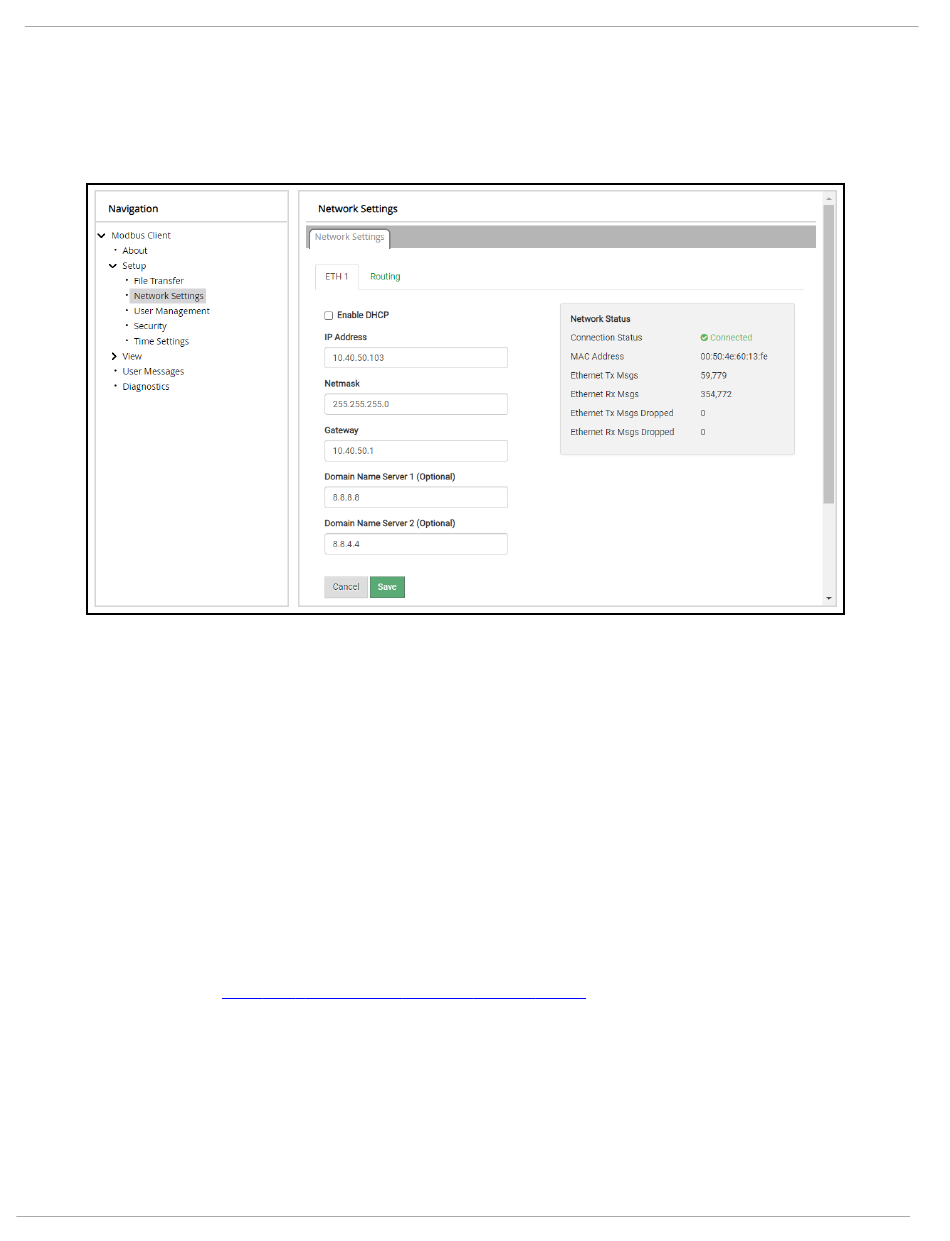

• From the FS-GUI landing page, click on "Setup" to expand the navigation tree and then select "Network Settings" to
access the IP Settings menu.
• Enable DHCP to automatically assign IP Settings or modify the IP Settings manually as needed, via these fields: IP
Address, Netmask, Gateway, and Domain Name Server1/2.
NOTE: If connected to a router, set the Gateway to the same IP Address as the router.
• Click Save to record and activate the new IP Address.
• Connect the FieldServer to the local network or router.
NOTE: If the webpage was open in a browser, the browser will need to be pointed to the new IP Address of the
FieldServer before the webpage will be accessible again.
• Unplug Ethernet cable from PC and connect it to the network switch or router.
• Record the IP Address assigned to the ProtoNode for future reference.
NOTE: For Router settings go to Section
NOTE: The FieldServer Manager tab allows users to connect to the Grid, MSA Safety's device cloud solution for
IIoT. FieldServer Manager enables secure remote connection to field devices through a FieldServer and its
local applications for configuration, management, maintenance. For more information about the FieldServer
Manager, refer to the
