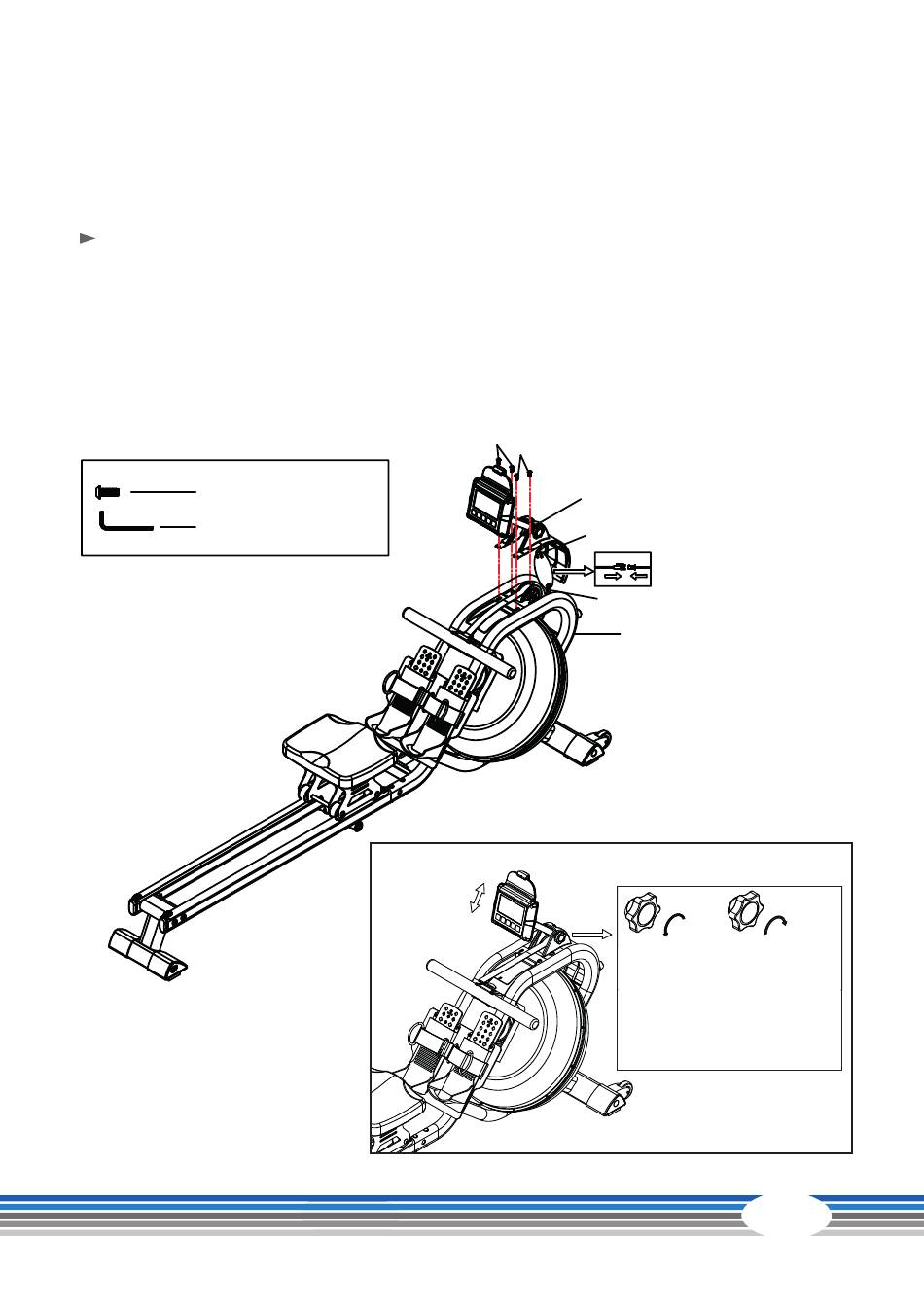

Step 4: Assembly of the console Part 2
1. Insert to AA batteries (1.5V) into the battery compartment of the console (54).

NOTICE
LCD display lights up for two seconds after the batteries are inserted. Then the intensity level
(water level 1-6) must be specifi ed (see chapter 2.4.2).
ATTENTION
Make sure not to pinch the cables during the next step.
2. Place the main frame (1) back down and connect the sensor wire (56) with the connection wire
(95) and insert the remaining cable into the main frame (1).
3. Place the cover (26) into the recess of the main frame (1).
4. Mount the console (54) to the main frame (1) with four screws (68).
#68 M8*15
#68 M8*15 4x
4pcs
#98 S5
1x
#98 S5
68 68
26F
95
56
1
Adjust the angle of computer
Adjusting the angle of the console
After 3 turns of anticlockwise release,
adjust the computer angle to a suitable position,
Turn the adjusting knob counterclockwise
and then lock clockwise.
approx. 3 times to release the console.
Adjust the angle of the console as desired
先松 旋 （3 圈），
and retighten the knob by turning it
然后 整合适的 子表角度，
在
Release
Release
Locking
Tighten
旋 clockwise
