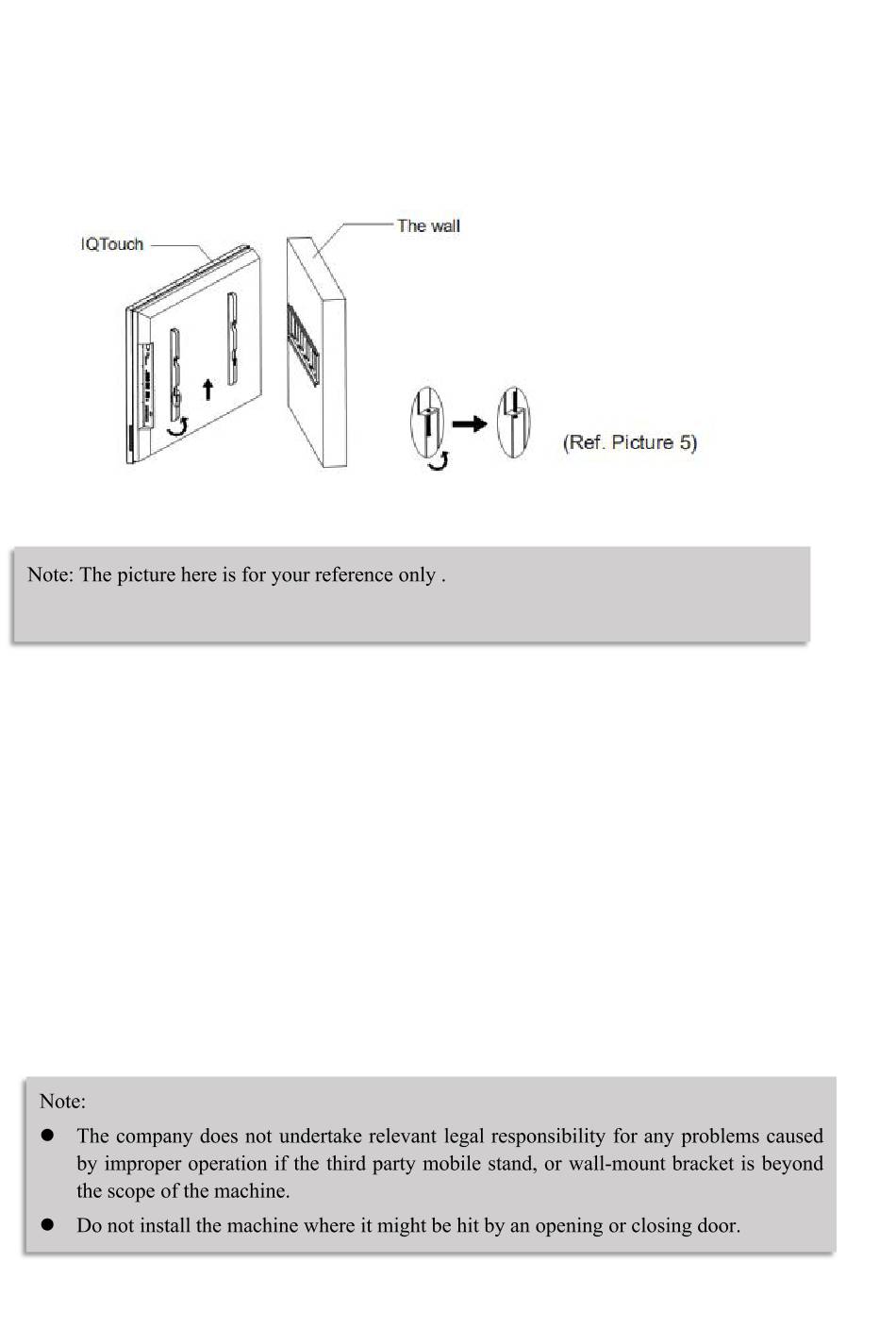

Hanging the hang bracket B on the left and right on to the wall mounting bracket A, please ensure
two hang brackets B completely hanged onto wall mounting bracket A, then tighten the screws of
hang bracket B to prevent it slide. (See Ref. Picture5)

2.3 Weight Loading

Net weight of the machine(65",75",86"): 40kg(±2kg), 50kg(±2kg), 61kg(±2kg).
 When using a mobile stand, ensure that the weight of the machine is less than the loading
capacity of the mobile stand.
 When using the wall-mount bracket, ensure that the wall can support the weight of the machine.
We recommend that the wall surface be reinforced and have a loading capacity 4 times of the
weight of the machine. Consult a professional installer for wall-mount installation.
