2.2 Installation Step

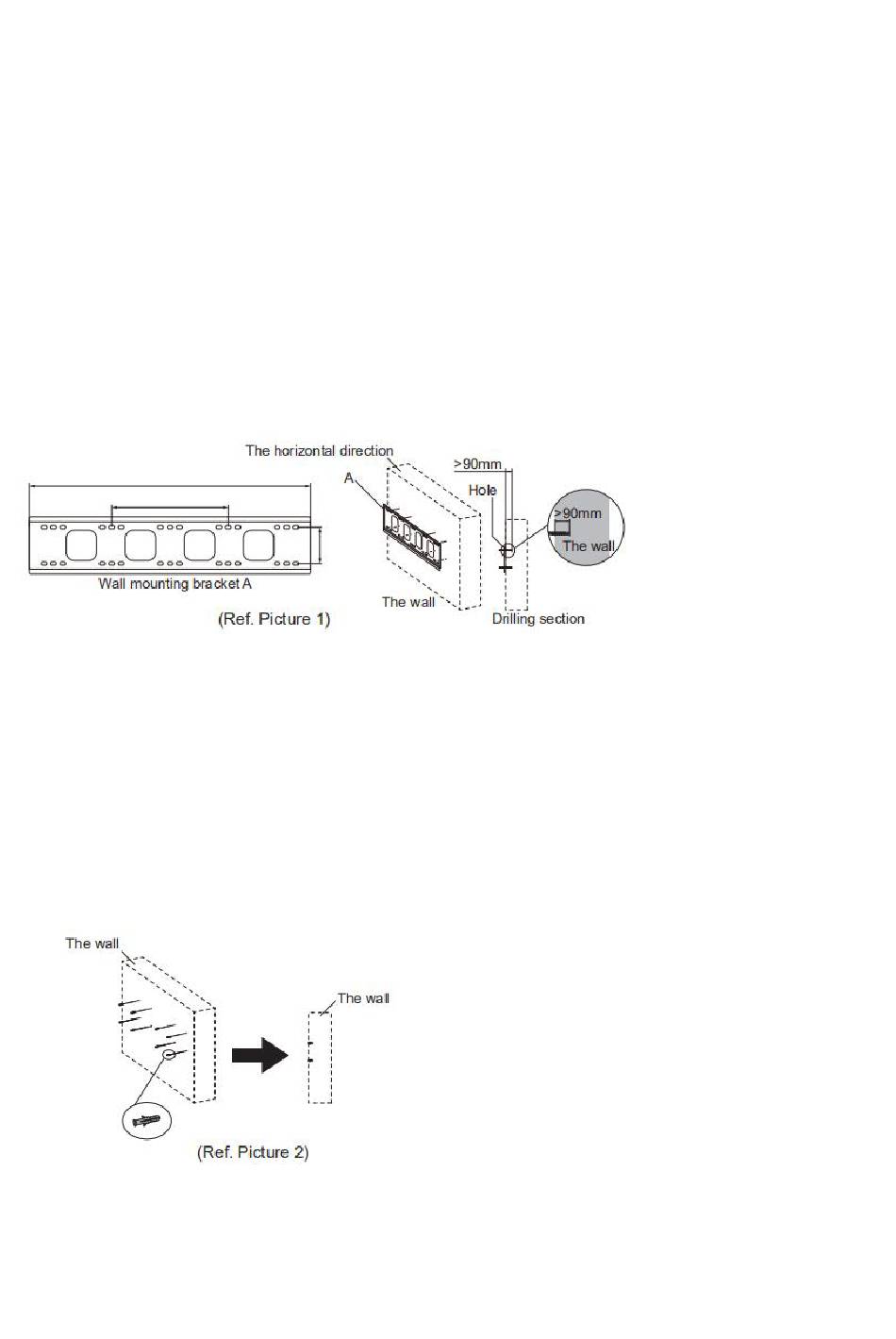

Step1: Punching holes in the wall
Mark 8 holes location on the wall according to wall mounting bracket A and use the drill bit to drill
the 8 holes. Depth of holes should not be less than 90mm (Ref. Picture 1)
Step2: Expansion bolt installation
Press the wall anchors into 8 holes. (Ref. Picture 2)
Step3:Wall mounting bracket A installation
14
