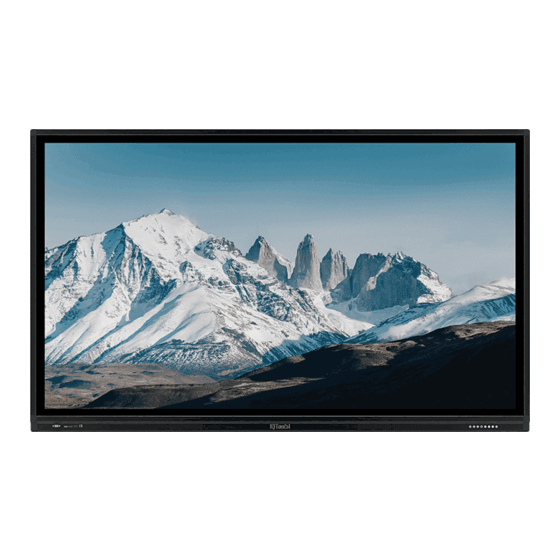

Returnstar Interactive Tech IQTouch L Series User Manual
  1. Manuals
  2. Brands
  3. Returnstar Interactive Tech Manuals
  4. Monitor
  5. IQTouch L Series
  6. User manual

Returnstar Interactive Tech IQTouch L Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

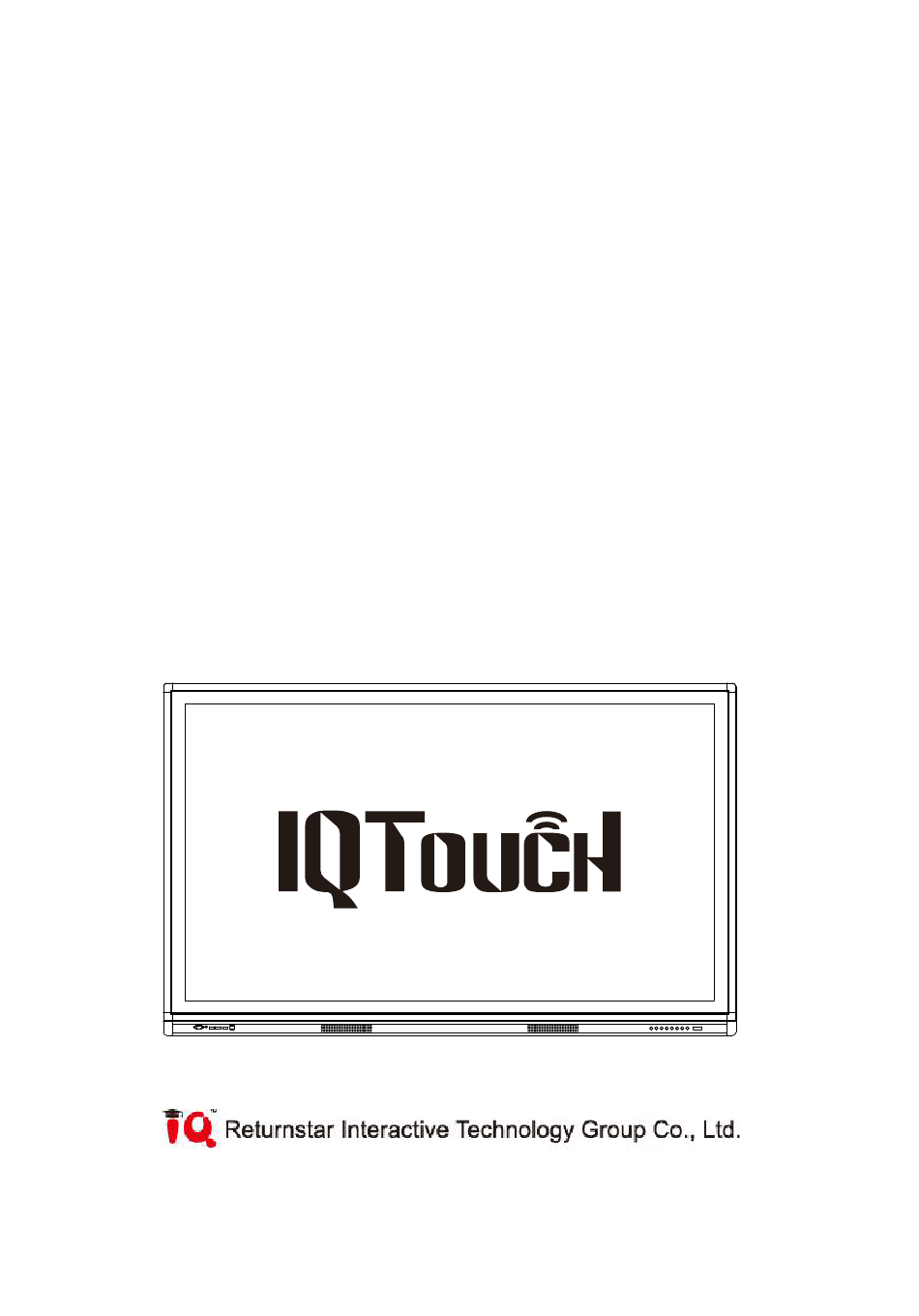

IQTouch
L Series
——User Manual——
第 1 页 共 44 页

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQTouch L Series and is the answer not in the manual?

Questions and answers

Related Manuals for Returnstar Interactive Tech IQTouch L Series

Summary of Contents for Returnstar Interactive Tech IQTouch L Series

  • Page 1 IQTouch L Series ——User Manual—— 第 1 页 共 44 页...

  • Page 2: Table Of Contents

    Content I. Systems Instructions........................3 1.1 Education System Launcher....................4 1.1.1 Status Bar........................4 1.1.2 Preview Window......................4 1.1.3 Shortcut Bar........................ 4 1.1.4 Application Bar......................5 1.1.5 Channel Switching Shortcut Bar................6 1.2 Pull up touch menu........................7 1.2.1 Function Introduction....................7 1.3 Touch Menu.........................11 1.3.1 Sound........................

  • Page 3: Systems Instructions

    I. Systems Instructions 1.1 Education System Launcher The main interface of Android system is as follows: The main interface is mainly divided into a status bar, a preview window, a shortcut bar, an application bar, and a channel switching shortcut bar. 第...

  • Page 4: Status Bar

    1.1.1 Status Bar It mainly shows the temperature, date, time, weather status, and the connection status of wired network, wireless network, and video sharing. 1. Temperature monitoring: a. When the whole machine temperature is below 45°C, the temperature bar shows green; b. When the whole machine temperature reaches 45°C ～65°C, the temperature adjustment shows orange;...
  • Page 5 1. Media courseware: Click the icon to enter the multimedia interface, which can read the external storage device file. 2. Whiteboard teaching: Click the icon to open the whiteboard application. For details on the whiteboard function, see chapter 2.1. 3. Teaching Resources: Click on the icon to open the Teaching Resources website.

  • Page 6: Channel Switching Shortcut Bar

    7. Settings: Click the icon to enter the system settings interface, you can set some parameters of the system. See chapter 1.4 for details. 8. Touch the menu: Click the icon to adjust the system's screen, sound, display and other functions. See chapter 1.3 for details. 1.1.5 Channel Switching Shortcut Bar Click the icon at the bottom of the preview window to call up the...

  • Page 7: Pull Up Touch Menu

    1.2 Pull up touch menu 1.2.1 Function Introduction Pull up the menu and pull up from the bottom of the screen to display the sidebar. The expanded function buttons are Back, Home, Task, Input Source, Menu, Volume -, Volume +, Backlight -, Backlight + , whiteboard, annotations, screenshots. When there is no operation in the sidebar expansion state, it will be automatically hidden after 3S.
  • Page 8 1. Back Click the icon to return or exit the current program. 2. Homepage Click the icon to enter the main interface of the system. 3. Mission Click the icon to enter the task management interface, you can choose to open or close the application.
  • Page 9 5. System menu Click the icon to call up the system menu, and the user can set the corresponding function to the system. The system menu settings mainly include sound, screen, display, adjustment, smart, and channel function settings. 第 9 页 共 44 页...
  • Page 10 6. Volume reduction Click the icon to turn down the volume. 7. Volume plus Click the icon to turn up the volume. 8. Brightness reduction Click the icon to decrease the screen brightness. 9. Brightness plus Click on the icon to increase the screen brightness. 10.

  • Page 11: Touch Menu

    12. Screenshot Click on the icon to take a screenshot of the current interface. 1.3 Touch Menu 1.3.1 Sound Sound settings interface, including standard, conference, classroom, custom and other modes. The settings for treble, bass, balance, etc. can be adjusted when switching to custom mode.

  • Page 12: Screen

    1.3.2 Screen Through the screen setting interface, you can adjust the display ratio of the external device screen under the current channel. 1.3.3 Display In the display setting interface, the image mode and color temperature can be adjusted. 1. Image mode The image mode has standard, bright, soft, and custom modes.

  • Page 13: Adjustment

    Brightness, contrast, hue, sharpness can only be adjusted when the image mode is custom mode, otherwise it is not adjustable. Moreover, the brightness, contrast, hue, and sharpness are mainly used to adjust the color display effect of the external device screen under the current channel (the display effect of the Android system cannot be adjusted).
  • Page 14 energy saving, sleep mode, temperature monitoring, time switch, sensitization, eye protection, smart return, boot channel, no signal standby. 1. Intelligent identification When smart identification is enabled, when the system detects that a signal source is connected, it will automatically switch to that channel. 2.
  • Page 15 Turn on the eye protection mode, when the user is in the operating system, the screen backlight will be darkened, and the backlight will restore the backlight brightness after 3S operation, thus protecting the user's eyes. 6. Smart return Turn on smart return, when the current channel of the switch has no signal input, it will return to the previous channel.
  • Page 16 11. Timed shutdown: You can set a fixed time to shut down. 12. Timed boot: You can set a fixed time to boot. 13. Multi-function power button (1) Close: Press the power button to shut down directly; (2) Two in one: Press the power button, the function menu will pop up, you can choose to enter the energy saving mode and turn off the all-in-one;...

  • Page 17: Channel

    14. Boot channel You can set the channel interface displayed after the boot is completed. (1) Memory signal source: In which channel to shut down, it will enter the channel after booting. (2) Other source channels: When the boot channel is set to the source, it will be shut down under any interface, and the boot will directly enter the set channel.

  • Page 18: System Settings Menu

    1.4 System Settings Menu The system setup menu can be divided into three major modules, namely wireless and network modules, general modules, and system modules. 1.4.1 Wireless and Network In the wireless and network module interface, it is mainly set up for wired 第...
  • Page 19 network, wireless network, wireless hotspot and other functions. 1.WLAN Turning on the wireless network switch button will automatically display the available wireless network. Click the Zoom menu in the upper right corner to expand to manually add networks and modify other parameters of the wireless network. 2.

  • Page 20: Hotspots

    automatic acquisition is disabled, you can manually modify the IP address and subnet mask. 1.4.2 Hotspots The parameters such as hotspot name, security, and password can be changed in the 2.4G hotspot setting interface. 第 20 页 共 44 页...

  • Page 21: General

    1.4.3 General Universal module interface, you can replace the system theme wallpaper, modify the device name, view third-party applications, storage devices and USB, general settings. 1. Wallpaper Wallpapers have live wallpapers, static wallpapers, and can also be added by custom. Custom added wallpapers will be saved in the static wallpaper and can be deleted by long press.
  • Page 22 3. General settings The general settings include functions such as centralized control switch, temperature monitoring, no signal standby, channel name customization, and floating menu switch. (1) Centralized control switch: The centralized control function is to remotely control some basic functions such as sound addition and subtraction and channel switching through the R232 serial port.
  • Page 23 (2) Temperature monitoring: You can check the temperature of the device (you can also get the current device temperature in the status bar of the Android homepage). Turn on the temperature monitoring switch. When the temperature of the device reaches 85 degrees Celsius, the shutdown countdown prompt will pop up. If there is no operation, the countdown will be shut down directly.
  • Page 24 4. Application You can browse the installed third-party applications, view the built-in storage space and traffic usage, as well as the system to third-party applications, uninstall, clean up cache data and other functions. 第 24 页 共 44 页...

  • Page 25: System

    5. Device name User-friendly design, the user can modify the device name in the device name. 1.4.4 System In the system module interface, it is mainly for language and input method, account, factory reset, date and time, local upgrade, device and other function settings. 1.
  • Page 26 customized. (2) Input method: You can choose to change the input method, mainly including Android keyboard (English), Sogou input method, Google input method (Chinese), and other input methods can be installed and added. 2. Account Personal account information can be set. 第...
  • Page 27 3. Restore factory settings Clicking on Factory Reset will erase all user data, including Google Accounts, system and app data and settings, downloaded apps, images, and more. 4. Date and time In the time setting interface, you can choose to change the system time, time zone and time display format.
  • Page 28 5. Local upgrade System firmware update, update method: copy the firmware to the root directory of the U disk, U disk to the multimedia USB interface of the all-in-one, select the local upgrade update. 6. About equipment Click "About Device" to view system model, Android security patch level, kernel version, version number and other information.

  • Page 29: Software Description

    II.Software Description 2.1 Electronic Whiteboard 2.1.1 Interface Display Click the whiteboard on the Android homepage or pull-up menu to launch the whiteboard software. The default interface is shown in the figure. 2.1.2 Function Menu 1. Click (menu icon) in the lower left corner of the interface to pop up and display the subordinate content menu;...
  • Page 30 (1) Open the file: Click the icon to open the file saved in the whiteboard file directory (the default path directory is built-in storage/whiteboard), click the file to open directly, and perform the functions of editing, saving, and so on. (2) Save the file: Click the icon to save the currently written content.
  • Page 31 file. (3) Exit the whiteboard: Click the icon to exit the whiteboard pop-up operation option if there is content on the whiteboard: exit, exit, cancel after saving, perform function operation according to requirements; if there is no content on the whiteboard, click to exit the whiteboard.
  • Page 32 3. Click into the drawing tool, which includes: brush, eraser and insert shape. (1) Click to write the brush. 第 32 页 共 44 页...
  • Page 33 (2) Click to erase the wrong content. (3) The various tools used in the teaching process can be used directly in the drawing tool for convenient use. 4. Brush properties Click into the brush properties to change the brush's thickness, transparency, and brush effect as needed.
  • Page 34 5. Image source Click to enter the image source, you can insert pictures in the whiteboard, you can take pictures directly with the camera, you can also insert other required pictures. 6. Enter text Click the icon and click the edit box to insert the text display.。 第...
  • Page 35 (1) Click to enter the desired text, either in italic or bold. (2) Click to change the font color as needed. 第 35 页 共 44 页...
  • Page 36 to flip the text horizontally; click to flip the text vertically; （1）Click click to exit the input text; click to complete the text input and edit. 7. Background color Click to change the background color as needed. 7. Email sending: Click the icon.
  • Page 37 (1) If you use QQ mailbox to log in, the password needs to enter the authorization code to log in successfully; (Authorization code can view the authorization code after the SMTP service is enabled in the QQ mailbox setting) (2) If you use a corporate email address, such as foxmail mailbox, you need to change the SMTP address to: smtp.exmail.qq.com, and check the use of SSL, click Login;...

  • Page 38: Annotation

    Click to clear the whiteboard content. 1. Board eraser Touch the whiteboard area is greater than or equal to the threshold, which can trigger the wipe 2. Page preview (1) Open the page preview popup window: Click to display the current page as selected;...
  • Page 39 1. Toolbar operation instructions: (1) Click the icon to enable the brush to set the brush shape. (2) Click the icon to set the thickness and transparency of the brush. (3) Click the icon to set the thickness of the eraser. 第...

  • Page 40: Multi-Screen Interactive

    (4) Click the icon to set the color of the brush and the saturation and transparency of the color. (5) Click on the icon to clear all the contents of the annotation. (6) Click the icon to set the threshold of the annotation. 2.

  • Page 41: Application Interface Introduction

    2.3.1 Application Interface Introduction 1. Modify the device name Click the icon of the multi-screen interactive interface to pop up the Modify Device Name dialog box, and the user can customize the device name: 1. Network display Network 1 is a 5G hotspot, and the SSID and password can be modified in "Menu - Network - 5G Hotspot".
  • Page 42 1. Function activation (1) Trial activation: Click the multi-screen interactive interface icon, select the trial activation in the pop-up activation prompt box, and try it for free for 30 times. (2) Permanent activation: Select the commercial activation option, enter the activation code to activate permanently, and connect to the wireless network will automatically reactivate after the version is updated.
  • Page 43 Android 3. Screen display (1) Android mobile phone: It can carry out the same screen of mobile phone screen, local audio and video projection screen, and photo projection screen. The screen of the mobile phone can only display the screen of the mobile phone to the screen with the same screen, and the sound cannot be transmitted;...
  • Page 44 IQTouch L User Manual 20190711 第 44 页 共 44 页...
