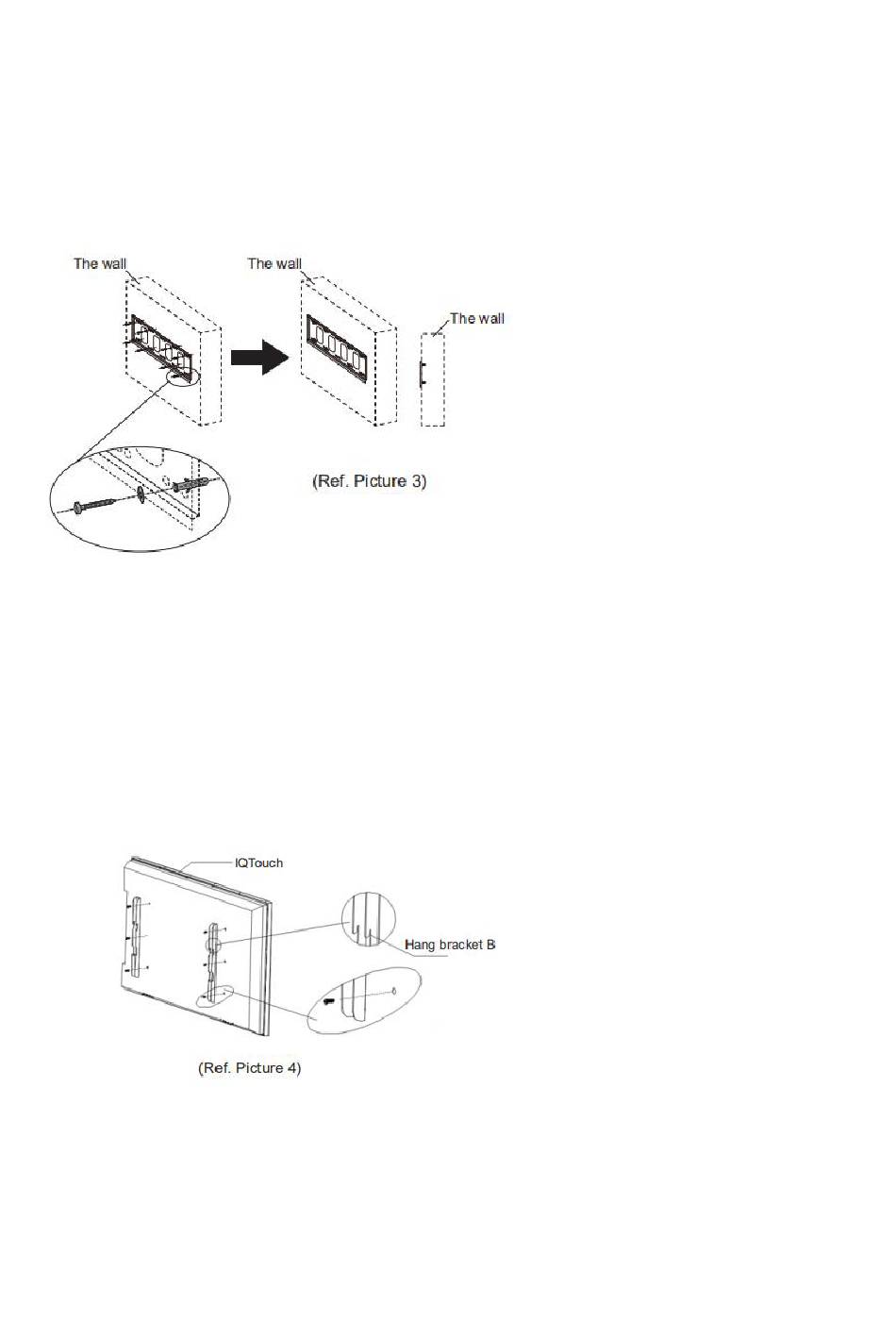

Install the wall mounting bracket A with 8pcs screws and gaskets. Please ensure that the wall
mounting bracket A is installed horizontally. (Ref. Picture3)
Step4: Install the left& right hang bracket B to IQTouch.
Use screws fix the hang bracket B at the back of IQTouch. Please check the direction of hang bracket
B before installation. (Ref. Picture 4)
Step5: Hang IQTouch on the wall mounting bracket A
15
