Lightspeed Cascadia C25 Quick Start Manual

Quick Start Guide
POWER
When the C25 is powered and ready to use, the Power light will glow.
STATUS
The C25 will enter a low-power mode after one hour of inactivity and
the Power light will turn off. Removing a paired microphone from the
cradle charger will wake up the C25.
USING THE CLEARMIKE
Remove microphone
from charger. Press
the power/mute
button to unmute,
hold near your mouth
and begin speaking.
ALIGN WITH
COLLARBONE
USING THE SHAREMIKE
Remove microphone
from charger and press
the mute button to
begin speaking.
CLEARMIKE OPERATION
(default screen shown)
NOTE: Alert functions only available if integration is
connected/enabled during setup.
BATTERY INDICATOR
(Full, Half, Empty)
MUTE
Help
INDICATOR/
VOLUME
Call
MIC NUMBER
M1
(M1 OR M2)
Networked Instructional Audio System
TALK/MUTE LIGHT
POWER/MUTE BUTTON
ADJUST
VOLUME
ADJUST
VOLUME
PROGRAMMABLE ALERT FUNCTIONS
• BLANK: No function
• CALL: Initiate call
• HELP: Request help
• CHECKIN: Check-in during emergencies
PROGRAMMABLE BUTTON 1
(
Press and hold for 2 seconds)
PROGRAMMABLE BUTTON 2
(
Press and hold for 2 seconds)
EMERGENCY ALERT
BUTTON (RED)
Press and hold
2 seconds to
activate alert
Push
Power
Status
Level
POWER LIGHT
CHARGE MICROPHONES NIGHTLY
• Place the microphones into the cradle charger.
• The Power Status light will glow red when it is charging.
SOLID WHITE OFF
• It takes about 5-6 hours to fully charge the battery.
Mute
• When charging is complete, the Power Status light
will glow green.
SOLID BLUE OFF
Talk
TALK (BLUE)
MUTE (WHITE)
POWER/MUTE
BUTTON
HOW TO PLACE A CALL
FROM YOUR CLEARMIKE
NOTE: Function only available if feature
was enabled during intital setup.
1. Plug earbud into the 3.5mm
jack on the microphone.
2. Insert earbud into ear.
3. Push and hold the button on
the microphone with a Call
label for 2 seconds.
4. Display will change to "Calling".
5. When call connects display will
change to "Call in progress".
6. Press "Cancel" to hang up call.

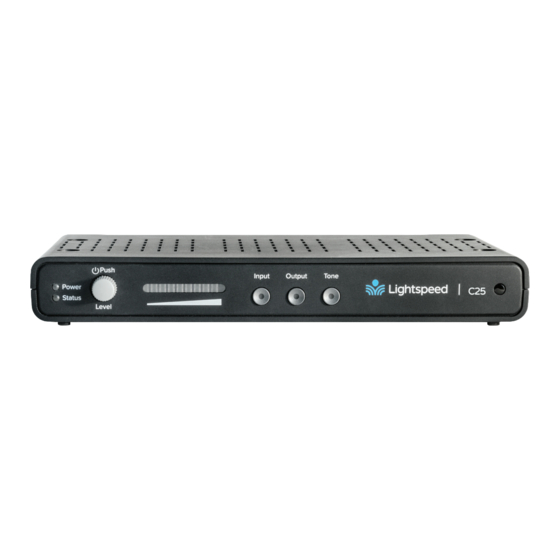

Input Output Tone
C C 25
CHARGING IN PROGRESS
CHARGING COMPLETE
POWER
STATUS
LIGHT
CRADLE CHARGER
25
