Summary of Contents for Lightspeed CAT 860

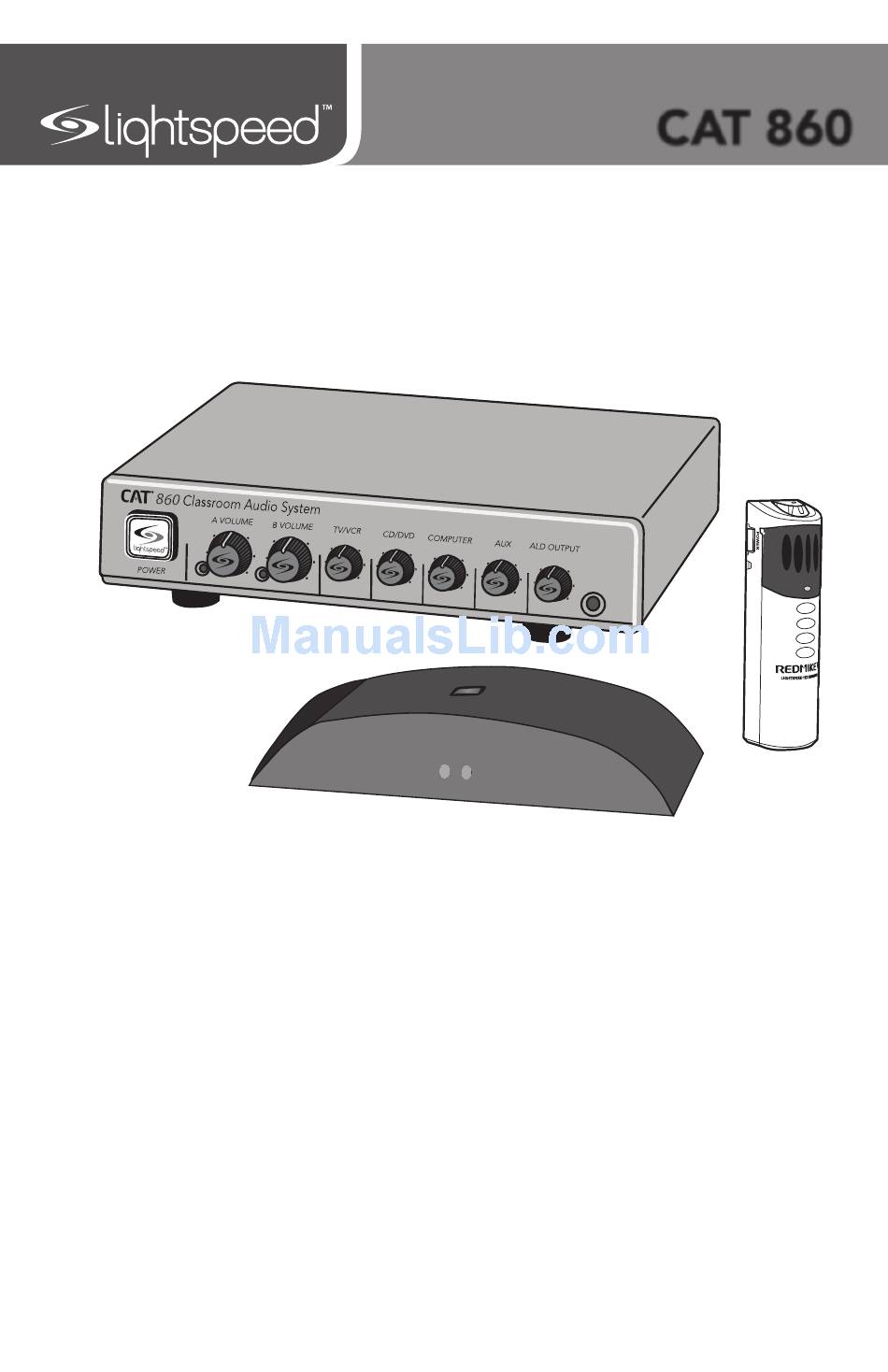

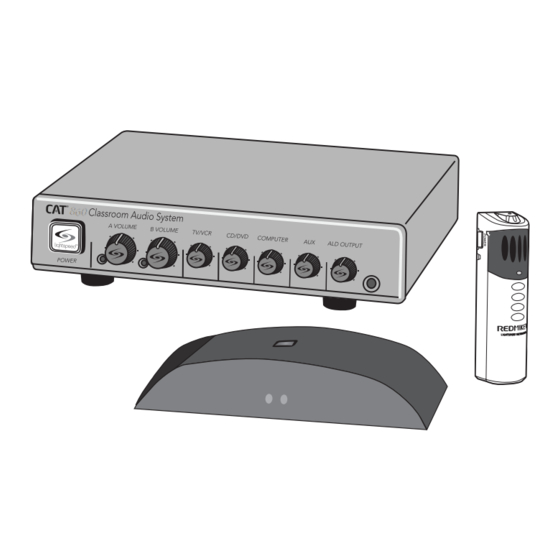

- Page 1 CAT 860 Classroom Audio System U s e r M a n u a l...
-
Page 3: Table Of Contents
Step 5D. Audio Input Connections Step 6. Audio Integration Step 7. Charging the REDMIKE Step 8. Set-up and Operation of REDMIKE 9. Audio Equalization of the CAT 860 10. Output to Personal Assistive Listening Device 11. Using the REDMIKE to Amplify External Audio Equipment 12. - Page 4 TABLE OF CONTENTS CONT’D 14. RS-232 Serial Interface Command Definition Basic Command Set for Audio Switcher Operations Audio Input Functions for the A/V Source Group 1. Enable Audio/Video Source Command 2. Increment Audio/Video Sources Command 3. Decrement Audio/Video Sources Command 4.
- Page 5 TABLE OF CONTENTS CONT’D 7. Differentially Decrease Volume for Selected Audio Output Command 8. Set Absolute Volume for Selected Audio Output Command 9. Query Absolute Volume for Selected Audio Output Command Audio Input Functions for the Infrared Source Group 1. Select Infrared Input Command 2.
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 11. Only use attachments/ accessories specified by the manufacturer. 2. Keep these instructions. 12. Use only with a cart, stand, tripod, 3. Heed all warnings. bracket or table specified by the 4. Follow all instructions. manufacturer, or sold with the apparatus. -
Page 8: System Components And Unpacking
SECTION 1: OVERVIEW SYSTEM COMPONENTS AND UNPACKING The standard configuration of the CAT 860 will contain: CAT 860 Amplifier Amplifier Power Supply ISR Infrared Sensor/ Receiver and Cable Charging Cradle and Power Supply REDMIKE® Classroom Microphone... - Page 9 DRQ (x 4) NXQ (x 1) MCQ (x 1) Standard Components AMP-860 Audio amplifier/mixer PS-24V-2.5 24V/2.5A power supply for CAT 860 RX-ISR Infrared sensor/receiver with mounting bracket CA-PSE50 50’ plenum-rated Cat 5e cable REDMIKE classroom microphone with battery BA-NH2A27 AA NiMH rechargeable sensing battery for REDMIKE...
-
Page 10: Optional Components
OPTIONAL COMPONENTS Optional equipment which may be part of your CAT 860 system: REDMIKE® VC Volume Control Microphone REDMIKE Share Handheld Mic & Charger Cable LT-71 LT-71 LightMic and Charger Cable Optional Components REDMIKE VC microphone with battery REDMIKE Share handheld microphone with battery pack... -
Page 11: Front Panel Controls
FRONT PANEL CONTROLS 1. POWER SWITCH/INDICATOR: 6. ALD OUTPUT AND VOLUME: Press this button to turn the CAT This jack sends mixed audio to 860 ON (pushed in) or OFF. When external equipment such as an the POWER is switched on, the assistive listening device (Personal blue LED indicator will light. -
Page 12: Rear Panel Controls
CAT 5 4. CHARGERS: These jacks can cable. Connect additional sensors be used to charge the optional to the CAT 860 to cover large or LightMic or handheld mic as an odd-shaped classrooms. alternative to connecting them to 11. -
Page 13: Infrared Sensor/Receiver (Isr) Connections
3. SENSOR OUT: Connect the CAT 5 will glow blue when the ISR is sensor cable to this connection to receiving power from the CAT 860. send audio from the microphones to the CAT 860 amplifier. 2. A/B IR INDICATORS: These lights glow when the corresponding 4. -
Page 14: Redmike Controls And Connections
REDMIKE CONTROLS AND CONNECTIONS 1. POWER BUTTON: Press this opening the compartment door, as button to turn the REDMIKE ON, it may tear, leaving fragments. press again to turn it OFF (mute). 5. AUDIO/MICROPHONE INPUT: 2. POWER/LOW BATTERY Use this input to plug in a laptop, INDICATOR: A BLUE light MP3 player or other audio indicates the REDMIKE is on and... -
Page 15: Cradle Charger Controls And Connections
CRADLE CHARGER CONTROLS AND CONNECTIONS 1. CHARGE INDICATORS: The light 2. DC POWER PORT: Connect the glows RED while the REDMIKE is DC power cord here. charging. When fully charged, the 3. OPTIONAL CHARGING PORT: light will glow GREEN. A blinking Plug the charging cord for the RED light indicates that no battery optional LT-71 or the REDMIKE... -
Page 16: Step 1. Location Of The Amplifier
Media Cabinet Set-up Wall-mount Set-up The included wall bracket is specifically designed to support the CAT 860. Avoid Separated Set-ups Components should be housed together. Wires should be routed back directly to the amplifier. - Page 17 Next, find a suitable location for the ISR. Poor location will cause substandard performance of the CAT 860 Classroom Audio System. The ISR should be as high as possible in the room – the ceiling is the best location, centered along the longest wall in the room.
-
Page 18: Suspended Ceiling Mount
Connect one end of the cable to the ISR. Secure wire overhead and route it back to the system. 4. Connect the other end of the Cat 5 sensor cable into the SENSOR INPUT jack on the CAT 860 amplifier. - Page 19 ISR off the bracket raceway where possible. 3. Slide the ISR onto the bracket until it “clicks” into place. 4. Connect the other end of the Cat 5 sensor cable into the SENSOR INPUT jack on the CAT 860 amplifier.
-
Page 20: Step 3. Installation Of Amplifier Wall-Mount Bracket
3. INSTALLATION OF AMPLIFIER WALL- MOUNT BRACKET The CAT 860 systems include a bracket for optional wall-mounting. A. Determine the location: a. It should be located near a power outlet. b. Height should allow for access to front control panel, but also be in compliance with building and ADA regulations. - Page 21 DC Power Source Cable 5B. ISR CONNECTION 1. Ensure the power is still switched off. 2. Check the connection from the ISR to the CAT 860. Ensure the sensor cable is securely attached and locked into place. ISR Sensor/Receiver CAT 860 Amplifier...
- Page 22 5C. SPEAKER CONNECTION(S) Next, connect the CAT 860 to the speakers. Then, be sure any auxiliary audio sources are connected to the corresponding labeled input on the CAT 860. 1. Ensure speaker wire connections are secure and not frayed. *Note: Wiring to these terminals...
-
Page 23: Step 6. Audio Integration
6. AUDIO INTEGRATION The next step in setting up your CAT 860 system is to connect it to the other multimedia devices in your classroom. You may have a computer, television, DVD/VCR player, a visual projection system or other devices. Below are instructions on how to integrate TV/VCR, CD/DVD or computer directly into the CAT 860. -
Page 24: Step 7. Charging The Redmike
7. CHARGING THE REDMIKE Before use, the REDMIKE should be charged. It will take 8-9 hours for the REDMIKE to obtain a full charge. A fully charged REDMIKE will last for over 7 hours of use. If microphones are used daily, they should be kept in the cradle – microphones can be left in a charging cradle constantly for up to 2 weeks without causing degradation to battery life. - Page 25 8. SETUP AND OPERATION OF REDMIKE Once the REDMIKE is charged, follow these steps to set it up for use. 1. Turn the CAT 860 power on. The blue LED will glow. 2. Remove the REDMIKE from the charging cradle and turn it on.
-
Page 26: 26 9. Audio Equalization Of The Cat 860
9. AUDIO EQUALIZATION OF THE CAT 860 The CAT 860 uses a 4-band audio equalizer designed to optimize and fine-tune the microphone sound quality for the classroom. Below are some tips on proper system equalization: • The voice should be natural, very clear and without any audio feedback (ringing) • Walk the room listening for the... -
Page 27: Output To Personal Assistive Listening Device
The Lightspeed LES-370 Personal the CAT 860. FM System requires a 3.5 mm to 5. With the CAT 860 and ALD turned 3.5 mm patch cable (part# CA- on, speak into the REDMIKE and MMC3535, not included). -
Page 28: Using The Redmike To Amplify External Audio Equipment
To determine which REDMIKE is set to Channel B, you can look at the switch on the back of the mike or speak into one of the mics and watch which set of LED’s glow on the front panel of the CAT 860 (A Volume or B Volume correspond to Channels A or B). -
Page 29: Pagefirst: Priority Mute
CAT 860. 4. When the page is over, the audio from the CAT 860 returns to normal volume level. (For full installation details refer to the install sheet included with the... -
Page 30: Rs-232 Serial Interface Programming
13. RS-232 SERIAL INTERFACE PROGRAMMING The CAT 860 uses standard RS-232 protocols as a serial link to an external control module such as an intelligent wall panel, or a personal computer. When the Control Select switch in the “RS-232” position, the serial link offers remote access to operational control circuitry within the CAT 860 for the purpose of controlling the volume of the audio input and output ports. -
Page 31: Connector Signal Wiring
RS-232 serial link to remotely send commands to initiate actions or queries for the CAT 860. In response, the CAT 860 uses the RS-232 serial link to send acknowledgements or status data back to external controller. -
Page 32: Summary Of Command & Response Transactions
13. RS-232 SERIAL INTERFACE PROGRAMMING CONT’D Summary of command and response transactions: 1. Action Command Functions for the Basic Command Set (Audio Switcher Operations): a. Enable One of Four Audio/Video Sources b. Increment and Decrement All Audio/Video Sources by 2dB c. - Page 33 The Query Command response is for the most part the query command repeated back to the serial controller. However, the response packet also includes one or two imbedded <Param> characters which contain the values of the pertinent CAT 860 registers. Example: CMD><Param><Param><EOT> Example: <STX><CMD><Param><EOT><STX><CMD><Param><Param><EOT>...
-
Page 34: Control Character Hex Value And Definition
Command Set: In this example, the serial controller sends an action command packet to the CAT 860 and in response the CAT 860 repeats back the action command packet the serial controller. The <Param> characters can be absent from the action command packet, but all response packets will have one or two added <Param>... -
Page 35: General Format For Query Command Exchange
If a single button press must issue a string of multiple command/query packets then each packet must be separated by at least a 10ms delay, or alternately, a new packet must wait until the CAT 860 issues a response packet/character before it can be sent. -
Page 36: Basic Command Set For Audio Switcher Operations
0x83 = Enable AUX IN EEPROM variables. 0x84 = Enable All Inputs ** Response Packet: If the command is properly received, the CAT 860 ** Power up default used responds by repeating back to facilitate initial system the command packet to the installation. -
Page 37: Increment Audio/Video Sources Command
The remaining three unselected audio/video source inputs remain muted. Response Packet: If the command is properly received, the CAT 860 responds by repeating back the command packet to the serial controller with an added imbedded <Param> character containing the value loaded. -
Page 38: Decrement Audio/Video Sources Command
The remaining three unselected audio/video source inputs remain muted. Response Packet: If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value loaded. If the command is not... -
Page 39: Increment Microphone Audio Inputs Command
<Param> character in the overrides any previous mute command packet. commands. Response Packet: If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value loaded. If the command is not... -
Page 40: Mute Audio/Video Sources Command
(TV/VCR, CD/DVD, <Param> character in the COMPUTER, and AUX). command packet. Response Packet: If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value 0x81... -
Page 41: Un-Mute Enabled Audio/Video Source Command
None of the input volume- level EEPROM variables are modified. Response Packet: If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value 0x80... -
Page 42: Mute Microphone Audio Inputs Command
(A & <Param> character in the B) to -79dB. command packet. Response Packet: If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value... -
Page 43: Toggle Mute For Enabled Audio/Video Source Command
Aux Audio Inputs remain set at -79dB. Response Packet: If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value 0x80 if the resultant state is “un-muted”... -
Page 44: Toggle Mute For Microphone Audio Inputs Command
When set to unmute, the 860 resets the microphone volumes to their previous volume setting. Response Packet: If the command is properly received, the CAT 860 responds by repeating back the command packet with an added imbedded <Param> character containing the value 0x80 if the resultant state is “un-muted”... -
Page 45: Query Enabled Audio/Video Source Command
Definition Symbol Value Command Packet: QEAV? 0xEB This command causes the CAT 860 to return a query The controller sends no response packet where the <Param> character in the added <Param> character command packet. contains the “enable” status set by EAVS (<0xE0>). -
Page 46: Query Absolute Volume Audio/Video Source Command
Definition Symbol Value Command Packet: QVAV? 0xEC This command causes the CAT 860 to return a query The controller sends no response packet where the <Param> character in the added imbedded <Param> command packet. character contains the absolute volume-level for the audio/video sources inputs. -
Page 47: Query Absolute Volume Microphone Audio Input Command
Definition Symbol Value Command Packet: QVMI? 0xED This command causes the CAT 860 to return a query The controller sends no response packet where the <Param> character in the added <Param> character command packet. contains the absolute volume-level for the microphone audio inputs. -
Page 48: Query Mute For Audio/Video Source Command
Definition Symbol Value Command Packet: QMAV? 0xEE This command causes the CAT 860 to return a query The controller sends no response packet where the <Param> character in the added imbedded <Param> command packet. character contains the mute state for the audio/video sources. -
Page 49: 15. Query Mute For Microphone Audio Inputs Command
Definition Symbol Value Command Packet: QMMI? 0xEF This command causes the CAT 860 to return a query The controller sends no response packet where the <Param> character in the added imbedded <Param> command packet. character contains the mute state for the microphone audio inputs. -
Page 50: Advanced Command Set For Audio Mixer Operations
If the command is properly received, the CAT 860 responds by repeating back the command packet where the <Param> character contains the selection status. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. -
Page 51: 51 2. Query Selected Audio Input Command
Definition Symbol Value Command Packet: AICH? 0x91 This command causes the CAT 860 to return a query The controller sends no response packet where <Param> character in the the <Param> contains the command packet. selection status set by AICH (<0x90>). -
Page 52: Differentially Increase Volume For Selected Audio Input Command
EEPROM variable which was modified by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. For the audio inputs, the power up default values for all six input volume-level... -
Page 53: Differentially Decrease Volume For Selected Audio Input Command
EEPROM variable which was modified by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. For the audio inputs, the power up default values for all six input volume-level... -
Page 54: Set Absolute Volume For Selected Audio Input Command
EEPROM variable which was modified by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. For the audio inputs, the power up default values for all six input volume-level... -
Page 55: Query Absolute Volume For Selected Audio Input Command
<Param> characters contains the selection status set by AICH (<0x90>) and the second contains the value stored in the volume-level EEPROM variable selected by the AICH (<0x90>) command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. -
Page 56: Select Audio Output Command
QUERY SELECTED AUDIO OUTPUT COMMAND AOCH? 0xA1 Command Packet: This command causes the CAT 860 to return a query The controller sends no response packet where <Param> character in the the <Param> contains command packet. the selection status set by AOCH (<0xA0>). -
Page 57: Differentially Increase Volume For Selected Audio Output Command
EEPROM variable which was modified by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. For the audio outputs, the power up default values for all volume-level EEPROM... -
Page 58: Differentially Decrease Volume For Selected Audio Output Command
EEPROM variable which was modified by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. For the audio outputs, the power up default values for all output volume-level... -
Page 59: Set Absolute Volume For Selected Audio Output Command
EEPROM variable which was modified by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. For the audio inputs, the power up default values for all output volume-level... -
Page 60: Query Absolute Volume For Selected Audio Output Command
Definition Symbol Value AOAV? 0xA5 Command Packet: This command causes the CAT 860 to return a query The controller sends no response packet where <Param> character in the the first of two <Param> command packet. characters contains the selection status set by Response Packet: AOCH (<0xA0>) and the... -
Page 61: Audio Input Functions For The Infrared Source Group
0x81 = IR Channel B QUERY SELECTED INFRARED INPUT COMMAND IICH? 0xB1 Command Packet: This command causes the CAT 860 to return a query The controller sends no response packet where <Param> character in the the <Param> contains the command packet. -
Page 62: Differentially Increase Volume For Selected Infrared Input Command
EEPROM variable which was modified by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. For the audio inputs, the power up default values for all six input volume-level... -
Page 63: Differentially Decrease Volume For Selected Infrared Input Command
EEPROM variable which was modified by this command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. For the audio inputs, the power up default values for all six input volume-level... -
Page 64: Set Absolute Volume For Selected Infrared Input Command
This overrides any prior mute operation. If the command is properly received, the CAT 860 responds by repeating back the command packet where the first of two replacement <Param> characters contains the selection status set by IICH (<0xB0>) and the second contains the resultant value stored in the volume-level EEPROM variable which was modified by this command. -
Page 65: 60 5. Query Absolute Volume For Selected Infrared
<Param> characters contains the selection status set by IICH (<0xB0>) and the second contains the value stored in the volume-level EEPROM variable selected by the IICH (<0xB0>) command. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. -
Page 66: Input Muting Functions Group
If the command is properly received, the CAT 860 responds by repeating back the command packet where the <Param> character contains the mute selection status. If the command is not received properly, the CAT 860 responds by sending a <NACK> character. - Page 67 If the command is properly received, the CAT 860 responds by repeating back the command packet where the <Param> character contains the un-mute selection status. If the command is not received properly the CAT 860 responds by sending a <NACK> character. Note: The un-mute operations will override any mute operations performed as...
-
Page 68: System Management Functions Group
Value Command Packet: Response Packet: MREV? 0xC0 This command causes (Controller sends no param the CAT 860 to return a value.) query response packet containing up to sixteen <param> characters. Each <param> value represents one ASCII character of a string indicating the product model and software version. - Page 69 0x81 = one 1dB step 0x82 = two 1dB steps 0x83 = three 1dB steps CAT 860 responds with 0x84 = four 1dB steps <ACK> only. 0x85 = five 1dB steps 0x86 = six 1dB steps...
-
Page 70: Query Model And Software Version Command
Controller sends no param Query model and value. software version. (Param string in response packet will be composed of up to sixteen ACSII alphanumeric characters.) PING 0XC1 Controller sends no param Ping CAT 860iR. value. CAT 860 responds with <ACK> only. -
Page 71: Section 3
SECTION 3: OPTIONAL ACCESSORIES OPTIONAL REDMIKE VC (Volume Control) Controls and Connections 1. POWER /MUTE BUTTON source to wirelessly transmit audio to be played through the 2. POWER/LOW BATTERY system. Alternatively, an external INDICATOR: A BLUE light microphone can be connected. indicates the REDMIKE VC is on 6. -
Page 72: Charging
REDMIKE VC : Charging Before use, the REDMIKE VC should be charged. See page 20 and follow the same instructions for the REDMIKE. REDMIKE VC : Initial Set-up See page 17 and follow the same instructions for the REDMIKE to setup the REDMIKE VC. - Page 73 OPTIONAL LT-71: Controls and Connections LT-71 LT-71 1. ON/OFF/MUTE Switch 5. AUXILIARY (AUX): Plug a laptop, MP3 player or other audio source 2. CHANNEL SELECT SWITCH (CH into this jack to wirelessly transmit A/B): Use this to choose Channel the audio signal to be played A or B.
- Page 74 LT-71: Charging 1. Ensure that the LT-71 is turned OFF. 2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGER on the side of the LT-71 and plug the other end into the charging jack on the rear of the REDMIKE cradle charger.
- Page 75 LT-71: Initial Set-up Once the LT-71 is charged, follow these steps to set it up for use. 1. Turn the CAT 860 power switch to the ON position. The RED LED on the switch will glow. 2. Turn on the LT-71 and set the operating channel to “B”.
-
Page 76: Redmike Share: Controls And Connections
REDMIKE Share: Controls and Connections 1. POWER SWITCH 2. POWER/CHARGE INDICATOR: this light glows blue when turned on and turns off to indicate low battery level. When charging, the light glows red. 3. AUDIO INPUT: plug a laptop, MP3 player or other audio device into this jack to wirelessly transmit the audio signal to be played through the system. - Page 77 REDMIKE Share: Charging 1. Ensure that the REDMIKE Share is 3. Plug the other end into the turned OFF. charging jack on the rear of the cradle charger. 2. Make sure the cradle charger is plugged into a wall outlet. 4.
- Page 78 REDMIKE Share: Initial Set-up 1. Ensure the CAT 860 is ON. The RED LED on the power switch will glow. 2. Turn on the REDMIKE Share by sliding the switch to the top position. 3. Grip the barrel in the center section.
-
Page 79: Initial Set-Up
(such as many DVD players) adjust the volume at the iRMC. C. If the first two options do not give optimum volume level, the last place to adjust the volume is the CH. B Volume on the CAT 860. -
Page 80: Other Optional Accessories
OPTIONAL IR MEDIA CONNECTOR AUDIO INTEGRATION The iRMC is designed to integrate with the CAT 860 and multiple audio sources, allowing other instructional technologies to be clearly heard throughout the classroom. Video In Projector Projector IR Sensor IR Transmission Teacher’s... -
Page 81: Troubleshooting
PROBLEM: Hearing Static front panel switch is on. SOLUTION: Follow these steps to • Confirm signal is being received at eliminate static. the CAT 860. The IR signal light will • Ensure sensor is in optimum be RED indicating a signal is being location (refer to sensor placement received. - Page 82 TIPS TO OBTAIN OPTIMUM AUDIO PERFORMANCE • Speak in a natural voice. A normal conversational speech level will provide an adequate signal. It is not necessary to increase the intensity of your voice—the audio system provides adequate amplification (approximately 5 – 10 dB) above ambient room noises. • Avoid wearing jewelry that may rub or bump against the microphone.
-
Page 83: Warranty
SECTION 5: WARRANTY, SAFETY & SPECIFICATIONS FIVE-YEAR LIMITED WARRANTY Lightspeed Classroom Audio Systems are guaranteed against malfunction due to defects in materials and workmanship for a period of FIVE (5) YEARS, beginning at the date of the purchase invoice. If such malfunction occurs, the product will be repaired or replaced (at Lightspeed’s option) without charge during the warranty period. -
Page 85: Safety Warnings And Certifications
SAFETY WARNINGS AND CERTIFICATIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED PERSONNEL CERTIFICATIONS This product is listed to UL standards and requirements for electrical safety by Audio/Video Underwriters Laboratories Inc. -
Page 86: System Specifications
SYSTEM SPECIFICATIONS OVERALL SPECIFICATIONS Power Output 12 W per channel (24 W total) Amplifier Frequency Response 60 Hz to 20 kHz ±3 dB Carrier Frequencies (IR) 2.06/2.54; 3.2/3.7 MHz Signal-to-Noise Ratio > 73 dB Image and Spurious Rejection > 70 dB AMPLIFIER SPECIFICATIONS Receiver Type Superheterodyne... - Page 88 LIGHTSPEE D TE CHNOLOGIES 1 1509 SW HERMAN RO AD / TUAL ATI N, OR 970 62 TOL L F REE: 800.732 .89 99 / PHO NE: 503.68 4.5 538 / FAX: 503.684.3197 LIG HTSPEE D-TEK. COM MN0258US01-3...
