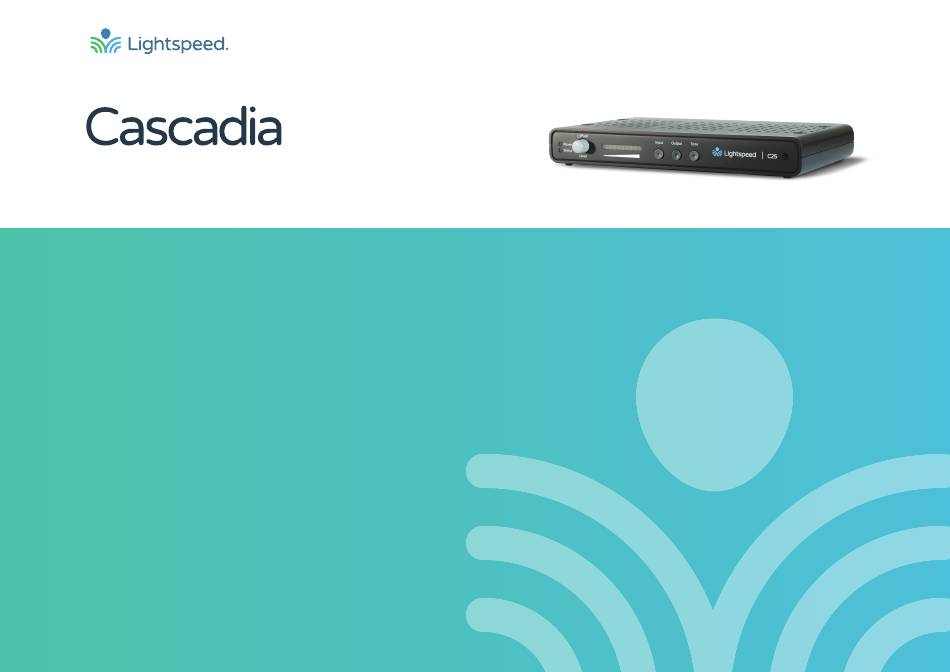

  • Page 1 Networked Instructional Audio System User Manual...

  • Page 2: Table Of Contents

    Table of Contents OVERVIEW SOFTWARE OPERATION Important Safety Instructions Cascadia Web Console System Components Dashboard Optional Components Base Details: Status Optional Speakers Base Details: Paired Devices C25 Controls and Indicators Base Details: Audio Settings Clearmike Controls and Connections Base Details: Status History...

  • Page 3: Overview

    (8) Do not put the battery in trash that outlet. is disposed of in landfills. When disposing of the battery pack, comply with local ordinances or regulations. 7. CAUTION: Risk of explosion if battery is replaced by any battery other than Lightspeed Part # L3.7V...

  • Page 4: Consignes De Sécurité Importantes

    (8) Ne jetez pas la batterie dans des ordures qui sont jetées dans des décharges. Lors de la mise au rebut de la batterie, respectez les ordonnances ou réglementations locales. 7. Mise en garde: Risque d’explosion si la batterie est remplacée par une batterie autre que Lightspeed partie #L3.7V.

  • Page 5: System Components

    System Components Cascadia, a networked instructional audio platform, integrates directly with leading life-safety, paging and intercom, and phone systems to provide teachers with all the benefits of instructional audio in the classroom, plus the ability to quickly initiate a silent, emergency alert or call the front office for everyday communication, from anywhere across the campus.

  • Page 6: Optional Components

    Optional Components OPTIONAL EQUIPMENT WHICH MAY BE PART OF YOUR C25 SYSTEM Power Status Media Media Connector Connector Push Audio Audio Tone Level Input Output SHAREMIKE MEDIA CONNECTOR Student Microphone (Optional) and Power Adapter...

  • Page 7: Optional Speakers

    Optional Speakers SYSTEMS CAN BE CONFIGURED WITH A VARIETY OF CEILING OR WALL-MOUNTED SPEAKERS, INCLUDING THESE LIGHTSPEED MODELS. (x 1) (x 4) Hybrid Ceiling Speaker Ceiling Speaker 4JCS (x 4) (4 per room) Wall Speaker Plenum Ceiling Speaker Available in U.S. and Canada only...

  • Page 8: C25 Controls And Indicators

    C25 Controls and Indicators FRONT PANEL POWER LIGHT AUDIO INPUT VOLUME SELECTOR: Selects Audio Input as White light: Power on the mode for the adjustment knob (3) for the audio sources connected to the audio inputs on the back of the C25. STATUS LIGHT: Microphone link and pair indicators.

  • Page 9: Back Panel

    C25 Controls and Connections BACK PANEL SPEAKER OUTPUTS: This Euroblock connector is used to PAGEFIRST INPUT: Connect the input from the optional connect the C25 to the loudspeaker(s). Up to two 8-ohm PageFirst sensor here when interfacing with a building’s speakers can be connected to each output.

  • Page 10: Clearmike Controls And Connections

    Clearmike Controls and Connections POWER/MUTE BUTTON: Press and hold 1 second to power on. Press and hold for 2 seconds to power off. Tap to mute or talk. Press and hold for 5 seconds to initiate pairing. IR TRANSMITTER: For pairing to base unit. TALK/MUTE LIGHT: See page 10 for light color descriptions.

  • Page 11: Power Status Light

    Microphone Lights LEFT LIGHT / RIGHT LIGHT OFF / OFF: Mic off or no live link with base SOLID WHITE / OFF: Mute, live link with base SOLID BLUE / OFF: Talk ANY COLOR / BLINKING RED: Low Battery TALK/MUTE LIGHT POWER STATUS LIGHT BLUE/WHITE ALTERNATING / OFF: Pairing OFF / BLINKING ORANGE: Firmware update in progress...
  • Page 12 • CALL: Initiate call The volume buttons and mute microphone on the Clearmike • HELP: Request help button will still work. Student mode can only be turned on or off • CHECKIN: Check-in during emergencies using the Cascadia Web Console.

  • Page 13: Microphone Cradle Charger

    Microphone Cradle Charger DC POWER PORT: Connect the 5V/1.0A DC power cord...

  • Page 14: Set-Up & Operation

    SET-UP & OPERATION Power over Ethernet (PoE+) • Locate network switch that can support PoE+ power. • Insert PoE+ Ethernet Cable into the “Ethernet” port on C25 and the other end to the PoE+ Ethernet Cable network switch. • The C25 automatically powers on and the white Power light on the front panel will turn on. Connecting the Power Supply •...

  • Page 15: Charging The Clearmike

    Clearmike will last for up to 8 hours of use. If microphones are used daily, they should be charged each night. Replacement lithium polymer battery packs may only be purchased through Lightspeed (part # L3.7V). CHARGING IN PROGRESS CHARGING COMPLETE...

  • Page 16: Setting Up The Clearmike

    Setting Up the Clearmike Once the Clearmike is charged, follow these steps for use. Remove the Clearmike from the charger and put it on by connecting the magnetic clasps behind your neck. Adjust the lanyard so that the top of the Clearmike aligns with the collarbone.

  • Page 17: Private Conversations

    Daily Use of the Clearmike AT THE START OF THE DAY, REMOVE CLEARMIKE FROM THE CHARGER POWER / MUTE BUTTON • The microphone will default to the Mute state, the Talk/Mute light will turn to white. TALK / MUTE • Place the microphone around your neck. LIGHT •...

  • Page 18: Network Integration

    Network Integration IP-BASED PBX SYSTEM CASCADIA WEB IP-BASED PAGING/ CONSOLE INTERCOM SYSTEM For call integration TEACHER MICROPHONE NETWORK Lightspeed Access transmission protocol Push Input Output Tone Power C C 25 Status Level...

  • Page 19: Using An Alert Notification

    This will cause the alert notification system to perform a prescribed action, such as notifying the appropriate parties of a classroom alert. The alert will also be tracked in the Cascadia Web Console. See page 46-47 for information on programming the microphone buttons.

  • Page 20: Placing A Call

    Placing a Call The C25 can integrate with some IP based PBX systems to enable calls to be placed from the Clearmike. All C25 systems on the network will call the same phone number, determined by the school. The Clearmike will act as the microphone for the call, but an external earbud must be used to hear the call.

  • Page 21: Pairing Your Clearmike

    Pairing your Clearmike Your system is shipped with microphones and base units pre-paired for quick and easy use. If for any reason you need to pair new components, follow this pairing process: PLEASE NOTE: All microphones must be out of the charger while pairing. Push Input Output...

  • Page 22: Output Audio To Assistive Listening Device (Ald)

    Output Audio to Assistive Listening Device (ALD) Press the Audio Output Selector first, then turn the volume control on the front panel all the way down (fully counterclockwise). Determine the type of audio input jack on the ALD as manufacturers’ products differ in connector size and shape. Many require a 3.5 mm to 3.5 mm patch cable (part# MSC3535, Wall Plate Ethernet...

  • Page 23: Using Your Microphone As A Wireless Audio Link

    • Select Lightspeed Audio as the Output source to send all computer audio to the C25 system • Select Lightspeed Audio as the Input source to use the Lightspeed microphones as the computer microphone audio for video USB cable sold separately.

  • Page 24: Audio Integration

    Audio Integration INTERACTIVE DISPLAY SPEAKERS Audio Out AUDIO SOURCE TEACHER MICROPHONE Audio Out Audio In Lightspeed Access transmission protocol Audio In Push Input Output Tone Power C C 25 Status Level Audio Out Audio Out...

  • Page 25: Analog Control Features

    Analog Control Features The 975 connects and responds to several important third-party life safety solutions. 1. INPUT PRIORITY 2. PAGEFIRST 3. RELAY INPUT 4. ALERT NOTIFICATION MUTES CL A S SRO OM AUDIO S YS TEM MUTES CL A S SRO OM AUDIO S YS TEM MUTES CL A S SRO OM AUDIO S YS TEM INITI ATES A LERT WITH CLE A RMIK E When an audio source is connected to...
  • Page 26 As a page is broadcast, the sensor clip detects the audio signal through induction and immediately mutes the amplifier. When the page is over, the audio from the amplifier returns to normal volume level. Adjust sensitivity in Cascadia Web Console.

  • Page 27: Optional Accessories

    OPTIONAL ACCESSORIES Sharemike Controls and Connections POWER BUTTON NORMAL OPERATION CHARGING IN PROGRESS POWER STATUS LIGHT Red light: During operation, turns red to indicate low battery CHARGING COMPLETE White light: Normal operation NORMAL OPERATION When charging in Cradle Charger: PAIRING IN PROGRESS (FLASHING) Red light: Charging Green light: Charging complete TALK...

  • Page 28: Sharemike: Charging

    Sharemike: Charging Make sure the charger is plugged into a wall outlet. The power status light on the microphone will glow red to indicate charging. Leave the Sharemike in the charger overnight to obtain a full charge. It takes about 5-6 hours to fully charge the battery. The light will turn green when charging is complete.

  • Page 29: Power Button

    Sharemike: Initial Set-Up Ensure the C25 is on. The white power light will glow. Turn on the Sharemike by pressing and holding the power button until the LED lights. Tap the power button to unmute the microphone. The Mute/Talk light will turn from white to blue. Grip the barrel in the center section.

  • Page 30: Pairing Your Sharemike

    Pairing your Sharemike Your system is shipped with microphones and base units pre-paired for quick and easy use. If for any reason you need to pair new components, follow this pairing process: PLEASE NOTE: All microphones should be out of the charger while pairing. Push Input Output...

  • Page 31: Media Connector Controls And Indicators

    Media Connector Controls and Indicators FRONT PANEL POWER LIGHT AUDIO INPUT VOLUME SELECTOR: Selects Audio Input as White light: Power on the mode for the adjustment knob (2) for the audio sources connected to the audio inputs on the back of the Media POWER BUTTON / VOLUME ADJUSTMENT: Press and hold Connector.
  • Page 32 Media Connector Controls and Indicators BACK PANEL AUDIO INPUTS: 3.5mm stereo connectors for connecting classroom audio sources to be played through audio system. AUDIO OUTPUTS: 3.5mm stereo connectors for connecting to an assisted listening device (ALD) or to a computer for recording. USB INPUT: Plug the USB-C end of the power cable into this USB port on the Media Connector.

  • Page 33: Media Connector Set Up And Operation

    Media Connector Set Up and Operation Media Connector Set Up and Operation DETERMINE LOCATION Media Connector is designed to be connected to the primary media source in the classroom, usually the computer or display panel. WALL MOUNT OR DESKTOP The Media Connector can be placed on a table surface or wall- mounted.

  • Page 34: Connecting Media Connector To Audio

    • Unplug USB cable from Media Connector COMPUTER SETTINGS • Press and hold Audio Output button Once connected, open computer sound setting to select “Lightspeed Audio” as the microphone and speaker. • Plug USB cable back to Media Connector • Status light turns white to indicate USB disabled •...

  • Page 35: Pairing C25 To Media Connector

    Pairing C25 to Media Connector Your system is shipped with microphones and base units pre-paired for quick and easy use. If for any reason you need to pair new components, follow this pairing process: PLEASE NOTE: Microphones should be out of the charger while pairing. Push Input Output...
