- Page 1 User Manual Model ID: COLORADO2QUADZOOM...
- Page 2 Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and COLORado are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... 3 Claims ......................3 Text Conventions ..................3 Symbols ......................3 Safety Notes....................4 FCC Statement of Compliance ..............5 Expected LED Lifespan................. 5 2. Introduction ................Description .................... - Page 4 Table of Contents 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................26 TOC ii Colorado 2 Quad Zoom User Manual Rev. 5...
-
Page 5: Before You Begin
Before You Begin 1. Before You Begin What Is Included • Colorado 2 Quad Zoom • Gel frame holder (9 in/229 mm accessories) • Seetronic Powerkon IP65 power cord • Quick Reference Guide • Gel frame Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 6: Safety Notes
Before You Begin Safety Notes These safety notes contain important information about the installation, use, and maintenance of the product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Fcc Statement Of Compliance
Before You Begin FCC Statement of Compliance This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Introduction

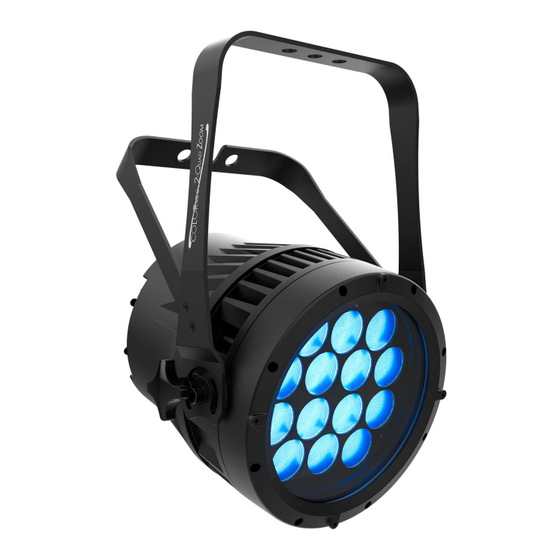

Introduction 2. Introduction Description The Colorado 2 Quad Zoom is a ruggedly built wash light with 14 high-output RGBW LEDs. IP-rated power and data connectors allow for easy connections. Using IP-rated DMX cables allows the fixture to maintain its IP65 rating, but standard 3- or 5-pin XLR DMX cables work perfectly for indoor use. A 7° to 45° zoom range allow beam control in a multitude of application, and selectable dimming curves allow the user to integrate the product into any existing rig. -
Page 9: Product Overview
Introduction Product Overview Name Power out Data out Control panel Power in Data in Safety loop Double bracketed yoke Bracket adjustment knob Colorado 2 Quad Zoom User Manual Rev. 5... -
Page 10: Product Dimensions
Introduction Product Dimensions 12.9 in 330 mm 9.2 in 236 mm 11.1 in 284 mm Colorado 2 Quad Zoom User Manual Rev. 5... -
Page 11: Setup
Setup 3. Setup AC Power Each Colorado 2 Quad Zoom has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 12: Master/Slave Connectivity
Setup Master/Slave Connectivity The Master/Slave mode allows a Colorado 2 Quad Zoom (the master) to control one or more Colorado 2 Quad Zoom products (the slaves) without a DMX controller. One Colorado 2 Quad Zoom becomes the master when running an auto or custom program, or by being in a Static mode. Each slave’s control panel must be configured to operate in Slave mode. -
Page 13: Procedure
The Colorado 2 Quad Zoom comes with a double-bracketed yoke. The user can either attach mounting clamp (sold separately) to this bracket for hanging or simply use it as a floor stand. Make sure the clamps are capable of supporting the weight of this product. For the Chauvet Professional line of mounting clamps, go to http://trusst.com/products/. -
Page 14: Operation
Operation 4. Operation Control Panel Operation Button/Knob Function <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the selected value into the selected <ENTER> function Navigates upwards through the menu list or increases the numeric value when in a <UP>... -
Page 15: Menu Map
Operation Menu Map Main Programming Levels Description Level Combines red, green, blue, and white to make a custom color 0-255 (0–100%) STAT Changes the beam angle (zoom) Selects the strobe 0-20 frequency (0–20 Hz) Selects automatic programs and AT. 1-10 auto program speed AUTO PR 1-10... - Page 16 Operation Main Programming Levels Description Level **** Uploads custom programs to other UPLD Colorado 2 Quad Zoom (Enter Passcode) REST Resets the fixture to factory defaults RGB set to 255 = max. output COLR RGBW RGB set to 255 = balanced white Universal color balance DIM1 Selects dimming profiles from fast...
-
Page 17: Dmx Configuration
Operation DMX Configuration Use DMX configurations to operate the product with a DMX controller. DMX Personalities To set the DMX personality. Go to the PERS main level. Select the desired personality (TOUR, TR16, STD.Y, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, or HSV). •... -
Page 18: Dmx Values
Operation DMX Values TR16 Function Value Percent/Setting Dimmer 255 0-100% Fine control (16-bit) (Step Duration if Fine Dimmer Custom 1–10 in CH. 13 is active) 255 0-100% (Fade Duration if Custom 1–10 in CH. 13 is active) Fine Red 255 Fine control (16-bit) ... - Page 19 Operation TR16 Function Value Percent/Setting Preset dimmer speed from display menu Linear dimmer Nonlinear dimming curve 1 (fastest) Dimmer Speed Nonlinear dimming curve 2 Nonlinear dimming curve 3 Nonlinear dimming curve 4 (slowest) Zoom 255 0-100% ...
- Page 20 Operation STD.Y Function Value Percent/Setting No function Auto 1 Auto 2 Auto 3 Auto 4 Auto 5 Auto 6 Auto 7 Auto 8 Auto 9 Programs Auto 10 Custom 1 ...
- Page 21 Operation TOUR Function Value Percent/Setting White 1 White 2 White 3 White 4 Color Macro + White 5 White White 6 Balance White 7 White 8 White 9 White 10 White 11 ...
- Page 22 Operation AR2.S Function Value Percent/Setting Dimmer 255 0-100% 255 0-100% Green 255 0-100% Blue 255 0-100% White 255 0-100% No function Strobe 0-20 Hz AR2.D Function Value Percent/Setting Dimmer 255 0-100% 255 0-100% ...
-
Page 23: Standalone Configuration
Operation Standalone Configuration Use standalone configuration to operate the product without a DMX controller. Auto Programs Auto programs allow for dynamic RGBW color mixing without a DMX controller. Go to the AUTO main level Select the desired auto program (AT. 01–10) or custom program (PR. 01–10) It is not possible to edit any of the auto programs (AT. -
Page 24: Dimmer Profiles
Operation Dimmer Profiles This setting determines how fast the output of the Colorado 2 Quad Zoom changes when the values of the red, green, blue, amber, and dimmer faders are modified. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. Go to the SET main level. -
Page 25: Reset
Operation Reset This setting resets the Colorado 2 Quad Zoom to the default values including the custom programs. Go to the SET main level. Select REST When PASS shows, press <ENTER>. Enter the master access passcode as described in Passcode. Wait for the reset process to finish. -
Page 26: Technical Information
Technical Information 5. Technical Information Product Maintenance To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. - Page 27 Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight 12.9 in (330 mm) 11.1 in (284 mm) 9.2 in (236 mm) 18.8 lb (8.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (internal)
- Page 28 ontact Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd., Suite 509 Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K. Address: Pod 1 EVO Park Email: UKtech@chauvetlighting.eu...
