Summary of Contents for Chauvet Professional cloud 9

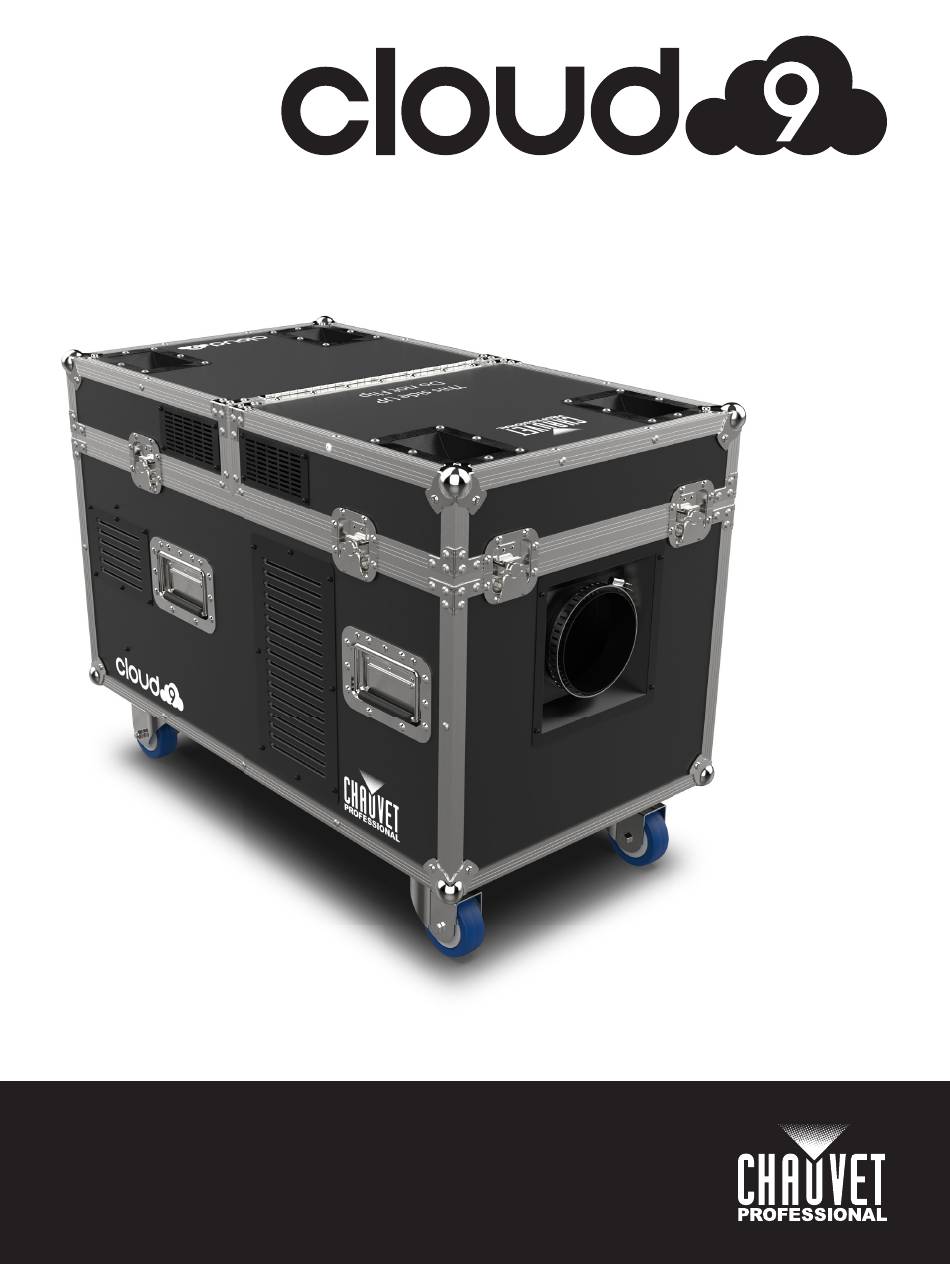

  • Page 1 User Manual Model ID: CLOU9 220VCLOUD9...
  • Page 2: Edition Notes

    Edition Notes The Cloud 9 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Cloud 9 as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Cloud 9 are registered trademarks or trademarks of Chauvet &...
  • Page 3: Table Of Contents

    Duration.......................... Timer Out ........................Volume Out ........................Fluid Sensor ........................Direct Timer........................Error Codes....................12 5. Maintenance................Fog Machine Maintenance................13 Storage......................13 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................15 Cloud 9 User Manual Rev. 8...
  • Page 4: Before You Begin

    The product has XLR sockets for DMX input and output. • Notice: This control circuit is isolated and belongs to the Class 2 data port. The control circuit has a cumulative leakage current of less than 3.5 mA. Cloud 9 User Manual Rev. 8...
  • Page 5: Safety Notes

    To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it. • In the event of a serious operating problem, stop using immediately. If this Chauvet product requires service, contact Chauvet Technical Support. Cloud 9 User Manual Rev. 8...
  • Page 6: Introduction

    • Use without dry ice or CO —no special licensing or training required • Quick connector allows easy attachment of the directional hose to the unit with just a turn ¼ Cloud 9 User Manual Rev. 8...
  • Page 7: Product Overview

    Name Name 3-pin DMX in/out Power switch 5-pin DMX in/out Power in (x2) Breaker Drainage/overflow valves Cloud 9 230V Name Name 5-pin DMX in/out Power in Drainage/overflow valves Power switch 3-pin DMX in/out Breaker Cloud 9 User Manual Rev. 8...
  • Page 8: Overview 2

    Introduction Overview 2 Name Name Fluid tank Open/close water tank LCD display Fluid level indicator Menu buttons Handles (x4) Distilled water tank Nozzle Cloud 9 User Manual Rev. 8...
  • Page 9: Product Dimensions

    Introduction Product Dimensions 19.3 in (490 mm) 20.6 in (524 mm) 25 in (630 mm) 34 in (860 mm) Cloud 9 User Manual Rev. 8...
  • Page 10: Setup

    AC Power Each Cloud 9 has a fixed power supply that works with an input voltage of either 120 VAC (60 Hz) or 230 VAC (50 Hz), depending on the specific model. To determine the power requirements for each Cloud 9, refer to the label affixed to the product.
  • Page 11: Mounting

    Make sure that the structure and attachment points can support the weight before hanging the product (see the Technical Specifications for weight information). Procedure The Cloud 9 includes 4 rubber wheels that are attached for floor mounting. Floor Mounting Diagram Wheels (x4) for floor mounting Cloud 9 User Manual Rev. 8...
  • Page 12: Hose Attachment

    Hose Attachment The Cloud 9 comes with a quick connector, a directional hose, and a clamp that attaches to the nozzle for a low-lying fog effect. To attach or remove the hose, use the quick connector to secure the directional hose to the nozzle.
  • Page 13: Operation

    Cloud 9. While operating the Cloud 9, make sure there is adequate fog or haze fluid and distilled water in the machine to prevent pump and heater damage. When the fog fluid/distilled water level becomes low, simply add more fog or haze fluid to continue using the Cloud 9.
  • Page 14: Control Panel Operation

    The Cloud 9 can operate with the top lid on or off. Control Options Set the Cloud 9 starting address in the 001-512 DMX range. This enables control of up to 256 products in the 2-channel personality. Programming Refer to the Menu Map to understand the menu options.
  • Page 15: Dmx Channel Assignments And Values

    Displays when the Cloud 9 is operating and the Fog Fluid Low Refill fluid fog fluid is low. Displays when the Cloud 9 is turned on and the Failure to Heat Contact customer service heater fails to reach operating temperatures...
  • Page 16: Maintenance

    Test-run the Chauvet atmospheric products monthly to achieve the best performance. Chauvet does not guarantee products will withstand storage for long durations, even if the cleaning process is followed. Please use caution and test regularly to ensure the product continues to function properly. Cloud 9 User Manual Rev. 8...
  • Page 17: Technical Specifications

    Cooling System 113 °F (45 °C) Convection I/O Connector Channel Range 3-or 5-pin XLR Ordering Product Name Item Name Item Code UPC Number Cloud 9 120V CLOUD9 05071490 781462218386 Cloud 9 230V 220CLOUD9 05071492 781462218409 Cloud 9 User Manual Rev. 8...
  • Page 18: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Cloud 9 User Manual Rev. 8...
