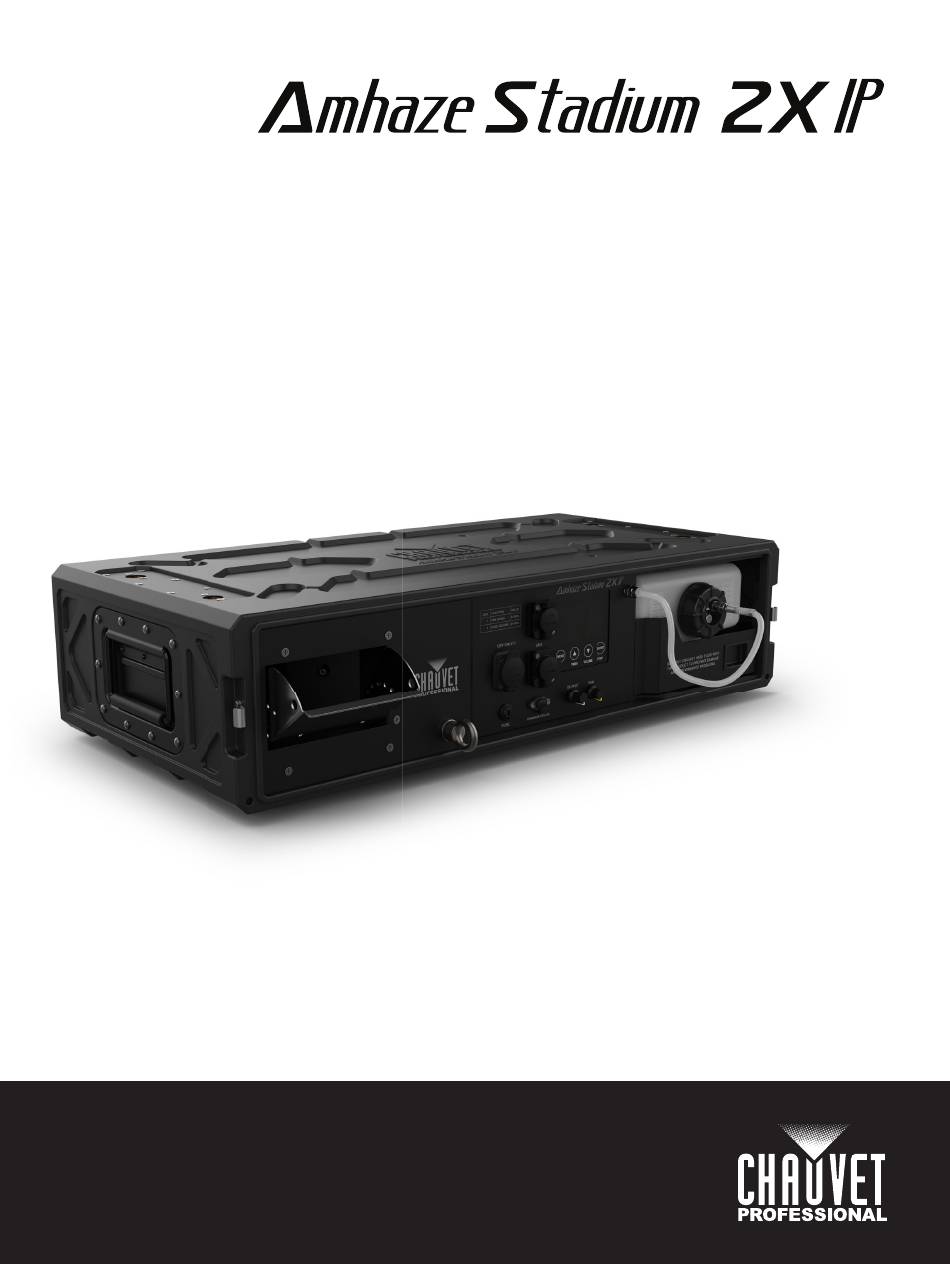

- Page 1 User Manual Model ID: AMHAZESTADIUM2XIP...
-
Page 2: Edition Notes
Edition Notes The Amhaze Stadium 2X IP User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Amhaze Stadium 2X IP as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Amhaze, are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
Duration......................Volume ....................... Fan ........................DMX ........................Auto Run Last Settings ..................Backlight......................RDM ........................Timed Output Operation................Volume Output Operation ................5. Maintenance................Fog Machine Maintenance................Storage......................6. Technical Specifications ............Amhaze Stadium 2X IP User Manual Rev. 1... - Page 4 Table of Contents Contact Us ..................Warranty & Returns..................Amhaze Stadium 2X IP User Manual Rev. 1...
-
Page 5: Before You Begin
The product has XLR sockets for DMX input and output. • Notice: This control circuit is isolated and belongs to the Class 2 data port. The control circuit has a cumulative leakage current of less than 3.5 mA. Amhaze Stadium 2X IP User Manual Rev. 1... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If this Chauvet product requires service, contact Chauvet Technical Support. Amhaze Stadium 2X IP User Manual Rev. 1... -
Page 7: Introduction
DMX integration or intuitive manual knobs for seamless customization Product Overview Name Name Output nozzle assembly Fluid tank Safety loop Fan control knob Powerkon In Volume control knob 5-pin DMX In/out USB type-C port Display Fuse holder Menu buttons Amhaze Stadium 2X IP User Manual Rev. 1... -
Page 8: Product Dimensions
Introduction Product Dimensions 27 in 674 mm 6.29 in 6.69 in 160 mm 170 mm 27 in 674 mm 16.5 in 421 mm Amhaze Stadium 2X IP User Manual Rev. 1... -
Page 9: Setup
3. Setup AC Power The Amhaze Stadium 2X IP has a fixed power supply that works with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 10: Usb Software Update
• Once the file has been downloaded, the filename cannot be changed. 2. Insert the USB-C flash drive into the USB-C port of the Amhaze Stadium 2X IP and turn on the product. 3. On the display screen, a progress bar will appear to indicate the status of the ongoing update. The progress is also display as a numerical percentage. -
Page 11: Mounting
Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The Amhaze Stadium 2X IP comes with 2x Omega brackets. The user can directly attach a mounting clamp (sold separately) to the Omega brackets. Make sure the clamp is capable of supporting the weight of this product. -
Page 12: Operation
<OUTPUT> Manually controls the haze volume, 0–100% Control Options Set the Amhaze Stadium 2X IP starting address in the 001–510 DMX range. This enables control of up to 32 products in the 2Ch personality. Menu Map Refer to the Amhaze Stadium 2X IP product page on www.chauvetprofessional.com... -
Page 13: Dmx Channel Assignments And Values
2. The current RDM ID will appear on the screen. Timed Output Operation The Amhaze Stadium 2X IP offers a timed output operation shortcut screen, which allows easier access to some stand alone functions. To navigate to the Timed Output Operation screen: 1. -
Page 14: Volume Output Operation
Operation Volume Output Operation The Amhaze Stadium 2X IP offers a volume output operation shortcut screen, which allows easier access to some stand alone functions. To navigate to the Output Operation screen: 1. Press <VOLUME>. 2. Press <Menu> repeatedly to select from Volume Out or Fan Speed. -
Page 15: Maintenance
Chauvet does not guarantee products will withstand storage for long durations, even if the cleaning process is followed. Please use caution and test regularly to ensure the product continues to function properly. Amhaze Stadium 2X IP User Manual Rev. 1... -
Page 16: Technical Specifications
5-pin XLR Ordering Product Name Item Name Item Code UPC Number Amhaze Stadium 2X IP AMHAZESTADIUM2XIP 05072593 781462229412 Amhaze Stadium 2X IP 220VAMHAZESTADIUM2XIP 05072679 781462230272 UL 1573 CSA C22.2 No. 166 E113093 Amhaze Stadium 2X IP User Manual Rev. 1... -
Page 17: Warranty And Returns
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Amhaze Stadium 2X IP User Manual Rev. 1...
