Summary of Contents for Chauvet Professional ROGUE OUTCAST 2 BEAM

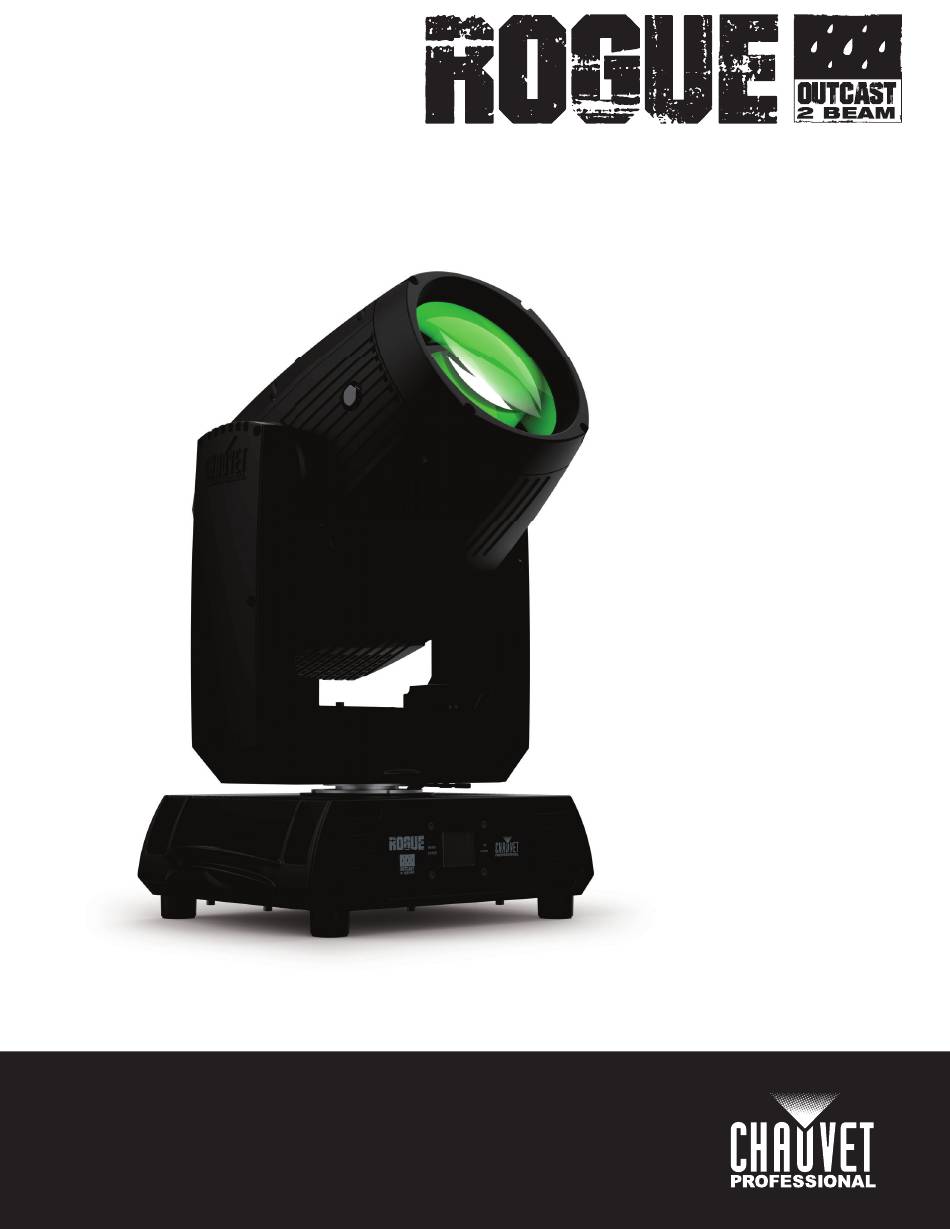

- Page 1 User Manual Model ID: ROGUEOUTCAST2BEAM...
- Page 2 Rogue Outcast 2 Beam. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Rogue, and Rogue Outcast 2 Beam are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
-
Page 3: Table Of Contents
4. Operation ..................Control Panel Operation................Programming....................Control Panel Lock..................Menu Map ......................DMX Values ....................16Ch/19CH ......................Address ......................Run Mode...................... DMX Personality ....................Auto Test......................Manual Test ....................... Setup......................Pan Reverse ...................... Rogue Outcast 2 Beam User Manual Rev. 1... - Page 4 Reset Function ....................Factory Reset Function ..................System Information ..................5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ......................................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Rogue Outcast 2 Beam User Manual Rev. 1...
-
Page 5: Before You Begin
This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 6: Safety Notes
The maximum ambient temperature is 113 °F (45 °C). Do not operate the product at higher temperatures. • In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 7: Introduction

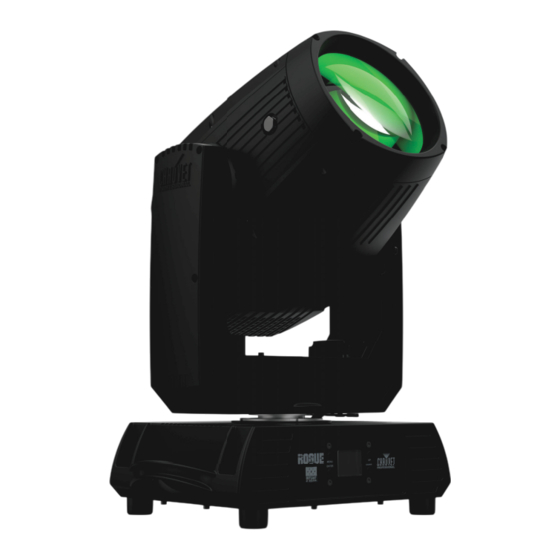

2. Introduction Description The Rogue Outcast 2 Beam is an IP65 moving head that outputs an intensely bright 300 W beam, individually controllable color wheel for solid and split hues. The outdoor-ready unit raises the bar in dynamic effect options with its ability to focus down to a pencil-thin 1° beam for tight aerials, overlapping 8- and 5-facet prisms, frost for even light distribution, and 17 static gobos for even more creative options. -
Page 8: Product Dimensions
Introduction Product Dimensions mm [ mm [ mm [ mm [9. Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 9: Setup
Always replace the blown fuse with another of the same type and rating. DMX Linking The Rogue Outcast 2 Beam can be linked to a DMX controller using a 5-pin DMX connection. If using other DMX-compatible products with this product, each can be controlled individually with a single DMX controller. -
Page 10: Usb Software Update
Setup USB Software Update The Rogue Outcast 2 Beam allows for software update through USB using the built-in USB port. To update the software using a USB type C flash drive, do the following: 1. Power on the fixture and plug the flash drive into the USB port. -
Page 11: Gobo Wheel
Setup Gobo Wheel The Rogue Outcast 2 Beam includes one gobo wheel with 17 fixed gobos plus open. The diagram shows the gobo number on the wheel as numbered in the DMX Values tables. Open Color Wheel The Rogue Outcast 2 Beam includes one color wheel with 14 fixed colors plus open (white), as indicated below. -
Page 12: Mounting
Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The Rogue Outcast 2 Beam comes with 2 omega brackets to which you can directly attach mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product. -
Page 13: Lamp Replacement
Setup Lamp Replacement The Rogue Outcast 2 Beam is equipped with an USHIO NSL 300 W lamp. Follow the procedure below to safely change the lamp. Disconnect the product from power before opening. Procedure Turn the product off and disconnect it from power. Wait at least 15 minutes for the lamp to cool down. -
Page 14: Increasing The Lamp's Life
DO NOT touch the lamp without wearing gloves to avoid leaving grease on the bulb or on the contacts that could reduce the lamp’s life. • ALWAYS change the lamp when it has reached its recommended lifespan to avoid the risk of lamp explosion. Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 15: Operation
Select ON or OFF. The product will prompt for a passcode to access the product’s main programming level when the control panel lock is activated. Enter the following passcode: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER> Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 16: Menu Map
Operation Menu Map Refer to the Rogue Outcast 2 Beam product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Address 001–497 Sets the starting address 16CH Selects the DMX personality 18CH Auto Test Auto test all functions... - Page 17 _ _ _ _ _ Shows product UID Fan1 Speed _ _ _ _ _ Shows speed of Fan 1 Fan2 Speed _ _ _ _ _ Shows speed of Fan 2 Rogue Outcast 2 Beam User Manual Rev. 1...
-
Page 18: Dmx Values
053 056 CTO 6500K 057 060 UV 061 127 Split colors 128 189 Clockwise color scroll, fast to slow 190 193 Stop 194 255 Counterclockwise color scroll, slow to fast Rogue Outcast 2 Beam User Manual Rev. 1... - Page 19 128 189 Clockwise rotation, fast to slow Rotating prism 2 190 193 Stop 194 255 Counterclockwise rotation, slow to fast Frost 000 255 0–100% Focus 000 255 0–100% Rogue Outcast 2 Beam User Manual Rev. 1...
- Page 20 190 199 Focus reset 200 209 All reset 210 219 Blackout all function 220 229 Disable blackout all function 230 239 Lamp off 240 255 No function Rogue Outcast 2 Beam User Manual Rev. 1...
-
Page 21: Address
Highlight Tilt Reverse, press <ENTER>. Select YES (reverse tilt) or NO (normal tilt), press <ENTER>. Pan Angle This option assigns pan range. Highlight Pan Angle, press <ENTER>. Select 540, 360, or 180, press <ENTER>. Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 22: Tilt Angle
Lamp Strike/Ignition Delay This option sets the duration of time (seconds) it takes for the lamp to turn on when powering up the product. Highlight Ignition Delay, press <ENTER>. Select 0–255, press <ENTER>. Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 23: Maintenance Timer
Highlight Frost/Focus, press <ENTER>. Select YES or NO, press <ENTER>. All Reset This option resets the all the functions to the home position. Highlight All, press <ENTER>. Select YES or NO, press <ENTER>. Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 24: Factory Reset Function
• UID: The product’s UID is displayed on the screen. • Fan1Speed: The product’s fan speed is displayed on the screen. • Fan2Speed: The product’s fan speed is displayed on the screen. Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 25: Maintenance
Allen Key screws head covers- 18.3 Kgf.cm, 16 lgb.in • Vacuum Test Measurements To ensure that the product has been reassembled correctly, use the IP Tester from Chauvet Professional to check the following data has the given measurements for the given method: •... -
Page 26: Technical Specifications
113 °F (45 °C) Convection I/O Connector Channel Range 5-pin XLR 16 or 18 Ordering Product Name Item Code UPC Number Rogue Outcast 2 Beam 08011973 781462223212 UL 1573 CSA C22.2 No. 166 E113093 Rogue Outcast 2 Beam User Manual Rev. 1... -
Page 27: Contact Us
For warranty terms and conditions and return information, please visit our website. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Rogue Outcast 2 Beam User Manual Rev. 1...
