Device description

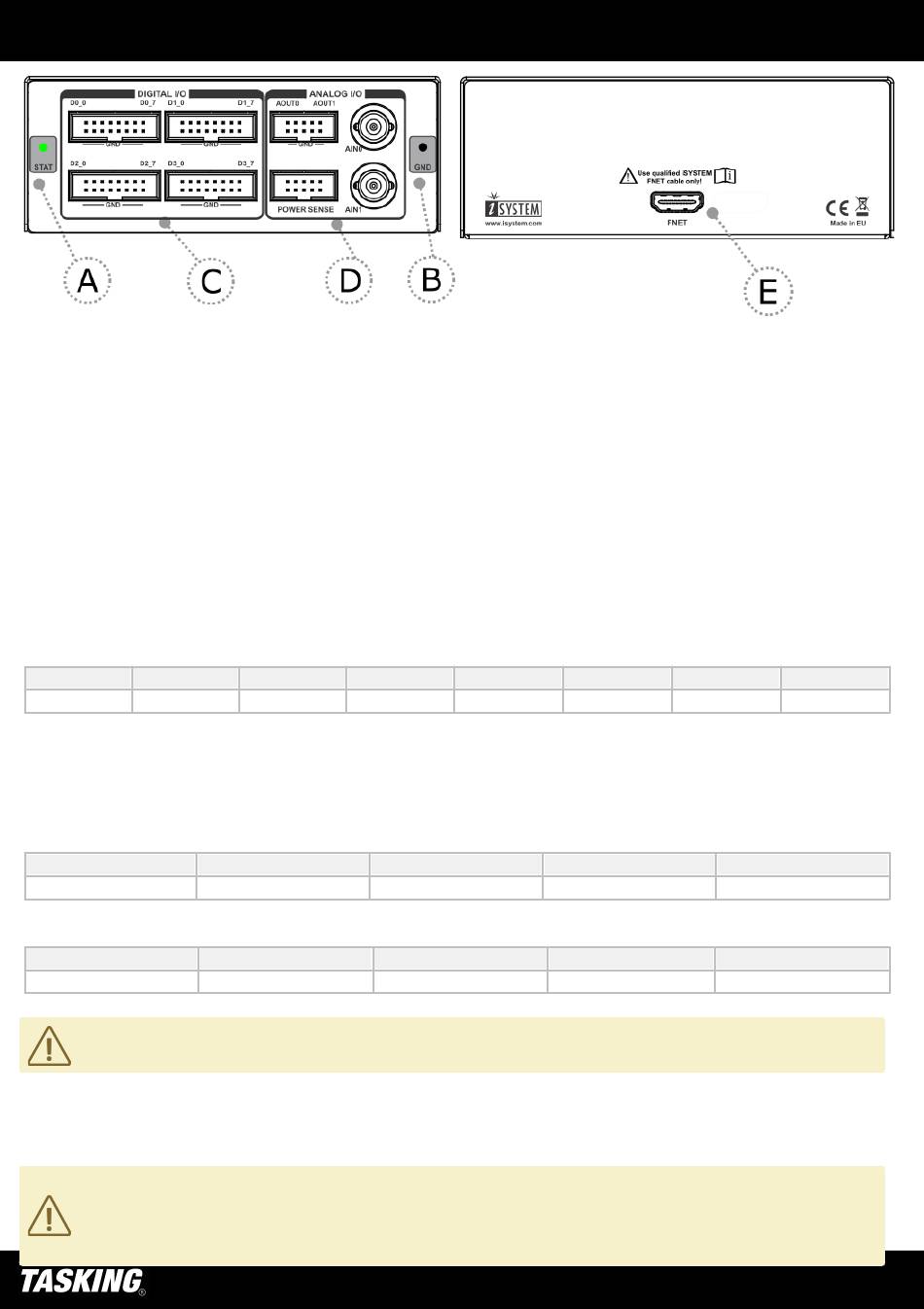

The front face features:
A – The indicator light provides the status of the hardware - At power on the LED will blink 5 times
with a frequency of 1Hz, then it will stay ON continuously. If LED remains blinking or it doesn't
blink on after power ON, please contact support.
B – The grounding socket (marked GND). It represents the GND potential of the BlueBox and its
usage is optional. By default no connection to this socket is required. The grounding socket is suit-
able for a 2mm Multi Contact Plug (also known as a Banana Plug).
Note that the grounding connection between the BlueBox and the Target microcontroller develop-
ment board must be established through the iC7max/iC5700 grounding socket. Refer to the
iC7max or iC5700 Hardware User Manual for more details on this grounding.
C – Four Digital I/O connectors (16-pin IDC connector 2.54 mm) each providing 8 signals: D0, D1,
D2, D3
D0 D1
GND GND
D – ANALOG I/O connectors
AOUT0, AOUT1 – Two analog outputs available on 10-pin IDC connector 2.54 mm
AIN0, AIN1 – Two analog inputs available on BNC connectors, which can be connected using
standard oscilloscope probes.
AOUT0
GND
Power Sense – 10-pin IDC connector 2.54 mm
RS+
RS-
All CAN and LIN signals are isolated from the GND.
The rear face features the remaining connector:
E – FNet Port
Although it looks similar to the HDMI interface, the FNet Port is not compatible with
HDMI or any HDMI accessories.
D2 D3
GND GND
AOUT0
GND
AIN
D4 D5
GND GND
AOUT1
GND GND
GND
GND
D6 D7
GND GND
AOUT1
GND
CTL
