KYOWA EDX-14A Instruction Manual

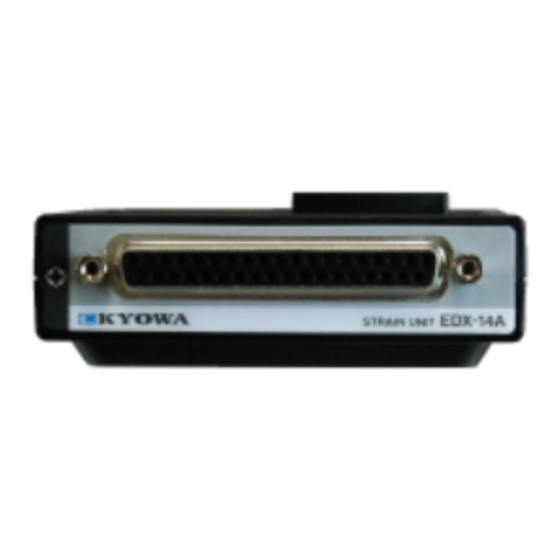

Compact recording system low power strain measuring unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LOW POWER STRAIN MEASURING UNIT
Generally, company names and trade names described in this Instruction Manual are trademarks or registered trademarks
of the companies.
This Instruction Manual may not be copied or reproduced, in whole or part, without consent of KYOWA.
Copyright © Kyowa Electronic Instruments Co., Ltd. All rights reserved.
The contents of the Instruction Manual are subjected to change without prior notice.
We assume no responsibility whatever for any damage resulting from the use of this product.
Thank you for purchasing KYOWA's product EDX-14A Low Power Strain Measuring
Unit.
Read this Instruction Manual carefully in order to make full use of the high
performance capabilities of the product.
Do not use the product in methods other than described in this Manual.
This Manual only describes hardware operation of the EDX-14A. For the Dynamic
Data Recording Software DCS-100A, see the DCS-100A Instruction Manual (For
EDX-10A/B Operation).
INSTRUCTION MANUAL
Compact Recording System
IM-A-1070C February 2023
EDX-14A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDX-14A and is the answer not in the manual?

Questions and answers

Related Manuals for KYOWA EDX-14A

Summary of Contents for KYOWA EDX-14A

  • Page 1 Generally, company names and trade names described in this Instruction Manual are trademarks or registered trademarks of the companies. This Instruction Manual may not be copied or reproduced, in whole or part, without consent of KYOWA. Copyright © Kyowa Electronic Instruments Co., Ltd. All rights reserved.

  • Page 3: Table Of Contents

    SAFETY PRECAUTIONS (Do not forget to read the safety precautions prior to use.） ...... 3 LIMITED LIFE PARTS AND PREVENTIVE MAINTENANCE ........5 EDX-14A REPLACEMENT BEFORE THE END OF SERVICE LIFE ........5 NOTATIONS USED IN THE INSTRUCTION MANUAL ..........5 IMPORTANT PRECAUTIONS WHEN USING EDX-14A ..........

  • Page 4: Standard Accessories

    STANDARD ACCESSORIES The following accessories are packed with the EDX-14A. When unpacking, check the contents to ensure that all accessories are enclosed. Input cable U-124: ･･･････････････････････････････････････ Rubber Foot: 8/sheet ･･･････････････････････････････････････････ Screws (cross recessed head): ･･･････････････････････････････ Term and Conditions of ･･････････････････････････････...

  • Page 5: Safety Precautions

    HARDWARE) and EDX-14A Instruction Manual.  Avoid using in environment with inflammable gas, etc. To prevent the risk of fire hazard or explosion, do not use the EDX-14A in environment with inflammable gas, vapor, or dust.  If any trouble occurs To prevent fire hazards, if smoke is emerging from the EDX-14A, immediately disconnect the USB cable or AC adapter to terminate the system operation.
  • Page 6 294m/s (30G)/11msec Use the EDX-14A in an area where vibration and impact can be kept within the scope of specifications. Continuous vibration or severe impact may cause deteriorated performance and system failure.  Do not use the EDX-14A in strong electromagnetic field.

  • Page 7: Limited Life Parts And Preventive Maintenance

    EDX-14A. Regardless of the replacement parts, the EDX-14A itself gradually deteriorates with age. Before the expected service life is reached, consider replacing the EDX-14A with a new one or the latest series as preventive maintenance. NOTATIONS USED IN THE INSTRUCTION MANUAL...

  • Page 8: Important Precautions When Using Edx-14A

    2. After the power ON, always preheat the EDX-14A for approximately 10 minutes. CE MARKING NOTE 1. Be sure to use the input cable (U-124) for the EDX-14A. Wrap the ferrite core two turns around every channel cable. Recommended ferrite core Model: E04SR170730A Seiwa Electric Mfg.

  • Page 9: Outline Of The Product

    1-1. OUTLINE OF THE PRODUCT The EDX-14A is a measuring unit for a strain gage transducer. The EDX-14A has to be installed in the EDX-10B. One EDX-14A is capable of measurement of 4 channels and maximum 16 channels with four EDX-14A units.

  • Page 10: Controls And Indicators

    Connect the accessory input cable (U-124) or optional accessory input adapter (UI-51A). (2) Fixing metal For fixing the D-sub connector of the input cable (U-124). 2-2. TOP (3) Unit-coupling Connector for connecting the EDX-10B or measuring units on the EDX-14A. Connector...

  • Page 11: Side

    2-3. SIDE (4) Clearance hole For fixing the EDX-10B or measuring unit on the EDX-14A by using a screw. (5) Finger slot For connecting/disconnecting the EDX-10B and a measuring unit. (6) Rubber foot slot The EDX-14A has small rubber feet (optional) to keep it from sliding around when placed on a flat surface.

  • Page 12: Pin Assignment And Connection Of Input Connector

    3. PIN ASSIGNMENT AND CONNECTION OF INPUT CONNECTOR 3-1. PIN ASSIGNMENT OF INPUT CONNECTORS Pin No. Signal Name Function Pin No. Signal Name Function CH1 A CH1 +BV CH1 B CH1 -IN CH1 D CH1 +IN CH1 C CH1 -BV CH2 B CH2 -IN CH2 A...

  • Page 13: Connect The Measuring Units

    For detale, EDX-10B Instruction Manual (FOR HARDWARE) 3-2-1.NUMBER OF CONNECTABLE MEASURING UNIT. (If you use EDX-10A, the number of connectable measuring unit is one.) 1) To connect the EDX-10B or a measuring unit on the EDX-14A, remove the cap of the EDX-10B or a measuring unit to be connected.

  • Page 14: Connect A Strain Gage Transducer

    4. CONNECT A STRAIN GAGE TRANSDUCER The EDX-14A is a measuring instrument for a strain gage transducer. The input cable should be connected as follows. NOTE Before connecting a sensor, disconnect the USB cable and AC adapter from the EDX-10B to turn OFF the power.

  • Page 15: When Using The Optional Accessory Input Adapter (Ui-51A)

    MEMO Before recording data, select the strain mode and monitor the noise. If excessive noise is measured, ground the shield of the output cable or connect it to the GND terminal of the EDX-10B, whichever results in less noise. NOTE ■...

  • Page 16: Trouble Shooting

    5. TROUBLE SHOOTING When the EDX-14A does not operate as expected or when it operates unstably, trace the cause before concluding a defect of EDX-14A. Items to be checked and countermeasure against various phenomena are described in the following table.

  • Page 17: Maintenance

    Must be returned to KYOWA for the scheduled maintenance inspection. measuring units Particularly if the EDX-14A is used continuously for long periods of time, early replacement of parts is required for the purposes of safety and stable operation.

  • Page 18: Specifications

    7. SPECIFICATIONS Name Low power strain measuring unit Model EDX-14A Compatible sensor Strain gage transducer and strain gage (*1) The number of input channels Measurement range 10000, 50000 µm/m (2 range) Compatible bridge resistance 120 to 1 kΩ Excitation voltage...

  • Page 19: Outside Drawing

    8. OUTSIDE DRAWING Unit: mm...
