Mounting location
To ensure reliable measurements, it is important to choose a
correct mounting location. For optimal performance, observe the
following guidelines:

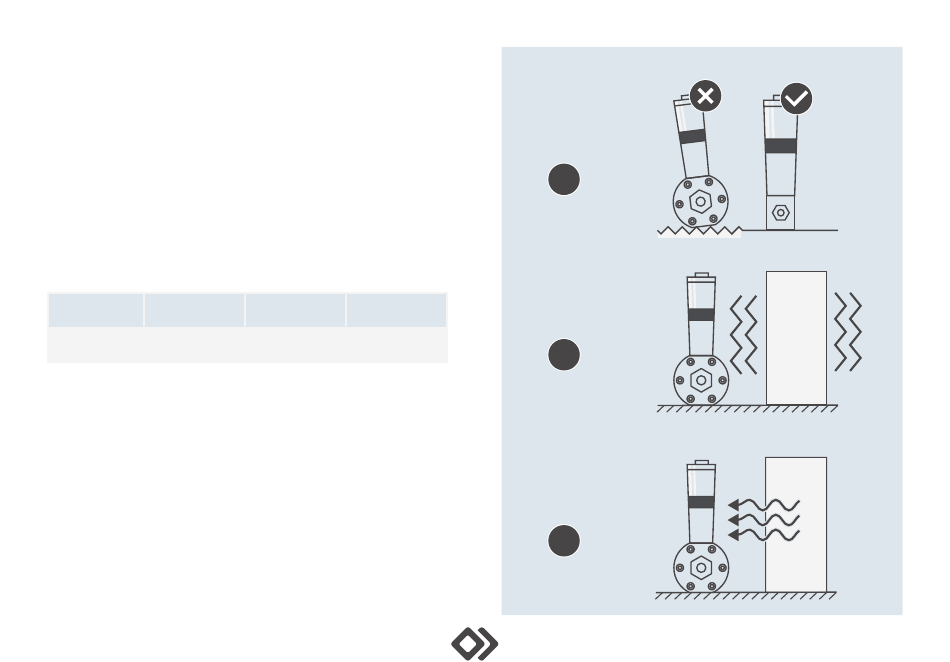

▶ Install the product on a flat, rigid, and clean surface [1].
▶ Avoid installation close to mechanical vibrations [2].
▶ Avoid installation close to magnetic field sources.
▶ Avoid installation close to heat sources [3].
▶ Mount the product to a rigid construction using the mounting
holes at the bottom of the base.
Bolt size
M3
Torque [Nm] 0,5
▶ See online available dimensional drawings for further details.
Pressure rating
▶ If applicable: install the process connections according to the
manufacturer's instructions.
▶ Check the maximum permissible system pressure in the
technical specifications table in this guide.
▶ Make sure that the pressure rating of the product, is equal to or
greater than the maximum applied system pressure.
