System Q MiniROK SEE110 Manual

SEE110 MiniROK HD TVI/AHD/CVBS/CVI IR Eyeball with fixed lens & Menu

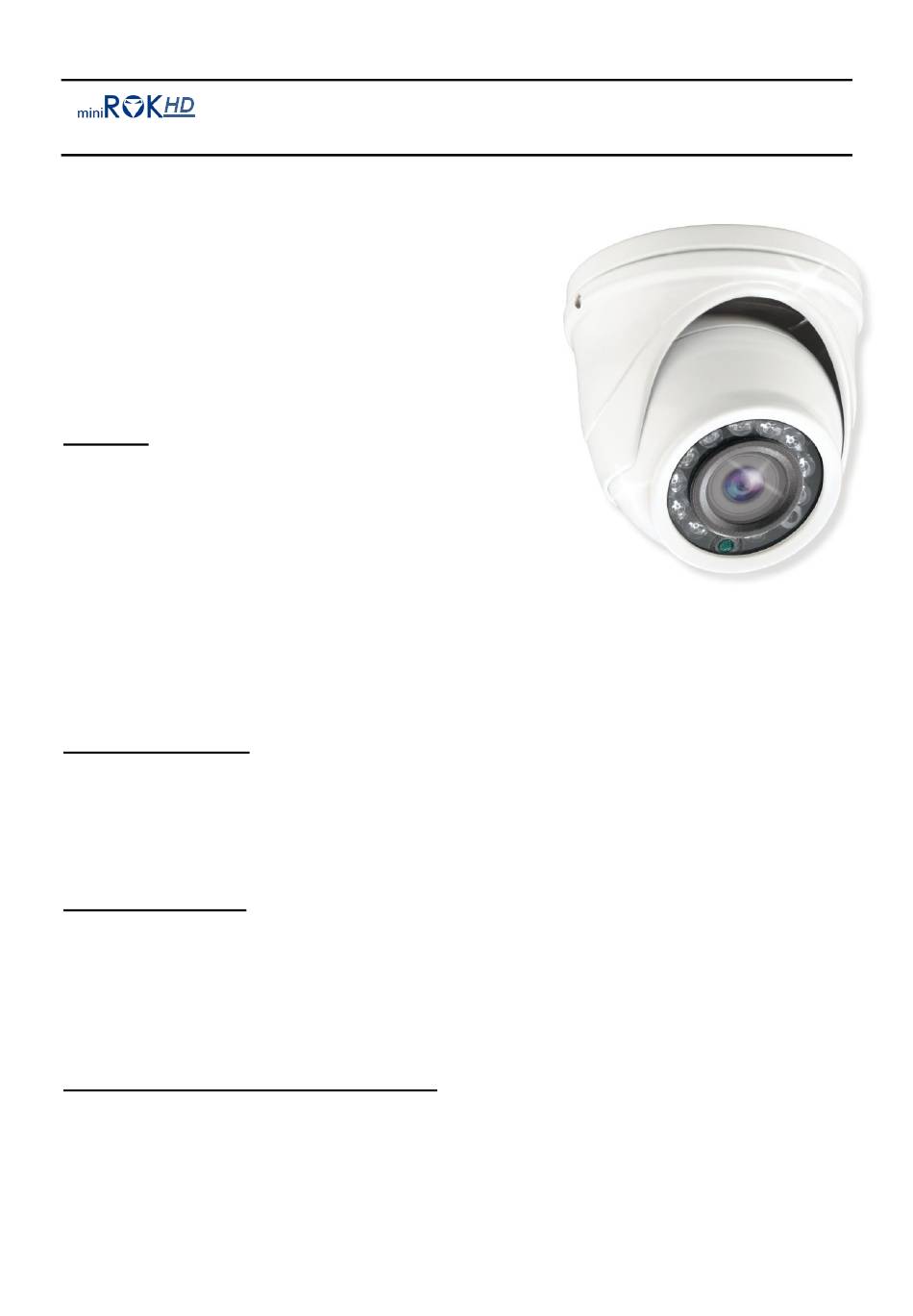

SEE110 MiniROK HD External Eyeball
These dome cameras produce exceptional HD
images using a 2.1 MegaPixel 1080P, 3.6mm fixed
lens, 14 IR Leds, multi format for TVI, AHD,
CVBS (Analogue) and CVI use and also has a
menu. The cameras are housed in a tiny attractive,
anti-vandal metal housing and are available in shiny
black or shiny white.
Features
HD multi format camera TVI/AHD/Analogue/CVI
12 x IR Leds 10~15m range
3.6mm fixed lens
Low power consumption 165mA IRs on / 70mA off
Small size
On board menu
Metal case Eyeball with anti-vandal security feature
IP66 weatherproof
Available in shiny white SEE110W or shiny black SEE110B
Economical cost
Mounting the Camera
The camera is for outdoor or indoor mounting on a wall, ceiling or under a lintel. To mount the
camera, loosen the securing grub screw on the side of the housing using the Allen key supplied.
Remove the base and secure to wall or lintel using the three screws provided. Now reconnect
camera base and position the camera using the internal 3 axis movement that can be adjusted to give
a completely left or right angle view. Finally re-tighten grub screw to lock the base.
Powering the Camera
The camera requires a 12V DC regulated power supply. The camera is provided with a fly lead with
a mini power jack plug. It is recommended to use a power supply that is rated higher than the
current consumption of the camera i.e. the current consumption is 165mA (with IRs on) so add
approximately 33% and use a regulated power supply of 250mA or higher. Please ensure that
power is connected correctly as this camera is polarity sensitive and reverse polarising the camera
will cause damage.
Connecting the camera to control equipment
The camera comes with a fly lead for power and video out. To reduce installation time the video
out lead is terminated into a male BNC connector. Connect the camera to control equipment via a
female BNC-BNC lead. Remember that the Video requires two wires to complete the circuit and
when using a co-ax cable, the outer braid of the co-ax provides the "0V GROUND" connection and
the inner core provides the "Video" connection.
Email: support@kovert.com
XSEE110
Last Revised 03/10/2018
