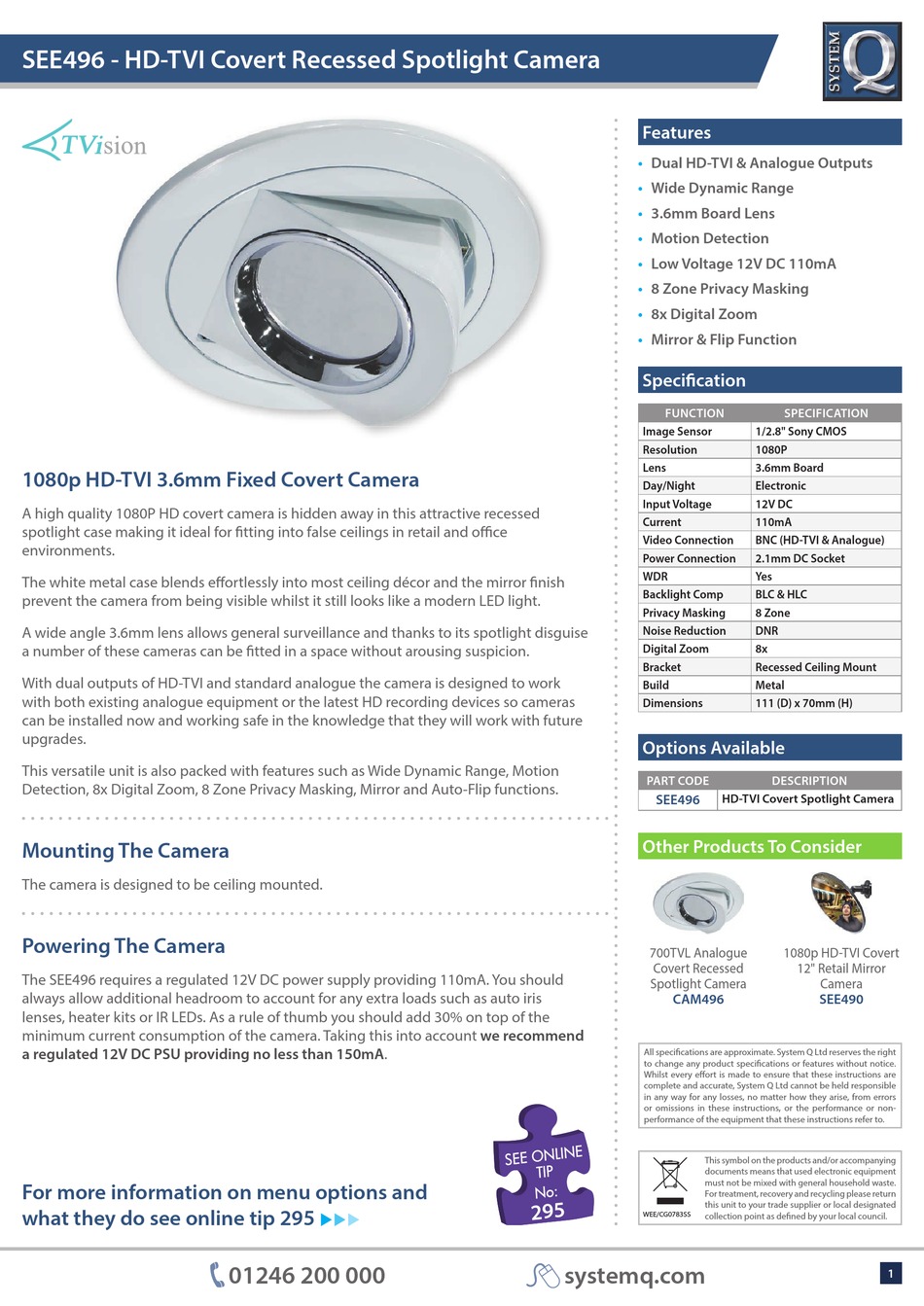

SEE496 - HD-TVI Covert Recessed Spotlight Camera
1080p HD-TVI 3.6mm Fixed Covert Camera
A high quality 1080P HD covert camera is hidden away in this attractive recessed
spotlight case making it ideal for tting into false ceilings in retail and o ce
environments.
The white metal case blends e ortlessly into most ceiling décor and the mirror nish
prevent the camera from being visible whilst it still looks like a modern LED light.
A wide angle 3.6mm lens allows general surveillance and thanks to its spotlight disguise
a number of these cameras can be tted in a space without arousing suspicion.
With dual outputs of HD-TVI and standard analogue the camera is designed to work
with both existing analogue equipment or the latest HD recording devices so cameras
can be installed now and working safe in the knowledge that they will work with future
upgrades.
This versatile unit is also packed with features such as Wide Dynamic Range, Motion
Detection, 8x Digital Zoom, 8 Zone Privacy Masking, Mirror and Auto-Flip functions.

Mounting The Camera

The camera is designed to be ceiling mounted.

Powering The Camera

The SEE496 requires a regulated 12V DC power supply providing 110mA. You should
always allow additional headroom to account for any extra loads such as auto iris
lenses, heater kits or IR LEDs. As a rule of thumb you should add 30% on top of the
minimum current consumption of the camera. Taking this into account
a regulated 12V DC PSU providing no less than
For more information on menu options and
what they do see online tip 295
150mA.

01246 200 000
Features
• Dual HD-TVI & Analogue Outputs
• Wide Dynamic Range
• 3.6mm Board Lens
• Motion Detection
• Low Voltage 12V DC 110mA
• 8 Zone Privacy Masking
• 8x Digital Zoom
• Mirror & Flip Function
Speci cation
Image Sensor
Resolution
Lens
Day/Night
Input Voltage
Current
Video Connection
Power Connection
WDR
Backlight Comp
Privacy Masking
Noise Reduction
Digital Zoom
Bracket
Build
Dimensions
Options Available
PART CODE
Other Products To Consider
700TVL Analogue
Covert Recessed
Spotlight Camera
we recommend
All speci cations are approximate. System Q Ltd reserves the right
to change any product speci cations or features without notice.
Whilst every e ort is made to ensure that these instructions are
complete and accurate, System Q Ltd cannot be held responsible
in any way for any losses, no matter how they arise, from errors
or omissions in these instructions, or the performance or non-
performance of the equipment that these instructions refer to.
WEE/CG0783SS
systemq.com
FUNCTION SPECIFICATION
1/2.8" Sony CMOS
1080P
3.6mm Board
Electronic
12V DC
110mA
BNC (HD-TVI & Analogue)
2.1mm DC Socket
Yes
BLC & HLC
8 Zone
DNR
8x
Recessed Ceiling Mount
Metal
111 (D) x 70mm (H)
DESCRIPTION
SEE496 HD-TVI Covert Spotlight Camera
1080p HD-TVI Covert
12" Retail Mirror
Camera
CAM496 SEE490
