System Q CCT513 Installation Instructions

www.kovert.com

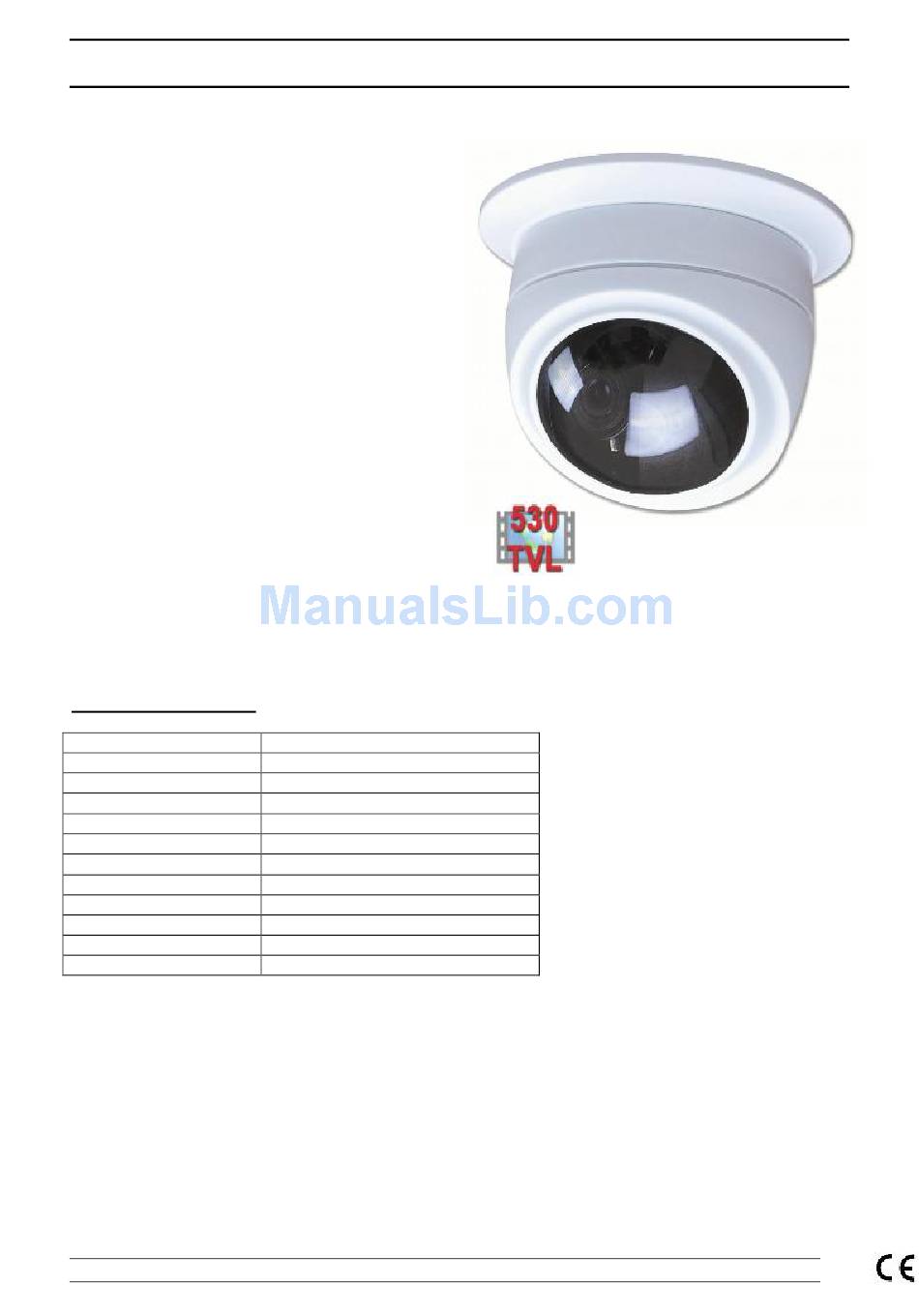

CCT513 Hi-Res Vari-focal Colour Dome Camera Instructions

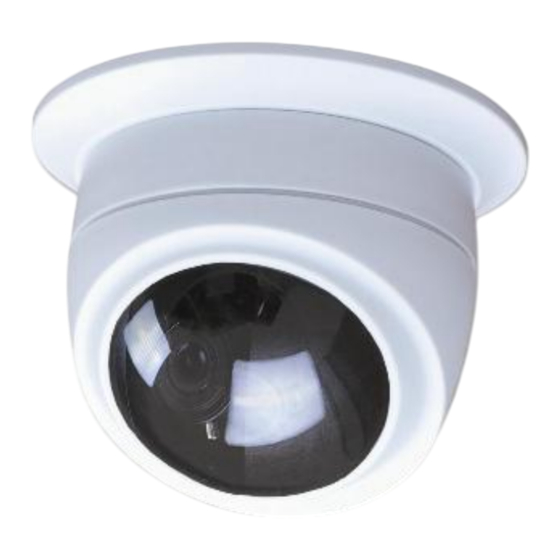

The CCT513 is an attractively designed dome
camera with an exceptional 530 TVL
resolution. The 3.5-8 mm vari-focal lens gives
the flexibility to adjust the angle of view from
a wide-angle general shot to a more narrow
precise shot. This unit is 12v DC and is ideal
for internal ceiling mount fitting. The dome
camera comes complete with a short BNC
plug and 2.1 mini jack for video and power
connections. The futuristic design of the
CCT513 would make it ideal for any modern
office or retail environment and its high spec
make it a good choice for bars or clubs.

Features

·
Hi-Res 530 TVL
·
Futuristic design
·
The dome is fitted with a 3.5-8mm Vari-focal lens.
·
Domes are for internal ceiling mount fitting.
·
Video and power connected via a fly lead.

Camera Specifications

Camera Spec
Image Sensor
Image Output
Resolution
Min Illumination
Input Voltage Range
Power Consumption
Lens
AGC
AWB
Size

Installation Instructions

Connecting dome to 12v DC power

The camera is provided with a 2.1mm Mini Jack plug on a fly lead that allows you to connect the power supply to it.
When powering these dome cameras with a 12V DC power supply, ensure that the supply is regulated. It is
recommended to use a power supply that is rated higher than the current consumption of the camera i.e. allows 25% -
30% minimum headroom, so for these cameras a minimum requirement would be a continuous rating of 300mA or
higher per camera. This prevents the PSU from running at its maximum rating for long periods of time. A POW150
or higher is recommended.
Email: support@kovert.com
CCT513
Hi-Res Colour – 12V DC
1/3" Colour
1V 75W
pk-pk
530TVL
0.5 Lux @ F1.6
12V DC ± 10%
220mA / 2.65W
3.5-8 mm Vari-focal
Automatic
Automatic
Dia 128 x H96mm
Doc XCCT513
