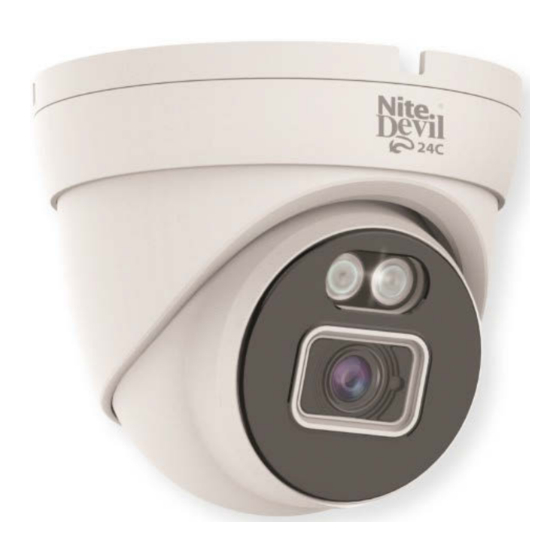

- Page 1 Instruction Manual NiteDevil 24C Camera SEE708 8MP Eyeball 2.8mm Built In Mic © 2022 System Q Ltd NiteDevil.com...
-
Page 2: Table Of Contents
4 NCD / No Image Displayed on Recorder ................. 7 Part 8 General Maintenance Part 9 Specification 1 SEE708 ..........................9 Part 10 Conditions 1 General Company Disclaimer ..................10 2 WEEE Declaration ......................10 3 Copyright ........................10 Index © 2022 System Q Ltd NiteDevil.com... -
Page 3: Part 1 Introduction
Using white light to give visual warning or using IR illumination to get a more discreet set up. Tools & Handy Extras Screwdriver Drill 12V DC PSU Drill bits BNC Crimp Tool & BNCs RG59 Coax Cable Digital Multi-Meter LCD400K - CCTV Test monitor © 2022 System Q Ltd NiteDevil.com... -
Page 4: Part 3 Connections
xSEE708 Connections The camera has a 2.1mm socket which requires 12V DC, use a regulated power supply rated above the current draw of the camera. The camera is polarity sensitive so connections must be correctly made. The camera has a standard BNC connector for video output, the output can be changed to AHD, CVI or CVBS if required in the menu 4-In-1 Technology Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. -
Page 5: Part 5 Osd Menu
3. Click on the IRIS + / centre button to display the menu Use the directional arrows to move up and down through the menu. Use the directional arrows left and right to change the option. Use IRIS + to select & enter that menu option. © 2022 System Q Ltd NiteDevil.com... -
Page 6: 8Mp Osd Menu
xSEE708 5.1 8MP OSD Menu Video Mode TVI / AHD / CVI / CVBS Format 60Hz / 50Hz / NTSC / PAL Language English / Spanish / French / Chinese Exposure Exposure Mode Global High / Middle / Low Back Exit Save –... -
Page 7: Key Menu Settings
NOTE - Some models may not have D-WDR function. Reset - Defaults the camera to factory settings. This setting helps when fault finding issues with the camera to ensure all settings are defaulted. © 2022 System Q Ltd NiteDevil.com... -
Page 8: Part 6 Audio Over Coax
xSEE708 Audio Over COAX (March 2022) As of writing this , the Audio over COAX (Coaxial Audio) is compatible with the ZIP SUPA-S range of recorders. *Note the standard SUPA recorders are not compatible with Audio over COAX. To enable, in the menu on the SUPA-S go to System > General > Audio Input Type Select Coaxial Audio Select Apply 31/03/2022... -
Page 9: Part 7 Troubleshooting
B. For 12V DC cameras, only use regulated power supply rated above the current consumption, so that the camera is always receiving the correct supply which is rated above the current consumption. © 2022 System Q Ltd NiteDevil.com... -
Page 10: Part 8 General Maintenance
xSEE708 C. Use thicker gauge copper cabling to reduce the voltage drop to the camera, using thicker cable will reduce the resistance between the camera and the power supply and therefore reduce the voltage dropped along the cable. D. Ensure that the BNC – BNC lead that is connected between the camera and DVR has no shorts between the ground and the centre core (positive) or open circuits along the centre core (positive) or open circuits along the ground. -
Page 11: Part 9 Specification
Built In Mic (Audio over COAX) Input Voltage 12V DC Current Consumption 300mA (IR On) IP Rating IP66 Video Connection BNC Socket Power Connection 2.1mm DC Socket Finish White/ Black Build Metal Dimensions 100mm (Diameter) x 90 mm (Height) © 2022 System Q Ltd NiteDevil.com... -
Page 12: Part 10 Conditions
Conditions 10.1 General Company Disclaimer All specifications are approximate. System Q Ltd reserves the right to change any product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible in any... -
Page 13: Index
- D - Declaration Dimensions Disclamer - G - General Disclaimer - H - Handy Extras - M - Maintenance - O - OSD Menu - S - Settings Specification - T - Tools Troubleshooting © 2022 System Q Ltd NiteDevil.com...
