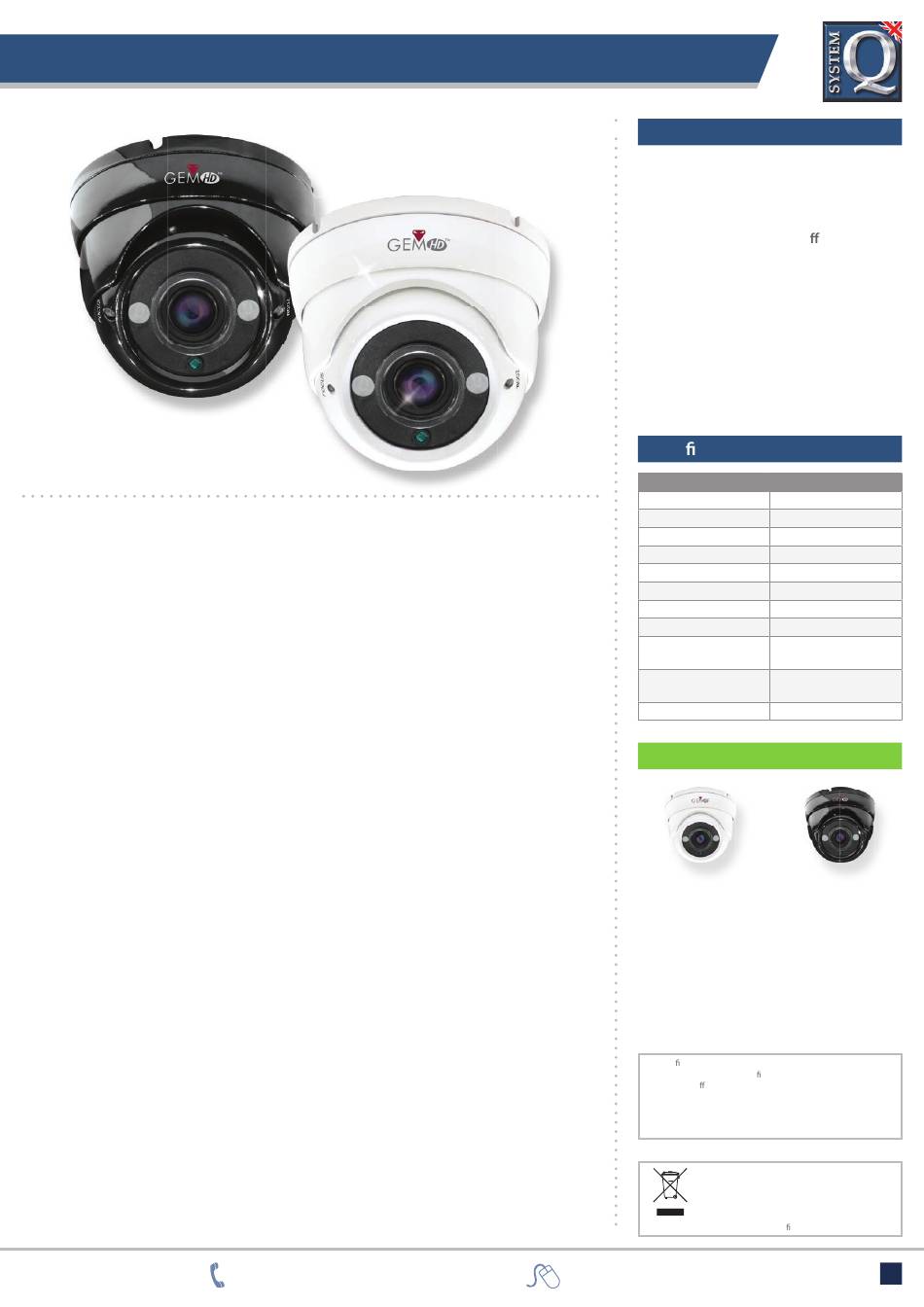

System Q SEE820 Manual

2.8-12mm Eyeball with Varifocal Lens
SEE820
SEE820
The SEE820 is a multi-format HD eyeball camera with Multi-Technology
outputs, a varifocal lens and high powered IRs. It has TVI, AHD and CVI
mode selection plus a separate output for CVBS* (analogue) use.
Special Features
The SEE820 is a multi-format HD camera with TVI, AHD, CVI and CVBS
mode selection on a yellow BNC lead and in addition, a separate analogue
output (CVBS) on a separate white BNC lead.
* Additional CVBS output available if using HD, but only one CVBS if not.
In HD-TVI mode, the cameras have the Coaxitron Control facility for changing
the OSD menu specifi cations via the DVR or remote network connection, or
via the camera.
This camera has the NiteDevil menu feature for reducing shutter speed for
improving light capture at night.
**If you have fi tted cameras with IRs and have experienced condensation
issues or IR fl are, then this camera with the fl at dual front glass should reduce
these problems.
Mounting the Camera
The camera is primarily for outdoor mounting on a wall, building or under a
lintel, but could also be used inside in an appropriate building. A deep base
can be used for cable management. Either attach the deep base or secure
the thinner bracket base to the wall, building etc. with suitable screws and
connect the respective cable connections.
01246 200 000
Features
• Varifocal 2.8-12mm Lens
• Quad Technology
• 2 High Power IRs - Up to 35m Range
• True Day/Night IR Cut O Filter
• UTC and Co-axitron Control
• Weatherproof IP66 Rated Metal Body
• Extra Deep Base Option
• HD 1080P
• Switchable Video Output
• Gloss Black or Pure White
Colour Options
Speci cation
FUNCTION
Lens
Resolution
Lux
DayNight
IR LEDs
IR Range
Input Voltage
IP Rating
Backlight
Finish
Dimensions
Other Products To Consider
External HD
NiteDevil Camera
with 2.8-12mm
Motorised Lens -
White
SEE850W
All speci cations are approximate. System Q Ltd reserves the right
to change any product speci cations or features without notice.
Whilst every e ort is made to ensure that these instructions are
complete and accurate, System Q Ltd cannot be held responsible
in any way for any losses, no matter how they arise, from errors
or omissions in these instructions, or the performance or
non-performance of the equipment that these instructions refer to.
This symbol on the products and/or accompanying
documents means that used electronic equipment
must not be mixed with general household waste.
For treatment, recovery and recycling please return
this unit to your trade supplier or local designated
WEE/CG0783SS collection point as de ned by your local council.
systemq.com
SPECIFICATION
2.8-12mm Varifocal
1080P HD
0 with LEDs on
True Day/Night Filter
2
Up to 35m
12V DC / 400mA
IP66
Backlight
Compensation
Gloss Black or Pure
White
120 Dia. x 90mm
External HD
NiteDevil Camera
with 2.8-12mm
Motorised Lens -
Black
SEE850B
