Page 2: Table Of Contents
4 NCD / No Image Displayed on Recorder ............... 12 Part 6 General Maintenance Part 7 Specification Part 8 Conditions 1 General Company Disclaimer ..................15 2 WEEE Declaration ......................15 3 Copyright ........................15 Index © 2021 System Q Ltd Kovert.com... -

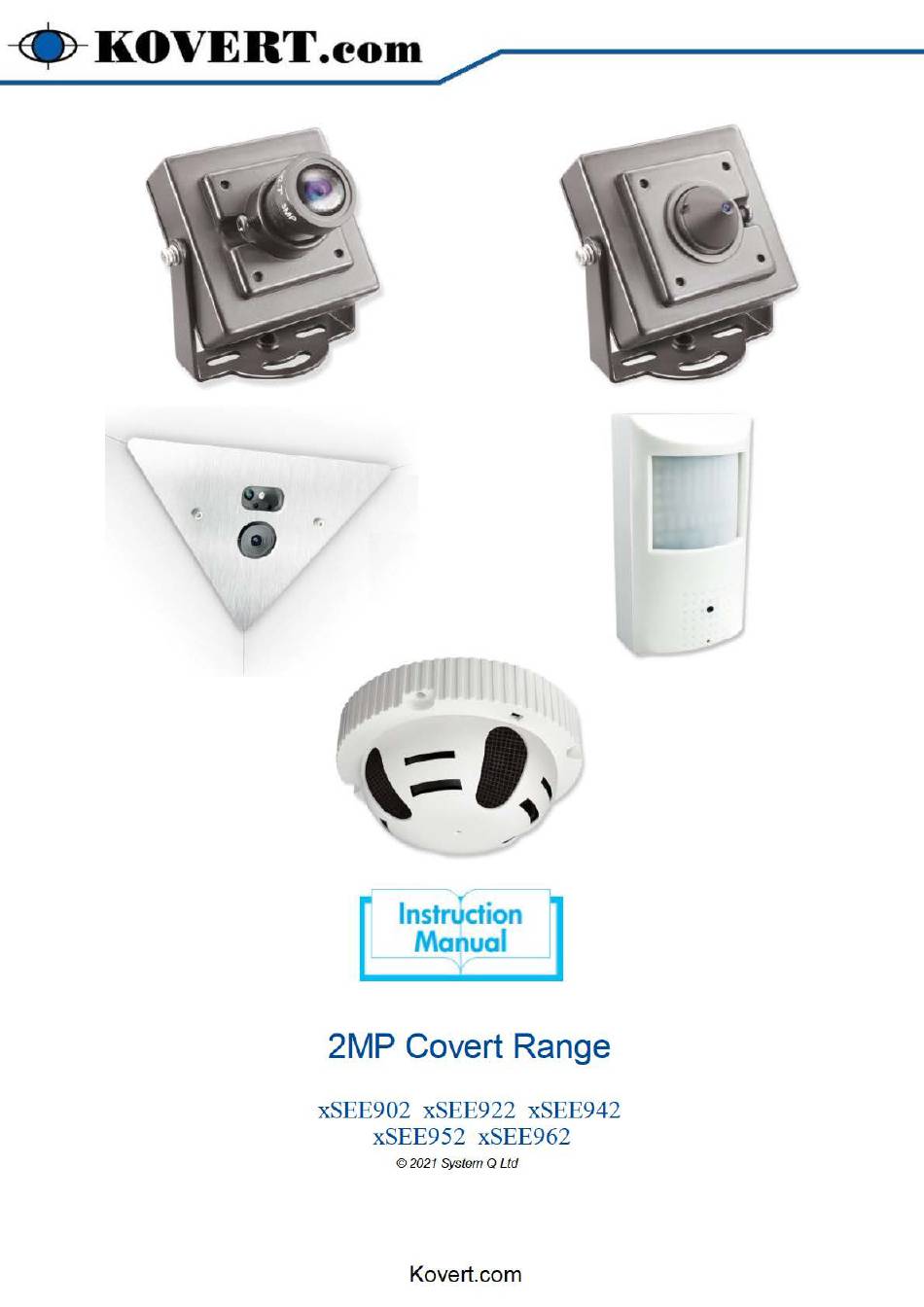

Page 3: Part 1 Introduction To The 2Mp Covert Range
· Drill · Hammer · POW151 - 12V DC 500mA Plug-in PSU · Drill bits · BNC Crimp Tool & BNCs · RG59 Coax Cable · Digital Multi-Meter · LCD400K - CCTV Test monitor © 2021 System Q Ltd Kovert.com... -
Page 4: Part 2 Connections, Dimensions & Key Features
2.1 SEE902 COVERT 3.6MM MODULE FEATURES 2MP Resolution · TVI, CVI, AHD or Analogue Output · Low Light - 0.001 Lux · Mounting Bracket Included · 3.6mm Wide Angle Board Lens · Tiny Size Just 35x35mm · © 2021 System Q Ltd Kovert.com... -
Page 5: See922 Covert 3.7Mm Cone Phole Module
FEATURES 2MP Resolution · Mounting Bracket Included · Low Light - 0.001 Lux · Small Aperture only needs a tiny · hole! TVI, CVI, AHD or Analogue Output · Tiny Size Just 35x35mm · © 2021 System Q Ltd Kovert.com... -
Page 6: See942 Antivandal Camera Corner
FEATURES Anti-Vandal Design · Ideal for Lifts & Stock or Security Rooms · Low Light - 0.001 Lux · Close Up IR Array · TVI, CVI, AHD or Analogue Output · True Day/Night · © 2021 System Q Ltd Kovert.com... -
Page 7: See952 Covert 3.6Mm Smoke
Connections, Dimensions & Key Features 2.4 SEE952 COVERT 3.6MM SMOKE FEATURES Realistic PIR Cases · TVI, CVI, AHD or Analogue Output · Built-in Microphone · 3.7mm Pinhole Lens · Wall Bracket Included · Hidden True-Black IR LEDs · © 2021 System Q Ltd Kovert.com... -
Page 8: See962 Covert 3.6Mm Smoke
2MP Covert Range 2.5 SEE962 COVERT 3.6MM SMOKE FEATURES Hi-Res, Stylish & Discrete · Low Light - 0.001 Lux · 3.6mm Board Lens · TVI, CVI, AHD, CVBS Output · © 2021 System Q Ltd Kovert.com... -
Page 9: Part 3 4-In-1 Technology
This output can be changed either with the dip switches on the fly-lead of the camera. Please note the “Output Mode” in the menu of the DVR won’t change the format, as the dip switch overrides the output. The dip switch configuration can be found below:- © 2021 System Q Ltd Kovert.com... -
Page 10: Part 4 Osd Menu
(Defaults the above) RETURN HSBLC SELECT AREA 1 / 2 / 3 / 4 (Selects adjustment area) DISPLAY / OFF POSITION & SIZE BLACK MASK ON / OFF LEVEL 0 ~ 100 (Default 20) © 2021 System Q Ltd Kovert.com... - Page 11 AREA 1 / 2 / 3 / 4 DISPLAY COLOR / OFF / MOSAIC / INV. COLOR WHITE / BLACK / RED / BLUE / YELLOW / GREEN / CYAN / USER TRANS 1.00 / 0.25 / 0.50 / 0.75 DEFAULT © 2021 System Q Ltd Kovert.com...
- Page 12 0 ~ 100 (Default 56) RED GAIN 0 ~ 100 (Default 56) RETURN ON / OFF COMET OFF / ON OUTPUT MODE NO ADJUSTMENT RETURN EXIT SAVE & END / RESET / NOT SAVE © 2021 System Q Ltd Kovert.com...
-
Page 13: Key Menu Settings
Data Protection Act and avoids infringing other people’s privacy rights. Reset - Defaults the camera to factory settings. This setting helps when fault finding issues with the camera to ensure all settings are defaulted. © 2021 System Q Ltd Kovert.com... -
Page 14: Part 5 Troubleshooting
C. Ensure that the BNC – BNC lead that you connect between the camera and DVR has no shorts or open circuits. If you are making your own lead, don’t forget the lead must have two wires connected to complete the circuit, Video and Ground. © 2021 System Q Ltd Kovert.com... -
Page 15: Part 6 General Maintenance
Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. We recommend a damp non-abrasive microfibre cloth. · Check that the cameras are firmly attached. · Check playback in the recorder to ensure the camera is recording properly. © 2021 System Q Ltd Kovert.com... -
Page 16: Part 7 Specification
(H) 120 x (W) 108mm Dia x 35 x (D) 29mm 35 x (D) 198 x (D) 70 x (D) 45mm (H) 51mm 21.5mm 107mm (Ex Bracket) IR Wavelength 850nM 940nM - True Black © 2021 System Q Ltd Kovert.com... -
Page 17: Part 8 Conditions
Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible in any way for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non- performance of the equipment that these instructions refer to. -
Page 18: Index
- D - - V - Declaration Dimensions Disclamer Video - E - - W - Equipment WEEE Declaration - F - Fault Finding Features - G - General Disclaimer - I - Introduction © 2021 System Q Ltd Kovert.com...
