SEE705 - Quick Start Guide
The camera has a standard BNC connector for the 4-in-1 video output. As default the output is set to
HD-TVI 5MP which will work with the ZipSupa and ZipXtreme DVRs, however the output can be
changed to AHD, CVI or CVBS if required.
Document ref: qSEE705

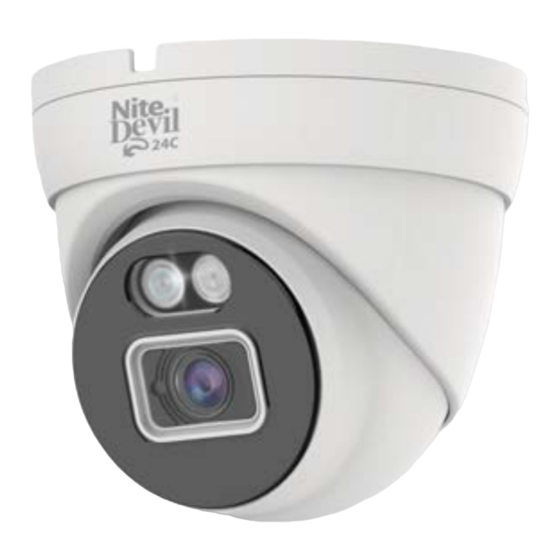

5MP NiteDevil Eyeball 2.8mm Built In Mic
The all new NiteDevil 24C can stay in full
colour around the clock using the minimal
amount of natural light to produce superb
full colour images.
Up to 30m IR range (true day/night filter)
and up to 20m white light range, 5MP
resolution, built in Mic for Audio over
COAX* and multi format output modes
including; TVI, AHD, CVI and CVBS.
*Audio over COAX only Compatible with selected ZIP
Recorders. See full manual for how to enable and
compatible models
OSD Camera Menu
Via an DVR with a monitor & mouse direct to access
the Cameras menu via coaxitron:-
1. Click on the image in Live view
2. Click on the PTZ button at the bottom of the screen
1. Click on the IRIS + / centre button to display the
menu
Use the directional arrows to move up and down
through the menu.
Use the directional arrows left and right to change the
option.
Use IRIS + to select and enter that menu option.
NiteDevil.com
NiteDevil is a registered trademark of System Q Ltd
www.systemq.com/PDF
/manual/xSEE705.pdf
Powering the camera
The camera has a 2.1mm socket which
requires 12V DC and the current
consumption is 300mA, so use a
regulated power supply rated at 500mA
or above.
The camera is polarity sensitive so
connections must be correctly made.
