Summary of Contents for System Q Kovert SEE900

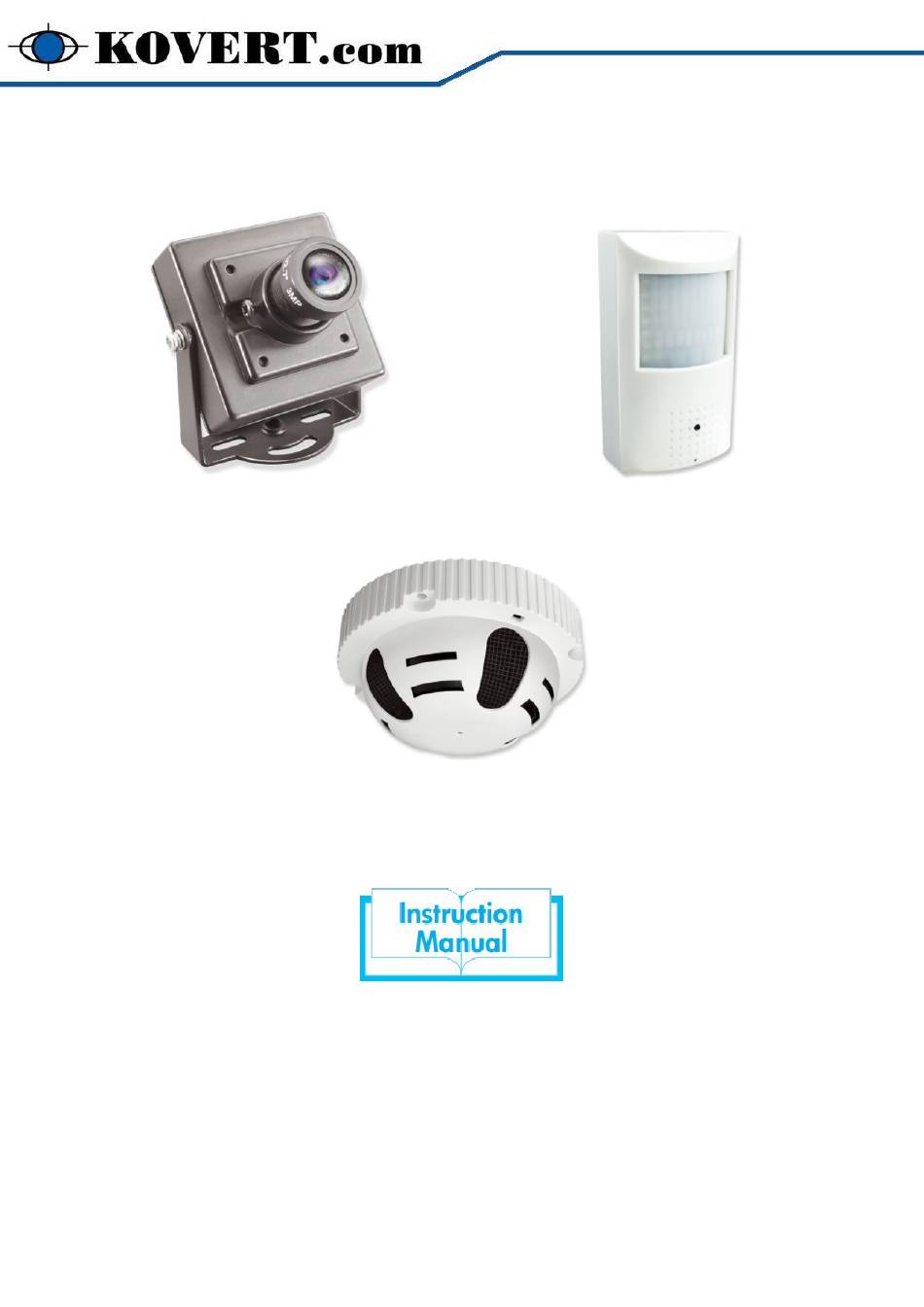

- Page 1 2MP Budget Covert Range xSEE900 xSEE950 xSEE960 © 2021 System Q Ltd Kovert.com...
-
Page 2: Table Of Contents
4 NCD / No Image Displayed on Recorder ................. 9 Part 6 General Maintenance Part 7 Specification Part 8 Conditions 1 General Company Disclaimer ..................11 2 WEEE Declaration ......................11 3 Copyright ........................11 Index © 2021 System Q Ltd Kovert.com... -
Page 3: Part 1 Introduction To The 2Mp Covert Range
· Drill · Hammer · POW151 - 12V DC 500mA Plug-in PSU · Drill bits · BNC Crimp Tool & BNCs · RG59 Coax Cable · Digital Multi-Meter · LCD400K - CCTV Test monitor © 2021 System Q Ltd Kovert.com... -
Page 4: Part 2 Connections, Dimensions & Key Features
130mA or above. The camera is polarity sensitive so connections must be correctly made. 2.1 SEE900 COVERT 3.6MM MODULE FEATURES 2MP Resolution · TVI, CVI, AHD or Analogue Output · Mounting Bracket Included · 3.6mm Wide Angle Board Lens · © 2021 System Q Ltd Kovert.com... -
Page 5: See950 Covert 3.6Mm Smoke
Connections, Dimensions & Key Features 2.2 SEE950 COVERT 3.6MM SMOKE FEATURES Realistic PIR Cases · TVI, CVI, AHD or Analogue Output · 3.7mm Pinhole Lens · Wall Bracket Included · © 2021 System Q Ltd Kovert.com... -
Page 6: See960 Covert 3.6Mm Smoke
2MP Budget Covert Range 2.3 SEE960 COVERT 3.6MM SMOKE FEATURES Hi-Res, Stylish & Discrete · Low Light - 0.001 Lux · 3.6mm Board Lens · TVI, CVI, AHD, CVBS Output · © 2021 System Q Ltd Kovert.com... -
Page 7: Part 3 4-In-1 Technology
This output can be changed either with the dip switches on the fly-lead of the camera. Please note the “Output Mode” in the menu of the DVR won’t change the format, as the dip switch overrides the output. The dip switch configuration can be found below:- © 2021 System Q Ltd Kovert.com... -
Page 8: Part 4 Osd Menu
AUTO / MANUAL 0 ~ 20 (Default 5) SATURATE AUTO / MANUAL 0 ~ 20 (Default 5) 3DNR AUTO / MANUAL 0 ~ 20 (Default 0) 2DNR AUTO / MANUAL 0 ~ 20 (Default 0) © 2021 System Q Ltd Kovert.com... - Page 9 Same as above AREA 0 AREA 3 Same as above AREA 0 AREA 4 Same as above AREA 0 COLOR RED / GREEN / BLUE TRANSPARENCY OFF / ON RETURN RETURN RESET SAVE & EXIT EXIT © 2021 System Q Ltd Kovert.com...
-
Page 10: Key Menu Settings
D-WDR - Digitally adjusts the exposure in areas of the frame to maintain optimum levels in both the dark and bright areas of an image. Reset - Defaults the camera to factory settings. This setting helps when fault finding issues with the camera to ensure all settings are defaulted. © 2021 System Q Ltd Kovert.com... -
Page 11: Part 5 Troubleshooting
C. Ensure that the BNC – BNC lead that you connect between the camera and DVR has no shorts or open circuits. If you are making your own lead, don’t forget the lead must have two wires connected to complete the circuit, Video and Ground. © 2021 System Q Ltd Kovert.com... -
Page 12: Part 6 General Maintenance
Operating Temperature -10°C - +60°C White Balance Auto / Manual Dimensions (H) 35 x (W) 35 x (D) (H) 120 x (W) 70 x (D) 108mm Dia x (H) 51mm 29mm 45mm (Ex Bracket) © 2021 System Q Ltd Kovert.com... -
Page 13: Part 8 Conditions
Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible in any way for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non- performance of the equipment that these instructions refer to. -
Page 14: Index
- D - - V - Declaration Dimensions Disclamer Video - E - - W - Equipment WEEE Declaration - F - Fault Finding Features - G - General Disclaimer - I - Introduction © 2021 System Q Ltd Kovert.com...
