System Q CAM300 Manual

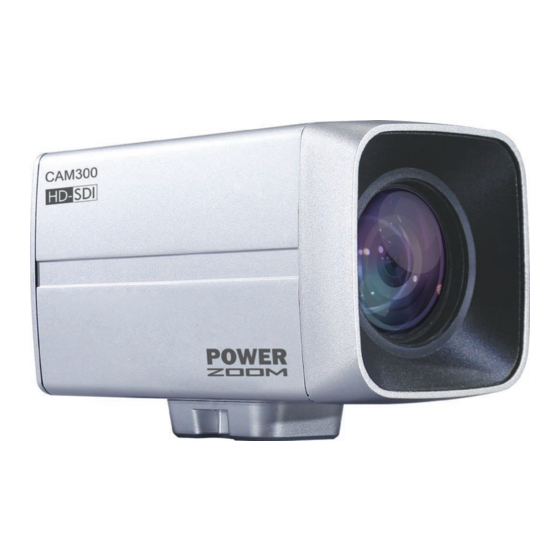

CAM300 - HD-SDI Camera With 18x Optical Zoom & Autofocus
1080p Camera With WDR, IR Cut-O Filter & RS485 Control
This high performance HD camera has a built-in autofocus & Zoom lens to allow fast
locating and capturing of an event - making it great for evidence purposes!
The CAM300 is a great option where high de nition recordings are required along with
operator control to zoom into an event as it happens. The camera can be controlled
using RS485 and is compatible with the common Pelco D & P protocols so it can easily be
controlled using most PTZ keypads.
The real beauty of the auto-focus lens is that the camera will autofocus as a person or
object approaches the camera or gets further away and there is no awkward focussing
on installation either.
The CAM300 also features a mechanical IR cut-o
and removed at night ensuring the camera always captures the best possible images.

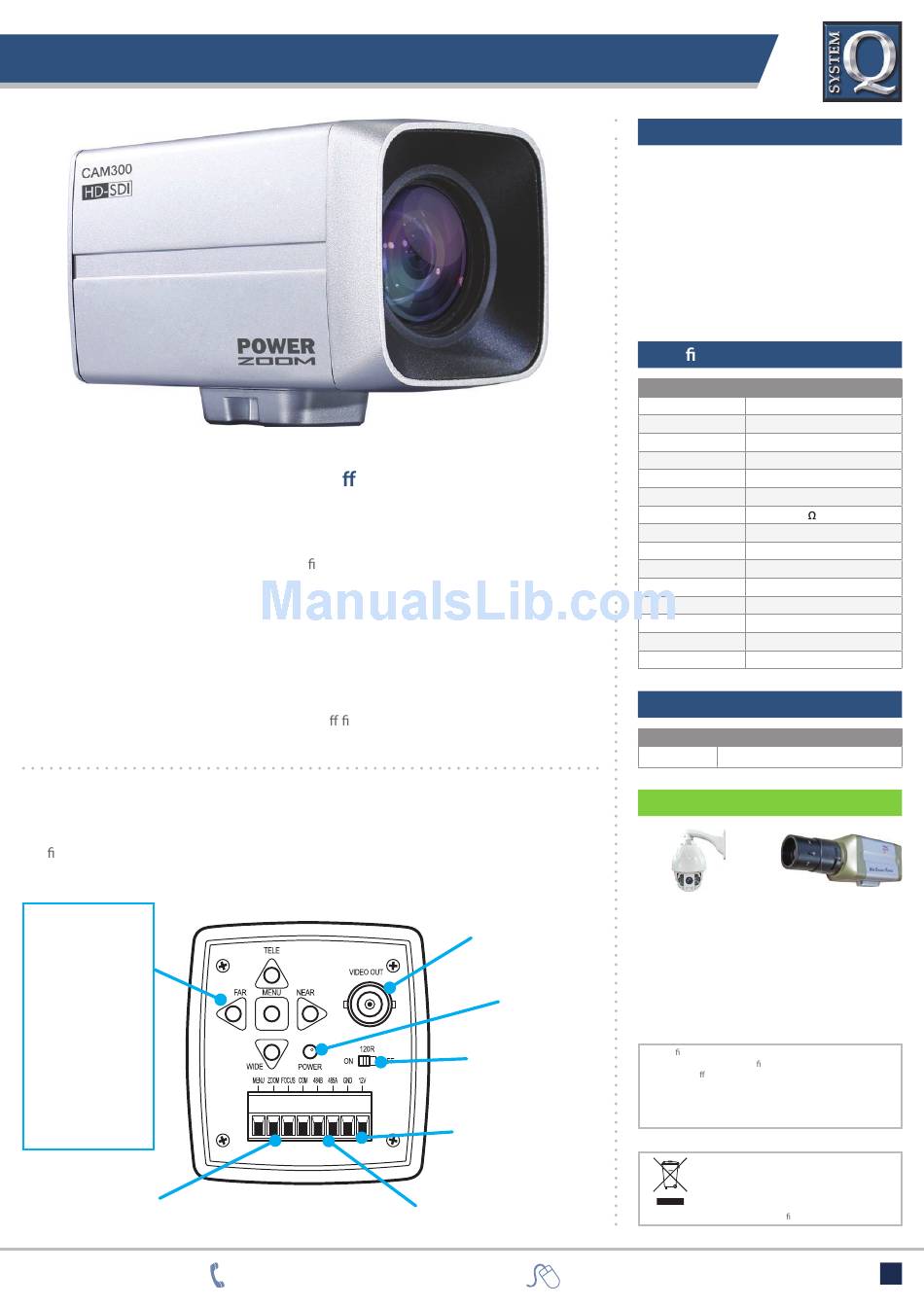

Connections & Controls
All of the CAM300's connections an controls are found on the rear of the camera. You
will nd a BNC socket for connecting the video, screw terminals for power and RS485
connections, a power indicator LED and OSD menu control buttons.
Camera Controls
Menu: Open OSD menu
Tele: Zoom in /
Select menu item
Wide: Zoom out /
Select menu item
Far: Focus on objects
far away from
camera / Change
item value / Set
Near: Focus on objects
close to the
camera / Change
item value / Set
Menu, Zoom,
Focus, Com,
Not Currently Used
lter which is in place during the day
RS485- (485B) Connections
01246 200 000
BNC Socket
For Video Out
(HD-SDI Only)
Power
Indicator
120Ω Termination
Resistor
12V & Ground (0V)
For Connecting Power
RS485+ (485A) &
systemq.com
Features
• 1080p @ 25fps
• 4.7-84.6mm Mega Pixel Lens
• Auto Focus
• Wide Dynamic Range
• RS485 OSD Control
• True Day Night IR Cut-off Filter
• 12V DC
Speci cation
FUNCTION SPECIFICATION
Image Sensor 1/3" Sony Colour CMOS
Resolution 1080p / 720p
Lens 4.7 - 84.6mm Lens
Iris Control Auto
Min Illumination 0.01Lux
Day/Night Mechanical
Video Output 1v p ~ p, 75
Video Connection BNC
Power/Current 12vDC (± 10%) 250mA
Power Connection Terminal Connections
Protocol Pelco-D / Pelco-P (Auto)
S/N Ratio More than 50dB
Use Internal Only
Operating Temp. -10°C ~ +50°C
Dimensions 115 x 70 x 60mm
Options Available
PART CODE DESCRIPTION
CAM300 HD-SDI Camera, 18x Optical Zoom
Other Products To Consider
HD PTZ Camera 1080p Traditional
4.7-84.6mm 2.1 True Day Night
Mega Pixel, 18x NiteDevil HD-SDI
Optical Zoom, 14x Camera With
High Power IRs & 2.8-12mm Lens
Wide Dynamic Range
HDSDI-PTZ610W
All speci cations are approximate. System Q Ltd reserves the right
to change any product speci cations or features without notice.
Whilst every e ort is made to ensure that these instructions are
complete and accurate, System Q Ltd cannot be held responsible
in any way for any losses, no matter how they arise, from errors
or omissions in these instructions, or the performance or non-
performance of the equipment that these instructions refer to.
This symbol on the products and/or accompanying
documents means that used electronic equipment
must not be mixed with general household waste.
For treatment, recovery and recycling please return
this unit to your trade supplier or local designated
WEE/CG0783SS
collection point as de ned by your local council.
