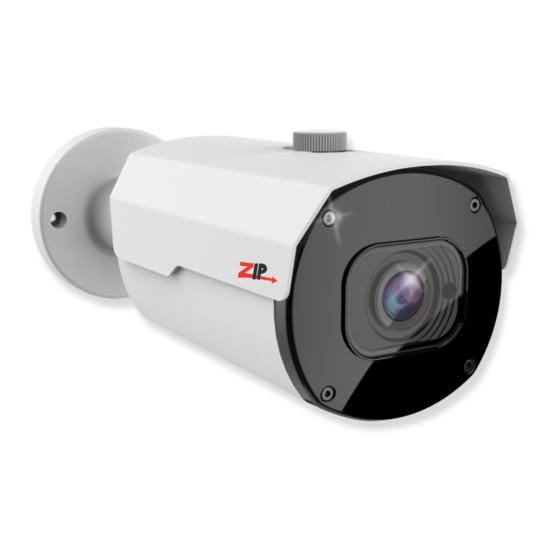

System Q ZIP IPCAI918 Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

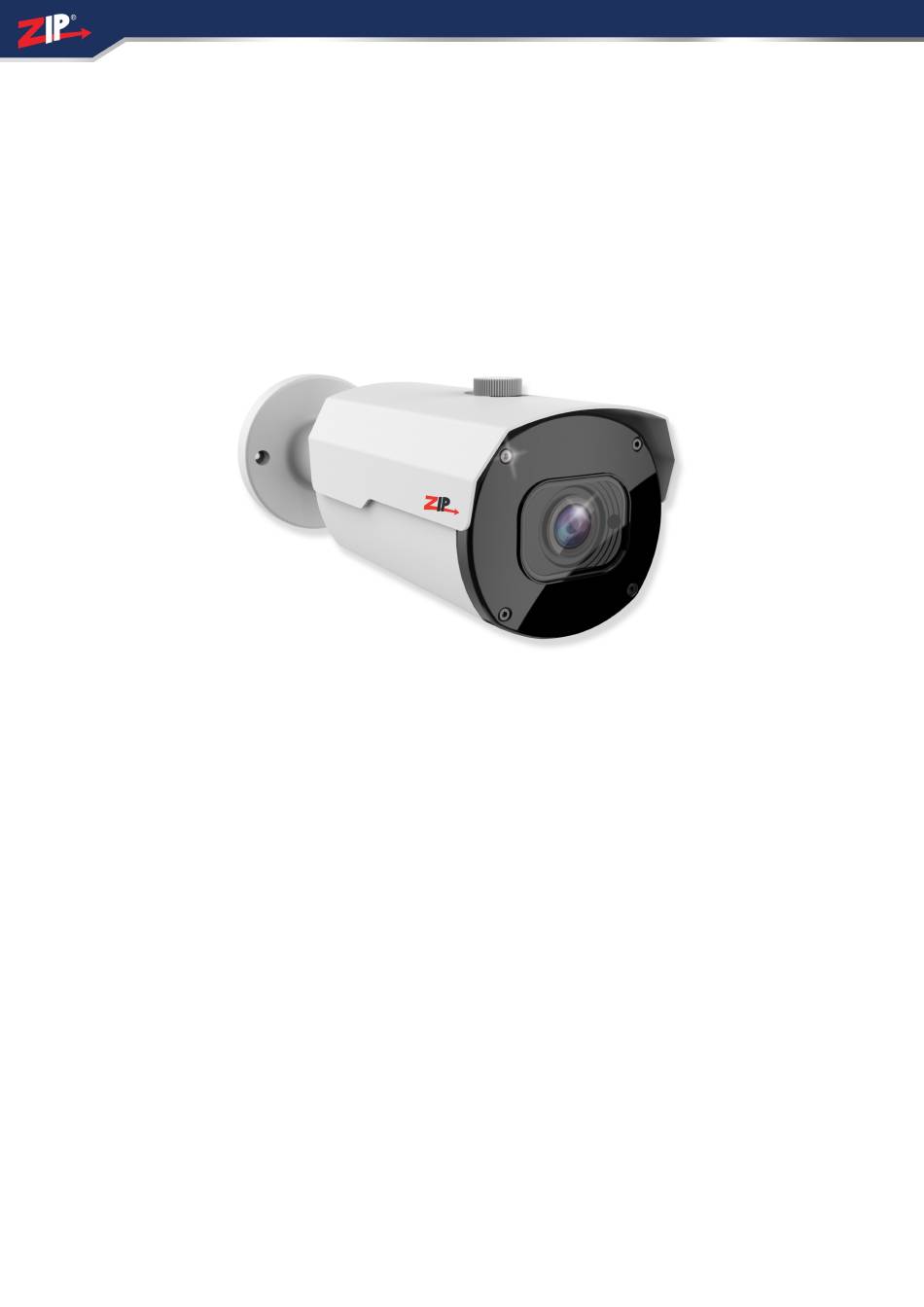

Instruction Manual

IPCAI918

ZipNVR.com

Table of Contents

Need help?

Do you have a question about the ZIP IPCAI918 and is the answer not in the manual?

Questions and answers

Summary of Contents for System Q ZIP IPCAI918

Page 2: Table Of Contents
Motorised Zoom & Focus ZIP NVR and DVR ......................31 Standalone ........................31 Extra Resources ZipNVR.com Website ....................32 Adding IP Cameras ....................... 32 ZIP Firmware ........................ 32 General Maintenance Specification IPCAI918 ........................34 © 2023 System Q Ltd ZipDVR.com...
Page 3: Introduction
To install this product you will need: · Laptop / Windows PC · Screwdriver · Drill · Hammer · ZIP NVR or DVR · PoE Switch / 12V DC power supply · Ethernet CAT5/5e/6 Cable © 2023 System Q Ltd ZipDVR.com...
Page 4 IPCAI918 ZipFinder - IP Camera Configuration Tool ZipFinder is a Windows PC software for discovering and configuring IP cameras a network. Use ZipFinder on non-PoE installs, to help problem solving issues such as forgotten or unknown IP Addresses. To download visit ZipNVR.com 14/08/2023 ZipDVR.com...
Page 5: Mounting And Sd Card Installation
AI smart, this maximises the recording time achievable. Remove power from the camera when inserting / removing the SD card. 2.1 Bullet A template is provided in the box for marking the hole positions for the fixing screws. © 2023 System Q Ltd ZipDVR.com...
Page 6: Setup Options
IPCAI918 Setup Options 3.1 PoE ZIP NVR When connecting to a ZIP PoE NVR plug the camera directly into the NVR's built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. The 100m distance for a camera can be increased when the PoE Mode is set to EPoE.
Page 7: Non-Poe Zip Nvr
When connecting cameras to a Non-PoE NVR, they are first connected to an external network switch which is in-turn connected to the NVR as shown below. Extra Resources for more information on Adding IP Cameras manually to a ZIP Recorder. © 2023 System Q Ltd ZipDVR.com...
Page 8: Setup And Ai Features
IPCAI918 Setup and AI Features The AI smart features can be configured in a ZIP recorder or directly in the browser interface of the camera (standalone) Only one smart detection feature can be enabled at any given time. See the NVR or DVR manual for information on configuring these features with a ZIP recorder.
Page 9 6. Download, install and follow the steps for the plug-in installation, then re-load the browser by selecting the IP address again. 5. Login to the IP Camera, the default login details are:- User Name admin Password 777777 6. Go to Remote Setting > Smart > Detection © 2023 System Q Ltd ZipDVR.com...
Page 10: Pid = Perimeter Intrusion Detection
IPCAI918 4.1 PID = Perimeter Intrusion Detection Perimeter intrusion detection can be set to trigger an alarm event when movement is detected in a set area. Key Settings Switch - Tick to enable this feature. Un-Tick to disable this feature. Latch Time - This determines how long the alarm event is deemed to be activate once triggered.
Page 11 A or B (A<->B) = Any moment direction over the perimeter will trigger. Enable Record - Tick to enable recording when the event is triggered. Un-Tick to disable recording when the event is triggered. © 2023 System Q Ltd ZipDVR.com...
Page 12: Lcd = Line Crossing Detection
IPCAI918 4.2 LCD = Line Crossing Detection Line crossing detection can be set to trigger an alarm event when movement is detected across a custom line Key Settings Switch - Tick to enable this feature. Un-Tick to disable this feature. Latch Time - This determines how long the alarm event is deemed to be activate once triggered.
Page 13 A or B (A<->B) = Any moment direction over the perimeter will trigger. Enable Record - Tick to enable recording when the event is triggered. Un-Tick to disable recording when the event is triggered. © 2023 System Q Ltd ZipDVR.com...
Page 14: Pd & Vd = Pedestrian Detection And Vehicle Detection
IPCAI918 4.3 PD & VD = Pedestrian Detection and Vehicle Detection Pedestrian detection and vehicle detection can be set to trigger an alarm event in a custom area when it detects pedestrians, vehicles or both. Key Settings Switch - Tick to enable this feature. Un-Tick to disable this feature.
Page 15 64 pixels to 1080 pixels. Customize the size depending on how far away the camera is away from the subject. Detection Type - Tick to enable, options are pedestrian and vehicle. (Both can be enabled simultaneously) © 2023 System Q Ltd ZipDVR.com...
Page 16 IPCAI918 Detection Mode - How the detection will handle motion and stationary objects. Motion mode = Will only detect moving subjects. Static mode = Will detect moving subjects but also stationary pedestrians and vehicles are in the alarm area. Detection Range - Set the detection area for the image Customize = Customise a defined detection area Full Screen = Set to Monitor the entire image Enable Record - Tick to enable recording when the event is triggered.
Page 17: Fd = Facial Detection
Send Email - Email alert via SMTP can be triggered and send a snapshot image of the event. Note:- Email Settings required to be set up in Network Menu for this feature. Snap Mode - Set how the camera will capture thumbnail snapshots when triggered. © 2023 System Q Ltd ZipDVR.com...
Page 18 IPCAI918 Default = Will only capture a snapshot when subjects are first detected. Additional thumbnail snapshots will only be captured if the subject leaves the camera's image and returns Realtime: Only capture a snapshot from just before the subject leaves the image.
Page 19 To set up line crossing face detection follow these steps: 1. Set the rule kind drop down list to line. 2. Click on the camera's image to start the line crossing. 3. Click to stop the line crossing. © 2023 System Q Ltd ZipDVR.com...
Page 20: Ai Setup
IPCAI918 4. Finally select which direction a person crosses the line before face detection is triggered from the rule type drop down list, from side A to B (A->B) or from side B to A (B->A). Detection Range - Set the detection area for the image. Customize = Customise a defined detection area Full Screen = Set to Monitor the entire image Enable Record - Tick to enable recording when the event is triggered.
Page 21: Ipcai915 / Ipcai918 Browser Menu Settings
Refresh / Save Stream Type MainStream / SubStream / MobileStream Region ID 1 ~ 8 Enable Region Disable / Enable ROI Level Lowest / Lower / Low / Medium / Higher / Highest Non-ROI Fps (1- © 2023 System Q Ltd ZipDVR.com...
Page 22 IPCAI918 Refresh / Save Record Encode Mainstream Resolution 3840 x 2160 / 3072 x (IPCAI918) 1728 / 2592 x 1944 / 2592 x 1520 / 2304x1296 / 1920x1080 / 1280 x 960 / 1280x720 Resolution 2592 x 1944 / 2592 x (IPCAI915) 1520 / 2304x1296 / 1920x1080 / 1280 x...
Page 23 Enable / Disable Save / Schedule / Refresh Sound Detection Latch Time 5s / 10s / 20s / 30s Post OFF / 5s / 10s / 20s / Recording Send Email Enable / Disable © 2023 System Q Ltd ZipDVR.com...
Page 24 IPCAI918 FTP Picture Enable / Disable Upload FTP Video Enable / Disable Upload Cloud Picture Enable / Disable Cloud Video Enable / Disable Alarm Out Enable / Disable Enable RecordEnable / Disable Event Report Enable / Disable Event Push Event Push Enable Enable / Disable Name...
Page 25 1 to 4 (Default 2) Dynamic Marking Enable / Disable Min Pixel 64 ~ 1080 (Default 64) Max Pixel 320 ~ 1080 (Default 640) Max Detection 1 ~ 500 (50) Number Detection Range Customize / Full Screen © 2023 System Q Ltd ZipDVR.com...
Page 26 IPCAI918 Rule Number Rule Enable Enable / Disable Save / Refresh QD (Queue Enable Enable / Disable Depth) Sensitivity 1~ 4 (Default 60) Dynamic Marking Enable / Disable Min Pixel 64 ~ 1080 (Default 64) Max Pixel 320 ~ 1080 (Default 640) Max Detection 1 ~ 500 (50) Number...
Page 27 Enable PPPoE Enable / Disable Username User-definable Password IP Address Save / Refresh SNMP Enable Enable / Disable SNMP Version User-definable SNMP Port Read Community Write Community Trap IP Address Trap Port Save / Refresh © 2023 System Q Ltd ZipDVR.com...
Page 28 IPCAI918 Port HTTP Port Enable / Configuration Disable Client Port User-definable HTTPS Port RTSP Port Muticast Port 1024 – 65535 P2P Enable Enable / Disable Save / Refresh Email Email Enable / Disable Encryption Disable / SSL / TLS / Auto SMTP Port 25 / Customise SMTP Server...
Page 29 End Time User-definable Load Default All / Video / Record/ Event / AI / Network/ Storage / System Save / Refresh Upgrade Path Search Local Files Save / Load Import File Search Local Files © 2023 System Q Ltd ZipDVR.com...
Page 30 IPCAI918 Export File Search Local Files Name Auto Reboot Auto- Enable / Disable maintenance Time Date / Week / Month Mon / Tues / Wed / Thur / Fri / Sat / Sun Time Save / Refresh / Reboot Information Device ID Device Name Device Type...
Page 31: Motorised Zoom & Focus
Use the zoom + and zoom -, to zoom in and out. The camera will automatically focus once the zoom button is released. Focus can also be set manually using the focus + and zoom -. © 2023 System Q Ltd ZipDVR.com...
Page 32: Extra Resources
IPCAI918 Extra Resources 7.1 ZipNVR.com Website The Zip NVR has a range of information on the cameras and NVRs, manuals, software, tools and support:- www.zipdvr.com 7.2 Adding IP Cameras How to guide on Adding IP Cameras:- www.zipdvr.com/howto/TIP459-How-To-Add-IP-Cameras.html 7.3 ZIP Firmware Firmware for the ZIP products are available online:- www.zipdvr.com/firmware.html Compare the firmware in the product against that available online.
Page 33: General Maintenance
Routinely check the connections for power and data to ensure no water ingress and corrosion. · Check that the cameras are firmly attached to the wall or mounting bracket. · Check playback in the recorder to ensure the camera is recording and triggering properly. © 2023 System Q Ltd ZipDVR.com...
Page 34: Specification
IPCAI918 Specification 9.1 IPCAI918 Image Sensor 1/ 2.8” Progressive CMOS Resolution 8MP 3840(H)× 2160(V) Lens Type 2.8-12mm Motorised Shutter 1/5 ~ 1/20000s Day/Night Mechanical (True Day-Night) Min. Illumination 0 (With IR On) IR Range Up to 45m Digital Noise Reduction 3D DNR Video Compression H.264 / H.265...

This manual is also suitable for:

Zip ipcai915 Zip ipczip570b/w Zip ip-cam570b/w
