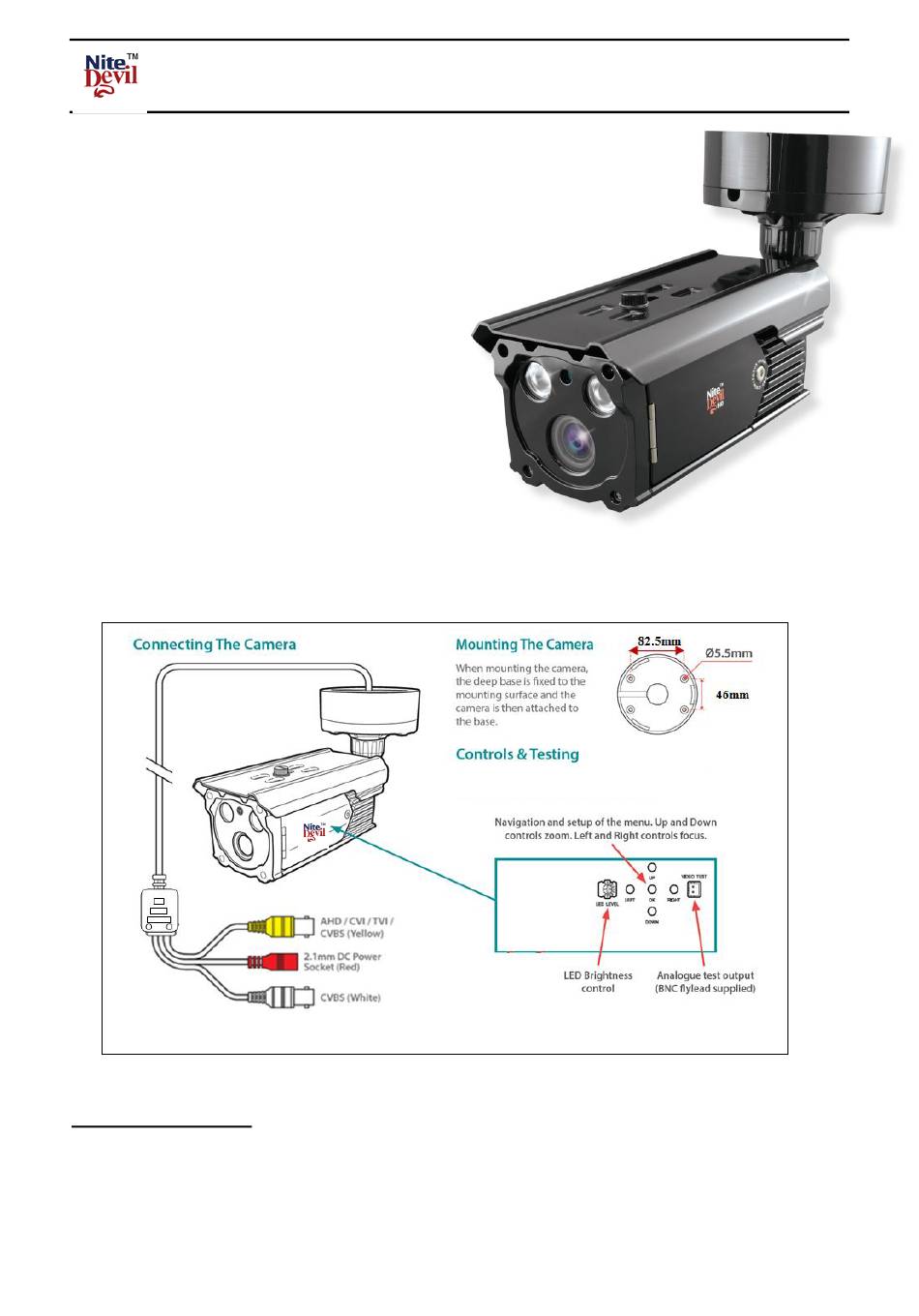

SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR
SEE845 External HD-TVI Camera
This HD-TVI camera has a 2.1 Mega
Pixel 2.8~12mm varifocal lens, 2x
High Power IRs with 40 meter range,
2 motors driving the zoom & focus
and cut filter for True Day/Night,
Privacy masking & Motion. This
model comes in glossy black or
glossy white.
The SEE845 cameras produce exceptional
quality images using the Sony 1/3" CMOS
CCD providing HD 1080P resolution. The
cameras have Coaxitron Control for changing
the OSD menu specifications via the DVR or
remote network connection, or via the
camera.
Powering the Camera
The SEE845 runs on a 12V DC regulated power supply. The camera is provided with a fly lead
with a mini power 2.1mm DC socket. It is recommended to use a power supply that is rated higher
than the current consumption of the camera i.e. the current consumption is 655mA with IRs set to
maximum so use a power supply of 700mA or above. The camera is polarity sensitive so
connections must be correctly made.
Email: support@kovert.com
Open camera's left door using Allen key supplied
Last Revised 14/09/2018
XSEE845
Advertisement
Related Manuals for System Q NiteDevil SEE845
Summary of Contents for System Q NiteDevil SEE845
- Page 1 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR SEE845 External HD-TVI Camera This HD-TVI camera has a 2.1 Mega Pixel 2.8~12mm varifocal lens, 2x High Power IRs with 40 meter range, 2 motors driving the zoom & focus and cut filter for True Day/Night, Privacy masking &...
- Page 2 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR Connecting the camera to control equipment The dome camera comes with a fly lead for power and HD-TVI video out. Connect the camera to control equipment via a female BNC-BNC lead. When using a co-ax type cable such as RG59 or similar, the outer braid of the co-ax provides the “0V GROUND”...
- Page 3 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR OSD Menu The SEE845 has an on screen display menu. This can be accessed using the small joystick under the flap on the side of the camera. Press the centre button straight down...
- Page 4 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR DAY&NIGHT EXTERNAL IR LED Off / On Anti-Sat. 1 ~ 20 (Not used when IRs off) Extern S/W Low / High D->N Level 1 ~ 20 Default 13 N->D Level 1 ~ 20 Default 7 Delay –...
- Page 5 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR MOTION OFF / ON Det Window Window Zone 0 ~ 3 Window Use On/Off Det H-Pos <nn> <nn> value = position Det V-Pos <nn> <nn> value = position Det H-Size <nn> <nn> value = size Det V-Size <nn>...
- Page 6 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR Menu Description The following menu description gives more in depth information about the menu options. In some instances recommendations are made to hopefully enhance the results. However every installation will be different and there will occasions when alternative solutions may be more suitable.
- Page 7 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR BRIGHTNESS 1 ~ 20 SHUTTER Auto-Normal /Deblur EXPOSURE Manual- 1/25,1/50,1/100,1/200,1/400,1/800,1/1600,1/3200, 1/6400,1/12800,1/25600. Flicker SENS-UP Off /x2/x4/x8/x16/x32 1 ~ 10 RETURN BRIGHTNESS 1 ~ 20 (Default = 10) Use this setting to increase brightness by opening camera iris. Useful for improving night time viewing by using in conjunction with the Sens-Up option.
- Page 8 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR Level 1 ~ 20 / Color – BACKLIGHT BLK/Customize/WHT/YEL/CYN/GRN/MAG/RED/BLU H-Pos – V-Pos – H-Size – V-Size - Return Mode Normal / ROI Weight – Low / Middle / High – Return...
- Page 9 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR DAY&NIGHT EXTERNAL IR LED Off / On Anti-Sat. 1 ~ 20 (Not used when IRs off) Extern S/W Low / High D->N Level 1 ~ 20 Default 13 N->D Level 1 ~ 20 Default 7 Delay –...
- Page 10 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR COLOR AWB Auto Color Gain 1 ~ 20 (Default 10) Return AUTOext / Preset (Push) Color Gain 1 ~ 20 Default 10 Return MANUAL C-Temp 5000K / 8000K / 3000K Color Gain 1 ~ 20...
- Page 11 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR IMAGE SHARPNESS CVBS / CVI / TVI / AHD - 1 ~ 10 TVI Default 4 GAMMA 0.55 / 0.65 /0.75 / 0.45 MIRROR Off / On FLIP Off / On Off / Low / Middle / High (Adaptive Colour &...
- Page 12 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR PRIVACY Off / On Zone Num (0 ~ 15) This function allows the creation of up to 16 coloured areas to be created to provide privacy masking. Zone Disp Off /On The Zone Display allows you to switch on and off the zone number.
- Page 13 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR MOTION OFF / ON Det Window Window Zone 0 ~ 3 Window Use On/Off Det H-Pos <nn> <nn> value = position or size Det V-Pos <nn> <nn> value = position or size Det H-Size <nn>...
- Page 14 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR SYSTEM OUTPUT Main Output Analog Out 0 / Out 1 Analog Out 0 TVI/AHD/CVI / Analog Out1 CVBS Y Gain 0 ~ 32 Def 16 / Y Gain not used CB Gain 0 ~ 32 Def 12...
- Page 15 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR Analog Out1 CVBS / TVI / Off Analog Out1 CVBS Return FRAME RATE 1080 25P / 720 25P / 720 (Crop) 50P (Select camera frame rate) Sets the camera output mode. 1080P is default.
- Page 16 XSEE845 SEE845 NiteDevil SEE845 all-in-one HD-TVI Camera with IR SEE845 Camera Specifications 1/28” SONY 2.1 MP CMOS Sensor Video Outputs TVI, AHD, CVI & Analogue 1920(H) x 1080(V) @ 25fps CVBS 700TVL separate output Resolution 1080p Independent CVBS Day/Night Mechanical True Day/Night...
