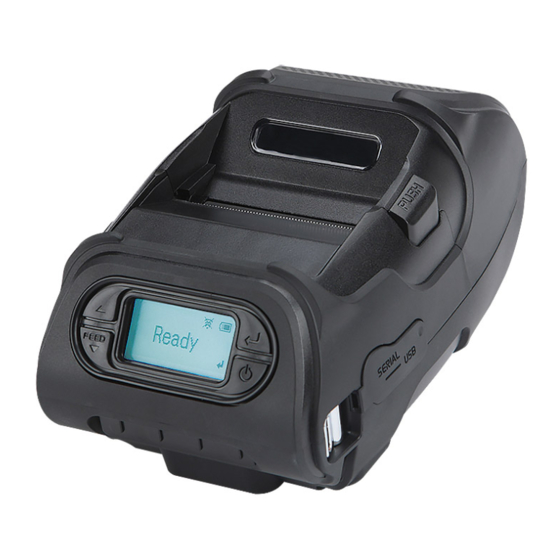

Impressora Sewoo LK-P12II
A Impressora de Etiquetas Portátil Sewoo LK-P12II é compacta, mas
poderosa, mantendo uma bateria de longa duração e grande capacidade
de papel. Oferece a flexibilidade de ajuste a uma ampla gama de requisitos,
não apenas na largura do papel (2 polegadas), mas também na
conectividade..
bztech.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P12II and is the answer not in the manual?

Questions and answers

Related Manuals for SEWOO LK-P12II

Summary of Contents for SEWOO LK-P12II

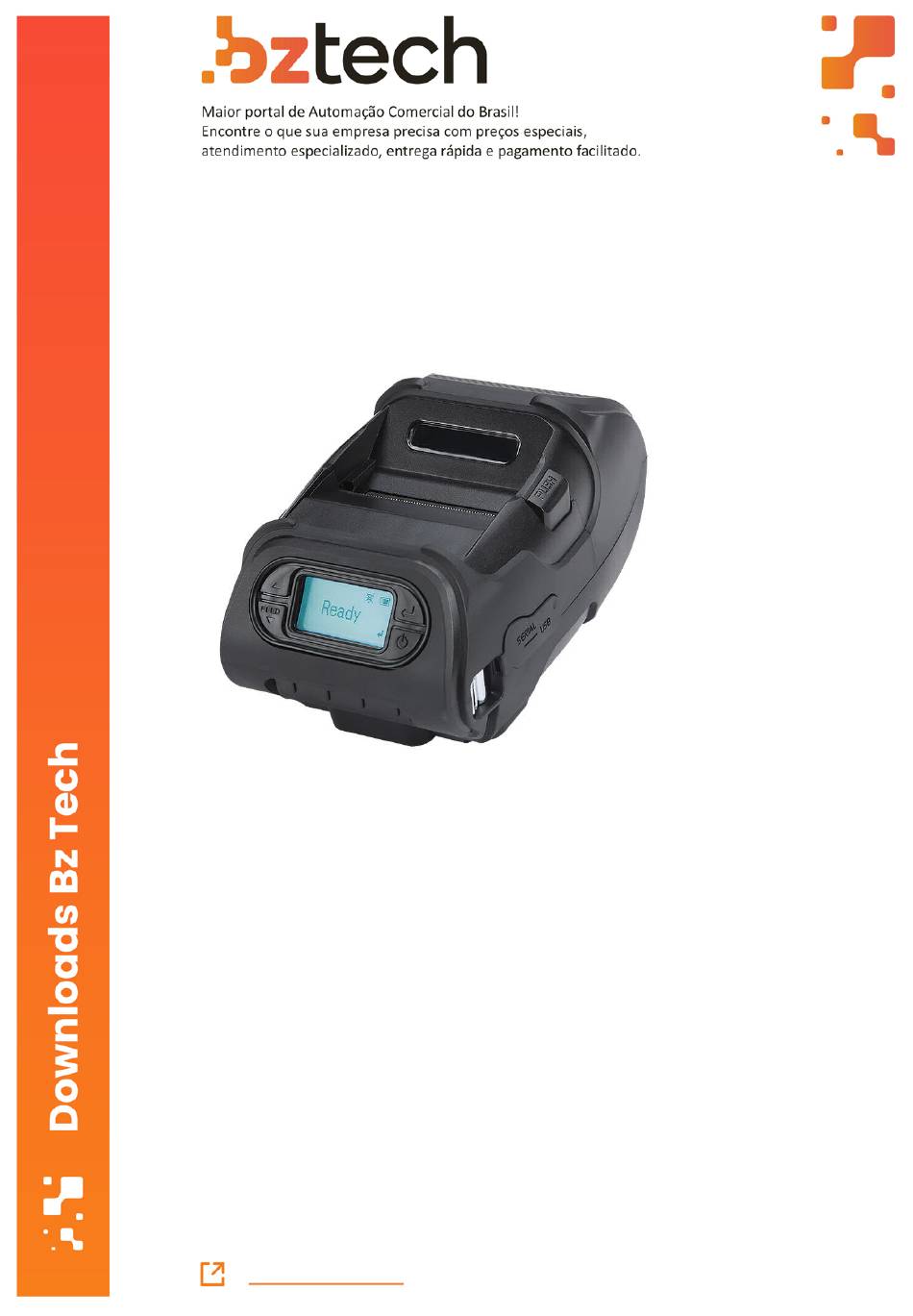

  • Page 1 Impressora Sewoo LK-P12II A Impressora de Etiquetas Portátil Sewoo LK-P12II é compacta, mas poderosa, mantendo uma bateria de longa duração e grande capacidade de papel. Oferece a flexibilidade de ajuste a uma ampla gama de requisitos, não apenas na largura do papel (2 polegadas), mas também na conectividade..
  • Page 2 J. STEPHEN Lab., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 447-210 Republic of Korea TEL : +82-31-8077-5000 FAX : +82-31-459-8880 www.miniprinter.com USER’S MANUAL / Non Peeler MODEL : LK-P12 Ⅱ All specifications are subject to change without notice Ⅱ (Non Peeler) Rev. B 10/16...
  • Page 3 RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION...

  • Page 4: Table Of Contents

    Table of Contents 1. Safety Caution 10. CPCL Command Compatibility 2. Unpacking 11. ESC/POS Command Compatibility 3. Product Overview 12. ZPL Command Compatibility 4. Setting Up the Product 4-1. Display 4-2. Installing the Battery 4-3. Removing the Battery 4-4. Charging the Battery 4-5 Usage of Cigar Jack Charger 4-6.
  • Page 5 1. Safety Caution For higher reliability and safety, consider the following precautionary measures. WARNING Read and follow the instructions carefully before running of the product. Failure to follow these instructions could result in fire, electric shock, or other injuries, or property damage Indication Prohibition Must follow...
  • Page 6 2. Unpacking 3. Product overview Standard Front COVER OPEN BUTTON Battery Printer Belt Clip DISPLAY SERIAL Recharger USB Cable Serial Cable Bottom BATTERY Paper Quick Reference BELT CLIP CONNECTOR Optional CHARGER CONNECTOR SHOULDER STRAP RING Cigar jack Shoulder Strap...

  • Page 7: Display

    4. Setting Up the Product 4-2. Installing the Battery 4-1. Display Button Name function Advances the supply. Clears error message. Moves down through menu options. Paper Feed/ 1. Refer to “4-9” for Diagnostic Test information. Down button Remove the battery. Insert the battery as shown. 2.

  • Page 8: Removing The Battery

    4-3. Removing the Battery 4-4. Charging the Battery 1. Be sure that the printer is turned off. 2. After open the DC JACK cover, insert DC JACK into the printer. 3. Plug the power cord to electrical outlet. Remove the battery. Lift out the battery. 4-4-1 The status of lamp in charging Status charging...

  • Page 9: Usage Of Cigar Jack Charger

    4-6. Belt clip Usage 4-5. Usage of Cigar Jack Charger Optional Printer Insert screw into belt clip. Connect the vehicle charger to the printer. Input 12 ~ 24V Output 8.4V 0.8 ~ 1.2A NOTE Connect the vehicle charger to the printer. Tighten the screw with driver as shown.

  • Page 10: Roll Paper Installation

    4-7. Roll Paper installation 4-8. Shoulder Strap Installation Optional Put the stock in so it unrolls from the Open the Paper cover by pressing the bottom. Remove the stock core when Open button and set the width of paper Insert the strap into the hook of the printer. it is empty.

  • Page 11: Diagnostic Test

    4-9. Diagnostic Test The sample of self test printout Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with diagnostic test, examine other devices and software.

  • Page 12: Peripherals Connection

    5. Peripherals Connection This product can communicate with other devices via Bluetooth or Wi-Fi communication 5-3. Interface Cable Connection and cable. 5-1. Bluetooth Connection Optional 1. Printer can be connected to the PDA and PC which can do wireless Serial communication.

  • Page 13: Printer Cleaning

    6. Printer cleaning If the interior of the printer is dusty, printing quality can be lowered. 6-2. Platen Roller Cleaning In this case, follow the instructions below to clean the printer. 1.Clean the platen roller with a clean soft cloth moistened with isopropyl 6-1.

  • Page 14: Roll Media Specification

    8. Label specification 7. Roll media specification <-- a --> Media width (inch, liner) Maximum 54±0.5 mm Minimum 8.7±0.5 mm <-- b --> Label length Minimum 12.7~300 mm <-- c --> Label gap height Maximum 8.3 mm Minimum 1.8 mm Liner Core Opacity...

  • Page 15: Printer Specification

    9. Printer Specification 9-1. Specification Sensor Black-Mark Upper/Lower, Gap, Cover open, Printing Medhod Direct Thermal Media-Width Detect Speed 127mm/sec Drop Resistance 1.5M onto concrete Width 48mm, 384 Dots/line FSTN LCD 128 x 64 dots Resolution 203 DPI Paper Paper type Thermal Paper Dot Pitch 8 Dot/mm, 0.125 Pitch...
  • Page 16 8. CPCL Command Compatibility DATAMATRIX ● NOTE GS1(RSS-14) ○ Compatible with only Partially AZTEC ○ commanders provided by Compatible Compatible Compatible GRAPHICS Compatibility the manufacturer. ○ △ ○ ● LINE ○ INVERSE-LINE ○ Printer Commands Compatibility PATTERN ○ PRINT ○ GRAPHICS ○...
  • Page 17 9. ESC/POS Command Compatibility Command Function Compatibility SETBOLD ○ Horizontal tab ○ SETSP ○ Print and line feed Special ASCII Characters ○ ○ SETFF Print and carriage return ○ ○ Print end position label to start printing ○ SET-TOF ○ Cancel print data in page mode ○...
  • Page 18 10. ZPL Command Compatibility Command Function Compatibility Command Compatibility ESC＼ Set relative position ○ ○ ESC a Align position ○ ○ ESC d Print and feed paper n lines ○ ○ ESC t Select character code table ○ ○ ESC { Set/cancel upside-down character printing ○...
  • Page 19 Command Compatibility Command Compatibility ○ ○ ○ ○ ○ ○ ^CC ~CC ○ ○ ○ ○ ○ ○ ○ ○ ^CT ~CT ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 20 Command Compatibility ○ ○ ○ ○ ○ ○ P A T E N T...
