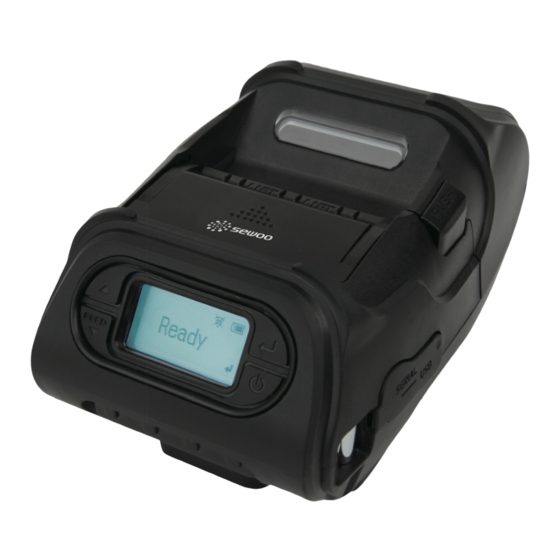

SEWOO LK-P12 User Manual

Mobile printer
Hide thumbs Also See for LK-P12:
Table of Contents

Advertisement

Quick Links

Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com
P12(Peeler) Rev. J 01 / 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P12 and is the answer not in the manual?

Questions and answers

Related Manuals for SEWOO LK-P12

Summary of Contents for SEWOO LK-P12

  • Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P12(Peeler) Rev. J 01 / 2021...
  • Page 2 MOBILE PRINTER MODEL � LK-P12 USER�S MANUAL / Peeler All specifi  cations are subject to change without notice...
  • Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including  2)  T his device must accept any interference received, interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA sales@miniprinter.com...
  • Page 4 Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions. Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.

  • Page 5: Table Of Contents

    Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Setting Up the Product 4-1. Display 4-2. Installing the Battery 4-3. Removing the Battery 4-4. Charging the Battery 4-5. Car charger Usage 4-6. Belt clip Usage 4-7. Paper Roll Installation 4-8.
  • Page 6 5. Peripheral Connection 5-1. Bluetooth Connection 5-2. Wi-Fi Connection 5-3. Interface Cable Connection 6. Cleaning the Printer 6-1. Print-Head Cleaning 6-2. Platen Roller Cleaning 7. Roll Media Specification 8. Label specification 9. Printer Specification 10. CPCL Command Compatibility 11. ESC/POS Command Compatibility 12.

  • Page 7: Safety Precautions

    1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands...
  • Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair Do not unplug or modify the the power cable product. to turn off the Potential risk of product. malfunction, electric Turn off the power shock, or fire.

  • Page 9: Unpacking

    2. Unpacking Standard Printer Battery Belt Clip USB Cable Serial Cable Recharger Paper Quick Reference Optional Shoulder Strap Car Adapter Battery Holder(Cradle)

  • Page 10: Product Overview

    3. Product overview Front PEELER WING PEELER BODY DISPLAY COVER OPEN BUTTEN SERIAL Bottom BATTERY BELTCLIP CONNECTOR CHARGER CONNECTOR SHOULDER STRAP RING...

  • Page 11: Setting Up The Product

    4. Setting Up the Product 4-1. Display Button Name function - Advances the paper, clears error messages, and moves down through menu options. Paper Feed/ 01 Refer to “4-10” for Diagnostic Test information. Down Button 02 Refer to the service manual regarding Hexadecimal Dumping.

  • Page 12: Installing The Battery

    4-2. Installing the Battery Insert the battery as shown. Replace the battery. NOTE You must fully charge the battery when you receive the printer. Batteries can be charged in the printer or in an optional external cradle.

  • Page 13: Removing The Battery

    4-3. Removing the Battery Remove the battery as shown.

  • Page 14: Charging The Battery

    4-4. Charging the Battery 1 Be sure the printer is turned off. 2 After opening the DC JACK cover, insert DC JACK into the printer. 3 Plug the power cord into the electrical outlet. The charge indicator LED Status charging charging complete Charging Lamp Green...

  • Page 15: Car Charger Usage

    4-5 Car charger Usage Optional Printer Connect the car charger to the printer. Input 12 ~ 24V Output 8.4V 0.8 ~ 1.2A NOTE Connect the car charger to the printer.

  • Page 16: Belt Clip Usage

    4-6. Belt clip Usage Insert screw into belt clip. Tighten the screw with driver as shown. NOTE The belt clip is included with the printer but is not required to be used or installed!

  • Page 17: Paper Roll Installation

    4-7. Roll Paper Installation Open the Paper cover by pressing the Insert the paper roll so it unrolls from the Open button. You can set the width of bottom. Remove the paper core when the paper guide by turning the knob with roll is empty.

  • Page 18: Peel Mode

    4-8. Peel Mode Peel Mode With a roll of stock installed, slide the Push the peeler body until you see peeler body towards the back of the two complete triangles. Press the feed printer. button. Non-Peel Mode Lift the peeler wing and slide the peeler Press the feed button.
  • Page 19 Paper (1) Label Paper Engraved Line Paper (2) Label Paper When users operates the peeler like the image below that has slits on the label(1) and the perforated label(2), there might be an error in the peeler function.

  • Page 20: Shoulder Strap Installation

    4-9. Shoulder Strap Installation Optional Insert the strap into the hook of the printer. Place the end of the strap into the hook After pulling out the end of the strap of shoulder strap. tightly, put it into the clip to be fastened.

  • Page 21: Diagnostic Test

    4-10. Diagnostic Test Turn off the printer. Press and hold the feed button and power button. NOTE 01 For Hex Dump mode, do steps 1-2 then press the feed button. 02 After printing ASCII pattern, the diagnostic test is complete. 03 If the feed button is not pressed to go to Hex Dump mode,  the printer exits diagnostics after...
  • Page 22 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.

  • Page 23: Peripheral Connection

    5. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 5-1. Bluetooth Connection Optional 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities (PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer.

  • Page 24: Interface Cable Connection

    5-3. Interface Cable Connection Serial 1 Connect USB or Serial cable to the connector on the printer. NOTE - Only use cables included with the printer. 2 Connect the interface cable to the USB port of the device(PDA, PC, etc.).

  • Page 25: Cleaning The Printer

    6. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning.

  • Page 26: Platen Roller Cleaning

    6-2. Platen Roller Cleaning 1 Clean the platen roller with a clean soft cloth moistened with isopropyl alcohol or a cleaning pen. 2 Turn the platen roller with your finger to clean the entire surface. Platen Roller...

  • Page 27: Roll Media Specification

    7. Roll Media Specification Core Diameter (A) 12.5mm ± 0.5mm Roll Max.Diameter (B) 56 mm Max.Media Width (C) 58 mm ± 0.5 mm Min.Media Width (C) 12.7 mm ± 0.5 mm Max.Media Thickness 0.16 mm Min.Media Thickness 0.06 mm Protect the printhead from sand, grit, and other hard particles during printing and storage.

  • Page 28: Label Specification

    8. Label Specification <-- a --> Media width(inch, liner) Maximum 54 mm ± 0.5 mm Minimum 8.7 mm ± 0.5 mm <-- b --> Label length Minimum 12.7 mm ~ 300 mm <-- c --> Label gap height Maximum 8.3 mm Minimum 1.8 mm Liner...

  • Page 29: Printer Specification

    9. Printer Specification Printing Method Direct Thermal Printing Speed Max. 80 mm/s Resolution 203 DPI FontA(12x24), FontB(9x17), Asian Font(KOR, ESC/POS JPN,CHN_GB2312,CHN_BIG5) Font0/1/2/4/5/6/7, 24x24 Asian Font(KOR, CPCL JPN,CHN_GB2312, CHN_BIG5), Resident TTF, Character Downloadable TTF FontA~H, FontGS, Resident TTF(Font0), Downloadable TTF Font1 ~ 8 - 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, ESC/POS UPC-E, Codabar, Code93, Code128...
  • Page 30 Emulation ESC/POS, CPCL, ZPL Command compatible Driver Window CE 4.2 & 5.0, Window Mobile 5.0 Paper end, Gap, Black mark, Cover open, Sensor Peeler detect, Peeler S/W Paper type Thermal Paper Width 12.7 mm ~ 58 mm Paper Thickness 0.06 mm ~ 0.16 mm Roll Max Diameter 56 mm Roll Core...

  • Page 31: Cpcl Command Compatibility

    10. CPCL Command Compatibility NOTE Compatible Compatible with only Partially Not Compatible commanders provided Compatible by the manufacturer. ○ ● △ Printer Commands Compatibility PRINT ○ FORM ○ JOURNAL ○ UNITS ○ USING COMMENTS ○ TEXT Compatibility TEXT ○ FONT-GROUP(FG) ○...
  • Page 32 GRAPHICS Compatibility ○ LINE ○ INVERSE-LINE ○ PATTERN ○ GRAPHICS ○ ○ Advanced Commands Compatibility CONTRAST ○ TONE ○ JUSTIFICATION ○ PAGE-WIDTH ○ PACE ○ NO-PACE ○ WAIT ○ SPEED ○ SETSP ○ ON-FEED ○ PREFEED ○ POSTFEED ○ COUNTRY / CODE PAGE ○...
  • Page 33 ADVANCED UTILITIES Compatibility VERSION ○ CHECKSUM ○ ○ ○ DEFINE-FILE ○ TYPE ○ BAUD ○ COUNTRY / CODE-PAGE ○ TIMEOUT ○ BEED ○ ON-LOW-BATTERY ○ ○ SET-TIME ○ GET-TIME ○ SET-DATE ○ GET-DATE ○ PRINTING A TIME STAMP ○ PRINTING A DATE STAMP ○...

  • Page 34: Esc/Pos Command Compatibility

    11. ESC/POS Command Compatibility Command Function Compatibility Horizontal tab ○ Print and line feed ○ Print and carriage return ○ Print end position label to start printing ○ Cancel print data in page mode ○ DLE EOT Real-time status transmission ○...
  • Page 35 Command Function Compatibility ESC ＼ Set relative position ○ ESC a Align position ○ ESC d Print and feed paper n lines ○ ESC t Select character code table ○ ESC { Set / cancel upside-down character printing ○ FS p Print NV bit image ○...

  • Page 36: Zpl Command Compatibility

    12. ZPL Command Compatibility Command Compatibility ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 37 Command Compatibility ○ ○ ○ ○ ○ ^CC ~ CC ○ ○ ○ ○ ^CT ~ CT ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 38 Command Compatibility ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 39 Command Compatibility ○ ○ ○ ○ ○ ○ ○ ○...

  • Page 40: Utilities

    This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication,  (ESC/POS) and able to printer settings.

  • Page 41: S/W

    Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
