Quick Start Guide

DIALOG

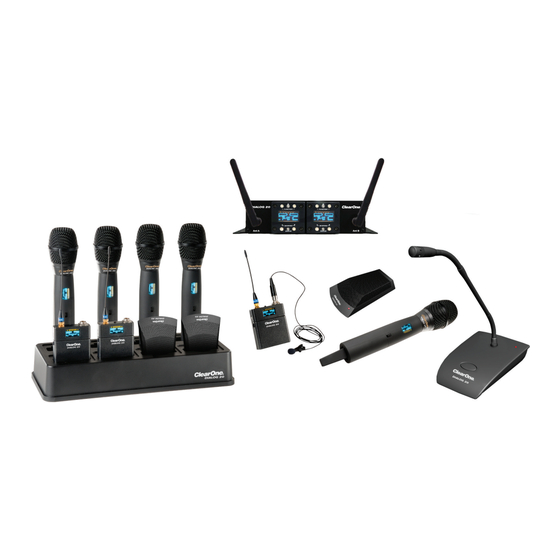

20 Wireless Microphone System
®
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIALOG 20 and is the answer not in the manual?

Questions and answers

Related Manuals for ClearOne DIALOG 20

Summary of Contents for ClearOne DIALOG 20

  • Page 1: Quick Start Guide

    Quick Start Guide DIALOG 20 Wireless Microphone System ® Quick Start Guide...

  • Page 2: Table Of Contents

    Podium Gooseneck Stem ..................9 Podium Gooseneck .................... 10 Using DIALOG 20, CONVERGE PRO 2 DSP And Beamforming Mic Array ....11 DIALOG 20 AND CONVERGE Pro 2 DSP ............11 DIALOG 20, CONVERGE Pro 2 AND Beamforming Mic Array 2 ...... 11 Multiple DIALOG 20, CONVERGE Pro 2 and Beamforming Mic Array 2 ..

  • Page 3: Setting Up The System

    Antenna Extension Cables: Antenna extension cables are available in 10’(ft) (3.05m) and 25’(ft) (7.62m). Refer to the DIALOG 20 Antenna Installation Guide for detailed instructions on how to use extension cables and mounts. Antennas must be securely installed by using a non-conductive adhesive on the TNC connection.

  • Page 4: Syncing The Transmitters With The Receiver

    / Resources / Resource Library / Professional Microphones / ClearOne Wireless Microphones / Software Downloads. Refer to the DIALOG 20 Software User Manual for detailed instructions on how to use the software. Updating Receiver Firmware: a. Connect the receiver to a PC using Type A to Micro USB cable (You must have administrator rights).

  • Page 5: Dialog 20 Software

    • Settings: The settings menu offers the ability to dim the receiver OLED, print settings, and, set the receiver name. • RF Scan - RF Plot: Shows the RF strength of each antenna in a ClearOne system and shows if there is outside interference.

  • Page 6: Receiver Front Panel

    ® DIALOG ClearOne DIALOG 20 receiver main-frames hold two, independent, 24-bit digital audio receiver modules. Each module shares the main-frame’s two antennas for full-diversity. Two receiver main-frames can be daisy-chained together allowing up to 4 channels or up to 6 channels when connected with CONVERGE PRO 2 DSP mixer.

  • Page 7: Receiver Module Panel

    Receiver Module Panel: ® DIALOG Module Panel: Module Panels are designed for quick and easy field replacement for added redundancy. & Pressed at the same time: Receives SYNC signal from transmitter (see pg. 3). Status LED: • Green ....The channel is ON and un-muted. • Red ....

  • Page 8: Handheld

    2. Programmable Switch: Toggle on/off, on/mute/ or on/on. 3. Microphone Connector: TA4 mini XLR style: ClearOne offers a full range of lavaliere and headset mics for optimal performance of your DIALOG 20 transmitter. Works with both snap in and screw-in microphones.

  • Page 9: Transmitters

    ® DIALOG DIALOG 20 TABLETOP BOUNDARY MICROPHONE: The ClearOne DIALOG 20 Tabletop Boundary Microphone combines the professional audio specs and security of a wired mic with wireless convenience. Available in Omni or Cardioid polar pick-up patterns. 1. Power LED: When the Boundary Mic is on, the LED signals: Red = audio mute.

  • Page 10: Podium Gooseneck

    DIALOG ® DIALOG 20 PODIUM GOOSENECK: The ClearOne DIALOG 20 Podium Gooseneck Microphone combines the professional audio specs and security of a wired mic with wireless convenience. For use with battery power or permanently install the microphone using USB power.

  • Page 11: Using Dialog 20, Converge Pro 2 Dsp And Beamforming Mic Array

    • P-Link directly to CONVERGE Pro 2 • One cable for audio, control and power. 2. CONNECTING THE DIALOG 20 SYSTEM WITH THE CONVERGE Pro 2 AND Beamforming Mic Array 2 (native connection): • Directly connects to CONVERGE Pro 2 and Beamforming Mic Array 2 • One cable for audio, control and power.

  • Page 12: Exposure And Compliance

    Modifications (FCC 15.21) Warning: Changes or modifications to this equipment not expressly approved by ClearOne may void the user’s authority to operate this equipment according to your local radio regulatory authorities. Clearone Wireless Receivers, Transmitters, and, Antennas are intended for indoor use only.

  • Page 13: Exposure And Compliance

    Exposure and Compliance: DIALOG ® Continued: Electronic Code of Federal Regulations Title 47: Telecommunication PART 15—RADIO FREQUENCY DEVICES Subpart B—Unintentional Radiators §15.105 Information to the user. (a) For a Class A digital device or peripheral, the instructions furnished the user shall include the following or similar state- ment, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 14 Sales: 800-707-6994 Other product names may be registered trademarks of their respective owners who do not necessarily endorse ClearOne or ClearOne’s products. All rights reserved. Information in Fax: 801-977-0087 this document subject to change without notice. © 2017 ClearOne. QSG-0033-001 ClearOne_DIALOG 20_QuickStartGuide-V1.0 Jan. 2017...
