User Manual
MIO-2364
Intel® Core™ i3-N305 Processor,
Intel® N-Series Processor, and
Intel® Atom™ x7000E Series
Processor

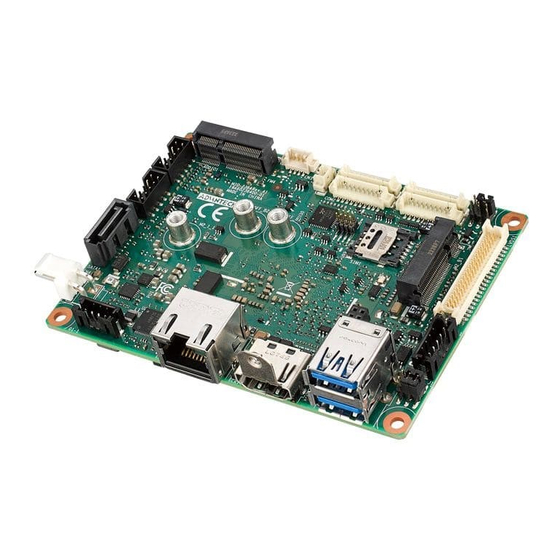

2.5" Pico-ITX SBC
(Code name: Alder Lake N)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIO-2364 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech MIO-2364

Summary of Contents for Advantech MIO-2364

  • Page 1 User Manual MIO-2364 Intel® Core™ i3-N305 Processor, Intel® N-Series Processor, and Intel® Atom™ x7000E Series Processor 2.5" Pico-ITX SBC (Code name: Alder Lake N)
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Product Warranty (2 Years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
  • Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This type of cable is available from Advantech. Please contact your local supplier for ordering information.
  • Page 5 1 x DeviceOn Package  If any of these items are missing or damaged, contact your distributor or sales repre- sentative immediately. Optional Accessories Part number Description Heat spreader for the MIO-2364 1700034783-01 PoE/PD IN cable 1700034784-01 PoE/PD OUT cable MIO-2364 User Manual...
  • Page 6 MIO-2364 User Manual...

  • Page 7: Table Of Contents

    ...........5 Introduction ....................6 Board Layout: Dimensions ................ 6 Figure 2.1 MIO-2364 Mechanical Drawing (Top Side) ....6 Figure 2.2 MIO-2364 Mechanical Drawing (Bottom Side) ... 6 Figure 2.3 MIO-2364 Mechanical Drawing (Coastline) ....7 Figure 2.4 MIO-2364 Mechanical Drawing (with Cooler)..... 7 Figure 2.5 MIO-2364 Mechanical Drawing (with Heatsink) ..
  • Page 8 Assignments......65 System I/O Ports..................66 Table A.1: System I/O Ports ............66 1st MB Memory Map................66 Table A.2: 1st MB Memory Map ..........66 Interrupt Assignments ................67 Table A.3: Interrupt Assignments ..........67 MIO-2364 User Manual viii...

  • Page 9: Chapter 1 General Information

    Chapter General Information This chapter gives background information on the MIO-2364. Sections include:  Introduction  Specifications  Block diagram...

  • Page 10: Introduction

    Introduction MIO-2364 utilizes the 2.5" Pico-ITX SBC form factor (compact series, 100 x 72 mm) and is powered by Intel® Core™ i3-N305, Intel® N-series, or Intel® Atom™ x7000E Series processors. MIO-2364 offers embedded iManager 3.0, SUSI 4.0, and WISE- DeviceOn, created by Advantech, to monitor and control system operation effectively and remotely.
  • Page 11 Environment densing Humidity Storage: 60°C @ 95% relative humidity, non-con- densing Vibration Resistance 3.5 Grms Certification CE, FCC Class B Dimensions 100 x 72 mm (3.9" x 2.8") Mechanical Net Weight 75 g Note! Support by request. MIO-2364 User Manual...

  • Page 12: Block Diagram

    2 x USB 2.0 TDP 6 ~ 15W Audio Audio PCIex1 CODEC Line-in/out/MIC USB2.0 E-Key 2230 SATA/PCIex1 USB3.2/2.0 M.2 B-Key 2242/3042/3052 SATA eSPI SATA EC: IT5121 Nano SIM w/ErP GPIO I2C/ COM1 COM2 Smart FAN SMBus RS-232/422/485 RS-232/422/485 MIO-2364 User Manual...

  • Page 13: Chapter 2 Mechanical

    Chapter Mechanical This chapter provides mechanical information on the MIO-2364. Sections include:  Mechanical Drawings  Assembly Drawings...

  • Page 14: Introduction

    Introduction This chapter includes board dimensions, the standard thermal solution, and optional thermal solution along with assemby instructions. Board Layout: Dimensions Figure 2.1 MIO-2364 Mechanical Drawing (Top Side) 72.0 68.75 46.37 37.25 3.25 Figure 2.2 MIO-2364 Mechanical Drawing (Bottom Side)
  • Page 15 Figure 2.3 MIO-2364 Mechanical Drawing (Coastline) 26.2 1.60 17.9 72.0 68.75 36.0 3.25 Figure 2.4 MIO-2364 Mechanical Drawing (with Cooler) MIO-2364 User Manual...
  • Page 16 26.40 1.60 17.9 72.0 68.75 3.25 Figure 2.5 MIO-2364 Mechanical Drawing (with Heatsink) MIO-2364 User Manual...

  • Page 17: Quick Installation Guide

    There is a heatsink in the white box inside the package. Please assemble it by follow- ing the diagrams below. Remember to remove the plastic on the thermal pad before you assemble the mechanical parts. 2.3.1 Cooler MIO-2364-Cooler MIO-2364 1910002596-01*4 MIO-2364 User Manual...

  • Page 18: Heatsink

    2.3.2 Heatsink 1935031500*4 MIO-2364-HS MIO-2364 1910002596-01*4 MIO-2364 User Manual...

  • Page 19: Chapter 3 Installation

    Chapter Installation This chapter explains the setup procedures of the MIO-2364 hard- ware, including instructions on setting jumpers and connecting peripherals, switches, and indica- tors. Be sure to read all safety pre- cautions before you begin the installation procedure.

  • Page 20: Jumpers & Switches

    Jumpers & Switches The MIO-2364 has a number of jumpers that allow you to configure your system to suit your application. The table below lists the functions of the various jumpers. Table 3.1: Jumpers & Switches VDD1 Panel Voltage Selection...

  • Page 21: Locating Connectors

    ^/D  D  < >s^ ^ d W    /E W  WtZ ,D/ Figure 3.1 MIO-2364 Connector Locations (Top Side) D D DR5 SO-DIMM Smart Fan Figure 3.2 MIO-2364 Connector Locations (Bottom Side) MIO-2364 User Manual...

  • Page 22: Setting Jumpers

    AT Mode / Load BIOS default: J1 Table 3.4: AT Mode / Load BIOS default: J1 Jumper Short Panel Function AT_DET# (Default) 1-2 open: ATX mode 1-2 short: AT mode* NORMAL_BIOS (Default) LOAD_BIOS_Default: 5-6 open: Normal* 5-6 short: Load BIOS Default MIO-2364 User Manual...

  • Page 23: Connectors (Internal)

    3.5.1 Smart FAN Internal Connector: FAN Table 3.5: Smart FAN Internal Connector: FAN Signal Pin Definition +V12 FAN_SPEED FAN_V5_PWM 3.5.2 M.2 E-Key Connector: M2_1 Table 3.6: M.2 E-Key Connector: M2_1 Signal Pin Definition +V3.3SB_M.2_E USB8_z_P+ +V3.3SB_M.2_E USB8_z_P- MIO-2364 User Manual...
  • Page 24 Table 3.6: M.2 E-Key Connector: M2_1 PCIE_M2_z_TX4+ PCIE_M2_z_TX4- PCIE_M2_RX4+ PCIE_M2_RX4- CLK_M2E_z_PCIE+ CLK_M2E_z_PCIE- SUSCLK_z_EKEY PLTRST_BUFFER# PCIE_a_CLKREQ2# BT_DISABLE# PCIE_WAKE# WIFI_DISABLE# +V3.3SB_M.2_E +V3.3SB_M.2_E MIO-2364 User Manual...

  • Page 25: I2C Internal Connector: Cn3

    3.5.3 I2C Internal Connector: CN3 Table 3.7: I2C Internal Connector: CN3 Signal Pin Definition EC_I2C0_z_DAT EC_I2C0_z_CLK +V33_I2CCONN 3.5.4 RTC Battery Connector: BAT1 Table 3.8: RTC battery Connector: BAT1 Signal Pin Definition +VBAT_b1   MIO-2364 User Manual...

  • Page 26: Com-Port Internal Connector 1: Com1

    Table 3.9: COM-Port Internal Connector 1: COM1 Signal Pin Definition COM1_RI# COM1_DTR# COM1_CTS# COM1_TXD COM1_RTS# COM1_RXD COM1_DSR# COM1_DCD# 3.5.6 COM-Port Internal Connector 2: COM2 Table 3.10: COM-Port Internal Connector 2: COM2 Signal Pin Definition COM2_RI# COM2_DTR# COM2_CTS# COM2_TXD COM2_RTS# COM2_RXD COM2_DSR# COM2_DCD#   MIO-2364 User Manual...

  • Page 27: Front Panel Internal Connector: Cn1

    Table 3.11: Front Panel Internal Connector: CN1 Signal Pin Definition BUZZER- BUZZER+ SATA_HDD_LED# FP_a_PSIN# FP_a_RST# +V3.3 3.5.8 GPIO Internal Connector: CN2 Table 3.12: GPIO Internal Connector: CN2 Signal Pin Definition EC_P1_GPIO7 EC_P1_GPIO2 EC_P1_GPIO6 EC_P1_GPIO1 EC_P1_GPIO5 EC_P1_GPIO0 EC_P1_GPIO4 +V5_P1_GPIO EC_P1_GPIO3 MIO-2364 User Manual...

  • Page 28: M.2 B-Key Connector: M2_B1

    Table 3.13: M.2 B-Key Connector: M2_B1 Signal Pin Definition M2B1_CFG3 +V3.3A_M.2_B +V3.3A_M.2_B M2B1_FULL_CARD_OFF# USB_M2B1_P M2B1_W_DISABLE1# USB_M2B1_N M2B1_LED1# M2B1_PCIE_DIS M2B1_CFG0 M2B1_ANT_CFG M2B1_WAKE_ON_WWAN# M2B1_ANT_TUNER M2B1_DPR M2B1_W_DISABLE2# M2B1_USB31_RX- M2B1_UIM_RESET M2B1_USB31_RX+ M2B1_UIM_CLK M2B1_UIM_DATA M2B1_USB31_TX- M2B1_UIM_PWR M2B1_USB31_TX+ MSATA_MPCIE_RX- MSATA_MPCIE_RX+ MSATA_MPCIE_TX- MSATA_MPCIE_TX+ M2B1_PERST# MIO-2364 User Manual...
  • Page 29 Table 3.13: M.2 B-Key Connector: M2_B1 M2B1_a_CLKREQ# CLK100M_a_M2B1- M2B1_PCIEWAKE# CLK100M_a_M2B1+ M2B1_a_RESET# M2B1_SUSCLK M2B1_CFG1 +V3.3A_M.2_B +V3.3A_M.2_B +V3.3A_M.2_B M2B1_CFG2 MIO-2364 User Manual...

  • Page 30: Lvds Connector: Lvds1

    LVDS Connector: LVDS1 Table 3.14: LVDS Connector: LVDS1 Signal Pin Definition +V_LCD +V_LCD +V_LCD +V_LCD LVDS1_0_D0- LVDS1_1_D0- LVDS1_0_D0+ LVDS1_1_D0+ LVDS1_0_D1- LVDS1_1_D1- LVDS1_0_D1+ LVDS1_1_D1+ LVDS1_0_D2- LVDS1_1_D2- LVDS1_0_D2+ LVDS1_1_D2+ LVDS1_0_CLK- LVDS1_1_CLK- LVDS1_0_CLK+ LVDS1_1_CLK+ LVDS0_DDCCLK_AUX+ LVDS0_DDCCLK_AUX- LVDS1_0_D3- LVDS1_1_D3- LVDS1_0_D3+ LVDS1_1_D3+ LVDS1_VCON MIO-2364 User Manual...

  • Page 31: Panel Inverter Connector: Bl1

    3.5.11 Panel Inverter Connector: BL1 Table 3.15: Panel Inverter Connector: BL1 Signal Pin Definition +V5_1_INVERTER_0 EC_LVDS1_z_PWM LVDS1_z_ENABKL +V12_1_INVERTER_0 3.5.12 Panel Inverter Connector: POE_PWR1 Table 3.16: Panel Inverter Connector: POE_PWR1 Signal Pin Definition +V48_LAN2+ +V48_LAN2- +V12_A MIO-2364 User Manual...

  • Page 32: Dc Power Input Connector (180D): Cn4

    DC Power Input Connector (90D): CN5 Table 3.18: DC Power Input Connector (90D): CN5 Signal Pin Definition +V12_DCIN 3.5.15 USB 2.0 Dual-Port Internal Connector: USB1 Table 3.19: USB 2.0 Dual-Port Internal Connector: USB1 Signal Pin Definition +V5SB_USB_UTC +V5SB_USB_UTC USB6_z_P- USB7_z_P- USB6_z_P+ USB7_z_P+ MIO-2364 User Manual...

  • Page 33: Audio Internal Connector: Audio1

    Audio Internal Connector: AUDIO1 Table 3.20: Audio Internal Connector: AUDIO1 Signal Pin Definition LOUTR LINR AUD_CONN_GND AUD_CONN_GND LOUTL LINL AUD_CONN_GND FRONT_JD MIC1R MIC1L   MIO-2364 User Manual...
  • Page 34 MIO-2364 User Manual...

  • Page 35: Ami Bios Setup

    Chapter AMI BIOS Setup...
  • Page 36 AMIBIOS has been integrated into many motherboards for over a decade. With the AMIBIOS Setup program, you can modify BIOS settings and control the various sys- tem features. This chapter describes the basic navigation of the MIO-2364 BIOS setup screens.

  • Page 37: Entering Setup

    BIOS supports your CPU. If there is no number assigned to the patch code, please contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that your CPU‘s system status is valid.

  • Page 38: Advanced Bios Features Setup

    4.1.2 Advanced BIOS Features Setup Select the Advanced tab from the MIO-2364 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub-menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 39 Choose if the ASPM feature is controlled by the OS or BIOS. BDAT ACPI Table Support Determines if it is enabled to support BDAT ACPI Table. Low Power S0 Idle Capability Enable/Disable ACPI Low Power S0 Idle capability under the OS. MIO-2364 User Manual...
  • Page 40 4.1.2.2 WWAN Configuration WWAN Device Select the M.2 WWAN Device options to enable 5G-M80 (MediaTek) modems. MIO-2364 User Manual...
  • Page 41 Number of E-cores to enable in each processor package. Enable/Disable AES (Advanced Encryption Standard). MachineCheck Enable/Disable Machine Check. MonitorMWait Enable/Disable MonitorMWait. Intel Trusted Execution Technology Enables utilization of additional hardware capability provided by Intel® Trusted Exe- cution Technology. MIO-2364 User Manual...
  • Page 42 4.1.2.4 Power & Performance CPU – Power Management Control CPU – Power Management Control options. GT – Power Management Control GT – Power Management Control options. CPU - Power Management Control  MIO-2364 User Manual...
  • Page 43 Enable/Disable Platform Power Limit 1 programming. Power Limit 4 Override Enable/Disable Power Limit 4 override. C states Enable/Disable CPU Power Management. Power Limit 3 Settings Power Limit 3 settings. View/Configure Turbo Options  Turbo Ratio Limit Option View/Configure Turbo Ratio Limit options. MIO-2364 User Manual...
  • Page 44 Power Limit 2 value in milliwatts; BIOS will round to the nearest 1/8W when program- ming. Energy Efficient Turbo Enable/Disable the Energy Efficient Turbo feature. Config TDP Configurations  E-core Turbo Ratio Limit Numcore x Efficient-core Turbo Ratio Limit Numcore x defines the core range. MIO-2364 User Manual...
  • Page 45 Power Limit 3 Settings  Power Limit 3 Override Enable/Disable Power Limit 3 override. GT - Power Management Control  RC6(Render Standby) Check to enable render standby support. MIO-2364 User Manual...
  • Page 46 When disabled, ME will be put into Temporarily Disabled Mode. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear. Core BIOS Done Message Enable/Disable Core BIOS Done message sent to ME. Firmware Update Configuration Configure Management Engine Technology parameters. MIO-2364 User Manual...
  • Page 47 Enable/Disable the ability to hibernate (OS/S4 Sleep State). This option may not be available with some OS. ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. PCIE Wake Enable/Disable PCIE to wake the system from S5. MIO-2364 User Manual...
  • Page 48 Serial Port 1 Configuration Set Parameters of Serial Port 1. Serial Port 2 Configuration Set Parameters of Serial Port 2. Hardware Monitor Monitor hardware Status. Watch Dog Timer Configuration Watch Dog Timer Configuration Page. GPIO Configuration GPIO Configuration Settings. MIO-2364 User Manual...
  • Page 49 Serial Port Enable or disable Serial Port (COM). Change Settings Select optimal settings for a Super IO device. Device Mode If you use a baud rate above 115200, please select High Speed. COM Mode COM port mode select. MIO-2364 User Manual...
  • Page 50 Serial Port 2 Configuration Serial Port Enable/Disable Serial Port (COM). Change Settings Select optimal settings for a Super IO device. Device Mode If you use a baud rate above 115200, please select High Speed. COM Mode COM port mode select. MIO-2364 User Manual...
  • Page 51 Hardware Monitor Watch Dog Timer Configuration Watch Dog Timer Enable/Disable the Watch Dog Timer Function. MIO-2364 User Manual...
  • Page 52 GPIO Configuration GPIO Control Enable Choose to control GPIO by EC or User Override during the POST stage. GPIO0/1/2/3/4/5/6/7 Configure GPIO0/1/2/3/4/5/6/7. MIO-2364 User Manual...
  • Page 53 Physical Presence Spec Version Select to instruct the OS to support PPI Spec Version 1.2 or 1.3. Device Select TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support to TPM 2.0 devices. MIO-2364 User Manual...
  • Page 54 4.1.2.9 S5 RTC Wake Settings Wake system from S5 Enable/Disable system wake on alarm event. Select FixedTime for the system to wake on the hr:min:sec specified. MIO-2364 User Manual...
  • Page 55 4.1.2.10 Serial Port Console Redirection Console Redirection This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Services (EMS). Console Redirection This item allows users to configure console redirection detail settings. MIO-2364 User Manual...
  • Page 56 Maximum time the device will take before it properly reports itself to the host control- ler. 'Auto' uses the default value: for a Root port it is 100 ms, for a Hub port the delay is taken from the Hub descriptor. MIO-2364 User Manual...
  • Page 57 4.1.2.12 Network Stack Configuration Network Stack Enable/Disable UEFI Network Stack. 4.1.2.13 NVMe Configuration MIO-2364 User Manual...

  • Page 58: Chipset Configuration

    4.1.3 Chipset Configuration Select the Chipset tab from the MIO-2364 setup screen to enter the Chipset BIOS Setup screen. You can display a Chipset BIOS Setup option by highlighting it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this sec- tion.
  • Page 59 Automatic/Manual stop grant configuration. VT-d VT-D capability. Control Iommu Pre-boot Behavior Enable IOMMU in Pre-boot environment. X2APIC Opt Out Enable/Disable X2APIC Opt Out Bit. Above 4GB MMIO BIOS assignment Enable/Disable above 4GB Memory Mapped IO BIOS assignment. MIO-2364 User Manual...
  • Page 60 System Agent Geyserville. Gear Ratio Gear ratio when SAGV is disabled. Memory Scrambler Enable/Disable Memory Scrambler support. Force ColdReset Force ColdReset OR Choose MrcColdBoot mode. In-Band ECC Support Enable/Disable In-Band ECC. Memory Remap Enable/Disable Memory Remap above 4GB. MIO-2364 User Manual...
  • Page 61 Graphics turbo IMON current values supported. GTT Size Select the GTT Size. Aperture Size Select the Aperture Size. PSMI Support Enable/Disable PSMI. DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. MIO-2364 User Manual...
  • Page 62 LVDS LVDS Panel Type This allows the user to select the LVDS panel resolution type. DMI/OPI Configuration DMI Gen3 ASPM DMI Gen3 ASPM Support. MIO-2364 User Manual...
  • Page 63 Enable/Disable onboard LAN1 controller. LAN1 PXE ROM Enable/Disable onboard LAN1’s PXE option ROM. Restore AC Power Loss Specify what state to go to when power is re-applied after a power failure (G3 state). SPD Write Disable Enable/Disable SPD Write Disable. MIO-2364 User Manual...
  • Page 64 PCI Express Configuration DMI Link ASPM Control This item controls Active State Power Management of the DMI Link. PCI Express Root Port 4/9 PCI Express Port 4/9 Settings. MIO-2364 User Manual...
  • Page 65 SATA Controller(s) Enable/Disable SATA device. SATA Mode Selection Determine how the SATA controller operates. SATA Controller Speed Limit Indicates the maximum speed the SATA controller can support. Aggressive LPM Support Enables PCH to aggressively enter link power state. MIO-2364 User Manual...
  • Page 66 USB Configuration USB Overcurrent Select “Disabled” for pin-based debug. USB Port Disable Override Selectively Enable/Disable the corresponding USB Port from reporting a device con- nection to the controller. MIO-2364 User Manual...
  • Page 67 Enable will lock bytes 38h-3Fh in the lower/upper 128-byte bank of RTC RAM. BIOS Lock Enable/Disable the PCH BIOS Lock Enable feature. Force unlock on all GPIO pads If Enabled, BIOS will force all GPIO pads to be in the unlock state. MIO-2364 User Manual...
  • Page 68 HD Audio Configuration HD Audio Control detection of the HD-Audio device. Disabled = HDA will be unconditionally dis- abled. Enabled = HDA will be unconditionally enabled. MIO-2364 User Manual...

  • Page 69: Security

    4.1.4 Security Select security setup from the MIO-2364 setup main BIOS setup menu. All security setup options, such as password protection and virus protection are described in this section. To access the sub-menu for the following items, select the item and press <Enter>.

  • Page 70: Boot

    It has no effect on BBS boot options. Load Built-in EFI Shell Load/Unload the internal built-in EFI shell image inside the BIOS. (The built-in EFI shell will still be loaded if no bootable device is found). MIO-2364 User Manual...

  • Page 71: Save & Exit

    This item allows you to save the changes done so far as user defaults. Restore User Defaults This item allows you to restore the user defaults to all the options. Boot Override Boot device select can override your boot priority. MIO-2364 User Manual...
  • Page 72 MIO-2364 User Manual...

  • Page 73: Appendix A System Assignments

    Appendix System Assignments This appendix contains informa- tion of a detailed nature. Sections include:  System I/O Ports  1st MB Memory Map  Interrupt Assignments...

  • Page 74: System I/O Ports

    Table A.2: 1st MB Memory Map Addr. Range (Hex) Device E0000h - FFFFFh System Board D0000h - DFFFFh PCI Bus C0000h - CFFFFh System Board A0000h - BFFFFh PCI Bus A0000h - BFFFFh Intel® HD Graphics 00000h - 9FFFFh System Board MIO-2364 User Manual...

  • Page 75: Interrupt Assignments

    Communications Port (COM2) IRQ4 Communications Port (COM1) IRQ5 Available IRQ6 Reserved IRQ7 Available IRQ8 System CMOS/ Real-Time clock IRQ9 Microsoft ACPI-Compliant System IRQ10 Available IRQ11 Display Controller IRQ12 Available IRQ13 Numeric Data Processor IRQ14 GPIO Controller IRQ15 Reserved MIO-2364 User Manual...
