Advantech MIO-2375 Startup Manual

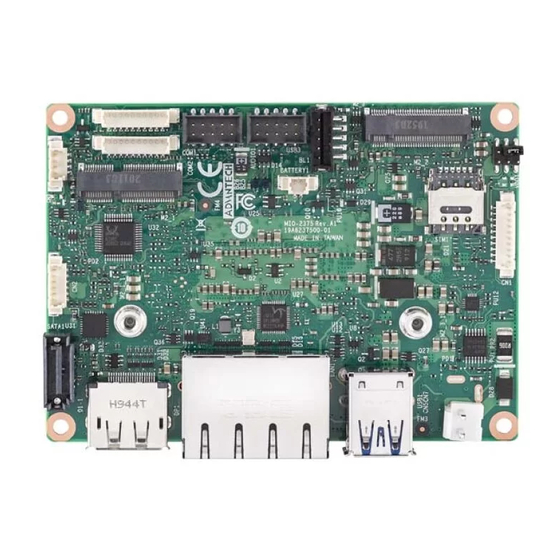

MIO-2375 2.5" Pico-ITX SBC with 11th Gen. Intel®
Core™ U-Series (i7/i5/i3/Celeron®) CPU, LPDDR4x
Memory, DP , eDP , 2GbE, M.2 E-Key, M.2 B-Key/M-
Key, iManager 3.0, and Edge AI Software Suite
Startup Manual
Packing List
Before card installation, check that the following items are
included in your shipment:
1. 1 x MIO-2375 single-board computer
2. 1 x Startup manual
3. 1 x SATA cable
4. 1 x Audio cable
5. 2 x COM cable
6. 1 x SATA power cable
7. 1 x USB cable
8. 1 x AT power cable
9. 1 x Cooler (heatsink)
10. 1 x Screw kit (4 x standoffs)
11. 1 x DeviceOn package
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Note 1: For more information regarding MIO-2375, refer
to the Advantech website for further information.
Note 2:
Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
http://get.adobe.com/reader/ (Acrobat is a trade-
mark of Adobe)
For more information about this and other Advantech
products, visit our website at
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and customer service, visit our
support website at
http://support.advantech.com
This manual is for the MIO-2375 series.
Part No. 2046237500
Printed in China
p/n: 2046237500
p/n: 1700006291
p/n: 1700019584-01
p/n: 1700030404-01
p/n: 1700027546-01
p/n: 1700030406-01
p/n: 1700019705-01
p/n: 1970004956T001
p/n: 1930000058
Edition 1
August 2021
Specifications
General
• CPU:
- Intel® i7-1185G7E/1185GRE quad-core, base frequency
1.8 GHz, max. turbo frequency 4.4 GHz
- Intel® i5-1145G7E quad-core, base frequency 1.5 GHz;
max. turbo frequency 4.1 GHz
- Intel® i3-1115G4E dual-core, base frequency 2.2 GHz;
max. turbo frequency 3.9 GHz
• System Memory: Dual-channel, onboard LDDR4x @
4267 MHz, up to 32 GB
• Cache:
- Intel® i7-1185G7E/1185GRE: 12 MB
- Intel® i5-1145G7E: 8 MB
- Intel® i3-1115G4E: 6 MB
• BIOS: AMI uEFI 256 Mbit
• Watchdog Timer: 255 timer intervals, programmable via
software; multi-level WDT (configured via iManager)
• Battery: Lithium 3 V/210 mAH
• Audio: High definition (HD) audio, Line-In, Line-Out,
Mic-In
Expansion Interface
• 1 x M.2 B-Key 2242/3042 (M-Key available upon request)
• 1 x M.2 E-Key 2230
Display
• Controller: Intel® Iris® Xe Graphics
• Maximum Resolution:
- Display Port: DP 1.4 (DP++),
up to 4096 x 2304 x 36 bpp @ 60 Hz;
with DSC 7680 x 4320 x 30 bpp @ 60 Hz
- Embedded DisplayPort: eDP 1.4 HBR3, up to
4096 x 2304 x 36 bpp @ 60 Hz;
with DSC 7680 x 4320 x 30 bpp @ 60 Hz
- *Optional MIPI-DSI: MIPI-DSI 2.5 GHz, up to
3200 x 2000 x 24 bpp @ 60 Hz;
with DSC 5120 x 3200 x 24 bpp @ 60 Hz
- Dual Display: DP + eDP/MIPI-DSI
Ethernet Interface
• Speed: 10/100/1000 Mbps
• Controller: GbE1 - Intel i219, GbE2 - Intel i210-AT
Mechanical and Environmental
• Dimensions: 100 x 72 mm/3.9 x 2.8 in
• Power Supply Type: Supports ACPI
• Power Requirements: +12 V ± 10% (supports 2-pin AT
power connector and DC jack as a default)
• Operating Temperature:
0 ~ 60 °C/32 ~ 140 °F
Extended: -40 ~ 85 °C/-40 ~ 185 °F
• Weight: 0.26 kg/0.57 lb
