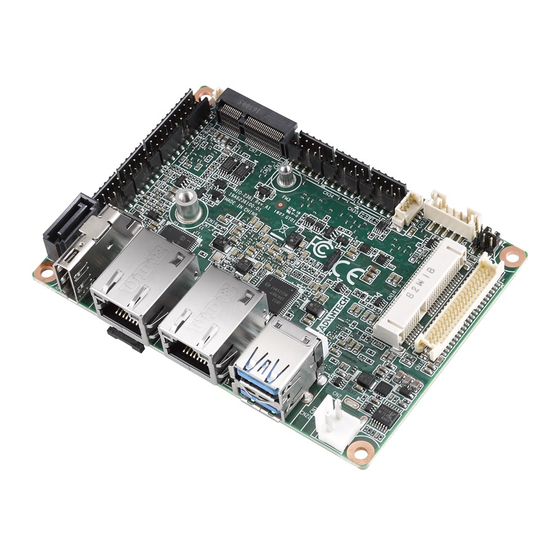

Advantech MIO-2361 Startup Manual

MIO-2361 Intel® Atom™ E3900 series/ Pentium®
N4200/Celeron® N3350 Pico-ITX SBC, Onboard LP-
DDR4-2400, 48-bit LVDS,2 GbE, M.2 E-key, mSATA/
mPCIe for expansion, 2 x RS-232/422/485
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following items have been shipped:
1. 1 MIO-2361 SBC
2. 1 Startup Manual
3. 1 SATA Cable
4. 1 COM Cable
5. 1 SATA Power Cable
6. 1 USB Cable
7. AT Power Cable
8. 1 Heatsink
9. Screw and stud pack (2 screws
for Mini PCIe, 4 M3 studs and
screws for heatsink)
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of MIO-2361, please refer
to the Advantech website.
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded
at: http://get.adobe.com/reader/ (Acrobat is
a trademark of Adobe)
Note 3: Default BIOS is supported for 64 bit OS installa-
tion, BIOS for 32 bit OS is supported by project,
please contact with sales representative for
details.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://service.advantech.com.tw/support/
This manual is for the MIO-2361 Series Rev. A1
Part No. 2046236100
Printed in China
p/n: 1700006291
p/n: 1701200220
p/n: 1700027546-01
p/n: 1700002172
p/n : 1700019705
p/n: 1960087918T001
p/n: 9666226300E
1st Edition
April 2019
Specifications
General
• CPU: Intel® Atom™ E3950, 1.60 GHz, Quad Core/
Atom™ E3940, 1.60 GHz, Quad Core/Atom™ E3930,
1.30 GHz, Dual core/Pentium N4200, 1.10 GHz, Quad
core/Celeron N3350, 1.10 GHz, Dual core
• System Memory: Dual Channel/Onboard LPDDR4-2400
MHz, up to 4GB
• L2 Cache: 2 MB
• BIOS: AMI EFI 64 Mbit Flash ROM
• Watchdog Timer: 255 level interval timer
• Battery: Lithium 3 V/210 mAH
Note: How to clear CMOS (Must follow steps below):
1. Turn off system power.
2. Unplug CR2032 battery cable on BH1.
3. Waiting for 15 sec or short BH1 pin1-2.
4. Connect battery cable on BH1.
5. Turn on system power.
• Serial ATA: One SATA III interface, up to 6Gb/s
(600MB/s)
• USB: 2 x USB3.0, 2 x USB2.0 ports
• Audio: High definition audio (HD), line-in, line-out
• GPIO: 16-bit general purpose input/output
• Expansion Interface: E-Key (PCIex1, USB2.0), Full size
mPCIe/mSATA*(optional)
HDMI Interface
• Controller: Intel® Atom SoC integrated, HDMI display
output ALC-888S for 48-bit LVDS display output
• Output Interfaces:
- HDMI: Up to 3840 x 2160 at 30Hz
- LVDS: Dual channel 48-bit LVDS,
up to 1920 x 1200
- Dual Display: HDMI+48-bit LVDS
Ethernet Interface
• Supports single 10/100/1000 Mbps Ethernet interface
• Controller: Intel® i210IT/i210AT
MIO-2361 Startup Manual 1
