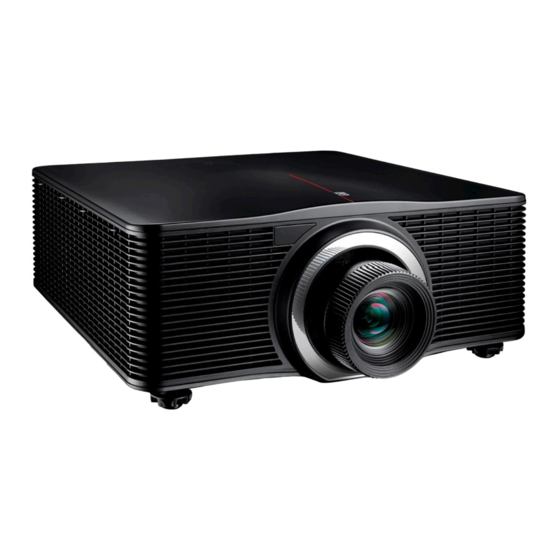

Barco G62 User Manual

Hide thumbs Also See for G62:
Table of Contents

Advertisement

Quick Links

Download this manual
G62
User guide
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G62 and is the answer not in the manual?

Questions and answers

Related Manuals for Barco G62

Summary of Contents for Barco G62

  • Page 1 User guide ENABLING BRIGHT OUTCOMES...
  • Page 2 Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.

  • Page 5: Table Of Contents

    Table of contents 1 Safety ........................................... 9 General considerations ................................10 Risk Group 3 Safety ..................................12 1.2.1 General considerations............................12 1.2.2 High Brightness precautions: Hazard Distance ..................12 1.2.3 HD for fully enclosed projection systems.......................14 Important safety instructions..............................15 Product safety labels..................................19 2 Product overview ....................................21 Main unit.......................................22 3 Input &...
  • Page 6 Projection native timing ................................46 Reset........................................46 8 User controls – Image menu ..............................47 Color Mode ......................................48 Brightness ......................................48 Contrast........................................48 Saturation......................................48 Tint...........................................48 Sharpness......................................49 Gamma.........................................49 Digital zoom and shift ...................................49 White balance ....................................50 8.10 Color space ......................................50 8.11 Wall color ......................................50 8.12 Advanced settings ..................................51 8.13 Save to User ......................................52 8.14...
  • Page 7 14.2 LED indication chart ..................................87 A Specifications ......................................89 Specifications for G62-W9.................................90 Specifications for G62-W11...............................91 Specifications for G62-W14 ..............................92 Dimensions of the G62 ................................94 Ceiling mount ....................................95 Compatibility modes..................................96 EDID table......................................99 B Regulatory information................................. 103 Product compliance..................................104 China RoHS compliance................................105 Taiwan RoHS compliance ...............................
  • Page 8 R5914653 /10...

  • Page 9: Safety

    Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the G62 projector. Clarification of the term “G62” used in this document When referring in this document to the term “G62” means that the content is applicable for following Barco products: •...

  • Page 10: General Considerations

    • Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.
  • Page 11 HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons. Only Barco authorized SERVICE PERSONNEL, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL.

  • Page 12: Risk Group 3 Safety

    Safety 1.2 Risk Group 3 Safety 1.2.1 General considerations Notice on optical radiation from G62 Projector when it becomes Risk Group 3 • For RG3, no direct exposure to the beam shall be permitted. For RG3, operators shall control access to the beam within the hazard distance or install the product at a height that will prevent eye exposure within the hazard distance.
  • Page 13 Safety For example, projectors that have a HD greater than 1 m and emit light into an uncontrolled area where persons may be present should be positioned in accordance with “the fixed projector installation” parameters, resulting in a HD that does not extend into the audience area unless the beam is at least 2.0 meter above the floor level.

  • Page 14: Hd For Fully Enclosed Projection Systems

    The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.

  • Page 15: Important Safety Instructions

    Safety RESTRICTED AREA DIFFUSE REFLECTION Image 1–3 Restricted Access location (enclosed projection area). Restriction Zone. Projector. Projection Distance. Theater (observation area). Separation Width. Must be minimum 1 meter. For this type of setup 3 different HD shall be considered: • HD as discussed in “High Brightness precautions: Hazard Distance”, page 12, relevant for intrabeam...
  • Page 16 “Risk Group 3 Safety”, page for information regarding precautions. • FOR PROFESSIONAL USE ONLY means installation can only be carried out by Barco AUTHORIZED PERSONNEL familiar with potential hazards associated with high intensity light beams. • Warning: High brightness projector: This projector embeds high brightness (radiance) lasers; this laser light is processed through the projectors optical path.
  • Page 17 Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 18 If the specified environmental conditions cannot be guaranteed (e.g., construction works), the projector must be removed, or switched off and fully protected until the requirements are fulfilled. • Contact Barco in case uncertainty exist on the environmental conditions linked to air contamination prior to install and operate the projector. •...

  • Page 19: Product Safety Labels

    Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.
  • Page 20 Safety Label image Label description FDA laser variance (US projectors only). This product is in conformity with performance standards fro laser products under 21 CFR 1040, except with respect to those characteristics aurhorized by Variance Number xxxx-x-xxxx effective on [effective date of variance approval]. For the exact Variance Number and effective date see yellow label on the projector.

  • Page 21: Product Overview

    Product overview Main unit ............................22 R5914653 /10...

  • Page 22: Main Unit

    Product overview 2.1 Main unit Component locations Image 2–1 Remote receiver (Front) Projection lens DVI-D DC 12V HDBaseT HDMI OUT HDMI-2 IN HDMI-1 IN 3G-SDI IN 3D SYNC 3D SYNC RS232 REMOTE ETHERNET MENU EXIT INPUT LENS FOCUS ENTER Image 2–2 LED Status Indicator Control panel Input/Output (I/O) Panel...
  • Page 23 Product overview Airflow Image 2–3 R5914653 /10...
  • Page 24 Product overview R5914653 /10...

  • Page 25: Input & Communication

    Input & Communication Input/Output (I/O) Panel ........................26 Control panel..........................26 R5914653 /10...

  • Page 26: Input/Output (I/O) Panel

    Input & Communication 3.1 Input/Output (I/O) Panel Input and output ports location DVI-D DC 12V HDBaseT HDMI OUT HDMI-2 IN HDMI-1 IN 3G-SDI IN 3D SYNC 3D SYNC RS232 REMOTE ETHERNET Image 3–1 DC 12V connector Wired remote connector HDBaseT connector Network connector RJ45 HDMI out connector USB Type A connector...
  • Page 27 Input & Communication Button Function ENTER Confirm the settings. INPUT Select an input source. ZOOM Adjust the image size. FOCUS Adjust the image focus. LEFT Navigate left through the menu. Navigate up through the menu. DOWN Navigate down through the menu. RIGHT Navigate right through the menu.
  • Page 28 Input & Communication R5914653 /10...

  • Page 29: Remote Control Unit (Rcu)

    Remote Control Unit (RCU) RCU battery installation ........................30 Overview of the RCU ........................31 Projector Address (ID)........................31 Using the RCU ..........................32 R5914653 /10...

  • Page 30: Rcu Battery Installation

    Remote Control Unit (RCU) 4.1 RCU battery installation How to install the batteries of the Remote Control Unit Remove the cover by sliding it in the direction indicated by the arrow Insert two new AAA (alkaline) batteries (observe the polarity). Note: Batteries are not delivered with the RCU! Replace the cover.

  • Page 31: Overview Of The Rcu

    Remote Control Unit (RCU) 4.2 Overview of the RCU Button identification Button location Button Function Turn the projector on. Standby Turn the projector off. Number Input numbers (0-9) Info Display information on the source image. Set the projector address. Auto Automatically synchronize the projector to an input source.

  • Page 32: Using The Rcu

    Remote Control Unit (RCU) to the same number. The default ID code of the RCU (also known as the broadcast address) is 00. This specific address allows the RCU to control all projectors within its effective range. How to set the projector address on the RCU Keep ID Key pressed in.
  • Page 33 Remote Control Unit (RCU) Image 4–2 R5914653 /10...
  • Page 34 Remote Control Unit (RCU) R5914653 /10...

  • Page 35: Powering On/Off The Projector

    Powering On/Off the projector Powering On the projector ......................36 Powering Off the Projector......................37 This chapter assumes that the power cord and (all) signal cables are securely connected. For detailed instructions see installation manual. R5914653 /10...

  • Page 36: Powering On The Projector

    Is this the first time that the projector starts up? (First installation or after a factory reset) ► If yes, a popup window appears with the request to accept Barco’s End User License Agreement (EULA). Select CONTINUE to accept the EULA terms and to proceed using the projector. If you do not accept the EULA terms (CANCEL), the projector will be switched off.

  • Page 37: Powering Off The Projector

    Note: The EULA can be downloaded from the Barco website. Turn on your source. The projector detects the source you selected and displays the image. Note: If you connect multiple input sources at the same time, press the Input key on the control panel or on the remote control to switch inputs.
  • Page 38 Powering On/Off the projector R5914653 /10...

  • Page 39: User Controls

    User controls On-Screen Display Menus......................40 R5914653 /10...

  • Page 40: On-Screen Display Menus

    User controls 6.1 On-Screen Display Menus About OSD The projector has On-Screen Display (OSD) menus that allow you to make image adjustments and change a variety of settings. Follow the steps below to use the OSD menu to configure the projector settings. How to operate To open the OSD menu, press Menu key on the control panel or remote control.

  • Page 41: User Controls - Source Menu

    User controls – Source menu Auto signal ...........................42 Input signal ..........................42 PIP/PBP ............................42 Backup input ..........................44 Auto HDMI switch .........................46 HDMI............................46 Auto signal resync ........................46 Projection native timing .........................46 Reset............................46 R5914653 /10...

  • Page 42: Auto Signal

    User controls – Source menu 7.1 Auto signal About auto signal When Auto Signal is enabled, the projector automatically detects and selects the input signal. Once an input source is selected, press the “Input button” on the remote control or keypad to switch to other available sources.
  • Page 43 User controls – Source menu • 3G-SDI • HDBaseT Swap source Swap the main source and sub source. Sub image size Change the display size of the sub source in PIP mode. Sub position Adjust the position of the sub image. •...

  • Page 44: Backup Input

    User controls – Source menu PIP/BPB HDMI-1 HDMI-2 DVI-D 3G-SDI HDBaseT Matrix DVI-D — 3G-SDI — HDBaseT — Sub brightness Adjust the luminous brightness of the sub image to adapt to different ambient light. Sub contrast Adjust the contrast ratio of the sub image. Sub color space Select a color space for the sub image.
  • Page 45 User controls – Source menu Auto Switch Current Signal 3G-SDI First Input HDMI 1 Second Input HDMI 2 Backup Input Status Inactive Backup Input Change No Change Backup Input Info. Enter Select Return Image 7–1 Backup input change Displays the Backup input change. Backup input info Displays the Backup input info information: •...

  • Page 46: Auto Hdmi Switch

    User controls – Source menu 7.5 Auto HDMI switch About auto HDMI switch When Auto HDMI Switch is enabled, input source must be either “HDMI1” or “HDMI2”. HDMI2 has a higher priority over HDMI1! If a signal is detected on HDMI2, then the displayed signal will switch to HDMI2 and only switch back to HDMI1 after removing the HDMI2 signal.

  • Page 47: User Controls - Image Menu

    User controls – Image menu Color Mode ..........................48 Brightness............................48 Contrast............................48 Saturation ............................48 Tint ..............................48 Sharpness ...........................49 Gamma ............................49 Digital zoom and shift........................49 White balance ..........................50 8.10 Color space..........................50 8.11 Wall color .............................50 8.12 Advanced settings ........................51 8.13 Save to User ..........................52 8.14 Apply to User ..........................52 8.15 Reset............................53 R5914653 /10...

  • Page 48: Color Mode

    User controls – Image menu 8.1 Color Mode About color mode There are a number of color modes that are preset for different types of images: • Presentation: Best for displaying presentation slides in a bright room. • Bright: Best for the installations requiring high brightness images. •...

  • Page 49: Sharpness

    User controls – Image menu 8.6 Sharpness About sharpness Adjust the clarity of details in the projected image to make the image clearer and sharper. 8.7 Gamma About gamma Adjust the gamma levels of the image. The available options are: •...

  • Page 50: White Balance

    User controls – Image menu Reset Reset the digital zoom and shift settings to their factory default values. 8.9 White balance About white balance Adjust the overall tint of the image to optimize the white color performance. Color temperature Select the color temperature of the projected image. The available options are: •...

  • Page 51: Advanced Settings

    User controls – Image menu • Light green • Light blue • Pink • Gray 8.12 Advanced settings About settings Configure advanced color settings to improve the color performance. Realcolor P7 Change the color of a projected image by adjusting each color component in the image. The adjustable color includes Red, Green, Blue, Cyan, Yellow, and Magenta (R/G/B/C/Y/M).

  • Page 52: Save To User

    User controls – Image menu Standard: Make the images look more realistic and natural. Film: Improve the image details for videos. Detail: Improve the image details in dark scenes. Dynamic contrast Configure the settings for maximizing the contrast for dark content. Turning on Dynamic Contrast will disable the light source settings! •...

  • Page 53: Reset

    User controls – Image menu • User-HDR • User-sRGB • User-DICOM SIM. • User-blending • User-3D • User-2D high speed 8.15 Reset About reset Reset all the image settings to their factory default values. R5914653 /10...
  • Page 54 User controls – Image menu R5914653 /10...

  • Page 55: User Controls - Installation Menu

    User controls – Installation menu Orientation ...........................56 Scaling ............................56 3D ...............................56 Lens ............................58 Edge Mask...........................59 Geometric Correction........................59 Low latency..........................61 Auto image setup..........................61 Freeze Screen..........................64 9.10 Reset............................64 R5914653 /10...

  • Page 56: Orientation

    User controls – Installation menu 9.1 Orientation About orientation Configure the projection orientation according to the projector’s installation direction. Ceiling Mount Enable the orientation function for ceiling mount installation. Direction Select Front Projection or Rear Projection based on the projector’s relative position to the screen. 9.2 Scaling About scaling Set the aspect ratio of the projected image.
  • Page 57 User controls – Installation menu • Side by side • Top and bottom • Frame sequential 3D tech Select a proper 3D technology according to how the 3D sync signal is processed: • DLP-Link: Select DLP-Link when the 3D sync signal is generated by the DLP Link technology built-in the projector. DLP-Link works only with the glasses that are compatible with DLP 3D technology and the 3D function is enabled.

  • Page 58: Lens

    User controls – Installation menu 9.4 Lens About lens settings Configure the lens settings to adjust the image quality and position. Focus Adjust the focus of the image. Auto focus Adjust the focus of the image automatically. Zoom Adjust the size of the projected image. Lens Shift Adjust the lens position to shift the projected area.

  • Page 59: Edge Mask

    User controls – Installation menu 9.5 Edge Mask About edge mask The edge blending function allows you to hide one or multiple edges of the projected image. You can use this function to remove the video encoding noise on the edges of the video images. 9.6 Geometric Correction About geometry correction Configure the geometry settings to reshape the image for different projection surface.
  • Page 60 User controls – Installation menu Image 9–3 Vertical: Correct the projected image with vertical barrel or pincushion distortion. Image 9–4 • 4-corner: Reshape the image by moving the 4 corners of the image to have it fit a specific projection surface. Image 9–5 Advanced Warp Configure advanced warp settings.

  • Page 61: Low Latency

    User controls – Installation menu Set the blend pattern width. Overlap Grid Number: Set the blend overlap grid number. Gamma: Set the gamma value of the blend area to adjust the curvature of the blending effect. Width Blend area Gamma Image 9–6 Reset Reset the geometry settings to their factory default values.
  • Page 62 User controls – Installation menu Auto adjustment is performed via the optional camera module. Please ensure that the camera is installed and not covered by any objects. The auto adjustment process could take more than one minute to complete! Auto focus Auto adjust the focus motor to get the sharpest and balanced image: Enter Done...
  • Page 63 User controls – Installation menu Enter White Cyan Yellow Magenta White FAIL Image 9–8 Depending on the room brightness or screen conditions, the calibration performance may vary. If the target data is out of color range of the projector, the color calibration will not be performed correctly.

  • Page 64: Freeze Screen

    User controls – Installation menu Enter FAIL Image 9–10 Depending on the room brightness or screen conditions, the calibration performance may vary. If the target data is out of color range of the projector, then the color calibration will not be performed correctly.

  • Page 65: User Controls - Profiles Menu

    User controls – Profiles menu 10.1 User data .............................66 R5914653 /10...

  • Page 66: User Data

    User controls – Profiles menu 10.1 User data About User data The user can save the projector settings as user data and reload these settings later. Save all settings Saves all of the projector settings as user data. The user can save up to 5 records. Load all settings Loads the previously saved user data.

  • Page 67: User Controls - Settings Menu

    User controls – Settings menu 11.1 Date and time..........................68 11.2 Schedule .............................68 11.3 Standby Mode ..........................71 11.4 Power settings..........................72 11.5 Communication ..........................72 11.6 Language ............................75 11.7 User interface..........................75 11.8 System ............................76 11.9 Shutter............................76 11.10 Security ............................76 11.11 12V Trigger ..........................77 11.12 Reset............................77 11.13 Maintenance ..........................77 R5914653 /10...

  • Page 68: Date And Time

    User controls – Settings menu 11.1 Date and time About date and time Set up the date and time for the projector. Clock mode Set the clock mode to use an NTP server (network-based) or a manual setting. If the clock mode is set to NTP Server, make sure the projector has access to the Internet. Date Set a date for the projector.
  • Page 69 User controls – Settings menu Image 11–1 Date and time Check or adjust the date and time for the projector. Schedule mode Enables or disables the schedule function. If the projector is controlled via external devices or software, the Schedule Mode displays AP Mode and the projector’s schedule functions are grayed out.
  • Page 70 User controls – Settings menu Image 11–2 • Schedule Enable: Enables or disables the schedule function for the selected day. • Event 01-08 / Event 09-16: Select an event record number, and set up the schedule details. Image 11–3 Time: Set the time for the event.

  • Page 71: Standby Mode

    User controls – Settings menu Image 11–4 • Copy Events To: Copy the events setup for the day to another day. Image 11–5 • Reset: Resets the schedule settings for the day. Reset Reset all of the schedule settings. 11.3 Standby Mode About standby mode Setup the projector standby mode.

  • Page 72: Power Settings

    User controls – Settings menu Low power consumption (< 2 Watt) which allows the LAN module to enter sleep mode and supports to be woken by Wake on LAN (WoL). When the LAN module is woken by WoL, the projector is ready to receive commands over the network.
  • Page 73 User controls – Settings menu • HDBaseT • Telnet • Other control methods Remote setup Configures the settings of the Infra-Red (IR) remote control. • Remote code: Assign a remote code from 00 to 99 for the remote receivers on the projector. The projector only responds to the IR remote control set with the same remote code.
  • Page 74 User controls – Settings menu The events support email notification include Light Source Fault, Fan Stall, Thermal Sensors, Power, and Signal Lost/Detected. The user can send early alerts via email to one of the email address or both. • Reset: Resets all email notifications to their default factory values.

  • Page 75: Language

    User controls – Settings menu 11.6 Language About language Select a language for the OSD menu. 11.7 User interface About user interface Configure the user interface related settings. On screen display Set up the on screen display menus.: • Menu location: Select the menu location from Top Left, Top Right, Center, Bottom Left, and Bottom Right.

  • Page 76: System

    User controls – Settings menu 11.8 System About system Configure the system related settings. High altitude Check the option to increase the fan speed, to ensure the image quality and prevent damage to the projector. Enable High Altitude mode in high temperature, high humidity, or high altitude environment. Operational mode Set up the light source to control the projector brightness.

  • Page 77: Trigger

    User controls – Settings menu If an incorrect password was entered three times, a message will pop up warning that the projector will shut down in 10 seconds. Security timer Specify the length of time the projector can be used without the password. Once the timer counts to 0, the user must enter a password to use the projector.
  • Page 78 User controls – Settings menu R5914653 /10...

  • Page 79: User Controls - Test Pattern Menu

    User controls – Test pattern menu 12.1 Test pattern ..........................80 R5914653 /10...

  • Page 80: Test Pattern

    User controls – Test pattern menu 12.1 Test pattern About test pattern Select a test pattern from the available options: • • Green grid • Magenta grid • White grid • White • Black • • Green • Blue • Yellow •...

  • Page 81: User Controls - Status Menu

    User controls – Status menu 13.1 Projector information........................82 R5914653 /10...

  • Page 82: Projector Information

    View the projector information about its status and settings. The projector information is read only! • Projector Model name Serial number Total projector hours Lens type (only for G62-W14) • System status Standby mode Light source mode Light source hours ◦...
  • Page 83 User controls – Status menu ◦ Vertical refresh ◦ Color space • Backup input info Current signal Backup input status Backup input change First input ◦ Resolution ◦ Horizontal refresh ◦ Color space ◦ Second input ◦ Resolution ◦ Horizontal refresh ◦...
  • Page 84 User controls – Status menu R5914653 /10...

  • Page 85: Troubleshooting

    Troubleshooting 14.1 Projector Problems ........................86 14.2 LED indication chart........................87 If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local re-seller or service center. R5914653 /10...

  • Page 86: Projector Problems

    Troubleshooting 14.1 Projector Problems No image appears on-screen • Check if all the cables and the AC power are correctly connected. For more details, refer to the installation manual. • Check if the pins of the connectors are not crooked or broken. •...

  • Page 87: Led Indication Chart

    Troubleshooting Image is reversed • To reverse the image, enable rear projection by selecting “Installation > Orientation > Direction > Rear Projection” from the OSD menu. The projector stops responding to all controls • If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.
  • Page 88 Troubleshooting Light LED Status LED AV Mute LED Message Orange Orange Orange Green Green Green AV mute is on Steady Steady (image is black) Projector Steady Flash- Steady communication Firmware upgrade Flash- Flash- Burn-in Flash- Flash- Factory reset Steady Steady Error Steady (over temperature)

  • Page 89: A Specifications

    Specifications Specifications for G62-W9......................90 Specifications for G62-W11 ......................91 Specifications for G62-W14 ......................92 Dimensions of the G62........................94 Ceiling mount ..........................95 Compatibility modes ........................96 EDID table ...........................99 R5914653 /10...

  • Page 90: Specifications For G62-W9

    Specifications A.1 Specifications for G62-W9 Overview Projector type Single chip DLP laser phosphor projector Technology 0.67" Resolution 1,920 x 1,200 (WUXGA) Brightness 8,000 ANSI lumens 8,900 center lumens 9,500 ISO lumens Contrast ratio 1,200:1 sequential; 6,000:1 dynamic; Extreme black: 750,000:1...

  • Page 91: Specifications For G62-W11

    Power cord, wireless remote control Certifications CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI Warranty Limited 3 years parts and labor A.2 Specifications for G62-W11 Overview Projector type Single chip DLP laser phosphor projector Resolution 1,920 x 1,200 (WUXGA)

  • Page 92: Specifications For G62-W14

    Power cord, wireless remote control Certifications CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI Warranty Limited 3 years parts and labor A.3 Specifications for G62-W14 Overview Projector type Single chip DLP laser phosphor projector Resolution 1,920 x 1,200 (WUXGA)
  • Page 93 Specifications Sealed DLP™ core Color correction CLO (constant light output) Image processing Embedded warp & blend possible via Ptoolset Active stereoscopic 3D Lens type G-lenses - 0.36:1 / 0.37-0.4:1 / 0.65-0.75:1 / 0.75-0.95:1 / 0.95-1.22:1 / 1.22-1.52:1 / 1.52-2.92:1 / 2.90-5.50:1 Optical lens shift Vertical up to 100%, depending on lens Horizontal up to 30%, depending on lens...

  • Page 94: Dimensions Of The G62

    Specifications A.4 Dimensions of the G62 CAUTION: Avoid installing the projector near a heat source. Front view 242.0 111.3 73.6 Image A–1 Dimensions given in millimeters. Rear view Image A–2 Dimensions given in millimeters. Top view 484.0 529.0 509.0 Image A–3 Dimensions given in millimeters.

  • Page 95: Ceiling Mount

    Specifications Left view Image A–4 Dimensions given in millimeters. A.5 Ceiling mount About ceiling mount CAUTION: Be sure to use the correct screw size. Screw Length will vary depending on the thickness of the mounting plate. CAUTION: Be sure to keep at least 30 mm gap between the ceiling and the bottom of the projector. Projector mounting holes 280.0 140.0...

  • Page 96: Compatibility Modes

    Specifications A.6 Compatibility modes Timing table Signal Signal Format V sync (Hz) Resolution HDMI1/2 HDBaseT 3G-SDI type 640x350 640x400 640x480 720x400 800x600 SVGA 832x624 848x480 1024x768 SXGA 1152x864 1152x870 WXGA 1280x768 WXGA 1280x800 SXGA 1280x960 1280x1024 WXGA 1360x768 1366x768 SXGA+ 1400x1050 WXGA+ 1440x900...
  • Page 97 Specifications Signal Signal Format V sync (Hz) Resolution HDMI1/2 HDBaseT 3G-SDI type WSXGA RB 1920X1200RB NTSC NTSC (M, 4.43) PAL (B,G,H,I) PAL (N) PAL (M) SECAM SECAM (M) SDTV 480i 720x480 59,94 576i 720x576 EDTV 480p 720x480 50,94 576i 720x576 HDTV 1080i 1920x1080...
  • Page 98 Specifications Signal Signal Format V sync (Hz) Resolution HDMI1/2 HDBaseT 3G-SDI type Top and 1920x1080 23,98 Bottom 1080p 50,9 Frame SVGA 800x600 Sequen- 1024x768 tial 3D HDTV 1280x720 1080p 1920x1080 WUXG 1920x1200 SD-SDI SDTV 480i 480i YcbCr422 59.94 10bit SDTV 576i 576i YcbCr422 10bit HD-SDI...

  • Page 99: Edid Table

    Specifications PIP/PBP Compatibility PIP/PBP DVI-D HDMI-1 HDMI-2 3G-SDI HDBaseT Matrix DVI-D HDMI-1 HDMI-2 3G-SDI HDBaseT PIP/PBP does not support 3D input. A.7 EDID table Established timing Standard timing Detail timing 720x400@70Hz 1024x768 @120Hz 1920x1200@59Hz 720x400@88Hz 1280x800@75Hz 1920x1080@60Hz 640x480@60Hz 1280x1024@60Hz 640x480@60Hz 640x480 @67Hz 1360x765 @60Hz 720x480 @60Hz...
  • Page 100 Specifications Established timing Standard timing Detail timing 640x480 @67Hz 1360x765 @60Hz 720x480 @60Hz 640x480 @72Hz 800x600 @120Hz 1280x720 @60Hz 640x480 @75Hz 1400x1050 @60Hz 1920x1080i @60Hz 800x600 @56Hz 1600x1200 @60Hz 720x480i @60Hz 800x600 @60Hz 1680x1050 @60Hz 720x576 @50Hz 800x600 @72Hz 1280x720 @50Hz 800x600 @75Hz 1920x1080i @50Hz 832x624 @75Hz...
  • Page 101 Specifications Established timing Standard timing Detail timing 1024x768@60Hz 1920x1080@50Hz 1024x768@70Hz 1920x1080@24Hz 1024x768@75Hz 1440x480@60Hz 1280x1024@75Hz 1920x1080@25Hz 1152x870@75Hz 1280x720@120Hz 1920x1080@120Hz 3840x2160@24Hz 3840x2160@25Hz 3840x 2160@30Hz 3840x2160@50Hz 3840x2160@60Hz R5914653 /10...
  • Page 102 Specifications R5914653 /10...

  • Page 103: B Regulatory Information

    Regulatory information Product compliance ........................104 China RoHS compliance ......................105 Taiwan RoHS compliance......................106 Turkey RoHS compliance......................107 Disposal information ........................107 Contact information........................108 Download Product Manual ......................108 R5914653 /10...

  • Page 104: Product Compliance

    Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC responsible: Barco Inc. 3059 Premiere Parkway Suite 400 30097 Duluth GA, United States Tel: +1 678 475 8000...

  • Page 105: China Rohs Compliance

    Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 106: Taiwan Rohs Compliance

    Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 107: Turkey Rohs Compliance

    備考3.〝—〞係指該項限用物質為排除項目。 Note 3：The “—” indicates that the restricted substance corresponds to the exemption. 備註: 此RoHS表格適用於以下產品型號: G62-W9, G62-W11, G62-W14 Hint: This RoHS table is suitable for following models: G62-W9, G62-W11, G62-W14 B.4 Turkey RoHS compliance Turkey RoHS compliance Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.

  • Page 108: Contact Information

    Registered office address: President Kennedypark 35, 8500 Kortrijk, Belgium Contact address: Beneluxpark 21, 8500 Kortrijk, Belgium Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. B.7 Download Product Manual Download Product Manual Product manuals and documentation are available online at www.barco.com/td.

  • Page 109: Index

    Index Battery 108 Numbers/Symbols Download Product manual 108 12V trigger 77 3D 56 Edge mask 59 EDIT table 99 Advanced settings 51 Electrical shock 15 Apply to user 52 Enclosed projection 14 Auto HDMI switch 46 Environmental information Auto image setup 61 Disposal information 107 Auto signal 42 RoHS compliance...
  • Page 110 Index ID 31 Personal injury 16 Image menu 47 PIP/PBP 42 Advanced settings 51 Power 35 Apply to user 52 Power Off 37 Brightness 48 Power On 36 Color mode 48 Power settings 72 Color space 50 Product compliance 104 Contrast 48 Product overview 21 Digital zoom and shift 49...
  • Page 111 Backup input 44 HDMI 46 Input signal 42 PIP / PBP 42 Projection native timing 46 Reset 46 Specifications 89 G62 W11 91 G62 W9 90 G62-W14 92 Standby mode 71 Status menu 81 Projector information 82 System 76 Test pattern 80...
  • Page 112 Index R5914653 /10...
