G60/G62 dust filter
Installation manual
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco G60

Summary of Contents for Barco G60

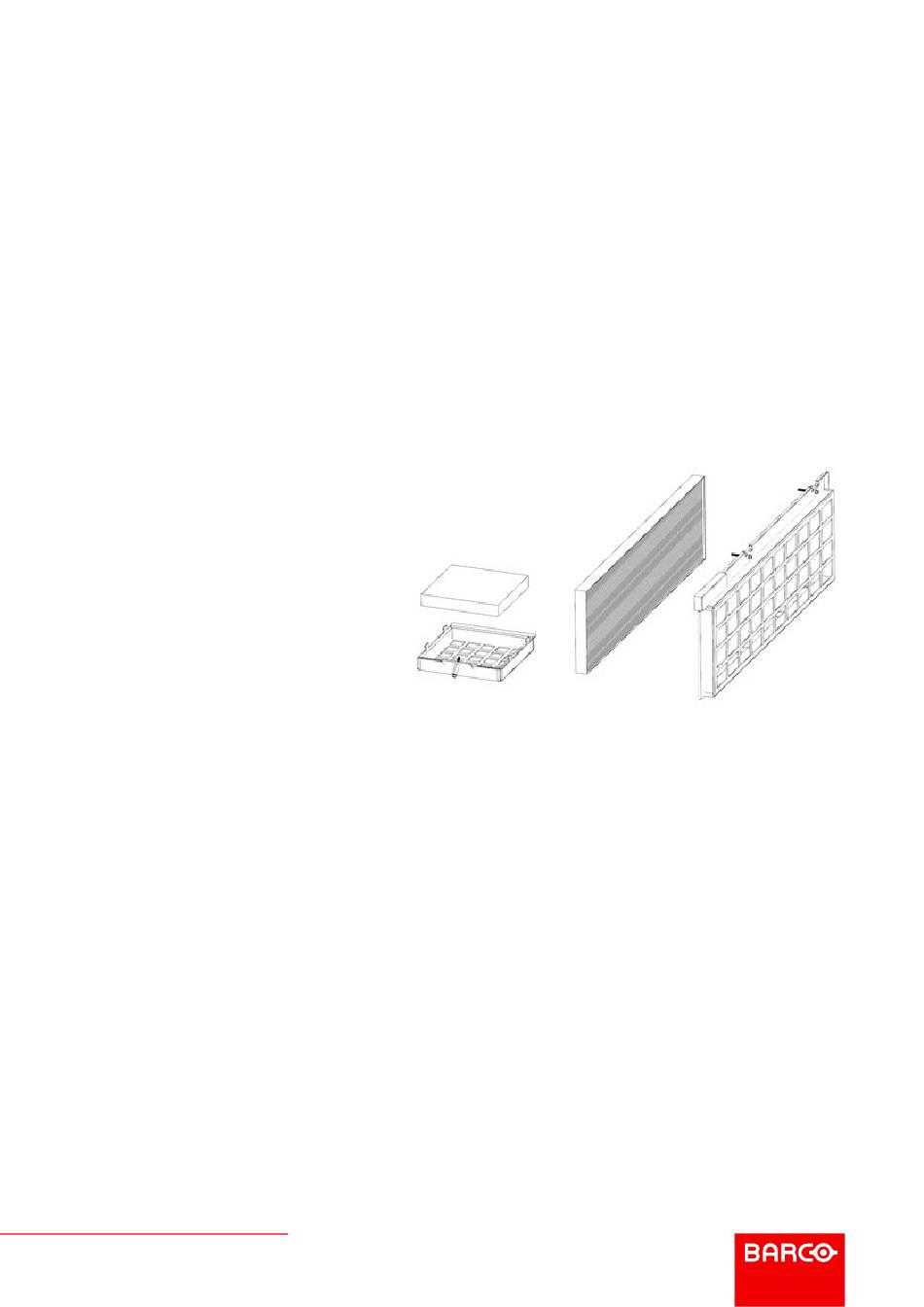

  • Page 1 G60/G62 dust filter Installation manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.

  • Page 5: Table Of Contents

    Dust filter kit package overview ..............................8 2 Installation procedures..................................9 Installing the left dust filter................................10 Installing the bottom dust filter..............................11 3 Filter replacement ....................................15 Replacing the left dust filter ...............................16 Replacing the bottom dust filter ..............................17 R5917794 /00 G60/G62 dust filter...
  • Page 6 R5917794 /00 G60/G62 dust filter...

  • Page 7: Introduction

    Introduction Purpose of the dust filter kit ......................8 Projector usage after filter installation ....................8 Dust filter kit package overview......................8 R5917794 /00 G60/G62 dust filter...

  • Page 8: Purpose Of The Dust Filter Kit

    Introduction 1.1 Purpose of the dust filter kit The dust filter kit is: • compatible with G60 and G62 projectors, • highly recommended in areas with polluted air, • designed to be mounted on the projector externally. CAUTION: The filters are not washable and are designed for disposable use only.

  • Page 9: Installation Procedures

    Installation procedures Installing the left dust filter ......................10 Installing the bottom dust filter ....................... 11 R5917794 /00 G60/G62 dust filter...

  • Page 10: Installing The Left Dust Filter

    Attach the filter assembly onto the projector using the four clips (reference 2) positioned at the bottom of the filter holder. Tip: Ensure that the filter assembly is properly aligned by verifying that the top screw holes of the filter holder match with the screw holes on the projector. R5917794 /00 G60/G62 dust filter...

  • Page 11: Installing The Bottom Dust Filter

    Bottom dust filter • Phillips PH2 screw How to install the bottom dust filter Insert the filter into the filter holder. Caution: Make sure the soft side of the filter faces the grid of the filter holder. R5917794 /00 G60/G62 dust filter...
  • Page 12 Place the filter assembly (reference 1) onto the air inlet as illustrated in the following image. Hook the filter assembly to the air inlet with the clips (reference 2). Image 2–7 Secure the filter assembly to the projector by tightening a Phillips PH2 screw (reference 3) into the designated screw standoff. R5917794 /00 G60/G62 dust filter...
  • Page 13 Installation procedures Image 2–8 R5917794 /00 G60/G62 dust filter...
  • Page 14 Installation procedures R5917794 /00 G60/G62 dust filter...

  • Page 15: Filter Replacement

    Filter replacement Replacing the left dust filter ......................16 Replacing the bottom dust filter......................17 It is recommended to replace the filter every six months. R5917794 /00 G60/G62 dust filter...

  • Page 16: Replacing The Left Dust Filter

    Detach the filter assembly from the projector, pushing slightly up to release the clips on the bottom. Image 3–2 Remove the dirty filter from the filter holder and insert the new filter (reference 2). Caution: Make sure the soft side of the filter faces the grid of the filter holder. R5917794 /00 G60/G62 dust filter...

  • Page 17: Replacing The Bottom Dust Filter

    Secure the filter assembly to the projector with two Phillips PH2 screws (reference 4). Image 3–5 3.2 Replacing the bottom dust filter Required tools • Phillips screwdriver PH2 • Clean blanket Required parts • Bottom dust filter holder • Bottom dust filter R5917794 /00 G60/G62 dust filter...
  • Page 18 Image 3–8 Remove the dirty filter from the filter holder and insert the new filter (reference 4). Caution: Make sure the soft side of the filter faces the grid of the filter holder. R5917794 /00 G60/G62 dust filter...
  • Page 19 (reference 6). Image 3–10 Secure the filter assembly to the projector by re-tightening the Phillips PH2 screw into the designated screw standoff. Image 3–11 R5917794 /00 G60/G62 dust filter...
  • Page 20 Filter replacement R5917794 /00 G60/G62 dust filter...
  • Page 22 R5917794 /00 | 2024-02-20 www.barco.com...
