AUMA DREHMO i-matic Manual

AUMA DREHMO i-matic Manual

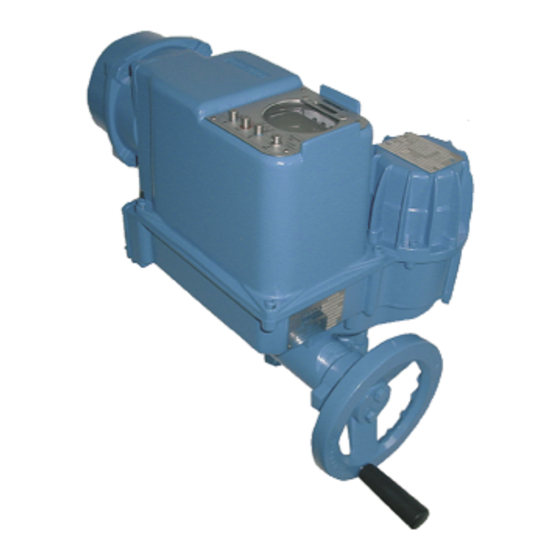

Electric actuator with integral controls

Advertisement

Quick Links

Assembly, operation and servicing instructions Part. no: 383899
for multi-turn, part-turn and linear actuators
This operating manual is part of the supply and should be kept for future use.
Regard the additional description of the integrated contol unit according to
the electric type of the actuator IM (383347) or IMC (383352)!
i-matic
Electric actuator
with integral controls
Revision:
2.10
Date:
October 5, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DREHMO i-matic and is the answer not in the manual?

Questions and answers

Aftab Ahmad
June 13, 2025

Not giving output for analog position

Subscribe to Our Youtube Channel

Summary of Contents for AUMA DREHMO i-matic

  • Page 1 i-matic Electric actuator with integral controls Assembly, operation and servicing instructions Part. no: 383899 for multi-turn, part-turn and linear actuators Revision: 2.10 Date: October 5, 2023 This operating manual is part of the supply and should be kept for future use. Regard the additional description of the integrated contol unit according to the electric type of the actuator IM (383347) or IMC (383352)!
  • Page 2: Table Of Contents

    Table of Contents 1 Safety instructions 1.1 Basic information on safety ......1.2 Range of application ......1.3 Warnings .
  • Page 3 9 Servicing and maintenance 9.1 Maintenance ....... . . 9.2 Troubleshooting and corrective actions ....9.3 Oil filling .
  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS 1 Safety instructions This section deals with basic, safety-relevant information relating to DREHMO actuators. We would like to ask you to thoroughly read the instructions prior to working on the actuators. 1.1 Basic information on safety Standards/directives DREHMO products are designed and manufactured in compliance with recognised standards and directives.
  • Page 5: Range Of Application

    1. SAFETY INSTRUCTIONS Operation Prerequisites for safe and smooth operation: • Correct transport, proper storage, mounting and installation, as well as careful com- missioning. • Only operate the device if it is in perfect condition while observing these instructions. • Immediately report any faults and damage and allow for corrective measures. •...
  • Page 6: Warnings

    1. SAFETY INSTRUCTIONS 1.3 Warnings The following warnings draw special attention to safety-relevant sections in these operation instructions, each marked by the appropriate signal word (DANGER, WARNING, CAU- TION, NOTICE). Indicates an imminently hazardous situation with a high level of risk. DANGER Failure to observe this warning could result in death or serious injury.
  • Page 7: Identification

    2. IDENTIFICATION 2 Identification The following section describes the characteristics allowing identification of the respective DREHMO actuator. 2.1 Name plates Each actuator is equipped with an actuator and a motor name plate including information required for unambiguous identification (refer to figure 2.1). For commissioning, service and maintenance, additional actuator-relevant data is indicated on the name plates.
  • Page 8: Actuator Designation

    2. IDENTIFICATION 2.2 Actuator designation The following example is used to explain the actuator designation: Value range D * * * * Position 2 3 4 5 6 7 8 9 10 11 Position Value range Signification DREHMO actuator Multi-turn actuator Part-turn actuator Actuator without controls Actuator with C-matic controls...
  • Page 9: Transport, Storage And Packaging

    3. TRANSPORT, STORAGE AND PACKAGING 3 Transport, storage and packaging This section of the operation instructions deals with safe transport, appropriate storage and packaging. The information given shall avoid property damage and personal injury. 3.1 Transport DANGER Hovering load! Risk of death or serious injury •...
  • Page 10: Storage

    3. TRANSPORT, STORAGE AND PACKAGING 3.2 Storage Mounting or storage in humid environments requires appropriate actions for avoiding con- densation inside the actuator. If the actuator is equipped with an externally supplied addi- tional heater, this heater must be predominantly used. Otherwise, switch on the operating voltage.
  • Page 11: Mounting To Valve

    4. MOUNTING TO VALVE 4 Mounting to valve This section deals with mounting the actuator on a valve, while detailing the specialities of the different version. In any case, check the actuator first for any damage. Replace damaged parts by original spare parts. DREHMO actuators can be mounted in any position.
  • Page 12: Removal And Fitting Of Stem Nut (Output Drive Type A)

    4. MOUNTING TO VALVE 4.2 Removal and fitting of stem nut (output drive type For output drive type A, make sure that the unbored stem nut (delivered unbored unless stated otherwise) must be provided with a thread bore in compliance with available stem prior to mounting the DREHMO actuator onto the valve.
  • Page 13 4. MOUNTING TO VALVE 1. Output mounting flange 2. Axial bearing with two support rings 3. Stem nut 4. Locking nut Figure 4.3: Stem nut type A HP with thread ring Remove retaining ring (5) / locking nut (4) and remove stem nut (3), Axial bearing with the two support rings (2).
  • Page 14: Insulating Flange

    4. MOUNTING TO VALVE 4.4 Insulating flange When using an insulating flange, heed the length of the screws used. They must not be too long: otherwise the insulating caps within the flange or even the flange as such will be damaged. We therefore recommend using studs according to DIN 938 with a depth of thread of 1 x D (refer to figure 4.4) for assembly.
  • Page 15: Rain Protection Hood

    4. MOUNTING TO VALVE 4.5 Rain protection hood For HEW-RUF motors, the rain protection hood (2) is always used in combination with the fan cover (1) (siehe Abbildung 4.5). This is the responsibility of the supplier! The hood must only be disassembled at the customers’ for upward mounted shafts (protection hood points downward).
  • Page 16 4. MOUNTING TO VALVE Screw strength class 8.8 ( 0 12) Threads M6 M8 M10 M12 M14 M16 M18 M20 M30 Tightening torque 1450 2600 in Nm Table 4.1: Tightening torques The actuator is mounted to the valve using an output drive plug sleeve (refer figure 4.6). Ensure compliance of fitting dimensions according to table 4.2 below.
  • Page 17 4. MOUNTING TO VALVE 1. Use handwheel to run actuator to mechanical end stop. 2. Thoroughly degrease mounting surfaces of output mounting flanges and apply appro- priate sealing agent (e.g. Marston Durapress). 3. Apply a small quantity of grease to the valve shaft [2]. 4.
  • Page 18: Additional Settings For Part-Turn Actuators

    4. MOUNTING TO VALVE 4.7 Additional settings for part-turn actuators End stops in part-turn actuator The internal end stops limit the swing angle. They protect the valve in the event of manual handwheel operation. End stop setting is generally performed by the valve manufacturer prior to installing the valve into the pipework.
  • Page 19 4. MOUNTING TO VALVE In case the dog of the hollow shaft does not engage into the respective keyway of the output drive plug sleeve, rotate the handwheel until hollow shaft engages. Slowly rotate handwheel until flange bores align, then fasten actuator using flange screws. If more than one handwheel turn is required, put the actuator to the initial position, lift it and place it again onto the output drive plug sleeve by moving one indent.
  • Page 20 4. MOUNTING TO VALVE Setting end stop CLOSED 1. Remove screw plug [3]. 2. Move valve to end position CLOSED with handwheel. 3. If the valve end position is not reached: • Slightly turn setting screw [4] counterclockwise until valve end position CLOSED can be correctly set.
  • Page 21: Electrical Connection

    5. ELECTRICAL CONNECTION 5 Electrical connection This section deals with the electrical connection of DREHMO actuators. Safety-related aspects, information on installation and modification of electrical connection are presented. 5.1 Important notes DANGER Risk of direct contact with open live parts •...
  • Page 22: Connection Terminals

    5. ELECTRICAL CONNECTION • Possibly uncoated, blank sealing surfaces at the electrical connection housing parts have to be lubricated with a long-term rated synthetic grease (e.g. Klüber ISOFLEX Topas NB5051) as corrosion protection before closure. • The connecting cables must comply with the requirements in terms of electrical connection data and load (mechanical, thermal and chemical).
  • Page 23: Local Controls

    6. LOCAL CONTROLS 6 Local controls The actuators are equipped with local controls containing the graphic display and display elements for local control or menu operation as well as a wireless parameterisation and diagnostic access via infra-red (IR) or Bluetooth (BT) technology. The definite version of display unit with display screen at the actuator can differ with reference to interface, display elements and display version (refer also to 6.1).
  • Page 24: Local Indication Lights

    6. LOCAL CONTROLS 6.1 Local indication lights These indication lights are used to display certain actuator states. Depending on configu- ration, both outer indication lights are used for signalling directional running indications or reaching an end position. The mid indication light is reserved as failure signal. The nature of the indicated failure can be set via actuator controls parameterisation.
  • Page 25 6. LOCAL CONTROLS Figure 6.3: Display unit disabled If one or several faults are signalled, a message appears whether the fault is to be displayed. This request can be acknowledged via ESC push button/key (2 in figure 6.1) which brings you back to the main menu where you can change operation mode or proceed with param- eter setting.
  • Page 26: Access Protection Of Local Controls

    6. LOCAL CONTROLS The following fault messages are possible: • To edit this parameter, you require user level x Remedy: Sign in at the required user level x • The new value must be between Limit 1 and Limit 2! Remedy: Enter a new value for the parameter within the permitted range.
  • Page 27: Display Elements

    6. LOCAL CONTROLS From software version V01.06.0080 (IM; IMC all software versions), a temporary language modification can be performed from the basic screen (which is automatically reset after next system start) by holding down the ESC push button/key for approx. 5 seconds, followed by acknowledgement of the language change (always to English) by pressing the ENTER push button/key.
  • Page 28 6. LOCAL CONTROLS The applied torque is shown at the right margin of the screen for IM version (2 in figure 6.4 a) and for IMC version below the actuator value display (2 in figure 6.4 b). This indication element represents two different details: 1.
  • Page 29 6. LOCAL CONTROLS The function force LOCAL is intended for simulating separately mounted local controls. In this case, the corresponding signals are given via the binary inputs. Command Description Force LOCAL The actuator is switched from the operating modes OFF, LO- CAL, REMOTE to the operating mode force LOCAL.
  • Page 30: Contrast Setting

    6. LOCAL CONTROLS DANGER Activation of emergency shut down in operation modes OFF and LOCAL. These parameters are used to select actuator emergency shut down even if the actuator is set to operation modes OFF or LOCAL. • Prior to working at the actuator, check correct parameter set- ting.
  • Page 31: Parameterisation And Diagnostics Interfaces

    The BT dongle is available as accessory. The Bluetooth interface further offers the access facility by means of a mobile application for Android operation systems. The DREHMO i-matic Explorer application is available with the Android App Store or in the Download area of the DREHMO website.
  • Page 32 6. LOCAL CONTROLS NOTICE Activation/Deactivation via parameterising possible • Access via Bluetooth or IR interface can be inhibited via pa- rameterisation NOTICE Access can be inhibited via DCS • Access via interface can be inhibited via DCS • The signal for inhibiting the interfaces can be configured as desired Figure 6.5: IR-Schnittstelle i-matic...
  • Page 33 6. LOCAL CONTROLS (a) Display Version 1 (b) Display Version 2 Figure 6.6: Bluetooth-Schnittstelle i-matic...
  • Page 34: Rechargeable Battery Pack

    7. RECHARGEABLE BATTERY PACK 7 Rechargeable battery pack Actuators of the i-matic range can be equipped with a rechargeable battery pack module (refer to figure 7.1). The rechargeable battery pack is used to supply the controls in case of power failure for a total duration up to 3 hours. This module consists of a rechargeable battery block with a storage capacity of 2 Ah at 14 8 V and the pertaining charging electronics with diagnostic facility.
  • Page 35 7. RECHARGEABLE BATTERY PACK Diagnostics of the rechargeable battery pack can be made using the diagnostics facili- ties within the menu tree of actuator controls. For devices equipped with a rechargeable battery back, the BATTERY BACKUP menu entry can be found under ACTUAL VAL- UES/DIAGNOSTICS.
  • Page 36: Commissioning

    8. COMMISSIONING 8 Commissioning WARNING Damage to electronics at temperatures below 25 C • The actuators may only be commissioned at temperatures above 25 C. For electronic commissioning, the following steps are required: • Verification of actuator power supply and adapting the pertaining parameters as re- quired.
  • Page 37 8. COMMISSIONING The actuators are equipped with automatic phase sequence detection for 3-phase AC mains from 220 to 690 V. Note: Risk of failure of automatic rotary field detection in presence of disturbed, asymmetric mains. In this instance, the rotary field direction applied must be configured as available.
  • Page 38: Valve-Specific Basic Settings

    8. COMMISSIONING 8.2 Valve-specific basic settings For actuator commissioning, select actuator mode Commissioning. To activate Commis- sioning mode, user level Maintenance is required. Please refer to the separate firmware description for the listing and explanation of the different user levels available. Then, the message appears as shown in figure 8.1 is displayed: Figure 8.1: Display indication 1 Acknowledgement via ENTER push button/key generates the screen as shown in 8.2:...
  • Page 39 8. COMMISSIONING Please refer to the separate firmware description for details on the individual parameters. During motor operation (when leaving the final positions OPEN or CLOSED), it might be required to activate the torque by-pass in the end positions, should the unseating torque in opposite direction exceed the set tripping torque.
  • Page 40 8. COMMISSIONING Setting end position OPEN If final position CLOSED is set, proceed with final position OPEN setting. Proceed in compliance with the following step sequence: 1. Navigate to and select menu item COMMISSIONING (if not already selected). 2. Navigate to the menu item CHANGE FINAL POSITIONS. 3.
  • Page 41 8. COMMISSIONING Checking the torque values DREHMO actuators type i-maticare delivered at minimum adjustable tripping torque, if not stated otherwise on the order. If adaptation is required, make sure that the actuator is switched to OFF. Then proceed as described below: 1.
  • Page 42: Parameter Setting

    8. COMMISSIONING 8.3 Parameter setting Unless indicated otherwise, all i-maticactuators are supplied with default parameter assign- ment. Please refer to separate firmware documentation for default parameter assignment. On request, the actuator can be supplied with customer-specific parameter assignment. The actuator parameter assignment is saved at the manufacturer’s as factory setting and can be requested with the service department if required.
  • Page 43: Servicing And Maintenance

    9. SERVICING AND MAINTENANCE 9 Servicing and maintenance In this section, information is given to be observed when maintaining, cleaning or disposing of DREHMO actuators. 9.1 Maintenance We recommend participation in the regular trainings for performing maintenance tasks. Basic special knowledge in electrical installation and mechanical engineering is sufficient (in Germany: industrial training - apprenticeship).
  • Page 44: Troubleshooting And Corrective Actions

    9. SERVICING AND MAINTENANCE 9.2 Troubleshooting and corrective actions After maintenance, perform functional tests in compliance with operation instructions. Commissioning of actuator/valve must be performed if tripping parameters, valve or addi- tional gearing have been changed. 9.3 Oil filling The actuator oil filling is specified for the actuator lifetime. For this reason, only oils approved by DREHMO GmbH may be used for the actuators.
  • Page 45: Disposal

    9. SERVICING AND MAINTENANCE WARNING Impermissible heating up of actuator by oil leakage • Seals must be replaced in case of leakage. • Make sure to refill the correct oil type to the correct oil level. NOTICE Residues of conductible foreign particles within the actuator •...
  • Page 46: Technical Data

    10. TECHNICAL DATA 10 Technical data This section comprises the summary of all technical data of DREHMO actuators described in these instructions. 10.1 Contact and water protection The type of enclosure protection (IPxx) is indicated on the actuator name plate. In standard version, the actuator is suitable for outdoor installation and completely protected against hazardous contact, ingress of dust, impairing ingress of water for temporary immersion in water (enclosure protection IP67 in compliance with IEC/EN 60529).
  • Page 47: Overview Technical Data

    10. TECHNICAL DATA 10.2 Overview Technical data Rated voltage Refer to indications on motor name plate in V Rated current Refer to indications on motor name plate in A Mains frequency Refer to indications on motor name plate in Hz Rated power Refer to indications on motor name plate in kW Insulation strength...
  • Page 48 10. TECHNICAL DATA Contact rating Output contacts electrical version IM: (resistive load) max. 230 V AC 0 3 A, 30 V DC 2 A Overvoltage category I Gold plated contacts: Voltage: 5 bis 30 V; current: 4 to 400 mA; U I 0 12 VA Optional output contacts (monostable and bistable): max.
  • Page 49 10. TECHNICAL DATA The following table 10.1 lists the weights, the output drive speeds and the maximum modulating torques of the actuators. Actuator type Output drive speed / Maximum modu- Average weight in operating time lating torque DiM 30 DiMR 30 DiM 59 DiMR 59 DiM 60...
  • Page 50: Types Of Duty For Different Versions

    10. TECHNICAL DATA 10.3 Types of duty for different versions The actuator duty should be adhered to, even if the operation times from open to close exceed the limit of the operating time. The type of duty depends upon the temperature range on the actuator name plates.
  • Page 51 10. TECHNICAL DATA WARNING Failure to observe specifications • Any restrictions (refer to name plate) applicable for the actu- ators must be heeded! DANGER Pulling load • The following actuators are equiped with an additional brake motor: D 250/500/1000 – Speed [rpm @ 50 Hz]: 81,121,161,201 –...
  • Page 52: External Warnings

    11. EXTERNAL WARNINGS 11 External warnings This chapter contains a list of warnings and service advices that have to be placed on the actuator and have to be visible for the lifetime of the actuator. It is not permitted to cover these warnings with paint! All given positions are relative to the viewing direction on the display.
  • Page 53: Certificates

    12. CERTIFICATES 12 Certificates The following section contains the Declarations of Conformity and Incorporation as well as additional Certificates for the actuator type range described in these operation instructions if any. NOTICE The printed Documents are up-to-date to the date of publi- cation of these instructions •...
  • Page 55 Notes i-matic...
  • Page 56 DREHMO GmbH Zum Eichstruck 10 57482 Wenden/Germany Phone: +49 2762 9850-0 Phone service: +49 2762 9850-204 Internet: www.drehmo.com E-mail: drehmo@drehmo.com...
