Net to Net Technologies TIM1500 User Manual page 8

210-0000053 rev02
IPD12000E
1.4.1.1.2 IPD12000 or IPD4000
Each interface module slot on the IPD12000 and IPD4000 has one corresponding
RJ21 port located on the back of the chassis which will connect TIM1500 T1 ports
1-12.
N Although the TIM1500-24 can function in an IPD12000 or IPD4000, you will not be able to
OTE
utilize ports 13-24; the IPD12000 and IPD4000 do not have the second row of B
connectors necessary to support additional T1 ports.
TIM1500 User Guide

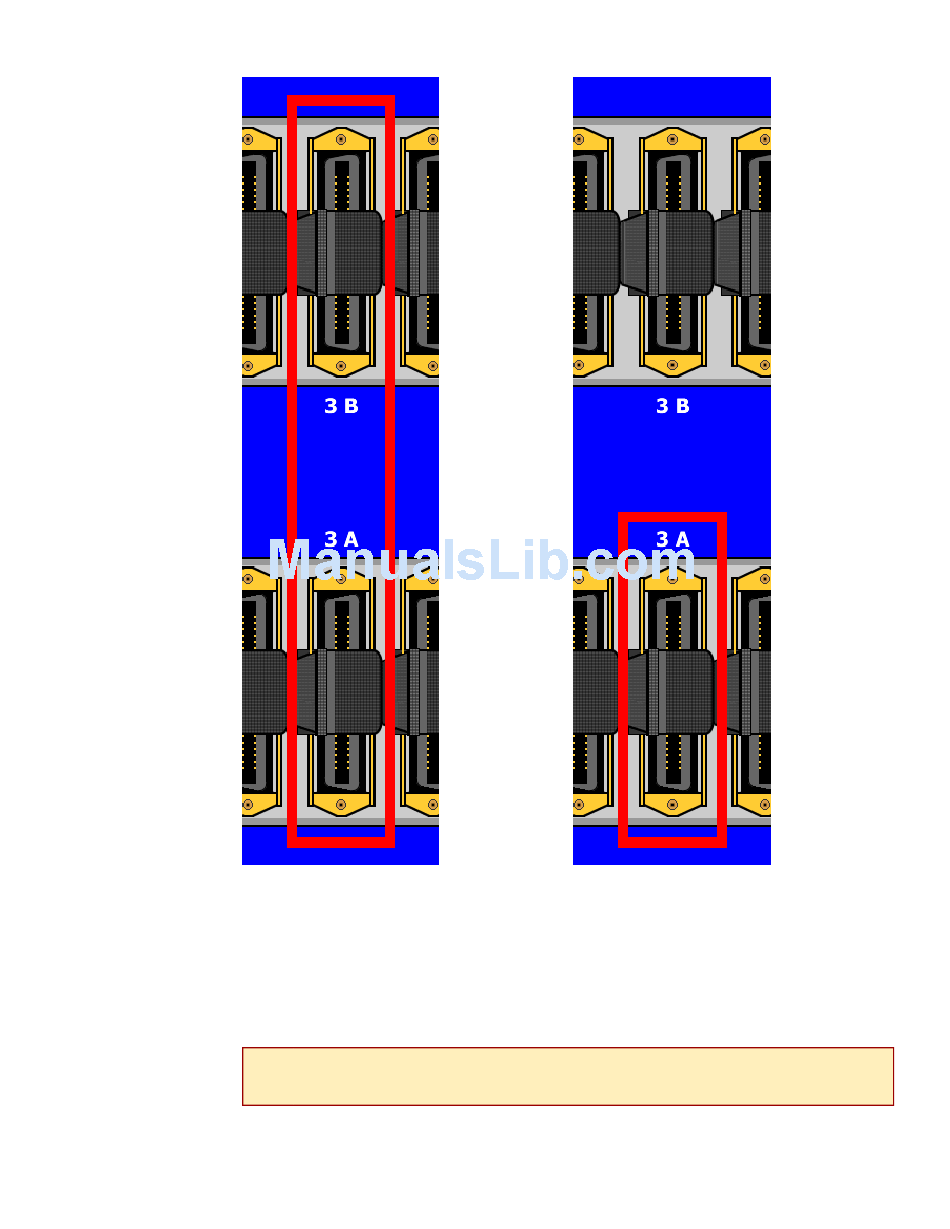

TIM1500-24
For the
TIM1500-24,
you must
connect a
T1 cable to
both the
A and B
Connectors
in order to
utilize
all 24 T1 ports.
TIM1500-12
For the
TIM1500-12,
connect a T1
cable
to the A
Connector
only; the B
Connector
has no function
for the
TIM1500-12.
IPD12000E
Page 8 of 21
