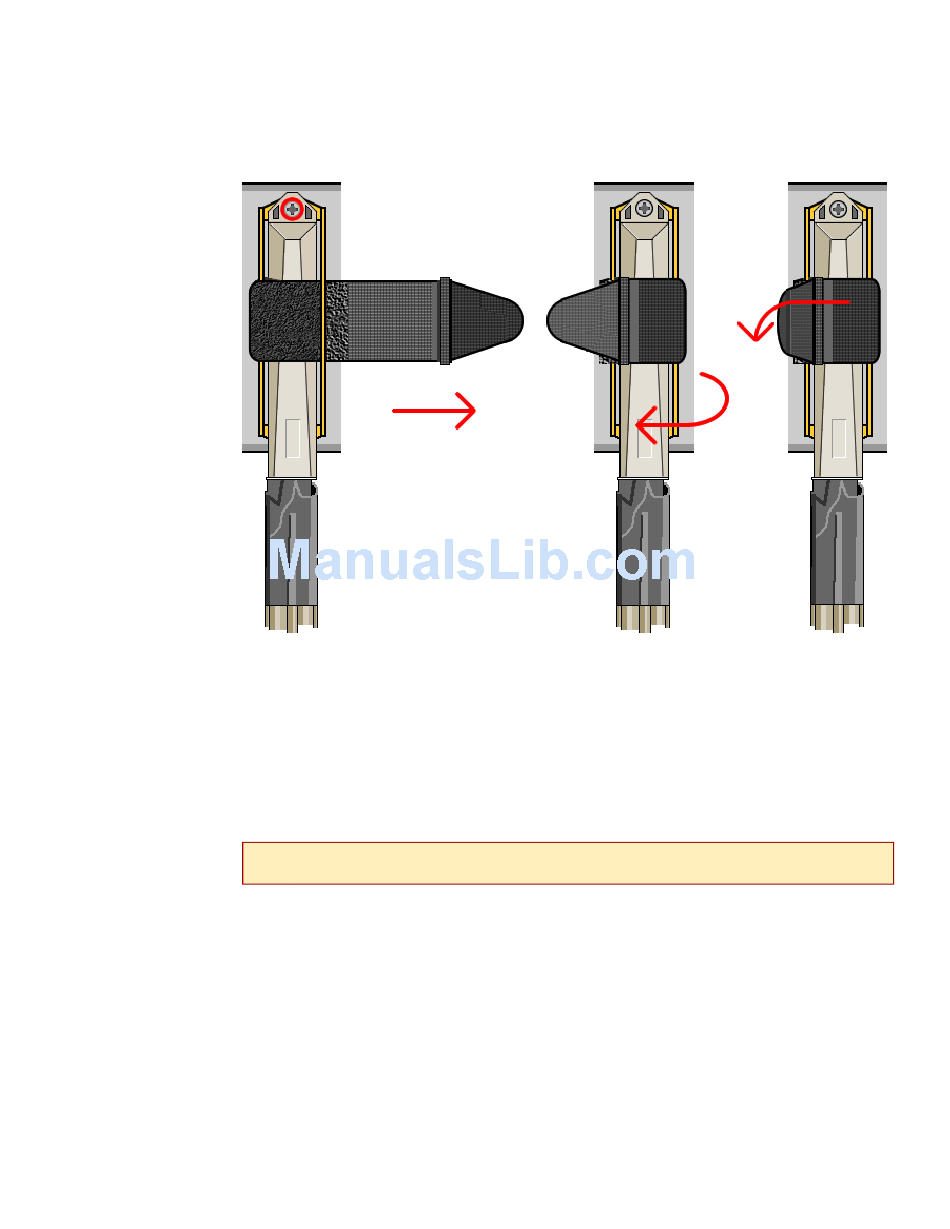

Pull the Velcro strap to the right, making sure that it is snug against the connector,
and then pull the strap back across to the left, sticking it to itself across the top of
the connector. Tuck the tab at the end of the strap down to the left of the
connector frame so it is out of the way of other connections.
1.4.1.3.2 IPD4000 and IPD4000E
Screw the right side of the T1 cable connector into the jack screw at the right side
of the RJ21 connector frame on the chassis. If you are using a 120° or 180°
cable, both the right and left sides of the cable connector should be secured to the
RJ21 connector frame on the chassis.
N The RJ21 connector cannot be screwed into the connector frame on the IPD4000. A T1
OTE
connection on the IPD4000 can only be secured via the Velcro strap.
Pull the Velcro strap downward, making sure that it is snug against the connector,
and then pull the strap up and over the RJ21 connector, sticking it to itself across
the top of the connector. Tuck the tab at the end of the Velcro strap above the
connector frame towards the chassis so it is out of the way of other connections.
