C Net to Net Technologies strongly recommends the use of proper electrostatic discharge (ESD) precautions when
AUTION
handling this equipment.

1.0 INSTALLATION

1.1 Unpack and Inspect the TIM1500

If there is visible damage, do not attempt to connect the device; contact Customer Support at 1-877-
638-2638 (1-603-427-0600 for international customers) or support@nettonet.com.

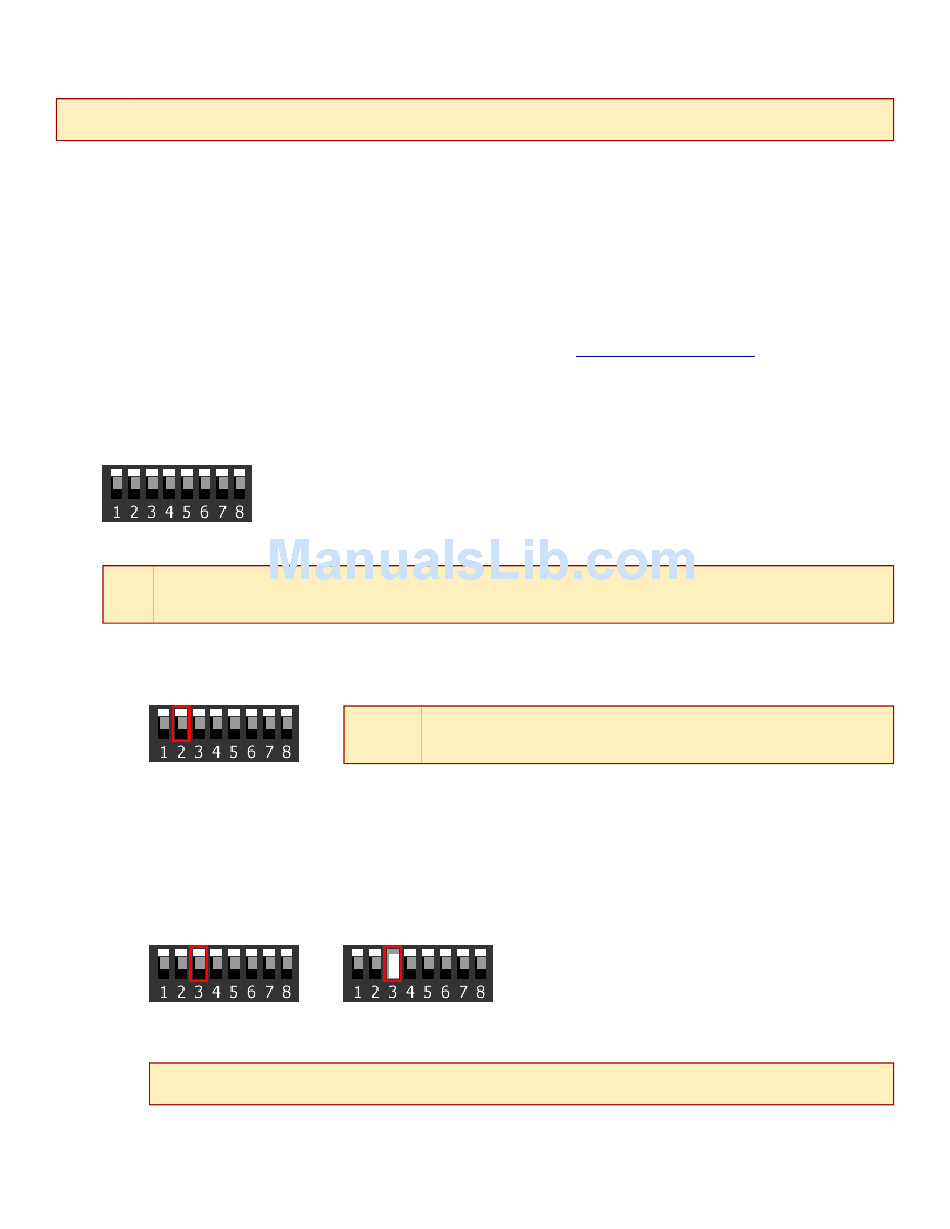

1.2 Verify TIM1500 Switch Settings

N TIM1500s with printed circuit boards (PCBs) at rev 810-0000AA have eight switch banks. Section 1.2.1 and
OTE
1.2.2 below refer to the switch bank labeled "SW 7"; all switches on the other seven switch banks should be in
the default "up" position. PCBs at any rev other than 810-0000AA have only one switch bank.

1.2.1 Switch 2

1.2.2 Switch 3
Switch 3 indicates to the IP DSLAM's MUM whether the TIM1500 will be acting as a T1
provider or a T1 subscriber. Default, in the UP position, dictates that the TIM1500 will be
acting as a provider. In most cases, this will be the desired setting. The TIM1500 can, however,
be configured to act as a T1 subscriber, if so desired, by placing Switch 3 in the DOWN
position.
Provider Mode
N You will NOT be able to set speed or timing configurations on a TIM1500 in subscriber mode. These
OTE
settings will be determined via each port's communication with its respective partner T1 provider.
210-0000053 rev02
The TIM1500 houses a bank of eight [8] switches at the rear of the
module (opposite the faceplate). Switches are numbered from left to
right, 1 - 8. All eight switches should be in the UP (default) position.
Switches 1 and 4-8 are not used.
C Switch 2 indicates, to the IP DSLAM's MUM, that the module is a T1
AUTION
inverse multiplexer and MUST be in the UP position. The TIM1500 will
NOT achieve link if Switch 2 is in the DOWN position.
Subscriber Mode
TIM1500 User Guide Page 3 of 21
