Digital Displacement® DDP096 pump and DPC12 controller
Mechanical installation

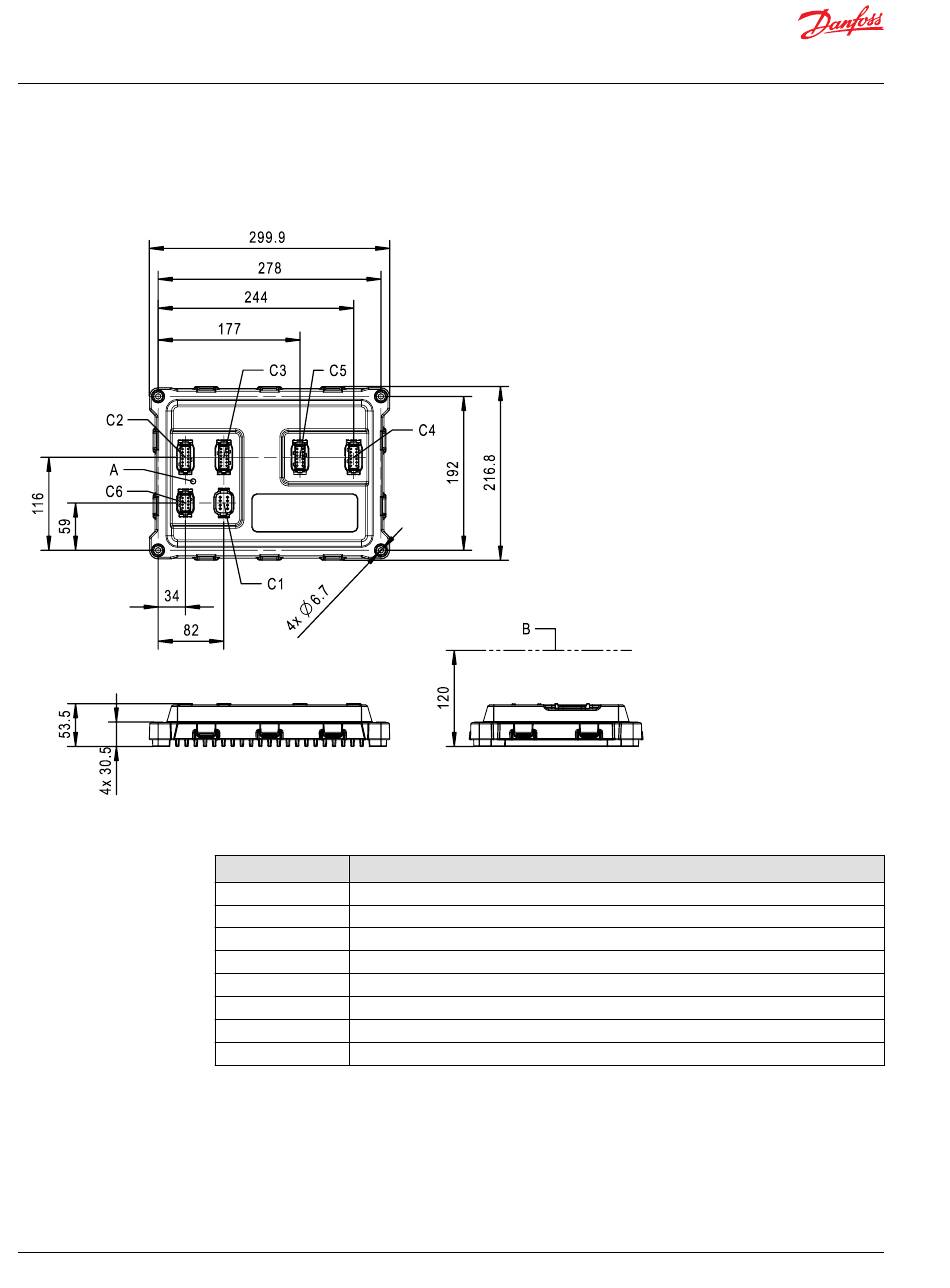

Controller dimensions
Dimensions in mm
50 |
©
Danfoss | October 2023
Label information
Label
Description
A
Controller LED - refer to section LED Messages
B
Minimum clearance to install the mating receptacles
*
C1
Power connection
*
C2
System connection
*
C3
Sensor connection
*
C4
Coil harness "A" connection
*
C5
Coil harness "B" connection
*
C6
Communication connection
*
Receptacles for the controller wiring harness. For more information, see
Connectors
on page 55.
