Operating manual

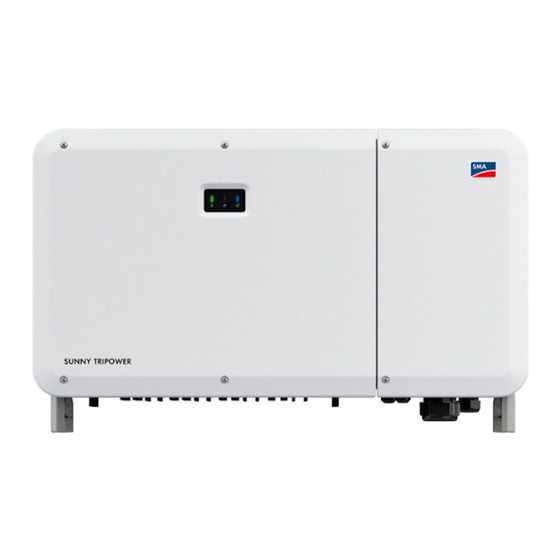

SUNNY TRIPOWER CORE2
STP 110-60
ENGLISH
STP110-60-BE-en-16 | Version 1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNNY TRIPOWER CORE2 and is the answer not in the manual?

Questions and answers

Suropati
January 21, 2025

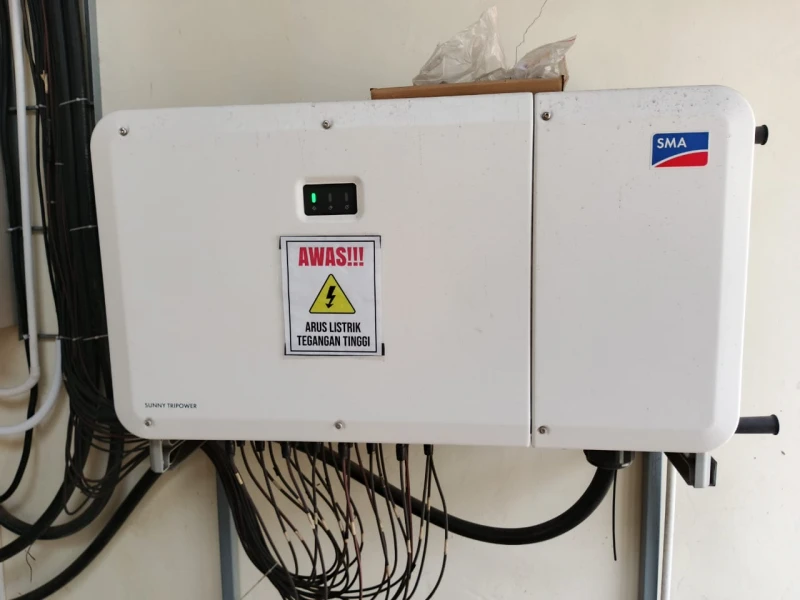

Did the STP 110-60 has islanding sistem
