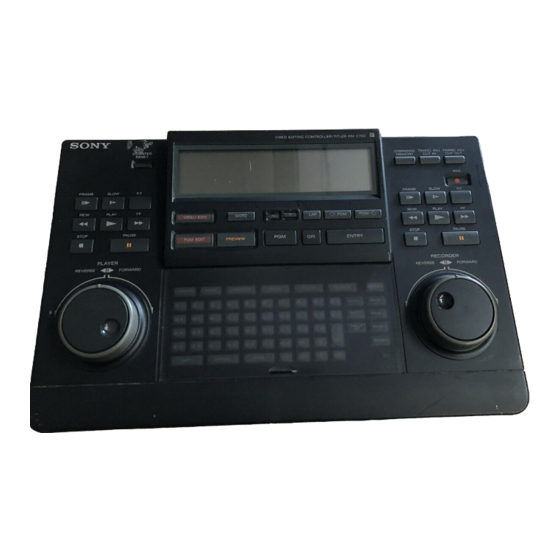

Sony RM-E700 Service Manual

RM-E700
AEP Model
UK Model
SPECIFICATIONS
Video input Phono jack (1)
1 Vp-p, 75 ohms, unbalanced, sync negative
S video input 4-pin mini-DIN (1)
Luminance signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance signal: 0.300 Vp-p
75 ohms, unbalanced
Phono jack (1)
1 Vp-p, 75 ohms, unbalanced, sync negative
Video output
4-pin mini-DIN (1)
Luminance signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance signal: 0.300 Vp-p
75 ohms, unbalanced
S video output
Audio input Phono jacks (2)
Audio output Phono jacks (2)
LANC @ connector for the player
Stereo mini-minijack (1)
LANC @ connector for the recorder
Stereo mini-minijack (1)
CONTROL S connector for the recorder
Minijack (1)
GPI output Minijack (1)
General
Power requirement 6 V DC IN
Power consumption 5 W
Dimensions Approx. 355 x 80 x 230 mm (w/h/d)
(14 x 3/4 x 9'/s inches)
Weight Approx. 1.5 kg (3 Ib 5 0z)
Design and specifications are subject to change without notice.
Note
This appliance conforms with EEC Directive 87/308/EEC regarding
interference suppression.
