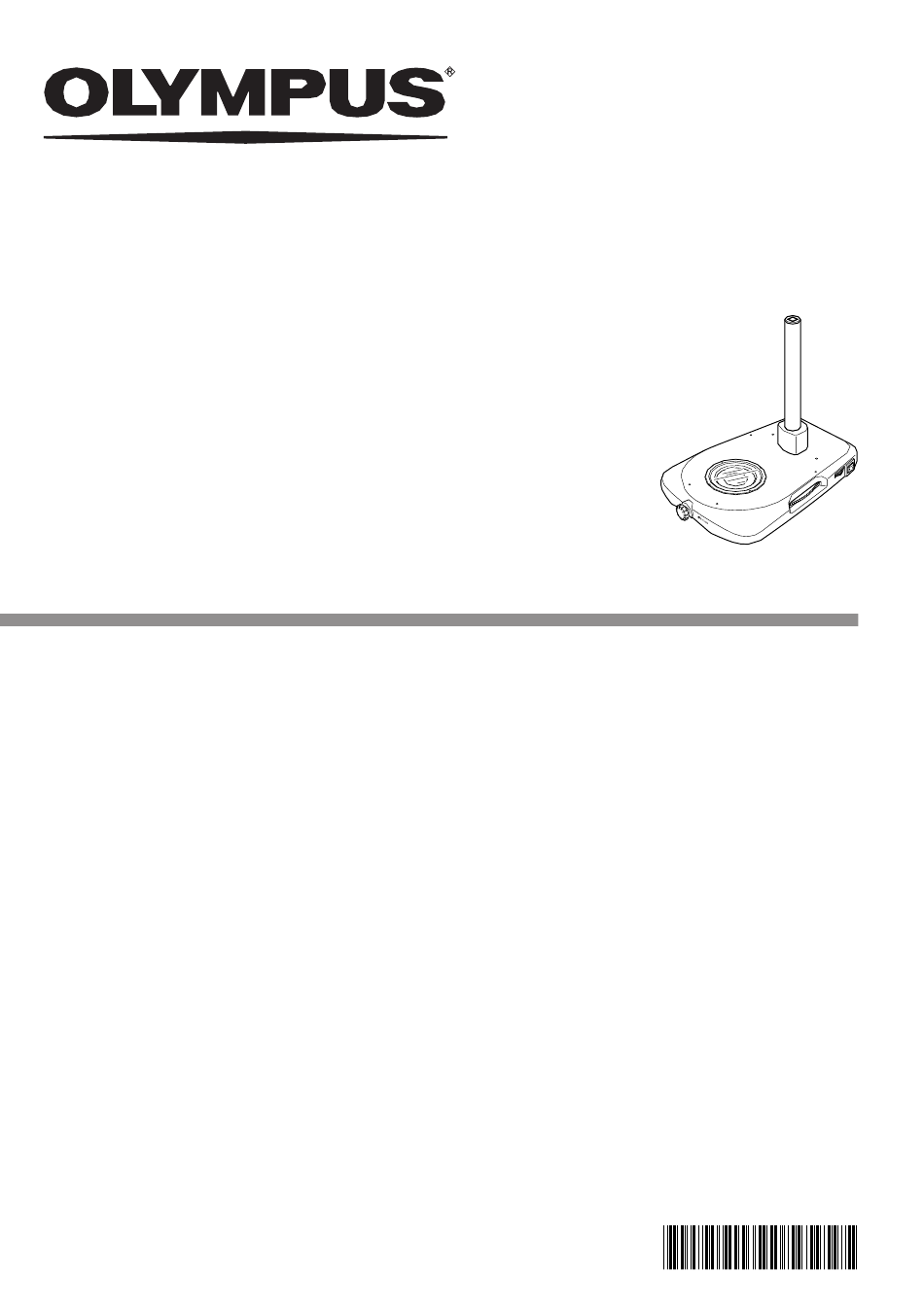

INSTRUCTIONS
SZX2-ILLT
LED TRANSMITTED LIGHT
ILLUMINATOR STAND
This instruction manual is for the Olympus SZX2-ILLT Transmitted Light Illuminator Stand. To ensure
the safety, obtain optimum performance and to familiarize yourself full with the use of this equipment,
we recommend that you study this manual thoroughly before operating the microscope.
Retain this instruction manual in an easily accessible place near the work desk for future reference.
A X 7 5 0 3
Advertisement
Table of Contents
Related Manuals for Olympus SZX2-ILLT
Summary of Contents for Olympus SZX2-ILLT
- Page 1 LED TRANSMITTED LIGHT ILLUMINATOR STAND This instruction manual is for the Olympus SZX2-ILLT Transmitted Light Illuminator Stand. To ensure the safety, obtain optimum performance and to familiarize yourself full with the use of this equipment, we recommend that you study this manual thoroughly before operating the microscope.
- Page 2 For Korea only B급 기기 (가정용 방송통신기자재) 이 기기는 가정용(B급) 전자파적합기기로서 주로 가정에서 사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다.
-
Page 3: Table Of Contents
Refer to your local Olympus distributor in the EU for return and/or collection systems available in your country. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. - Page 4 30°. 4. Always use the AC adapter and power cord provided by Olympus. If no power cord is provided, please select the power cord by referring to the section “PROPER SELECTION OF THE POWER SUPPLY CORD”...
- Page 5 If water penetrates inside the equipment, contact Olympus to have the electrical safety checked. 4. Do not disassemble any part of the equipment as this could result in malfunction or reduced performance.
- Page 6 Caution If the equipment is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition, the equipment may also be damaged. Always use the equipment as outlined in this instruction manual. The following symbols are used to set off text in this instruction manual.
- Page 7 SZX2-ILLT NOMENCLATURE }If you have not yet assembled the illuminator stand, see Chapter 4, “ASSEMBLY” (pages 9 to 10) first. Pillar Reserve screw holes For M6 mm screws, depth 10 mm (x 2) Reserve screw holes For M4 mm screws, depth 6 mm (x 4)
-
Page 8: Operation
OPERATION Setting the Main Switch and (Fig. 2) Adjusting the Light Intensity 1. Press the “ ” (ON) segment of the main switch @ to turn on the LED illuminator. 2. Rotate the light intensity control dial ² in the direction of the arrow to increase the brightness. -
Page 9: Applicable Objectives For Available Illumination Methods
SZX2-ILLT Applicable Objectives for Available Illumination Methods Illumination System ((:Zoom observation possible in all magnifications. Microscope Objective ))X:Zoom observation possible at ))X or more) Body Idle BF (Brightfield) Oblique DF (Darkfield) SDFPLFL0.3X 1.25X 1.25X SDFPLAPO0.5XPF 0.8X 0.8X 1.25X 1.25X SDFPLAPO0.8X 0.8X... -
Page 10: Changing The Illumination Cassette Positions
Changing the Illumination ² (Figs. 4 & 5) Cassette Positions 1. Insert the driver ² into the groove @ on the frame of the stage glass and turn the frame counterclockwise to remove it. 2. Lift the “BF” and “DF” illumination cassettes by lifting them. Leave the “Oblique”... -
Page 11: Specifications
SZX2-ILLT SPECIFICATIONS Item Specifications Applicable microscopes SZX2 series: SZX16, SZX10. Applicable focusing assemblies SZX2 series: SZX2-FOFH, SZX2-FOF, SZX2-FO. # When using a SZX series, always use the SZX-R drop prevention ring to prevent the objective from hitting the specimen (stage glass). -
Page 12: Assembly
Make sure that the main switch @ is set to “\” (OFF) before connecting the AC adapter and power cord. Always use the AC adapter and power cord provided by Olympus. If ² no power cord is provided, please select the power cord by referring to the section “PROPER SELECTION OF THE POWER SUPPLY CORD”... - Page 13 SZX2-ILLT Attaching the Antiglare Plate (Figs. 10 & 11) }The antiglare plate attaching methods are variable between model SZX2- CCV (for use with the SZX2 series) and SZX-CCV (for use with the SZX series). SZX2-CCV ² 1. Loosen the antiglare plate clamping knob @ and insert the pin ³ on the ³...
-
Page 14: Proper Selection Of The Power Supply Cord
If no power supply cord is provided, please select the proper power supply cord for the equipment by referring to “ Specifications ” and “ Certified Cord ” below: CAUTION: In case you use a non-approved power supply cord for Olympus products, Olympus can no longer warrant the electrical safety of the equipment. - Page 15 SZX2-ILLT Table 2 HAR Flexible Cord APPROVAL ORGANIZATIONS AND CORDAGE HARMONIZATION MARKING METHODS Alternative Marking Utilizing Printed or Embossed Harmoniza- Black-Red-Yellow Thread (Length tion Marking (May be located on Approval Organization of color section in mm) jacket or insulation of internal wir-...
- Page 16 Manufactured by Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan Distributed by 48 Woerd Avenue Waltham, MA 02453, U.S.A. 8F Olympus Tower, 446 Bongeunsa-ro, Gangnam-gu, Seoul, Korea 135-509 AX7503 09...
