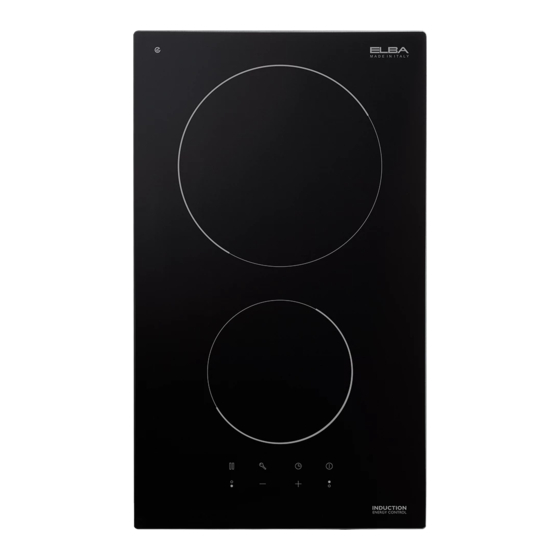

Touch control induction cooking hobs

Advertisement

Quick Links

Installation advices - Instructions for the use
TOUCH CONTROL INDUCTION
COOKING HOBS
100
%
ELBA QUALITY
MADE IN ITALY
Made in Italy

Advertisement

Table of Contents
loading

Summary of Contents for Elba Elio EIN 32

  • Page 1 Installation advices - Instructions for the use TOUCH CONTROL INDUCTION COOKING HOBS ELBA QUALITY MADE IN ITALY Made in Italy...
  • Page 2: Declaration Of Ce Conformity

    Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.
  • Page 3: Important Safety Precautions And Recommendations

    IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e.
  • Page 4 • Do not operate your appliance by means of an external timer or separate remote-control system. • Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply. • Do not use a steam cleaner because the moisture can get into the appliance therefore making it unsafe.
  • Page 5 • WARNING: During use the appliance and its accessible parts become hot; they remain hot for some time after use. Care should be taken to avoid touching heating elements on – the hob. To avoid burns and scalds, young children should be kept –...
  • Page 6 • If the appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
  • Page 7 The heating of magnetic tins is forbidden! Closed tins may — explode by exceeding pressure while heating. There is a burning risk with open tins as well, because the integrated temperature protection will not work correctly. ENERGY LABELLING/ECODESIGN • Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the European Parliament and of the Council).
  • Page 8: Installation

    Advice for the installer INSTALLATION IMPORTANT: • The appliance is designed and approved for domestic use only and should not be installed in a commercial, semi commercial or communal environment. Your product will not be guaranteed if installed in any of the above environments and could affect any third party or public liability insurances you may have.
  • Page 9: Standard Installation

    STANDARD INSTALLATION Fig. 1.1a FLUSH INSTALLATION (MODELS WITHOUT METAL TRIM/S ONLY) If you wish to install the hob flush with the work surface, it is neccessary to execute/carry out a miling in the hole of the cut-out as indicated in fig.1.1b Fig.
  • Page 10 FITTING REQUIREMENTS This cooktop can be built into a working surface 30 to 50 mm thick and 600 mm deep. In order to install the ceramic hob into the kitchen fixture, a hole with the dimensions shown in figures 1.1a and 1.1b has to be made, keeping in consideration the following: •...
  • Page 11: Fastening The Cooktop

    FASTENING THE COOKTOP Each cooktop is provided with an installation kit including brackets and screws for fastening the cooktop to benches from 30 to 50 mm thick. The kit includes four metal clips “A” and four self-threading screws “B” (fig. 1.4a, 1.4b). •...
  • Page 12: Electrical Section

    ELECTRICAL SECTION – connect the green/yellow wire to the IMPORTANT: Installation must terminal marked with the letter E or be carried out according to the the earth symbol or coloured manufacturer’s instructions. green/yellow; Incorrect installation may cause harm and damage to people, animals or –...
  • Page 13 CONNECTION/REPLACING THE POWER SUPPLY CABLE Important! This cooktop must be connected to the electricity supply only by an authorised person. To connect the feeder cable to the hob it is necessary to carry out the following operations: • Turn the cooktop over and unhook the terminal board cover by inserting a screwdriver into the two hooks “A”...
  • Page 15 Advice for the users...
  • Page 16: Features And Technical Data

    FEATURES AND TECHNICAL DATA Fig. 1.1 Note: These figures are indicative only. The symbols may vary. Attention: Detach the appliance from the mains if the ceramic glass is cracked and contact the After- Sales Service. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
  • Page 17 Electrical insulation Class I COOKING POINTS Induction cooking zone Ø 145 mm - 1200 W (Booster Power: 1600 W) Induction cooking zone Ø 210 mm - 1500 W (Booster Power: 2000 W) TOUCH-CONTROL DESCRIPTION Front cooking zone key Rear cooking zone key Front cooking zone display Rear cooking zone display Decreasing key of values on operative display (power or timer)
  • Page 18: Use Of Induction Hob

    USE OF INDUCTION HOB The ceramic hob is fitted with induction cooking zones. These zones, shown by graphic elements painted on the ceramic surface, are controlled by a touch control system. INDUCTION COOKING SYSTEM When your induction hob is switched On and a cooking zone has been selected, the electronic circuits produce induced currents that instantaneously heat the bottom of the pan which then transfers this heat to the food.
  • Page 19 HOW TO SWITCH ON/OFF THE COOKTOP Switching ON Touch the key and keep it pressed until the touch control system is lit. (fig. 2.1). The displays of the cooking zones read “ ”. Notes: • If the safety Child Lock protection is active, the cooktop can be used only after having deactivated this protection (see chapter CHILD LOCK SAFETY).
  • Page 20 AFTERHEAT IN COOKING ZONE/S When switching off a cooking zone (power level “ ”), if the temperature of the zone is too warm to be touched the display will show alternately “ ” and “ ” . Whenever the touch control is switched off, the residual heat is shown by a static “...
  • Page 21 BOOSTER FUNCTION (“FAST HEATING”) This function allows the cooking zone to operate at the “Booster” maximum power (above the nominal power) for maximum 10 minutes; it could be used, for example, to rapidly heat up large amount of water. To activate the “Booster” function: The touch control must be switched ON (see section “How to Turn the Touch Control ON and OFF”).
  • Page 22: Pause Mode

    KEY LOCK SAFETY - CHILD LOCK SAFETY This function locks the “touch-control” keys against unwanted activation. To activate the key-lock press the key the indicator light above the key symbol will light up for a few seconds. Then, if pressing any function key, the light above the key- lock symbol will light up again for a few seconds to indicate that the safety key-lock...
  • Page 23 PROGRAM AUTOMATIC SWITCHING OFF OF ONE COOKING ZONE This function permits to set a timer from “ ” to “ ” minutes for automatic turning Off of the cooking zone/s. • Select the cooking zone and set the desired power level. •...
  • Page 24: Operation Time Limit

    OPERATION TIME LIMIT POWER LEVEL OF OPERATION COOKING ZONES COOKING ZONES TIME LIMIT Each cooking zone automatically 10 hours switched OFF after a maximum preset time if no operation is performed. The maximum preset time limit depends 10 hours on the set power level, as illustrated in this schedule.
  • Page 25 MAXIMUM POWER MANAGEMENT There are two options to reduce the maximum power limit of the appliance: Option 1 “High range”(high maximum power) The cooktop maximum power limit (3600 W) can be reduced to 2800 W or 3500 W. To change the maximum power limit (only within 30 seconds from the electrical connection): •...
  • Page 26 Option 2 “Low range” (low maximum power) Attention: when using one or more zones, the cooking times may become longer due to the operation of the maximum power management (see paragraph “POWER MANAGEMENT WHEN USING THE COOKTOP”). The cooktop maximum power limit (3600 W) can be reduced to 1000 W, 1600 W, 2200 W or 2800 W.
  • Page 27 POWER MANAGEMENT WHEN USING THE COOKTOP When using one or more cooking zones if the total power set on the zones is greater than the maximum power limit, an acoustic signal (beep) sounds and the last set zone shows “ ”...
  • Page 28: Thermal Protections

    THERMAL PROTECTIONS The induction hob is fitted with safety devices to protect the electronic system and to protect each cooking zone from overheating. • When the touch control reaches an ambient temperature above a preset temperature the heating elements are automatically switched off (the displays show “...
  • Page 29 ERROR CODE ON THE DISPLAY/S error message appears display/s (the display/s show/s “ ” and another character alternating - e.g. “ ” and “ ”, “ ” and “ ”, ..) : Disconnect the cooktop from the mains. Reconnect the cooktop and turn it on..
  • Page 30: Cleaning And Maintenance

    CLEANING AND MAINTENANCE GENERAL ADVICE • Before you begin cleaning, you must ensure that the appliance is switched off and disconnected from the electrical power supply. • It is advisable to clean when the appliance is cold. • Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces. •...
  • Page 32 The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacturer commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances. www.elba-cookers.com Made in Italy Cod. 1106406/GB - ß0...
