For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

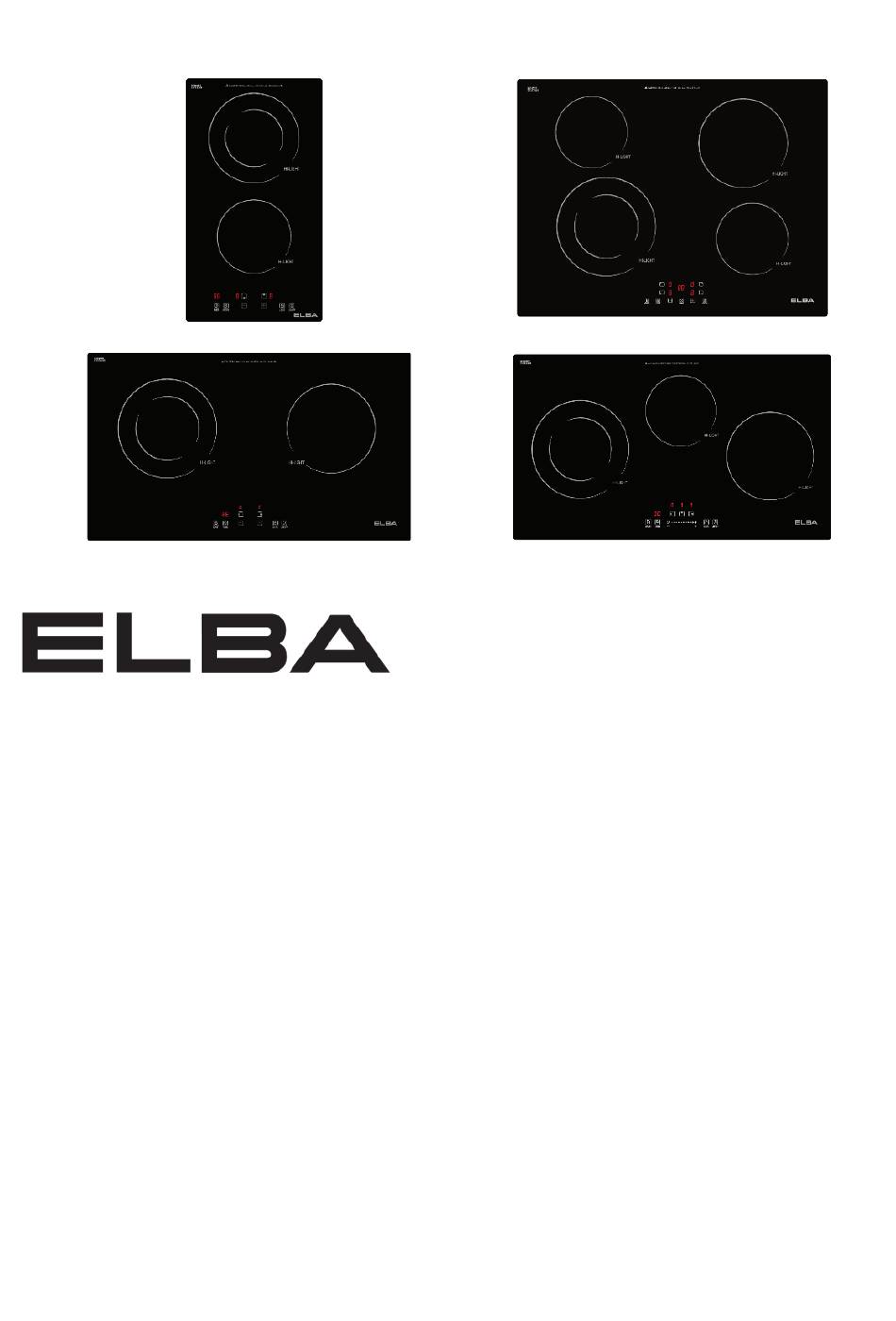

BUILT IN CERAMIC HOB
MODEL: EDCH-K3012ST(BK)
ECH-K6014ST(BK)
ECH-K7012ST(BK)
ECH-K7013ST(BK)
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDCH-K3012ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elba EDCH-K3012ST

Summary of Contents for Elba EDCH-K3012ST

  • Page 1 BUILT IN CERAMIC HOB MODEL: EDCH-K3012ST(BK) ECH-K6014ST(BK) ECH-K7012ST(BK) ECH-K7013ST(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    We recommend that you read the instructions in this owner’s manual carefully before using it for the best performance and to extend the lifespan of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance.
  • Page 3  Never use metal scouring pads or sharp scrapers which will damage the glass surface leading to broken or scratches.  In order to avoid burn or electric shock, never put too much food or metal utensils on the cooktop. ...

  • Page 4: Selection Of Installation Equipment

    Air exit 10 mm Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) EDCH-K3012ST(BK) Min 50 ECH-K6014ST(BK) Min 50 ECH-K7012ST(BK) Min 50 ECH-K7013ST(BK) Min 50 Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked.

  • Page 5: Before Locating The Fixing Brackets

    Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation. Adjust the bracket position to suit for different work surface’s thickness. EDCH-K3012ST(BK) ECH-K6014ST(BK) ECH-K7012ST(BK) / ECH-K7013ST(BK)

  • Page 6: Connecting The Hob To The Mains Power Supply

    Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. ECH-K6014ST(BK) 1. If the cable is damaged or needs replacing, this should be done by an authorized technician using the proper tools, so as to avoid any accidents.

  • Page 7: Product Overview

    Product Overview Top View 1. Min/Max. 1000/2000W zone 2. Max. 1200W zone 3. Control panel EDCH-K3012ST(BK) 1. Max. 1200W zone 2. Max. 1800W zone 3. Min/Max. 1000/2200W zone 4. Max. 1200W zone 5. Control panel ECH-K6014ST(BK)
  • Page 8 1. Min/Max. 1000/2200W zone 2. Max. 1800W zone 3. Control panel ECH-K7012ST(BK) 1. Min/Max. 1100/2200W zone 2. Max 1200W zone 3. Max. 1800W zone 4. Control panel ECH-K7013ST(BK)

  • Page 9: Control Panel

    Control Panel EDCH-K3012ST(BK) 1. ON/OFF 2. Power Control 3. Boost Control ECH-K7012ST(BK) 4. Child Lock 5. Heating Zone 6. Timer Control ECH-K7013ST(BK) ECH-K6014ST(BK)

  • Page 10: Using The Touch Controls

    Using the Touch Controls • The controls respond to sensor touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep corresponding to the sensor touch function. •...

  • Page 11: Using Your Ceramic Hob

    Using your Ceramic Hob To start cooking After power on, the buzzer beeps once. All the indicators light up for 1 second then go out. Indicating the ceramic hob has entered the state of standby mode. Touch the ON/OFF control. All the indicators show “-”. Place a suitable pan on the cooking zone that you wish to use.

  • Page 12: When You Have Finished Cooking

    When you have finished cooking 1. Touching the heating zone selection control that you wish to switch off. 2. Turn the cooking zone off by touching “-” button until display show “0” (For Sliding Touch model) / by sliding to left to area “0” until display show “0” (For Sensor Touch model). 3.

  • Page 13: Using The Boost Function

    Boost function The boost function consists of 2 circuits- the center zone and the outer zone. It can be used in the following modes:  Center Zone – only first heating unit is turned on  Extended Zone(Center + Outer) – Both first and second heating circuits are turned on NOTE: The Boost function for ceramic zone will not turn off automatically after certain of period.

  • Page 14: Locking The Controls

    Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls button .

  • Page 15: Using The Timer As A Minute Minder

    Using the Timer You can use the timer in two different ways: • Use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • Use it to turn off after the set time is up. You can set the timer for up to 99 minutes. Using the Timer as a Minute Minder If you are not selecting any cooking zone Make sure the cooktop is turned on and the zone selection key is not activated...
  • Page 16 Touching the timer control again, the first digit will flash and ready to set the timer. Set the timer setting by touching “+” button (For Sensor Touch Model) / sliding the controls to right (For Sliding Touch model). Now the timer will appear from 05 minutes become 95 minutes.
  • Page 17 Set the timer setting by touching “+” button (For Sensor Touch Model) / sliding the controls to right (For Sliding Touch model). Now the timer will appear from 00 minutes become 05 minutes Touching the timer control again, the first digit will flash and ready to set the timer. Set the timer setting by touching “+”...

  • Page 18: Cancel The Timer

    If the timer is set on more than one zone When you set the timer for several cooking zones, the red dot of the related cooking zone will be indicated. The timer display will show the “minutes” countdown for the shortest timer and show the longer timer once the first one finished.
  • Page 19 Power Management (EIC-K7012ST(BK) & EIC-K7013ST(BK)) Power sharing function limits the maximum power used. The maximum available power (preset) is shared between the cooking zones. If all zones are turned on, the power management will not allow all zones to operate at full power but will alternate the power among all zones so the total power will be equal to the preset maximum power.

  • Page 20: Cooking Guidelines

    Cooking Guidelines Take care when frying as the oil and fat heat up very quickly, particularly at high power levels. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to boil, reduce the temperature setting.
  • Page 21 For stir-frying Choose a compatible flat-based wok or a large frying pan. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. Preheat the pan briefly and add two tablespoons of cooking oil. Cook any meat firstly, put it aside and keeps it warm.

  • Page 22: Heat Settings

    Heat Settings The settings below are reference guidelines only. The exact setting will vary depending on several factors, including your cookware and the amount of food you are cooking. Experiment with the hob to find the best settings that suit you. Heat Setting Purpose •...

  • Page 23: Cleaning And Maintenance

    Cleaning and Maintenance What? How? Important!  When the power is switched off, there Everyday soiling on 1. Switch off the power. will be no ‘hot surface’ indication but glass (fingerprints, 2. Apply a cooktop cleaner while the marks, stains left by glass is still warm.
  • Page 24 Troubleshooting Guides Problem Possible causes What to do The cooktop cannot be No power. Make sure the cooktop is connected to the turned on. power supply and it is switched on. Check whether there is a power outage in your area.

  • Page 25: Technical Specification

    Technical Specification Model EDCH-K3012ST(BK) Cooking Zones 2 Zones Supply Voltage 220-240V~ 50/60Hz Total Power 3200W Product Size (W X D X H) 290 x 520 x 50 mm Built-in Dimension (W X D) 270 X 490 mm Model ECH-K6014ST(BK) Cooking Zones...
