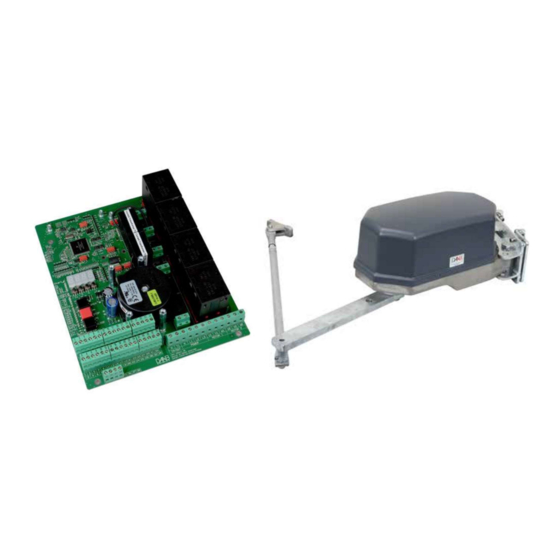

FAAC DAAB EP104 Installation Manual
  1. Manuals
  2. Brands
  3. FAAC Manuals
  4. Controller
  5. DAAB EP104
  6. Installation manual
FAAC DAAB EP104 Installation Manual

FAAC DAAB EP104 Installation Manual

Channel list automatic control unit
Hide thumbs Also See for DAAB EP104:

Advertisement

Quick Links

Download this manual
CHANNEL LIST
DAAB AUTOMATIC CONTROL UNIT EP104
The installer's guide to EP104
For complete instructions refer to the instruction manual of EP104
and other documentation that accompanies delivery
FAAC Nordic AB
BOX 125, SE-284 22 PERSTORP SWEDEN,
+46 435 77 95 00,
support@faac.se
www.faac.se

Advertisement

loading

Related Manuals for FAAC DAAB EP104

Summary of Contents for FAAC DAAB EP104

  • Page 1 DAAB AUTOMATIC CONTROL UNIT EP104 The installer's guide to EP104 For complete instructions refer to the instruction manual of EP104 and other documentation that accompanies delivery FAAC Nordic AB   BOX 125, SE-284 22 PERSTORP SWEDEN, +46 435 77 95 00, support@faac.se...
  • Page 2 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Connections • Safety The electrical connections may only be made by a qualified electrician, who accepts responsibility for ensuring that the electric connections have been carried out in accordance with the applicable standards and this instruction manual. Always disconnect the power supply when connecting the control box.
  • Page 3 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 For information about connecting to the frequency converter, see the instructions for add-in card DB409. If a symmetrical single-phase motor is used (as Supply 1x230V with neutral shown on the left) make the following changes. (symmetrical) EP104-1: Swap the cable at X12: L1-1 with X12: L1-CUR1.
  • Page 4 1 is connected, and SE.C2 and SE.O2 to the half to which motor 2 is connected. The resistor can be between 1.0-8.2 kΩ with a 1% tolerance and a power capability of at least ½ W. FAAC Nordic AB recommends an impedance of 8.2 kΩ.
  • Page 5 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 • Connecting an encoder (electronic limit switch) EP104 supports DB405 type encoders. The encoder uses the same terminals as a conventional mechanical limit switch. The two diagrams below illustrate how to connect the encoder, and they also show which is the left and right motor from the point of view of the automatic control unit.
  • Page 6 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 • Signal reference Safety edge 1, closing movement (SE.C1) Safety edge 2, closing movement (SE.C2) Safety edge 1, opening movement (SE.O1) Safety edge 2, opening movement (SE.O2) 24VDC Stop input 1 Stop input 2 Stop input 3 Power supply encoder or limit switch common, motor 1...
  • Page 7 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Channel list version 1 for Software version 4.07...

  • Page 8: Channel Reference

    CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Channel reference There are seven channel categories, each with its own letter and each handling different functions in the card. • C-channels: General readout and configuration channels. • d-channels: Channels relating to the DB402 vehicle detector. •...
  • Page 9 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 General configuration channels Name Range Factory Setting C033 Pulse/hold-to-run 0 - 5 Open and close with hold-to-run and load guard inactive Open with pulse and close with hold-to-run and load guard active Open with hold-to-run and close with pulse and load guard active Open and close with pulse and load guard active Open and close with hold-to-run and load guard active Service mode, only internal open/close buttons with hold-to-run.
  • Page 10 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Safety edge Name Range Factory Setting C101 Safety edge acknowledgement SE.C1 0 – 1 Disabled Enabled C102 Function of output for external protection 0 – 4 Check disabled, open output, setting of C113, C123, C133, C143, C343, P643 is disabled. Closed to GND on activation, normally open.
  • Page 11 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting C121 Selects function for safety edge SE.C2 SE.C2 disabled Limits according to set value in C125 Fixed limits between 5 kohm and 15 kohm C122 Reverse/stop with activated safety edge SE.C2 1 –...
  • Page 12 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Load guard and motor settings Name Range Factory Setting C200 Load guard function 0 – 4 Disabled Service and troubleshooting only Reverse when closing, stop when opening Stop when closing and reverse when opening Reverse when closing and opening Stop when closing and opening C202 Type of power supply...
  • Page 13 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Photocell Name Range Factory Setting C340 Safety function in closing movement 0 – 3 Disabled Reverse to fully open Stop with automatic restart of automatic closing Stop, wait for new control signal or time in C520 and thereafter automatic closing. C341 Safety during run-on time or disengagement angle in 0 - 1...
  • Page 14 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 General time channels. Name Range Factory Setting C401** Running time readout, motor 1 000-999 seconds C402** Running time readout, motor 2 000-999 seconds C403** Setting limited running time (Not used with encoder) 001-999 seconds C412** Set limited opening, motor 1 with limit switch 00.3-99.9 seconds 05.0...
  • Page 15 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Automatic closing Name Range Factory Setting C500 Automatic closing time 0.00-9.59 minutes 0.00 C501 Short automatic closing time 0.0-9.9 seconds C510 Time for LOOP1, LOOP2 and PHOTO closing 00-99 seconds during passage C520 Blocking time for automatic closing after the stop 0.00 and 0.20-9.59 0.00...
  • Page 16 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Interlock block Name Range Factory Setting C664 Block of local door 0 – 3 No block Block of open on local door until remote door is closed Block of open on local door until remote door is open Blocking of close on local door until remote door is closed C665 In block of local door...
  • Page 17 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Channel list version 1 for Software version 4.07...
  • Page 18 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 • DB402, Vehicle detector, d-channels Vehicle loop 1 Name Range Factory Setting d100 Loop 1 used 0 – 1 Input disabled Input enabled d101 Loop reading x1 000-999 d102 Loop reading x1000 00-99 d103 Activation by passing vehicle 000-999...
  • Page 19 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting d161 Type of control signal when activated 1 - 2 Pulse Constant signal when loop is activated d162 Half operation 1 - 3 Motor 1 Motor 2 Motors 1 and 2 d163 Limited opening 0 - 1...
  • Page 20 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Vehicle loop 2 Name Range Factory Setting d200 Loop 2 used 0 - 1 Input disabled Input enabled d201 Loop reading x1 000-999 d202 Loop reading x1000 00-99 d203 Activation by passing vehicle 000-999 d210 Detection limit for a vehicle in the loop...
  • Page 21 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting d261 Type of control signal when activated 1 - 2 Pulse Signal when loop is activated d262 Half operation 1 - 3 Motor 1 Motor 2 Motors 1 and 2 d263 Limited opening 0 - 1...
  • Page 22 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 • DB409, Frequency Converter Board, F-channels Name Range Factory Setting F001 Communication with frequency converter 0 - 1 Communication disabled Communication activated F002 Acceleration time from closed position 0.5-9.9 seconds 1.0 sec motor 1 and 2 (from 0-100Hz) F003 Acceleration time in all movements except at closed 0.5-9.9 seconds...
  • Page 23 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting F030* Choice of ratio for motor 1 0 - 7 Not selected, in this position the motor only rotates at 25Hz MK with pulleys 40/71 (ratio 1318:1) MK with pulleys 50/71 (ratio 1098:1) MK with pulleys 71/71 (ratio 791:1) MK with pulleys 100/71 (ratio 565:1) MK with pulleys 125/71 (ratio 456:1)
  • Page 24 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 • Limit switch, L-channels Name Range Factory Setting L001 Choice of limit switch type for motor 1 Disabled Encoder Limit switch Time Hold-to-run without limit switches. NOTE! Only one half at a time can be run. C033 must be set to 5. L002 Choice of limit switch type for motor 2 Disabled...
  • Page 25 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting L120* Position of motor 2, viewed from the motor side Disabled Left Right L121* Position readout, motor 2 000-360 degrees L122* Limit for open position, motor 2 145-330 degrees L123* Limit for closed position, motor 2 015-180 degrees...
  • Page 26 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 • DB407, DB410, Output Board, o-channels Programmable output 1 Name Range Factory Setting o100 Function of output 1 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o110 – o122 Presence detection/Direction sensing. Signal as configured in o191 Lock Alarm output Signal as configured in o130 –...
  • Page 27 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o130* Alarm if there is an error as configured in o131-o139. 0.00-9.59 minutes 0.00 The alarm is activated for at least the time set in this channel. o131* Alarm for faulty safety edge. Time as in o130. 0 - 1 Disabled Constant signal...
  • Page 28 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o191 Function when LOOP2, LOOP2 or PHOTO 01 - 14 activated Presence detection Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection Signal when both LOOP1 and LOOP2 are activated, remains until either LOOP1 or LOOP2 is clear.
  • Page 29 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable output 2 Name Range Factory Setting o200 Function of output 2 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o210 – o222 Presence detection/Direction sensing. Signal as configured in o291 Lock Alarm output Signal as configured in o230 –...
  • Page 30 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o230* Alarm if there is an error as configured in o231-o239. 0.00-9.59 minutes 0.00 The alarm is activated for at least the time set in this channel. o231* Alarm for faulty safety edge. Time as in o230. 0 - 1 Constant signal Active...
  • Page 31 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o291 Function when SL.1, SL.2 or photocell/loop activated 01 - 14 Presence detection Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection Signal when both LOOP1 and LOOP2 are activated, remains until either LOOP1 or LOOP2 is clear.
  • Page 32 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable output 3 Name Range Factory Setting o300 Function of output 3 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o310 – o322 Presence detection/Direction sensing. Signal as configured in o391 Lock Alarm output Signal as configured in o330 –...
  • Page 33 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o330* Alarm if there is an error as configured in o331-o339. The alarm 0.00-9.59 minutes 0.00 is activated for at least the time set in this channel. o331* Alarm for faulty safety edge. Time as in o330. 0 - 1 Disabled Constant signal...
  • Page 34 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o391 Function when SL.1, SL.2 or photocell/loop activated 01 - 14 Presence detection Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection Signal when both LOOP1 and LOOP2 are activated, remains until either LOOP1 or LOOP2 is clear.
  • Page 35 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable output 4 Name Range Factory Setting o400 Function of output 4 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o410 – o422 Presence detection/Direction sensing. Signal as configured in o491 Lock Alarm output Signal as configured in o430 –...
  • Page 36 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o422 Function during warning time 1 - 2 Output signal disabled during warning in other output Output signal as configured in o410-o413 o423 Flashing frequency 0.1-2.0 seconds o430* Alarm if there is an error as configured in o431-o439. The 0.00-9.59 minutes 0.00 alarm is activated for at least the time set in this channel.
  • Page 37 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o491 Function when LOOP2, LOOP2 or PHOTO activated 01 - 14 Presence detection Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection Signal when both LOOP1 and LOOP2 are activated, remains until either LOOP1 or LOOP2 is clear.
  • Page 38 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable output 5 Name Range Factory Setting o500 Function of output 1 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o510 – o522 Presence detection/Direction sensing. Signal as configured in o591 Lock Alarm output Signal as configured in o530 –...
  • Page 39 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o530* Alarm if there is an error as configured in o531-o539. The 0.00-9.59 minutes 0.00 alarm is activated for at least the time set in this channel. o531* Alarm for faulty safety edge. Time as in o530. 0 - 1 Disabled Constant signal...
  • Page 40 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o591 Function when LOOP2, LOOP2 or PHOTO activated 01 - 14 Presence detection Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection Signal when both LOOP1 and LOOP2 are activated, remains until either LOOP1 or LOOP2 is clear.
  • Page 41 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable output 6 Name Range Factory Setting o600 Function of output 1 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o610 – o622 Presence detection/Direction sensing. Signal as configured in o691 Lock Alarm output Signal as configured in o630 –...
  • Page 42 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o630* Alarm if there is an error as configured in o631-o639. The 0.00-9.59 minutes 0.00 alarm is activated for at least the time set in this channel. o631* Alarm for faulty safety edge. Time as in o630. 0 - 1 Disabled Constant signal...
  • Page 43 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting o691 Function when LOOP2, LOOP2 or PHOTO activated 01 - 14 Presence detection Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection Signal when both LOOP1 and LOOP2 are activated, remains until either LOOP1 or LOOP2 is clear.
  • Page 44 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 • Programmable inputs, P channels Programmable input 1 Name Range Factory Setting P100 Channels in programmable input 1 0 - 1 Disabled Enabled P160 Control function Disabled Open Close Stop Open/close Open/stop/close P161 Type of control signal when activated 1 - 2 Pulse (hold-to-run mode not possible) Signal for as long as the input is activated...
  • Page 45 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable input 2 Name Range Factory Setting P200 Channels in programmable input 2 0 - 1 Disabled Enabled P260 Control function Disabled Open Close Stop Open/close Open/stop/close P261 Type of control signal when activated 1 - 2 Pulse (hold-to-run mode not possible) Signal for as long as the input is activated...
  • Page 46 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable input 3 Name Range Factory Setting P300 Channels in programmable input 3 0 - 1 Disabled Enabled P360 Control function Disabled Open Close Stop Open/close Open/stop/close P361 Type of control signal when activated 1 - 2 Pulse (hold-to-run mode not possible) Signal for as long as the input is activated...
  • Page 47 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable input 4 Name Range Factory Setting P400 Channels in programmable input 4 0 - 1 Disabled Enabled P460 Control function Disabled Open Close Stop Open/close Open/stop/close P461 Type of control signal when activated 1 - 2 Pulse Signal for as long as the input is activated...
  • Page 48 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable input 5 Name Range Factory Setting P500 Channels in programmable input 6 0 - 1 Disabled Activated (Only channels P560-P598 activated) Battery operation, only together with frequency converter (Channels P560-P598 inactivated) P560 Control function Disabled Open...
  • Page 49 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable input 6 Name Range Factory Setting P600 Channels in programmable input 6 0 - 1 Disabled Activated (Only channels P660-P698 activated) Safety input (Only channels P640-P643 activated) P640 Safety function when input is activated 0 –...
  • Page 50 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Name Range Factory Setting P675 Opening via input after activation during set time, input will 0.0-9.9 seconds not open the barrier until it has been activated for the set time. P680 Park 0 - 2 Disabled Automatic closing disabled after the input is activated, reset by another control signal Automatic closing disabled by a constant signal...
  • Page 51 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Channel list version 1 for Software version 4.07...
  • Page 52 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 • DB411, Radio board, r-channels Programmable wireless input 1 Name Range Factory Setting r001 Readout of received wireless input 0 - 4 No wireless reception Wireless input 1 is receiving a wireless signal Wireless input 2 is receiving a wireless signal Wireless input 3 is receiving a wireless signal Wireless input 4 is receiving a wireless signal...
  • Page 53 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable wireless input 2 Name Range Factory Setting r001 Readout of received wireless input 0 - 4 No wireless reception Wireless input 1 is receiving a wireless signal Wireless input 2 is receiving a wireless signal Wireless input 3 is receiving a wireless signal Wireless input 4 is receiving a wireless signal r260...
  • Page 54 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable wireless input 3 Name Range Factory Setting r001 Readout of received wireless input 0 - 4 No wireless reception Wireless input 1 is receiving a wireless signal Wireless input 2 is receiving a wireless signal Wireless input 3 is receiving a wireless signal Wireless input 4 is receiving a wireless signal r360...
  • Page 55 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP104 Programmable wireless input 4 Name Range Factory Setting r001 Readout of received wireless input 0 - 4 No wireless reception Wireless input 1 is receiving a wireless signal Wireless input 2 is receiving a wireless signal Wireless input 3 is receiving a wireless signal Wireless input 4 is receiving a wireless signal r460...

  • Page 56: Error Messages

    Opening counter reset E047 Factory reset of all channels E048 Error code list reset Unknown circuit board, EP104 or Light not fully Contact FAAC Nordic AB E050 equipped Incorrect software, full version programmed in Contact FAAC Nordic AB E051 EPLight...
  • Page 57 No response from frequency converter motor 2 Instruction Manual for DB409. Address must be set for the frequency converter. Incorrect value sent to frequency converter motor Contact FAAC Nordic AB E661 Incorrect value sent to frequency converter motor Contact FAAC Nordic AB...
  • Page 58 Error Possible cause Meaning code E916 Internal test not completed in time Contact FAAC Nordic AB. E917 Incorrect order of execution Contact FAAC Nordic AB. E918 All error codes deleted due to an internal fault Contactor for motor 1 activated before the Contact FAAC Nordic AB.

  • Page 59: Troubleshooting

    • Resetting/replacing tripped fuses If the fuse protecting the power supply to the automatic control unit trips, FAAC Nordic AB recommends following these steps to reset/replace it. •...
