FAAC E034 Instructions Manual

FAAC E034 Instructions Manual

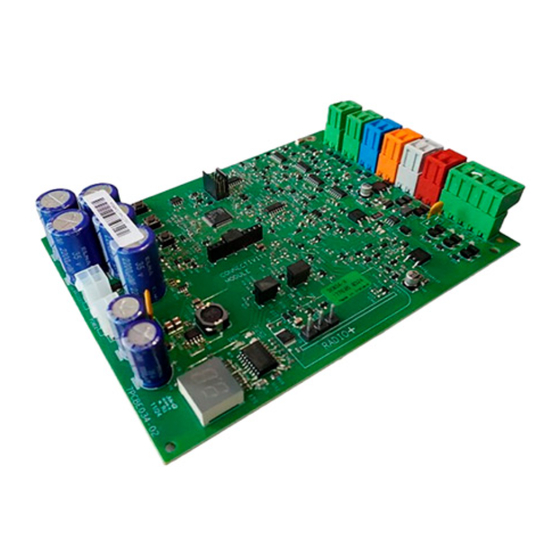

Control board
Hide thumbs

Advertisement

Quick Links

Download this manual
E034
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the E034 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FAAC E034

Summary of Contents for FAAC E034

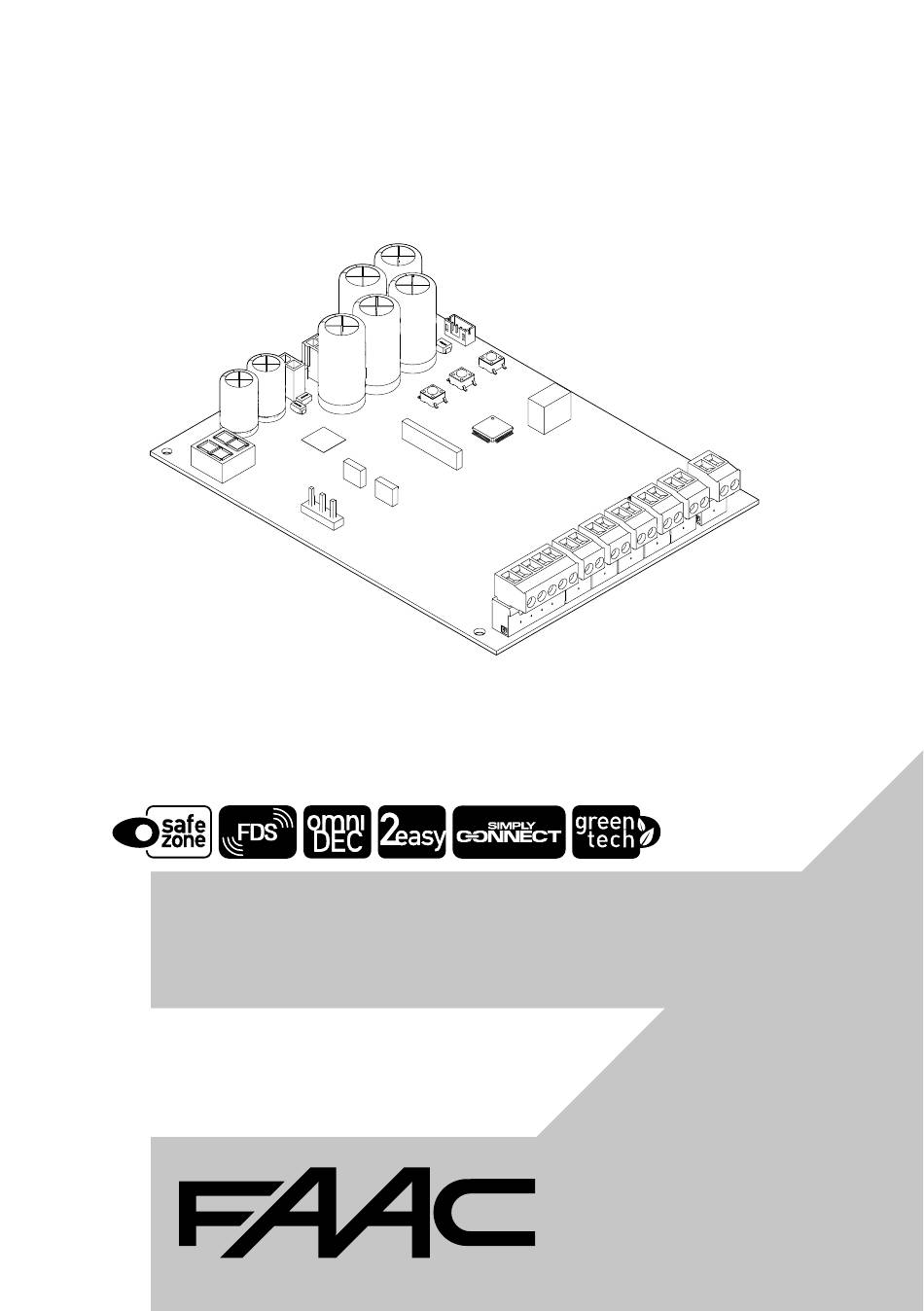

  • Page 1 E034...
  • Page 2 Translation of the original instructions © Copyright FAAC S.p.A. from 2023. All rights reserved. No part of this manual may be reproduced, archived, distributed to third parties nor copied in any other way, in any format and with any means, be it electronic, mechanical or by photocopying, without prior written authorisation by FAAC S.p.A.
  • Page 3 Memorising XF FDS radio controls ..... 34 4.1 E034 board components ....... 11 FDS and Simply Connect .
  • Page 4 Solar panels ........49  1 E034 532874 - Rev.B...
  • Page 5 1. INTRODUCTION TO THE INSTRUCTION MANUAL This manual provides the correct procedures and SAFETY WARNINGS FOR THE INSTALLER requirements for installing E034 and maintaining it Before starting the installation, read and comply with in a safe condition. the “Safety warnings for the installer” booklet supplied with the product, and these installation instructions.
  • Page 6 FAAC S.p.A. 2.3 LIMITATIONS OF USE - It is prohibited to use the E034 in the presence of - Do not use with motors where the technical data faults which could compromise safety.
  • Page 7 Made in - Designed in Italy P/N..MMYY PROG IDENTIFICATION NUMBER P/N..MMYY PROG Label Product code progressive Product identification number QR code instructions month/year of production Electronic board labels Identification code X-E034-XXXXX mm/yy Model Month/year of production 1 E034 532874 - Rev.B...
  • Page 8 2.5 TECHNICAL SPECIFICATIONS OPTIONAL EQUIPMENT The E034 electronic board is designed to control one ■ Radio system or two 24 V " brushed motors. The safety functions The electronic board is fitted with an integrated two- to protect the primary edge according to EN 12453 are channel decoding system that requires either a XF FDS described in the dedicated section.
  • Page 9 D Additional device to reduce the likelihood of contact between a person or obstacle and the mobile leaf used in combination with force limitation (C) E Sensitive presence detection protection device, designed and installed in such a way that a person cannot be touched by the moving leaf ■ Safety functions of E034 Protection type Device perfor-...
  • Page 10 TECHNICAL DATA If the board is integrated in an actuator, see the relevant technical data. Technical data E034 230 V E034 115 V Power supply voltage 220-240 V~ @50/60 Hz 110-120 V~ @50/60 Hz Max power 350 W 340 W Standby power* 4.4 W...
  • Page 11 Electrician's scissors for the diameter if the conduits. 4. Install suitable cable glands. Drill bit Pencil TORQUE ADJUSTMENT -comply with fastening torque indicated in the figure. E.g.: Spanner 7 set at 2.5 Nm 2.5 Nm 4 E034 532874 - Rev.B...
  • Page 12 ■ Install the cover With reference to 6: 1. Decide the opening direction. 2. Insert the hinges, paying attention to the direction in which they are inserted. 5 Opening to the left Opening to the right 6 E034 532874 - Rev.B...
  • Page 13 Plug-in connectors for Simply Connect or alter- Programming display Connectivity module natively XUSB SW1, SW2, SW3 Programming buttons Connector (3 pin) for FAAC XF FDS or XF radio Removable terminal board for programmable RADIO + module output Transformer Removable terminal board for flashing light output...
  • Page 14 With reference to 9: 1. With the power supply switched off, use a suitable E034 integrated in the actuator tool to remove the pre-cut plastic knockout. 2. Place the module or the connection in the position provided.
  • Page 15 (IN1) commands the total opening (OPEN) of the gate. Motion command determined by the set operat- E034 has an output with a negative open-collector that ing logic. is activated according to the function programmed NO contact, connect a push-button or another type in o1.
  • Page 16 - the motor that closes first to terminal MOT2 (J8). LOW ENERGY CONSUMPTION MODULE XLC LOCK E034 controls an electric lock to block the leaf in the closed position. The electric lock is activated before each opening, The XLC connector is specifically for connecting the low irrespective of the position of the leaf.
  • Page 17 Connect the 3G power cable (min. 1.5 mm - max. The XUSB module can be used as an alterna- 2.5 mm tive to the Simply Connect module. Carry out the following with the power supply discon- nected. E034 532874 - Rev.B...
  • Page 18 The NC terminal specifically for the STOP (IN3) must be connected or bridged. If the STOP terminal is open, it prevents both the auto- mation and the SETUP from working. 5 4 3 IN1 IN2 IN3 E034 532874 - Rev.B...
  • Page 19 1. Check that the cables are seated correctly and not in the way. 2. Fasten the cover using the screws. In the installation with an enclosure, use the board cover screw A for the earth connection. E034 with enclosure E034 integrated in the actuator 10 E034 532874 - Rev.B...
  • Page 20 2. If the display is NOT oriented correctly, press the central button again - - to modify the orientation. The orientation of the display changes each time this operation is repeated. 3. To save the orientation, press another button or wait 10 seconds. E034 532874 - Rev.B...
  • Page 21 4. Press button to confirm and go to the next function. Proceed in the same way for all the functions (see  Advanced programming menu). E034 with enclosure E034 integrated in the actuator 11 E034 532874 - Rev.B...
  • Page 22 Select the type of actuator installed (the board 1 motor loads the relative default configuration). 2 motors no actuator FAAC 24 V " MOTOR 1 POWER 412 24V, 413 24 V, 415 24V, 390 24V 01…50 (levels; 50 =maximum power)
  • Page 23 10 pre-flashing and then 04 in pause closes S0 (flashing) SETUP required If a function displays the value , it means that pro- gramming has been carried out with Simply Connect which is not available on the board. E034 532874 - Rev.B...
  • Page 24 Disable this function if there is a (displayed only if Mn = 2) lightweight gate. Specifies the deceleration space for the leaf connected to MOTOR 2 (% of the total length of travel). 00…99 (Adjustment step: 1%) E034 532874 - Rev.B...
  • Page 25 … Adjustment step: 1 min (if ), 1 s (if MAINTENANCE REQUEST Enables/disables the maintenance alert when the programmed number of cycles has been reached as specified in the following functions , nc, nd). disabled enabled E034 532874 - Rev.B...
  • Page 26 - during pause, stops the gate and the next OPEN command closes it. - during opening, stops the gate and the next OPEN command closes it. Operation of the closing photocells: - during the pause, reloads the pause time. E034 532874 - Rev.B...
  • Page 27 - during movement, reverses the gate. ■ - SEMI-AUTOMATIC b CLOSE command (OPEN B) - during opening or when the automation is open, it closes it If the Photocell is triggered: - during movement, reverses the gate. E034 532874 - Rev.B...
  • Page 28 If there is no mechanical stop, send an OPEN A command at the point where you want the leaf to stop. ■ Timed operation Send an OPEN A command as soon as the leaf reaches the mechanical stop. E034 532874 - Rev.B...
  • Page 29 Slowdown Leaf1, Leaf2 Specifies the extent of the leaf slowdown near the open / closed positions. The slowdown allows you to limit the inertial forces and reduce the vibrations of the gate when it is stopping. E034 532874 - Rev.B...
  • Page 30 Close the enclosure using the screws on the cover (recommended torque 3Nm). 6.3 FINAL OPERATIONS 12 Make sure that the system delivery requirements have been fulfilled (otherwise arrange for them) i.e. that they correspond to the board installed / replaced. E034 532874 - Rev.B...
  • Page 31 7. ACCESSORIES 7.1 BUS 2EASY DEVICES T he effect of photocell engagement depends on the selected operating logic. The board allows the connection of FAAC BUS 2easy de- vices (photocells, sensitive edges, control devices and encoders). OP/CL I f no BUS 2easy accessories are used, leave the BUS con- nector free (do not bridge).
  • Page 32 DL2 off = encoder connected to MOT2 supply and invert the 2 wires on the BUS terminal board. 3. Register the devices (see specific section). 4. Check the BUS 2easy devices (see specific section). 14 E034 532874 - Rev.B...
  • Page 33 E.g.: In order to have OPEN A on different connected devices, set OPEN A_1 on the first and OPEN A_2 or OPEN A_3 on the second... *Stop NC also generates a stop when the device is disconnected. If you do not require this function, use one “Stop". E034 532874 - Rev.B...
  • Page 34 15 INPUTS ADVANCED PROGRAMMING STOP device with NC contact 3 STOP Active in all states 2 (–) Safety STOP device with NC contact 3 STOP Active in all states (Failsafe) 1 OUT1 E034 532874 - Rev.B...
  • Page 35 7.3 RADIO SYSTEM INSTALLING THE XF FDS OR XF RADIO MODULE The E034 is fitted with an integrated two-channel 1. The module should only be inserted into the con- decoding system that requires either a XF FDS or XF nector with the board turned off and as indicated radio module to be installed, to allow various types of in the figure.
  • Page 36 The LED of the radio control flashes twice and then switches off (memorisation complete). 5. Release the buttons. When using the memorised button for the first time, press it twice in succession to obtain the command. E034 532874 - Rev.B...
  • Page 37 20 s). The procedure ends after 20 s if no further radio controls are memorised and the RADIO LED switches off. To add additional radio controls, repeat the procedure from step 1. E034 532874 - Rev.B...
  • Page 38 2. Release the button, both LEDs switch off. ■ Traffic light control The traffic light control is on when the automation is opening and flashes during closing (with pre-flashing for 3 s before starting to close). E034 532874 - Rev.B...
  • Page 39 7.7 SIMPLY CONNECT XMB GSM Mobile, Bluetooth Low Energy Simply Connect requires E034 firmware version FW 1.0 or later. When programming is taking place via Simply Connect, programming via the board is inhibited. 1. With the power supply switched off, remove the board cover.
  • Page 40 3. Make the connections (see relative instructions). INSTALLING THE BATTERY KIT ON THE ACTUATOR Proceed as follows (20): 1. Place the battery into the housing and secure it to the mounting supports. 2. Make the connections (see relative instructions). 19 20 E034 532874 - Rev.B...
  • Page 41 XLC Module Fastening screws XLC cable Screw and earth cable* Identification label J1 Pull out terminal-board for the power supply J2 Pull out terminal-board for the transformer J3 XLC connector for E034 *Optional for some installations 21 E034 532874 - Rev.B...
  • Page 42 Components XLC Module XLC fastening screws XLC cable J1 Pull out terminal-board for the power supply J2 Pull out terminal-board for the transformer J3 XLC connector for E034 230V -> 2.0A-250V 115V -> 4A - 120V supplied 22 E034 532874 - Rev.B...
  • Page 43 Cables are not supplied for this connection. J2 Pull out terminal-board for the transformer 4. Connect cable C: J3 XLC connector for E034 - Remove the XLC pre-cut plastic knockout from the board cover. - Connect cable C to connector J3 and the XLC con- nector on the board.
  • Page 44 1. After having inserted the XUSB and the USB (the board does not recognise other file systems). memory device, turn on the board. Firmware (FW) The E034 FW is supplied by FAAC in a - The board display shows 2 alternating dots ( ), then compressed file.
  • Page 45 (partial opening/closing) Not active DL12 STOP Active Errors/alarms No errors/alarms Errors/alarms Board faulty signal present Receiving command Idle Radio channel 1 activity Radio channel 2 activity Receiving command Idle =on =off =slow flashing =fast flashing 24 E034 532874 - Rev.B...
  • Page 46 Errors, Alarms, Info  9 No notification Board failure Perform RESET. If the problem persists, replace the E034. Radio mode present SLH, SLH LR, LC, RC, DS Radio mode present FDS Make sure that the encoder is connected properly. Encoder 2 failure If the problem persists, replace the encoder.
  • Page 47 (i) Acquiring radio on channel 2 in progress Radio channel 2 is being memorized. (i) Board Display locked The display of the E034 is locked (via Simply Connect). Error (number on white background) Alarm (number on grey background) Info (i).
  • Page 48 10.1 RESTORING FACTORY SETTINGS The maintenance table ( 10) lists the operations that The procedure: should be performed on a regular basis on the E034 - restores all the default settings of the board board in order to keep the automation working reliably - deletes the SETUP and safely;...
  • Page 49 Check the force limitation curve (standards EN 12453 and EN 12445). For non-EU countries, of there are no specific local regulations, the force must be less than 150 N. Refer to the specific instructions for the devices and the connected operator. For non FAAC components, refer to the manufacturer's documentation. E034 532874 - Rev.B...
  • Page 50 3. In function set the value in thousands using the + + and - - buttons. set the value in tens using the + + 4. In function and - - buttons. 5. Exit and save the programming. E034 532874 - Rev.B...
  • Page 51 - Calculate the average daily consumption of your system in watts, to size the solar power system. A battery-powered E034 board consumes an average of 2W in standby mode. With 10 daily openings in a typical installation, the consumption rises to 2.5 W.
  • Page 52 Cet appareil se recycle FAAC S.p.A. Soc. Unipersonale À DÉPOSER À DÉPOSER EN MAGASIN EN DÉCHÈTERIE Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Tel. +39 051 61724 Points de collecte sur www.quefairedemesdechets.fr www.faac.it - www.faactechnologies.com Privilégiez la répara�on ou le don de votre appareil ! E034 532874 - Rev.B...
