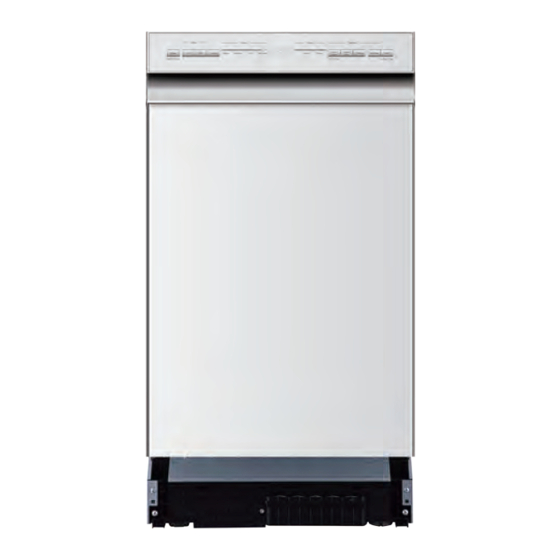

Dishwasher
Power supply: 120 V
Frequency: 60 Hz
Capacity: 8 Place Settings
Warning:
Before using this product,
please read this manual
carefully and keep it for future
reference. The design and
specifications are subject to
change without prior notice
for product improvement.
Consult with your dealer or
manufacturer for details.
version A - 12 - 2022
USER MANUAL
Free 3 months extension
of the original limited
warranty period!* Simply
text a picture of your
proof of purchase to:
1-844-224-1614
*The warranty extension is for the three
months immediately following the
completion of the product's original
warranty period. Individuals do not need to
register the product in order to get all the
rights and remedies of registered owners
under the original limited warranty.
MDF18A1AWW,MDF18A1ABB
MDF18A1AST models
www.midea.com
en
Advertisement
Table of Contents
Related Manuals for Midea MDF18A1AWW
Summary of Contents for Midea MDF18A1AWW
- Page 1 Consult with your dealer or manufacturer for details. MDF18A1AWW,MDF18A1ABB MDF18A1AST models www.midea.com version A - 12 - 2022...
-
Page 2: Table Of Contents
Dear user Thank you for letting Midea help you "make yourself at home." This manual is part of our commitment to your total satisfaction. Please read this manual carefully before use and keep it in a convenient place for future reference. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death. The level of risk is shown by the following indications. - Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING When using your dishwasher, follow basic precautions, including the following: ● Read all instructions before using the dishwasher. ● Use the dishwasher only for its intended function. ● Use only detergents or rinse/wetting agents recommended for use in a dishwasher and keep them out of the reach of children.
- Page 5 ● Do not use the dishwasher if it has a damaged power line or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electrical shock. ● This manual does not cover every possible condition or situation that may occur.
- Page 6 CAUTION ● Never use harsh chemicals to clean your dishwasher. Some chloride- containing products can damage your dishwasher and may present health hazards! ● Never use steam cleaning products to clean your dishwasher. The manufacturer will not be responsible for the possible damages or consequences.
-
Page 7: Operating Requirements
OPERATING REQUIREMENTS ELECTRICAL REQUIREMENTS WARNING Electrical Shock Hazard ● Electrically ground dishwasher. ● Connect ground wire to green ground connector in terminal box. ● Do not use an extension cord. ● Failure to follow these instructions can result in death, fire, or electrical shock. -
Page 8: Part And Specifications
PART AND SPECIFICATIONS L ock L ower Spray Arm U pper Basket D ispenser U pper Spray Arm C up Shelf C utlery Basket H eating Element L ower Basket... - Page 9 Product Specifications Capacity 8 place settings Dimensions 17.6 x 22.6 x 32.4 inches 450 x 575 x 825 mm (W x D x H) Power Supply 120V, 60Hz Water feed pressure 20 psi–80 psi (0.14 MPa–0.82 MPa)
-
Page 10: Start Up Guide
START UP GUIDE IMPORTANT: ● Properly dispose of/recycle all packing material. ● Read this entire User Manual. You will find important safety information and useful operating tips. HOW YOUR DISHWASHER CLEANS Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. -
Page 11: Controls
CONTROLS P OWER Press this button for 3 seconds to turn on or turn off the dishwasher. D ELAY START The Delay time feature allows you to program the dishwasher to began the selected wash cycle 1 to 24 hours later. ●... - Page 12 RINSE Use for pre-rinsing dishes or glasses. This is only a rinse that keeps food from drying on your dishes and reduces odor buildup in your dishwasher until you are ready to wash a full load. C HILD LOCK Use to lock all controls and prevent children from accidently changing the dishwasher cycle or starting the dishwasher.
- Page 13 S CREEN This LED screen displays minutes remaining in a running cycle, hours of delay before the unit is set to start, error codes, etc. ● If the machine is in operation, the remaining time (mins) of the selected cycle will be shown in the display window. ●...
-
Page 14: Preparing And Loading Dishes
PREPARING AND LOADING DISHES Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously filtered wash system will remove the remaining food particles. Burned on foods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. - Page 15 The upper basket has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”, etc. For best results, place the bowls, cups, glasses with soiled surface facing down or toward the center. Tilt slightly for better drainage. Load small plates and bowls in two half rows, so the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other.
- Page 16 Large items should be turned so that the inside faces downward. Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper basket. Larger items should be placed along the edge so they do not interfere with the spray arm rotation.
- Page 17 Adding a Dish To add or remove items after wash cycle starts: Open door slightly and wait a few seconds until wash action stops before completely opening. Add the item. Close the door firmly to latch and press START, then cycle will resume.
-
Page 18: Detergent And Rinse Aid Dispenser
DETERGENT AND RINSE AID DISPENSER The detergent and rinse aid dispenser will automatically release the measured amount of detergent and rinse aid at the appropriate time during the dishwasher cycles. Rinse aid greatly improves drying and reduces water spots and filming. Without rinse aid your dishes and dishwasher interior will have exces-sive moisture. - Page 19 Add the recommended amount of detergent to the detergent compartment. Press down on the top of the cover to secure. Filling the Rinse Aide Dispenser Rinse aid improves the drying performance of the dishwasher. This dishwasher has been designed to use liquid rinse aid only. Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.
- Page 20 To refill the rinse aid dispenser Lift up the end tab of rinse aid cover to open. Fill the rinse aid dispenser with liquid rinse aid until full. DO NOT overfill. NOTE: Use the viewing port when filling the rinse aid reservoir. WARNING Do not fill the reservoir above the full level indicator.
-
Page 21: Dishwasher Care
DISHWASHER CARE Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. Cleaning the Exterior It's best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. - Page 22 Cleaning The Filters Turn off the dishwasher. Rotate the filter insert counterclockwise to unfasten and then detach the filter insert. Remove the fine filter (flat, rectangular).
- Page 23 Remove any dirt or other remains from the filters, and then rinse them under running water. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow. CAUTION If the filter insert is not closed properly, its performance will be decreased.
- Page 24 Cleaning the Lower Spray Arm If your dishwasher does not seem to be cleaning adequately or the spray arm nozzles seem clogged, the lower spray arm can be removed and cleaned. Remove spray arm carefully to avoid damage. Remove lower spray arm Check whether the nozzle holes are clogged by food particles.
-
Page 25: Troubleshooting
TROUBLESHOOTING Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your dishwasher. PROBLEM POSSIBLE CAUSE SOLUTION ● ● Dishwasher Dishwasher won't start. - Page 26 PROBLEM POSSIBLE CAUSE SOLUTION ● ● Dishes not Rinse aid dispenser is Fill rinse aid dispenser or drying enough empty. increase the amount of rinse ● Improper loading of aid. ● dishes. Load the dishes again as the ● The cycle you chose did manual instructs.
- Page 27 PROBLEM POSSIBLE CAUSE SOLUTION ● ● Stained tub Coffee and tea soil. Using an approved spot ● interior Reddish stain. cleaner to remove the soil. ● Some tomato-based foods will cause this, use of the rinse only cycle right after loading this will decrease the staining.
- Page 28 PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased.
- Page 29 DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Midea makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Midea or your retailer about buying an extended warranty.
- Page 30 Free 3 months extension of the original limited warranty period!* Simply text a picture of your proof of purchase to: 1-844-224-1614 *The warranty extension is for the three months immediately following the completion of the product’s original warranty period. Individuals do not need to register the product in order to get all the rights and remedies of registered owners under the original limited warranty.
