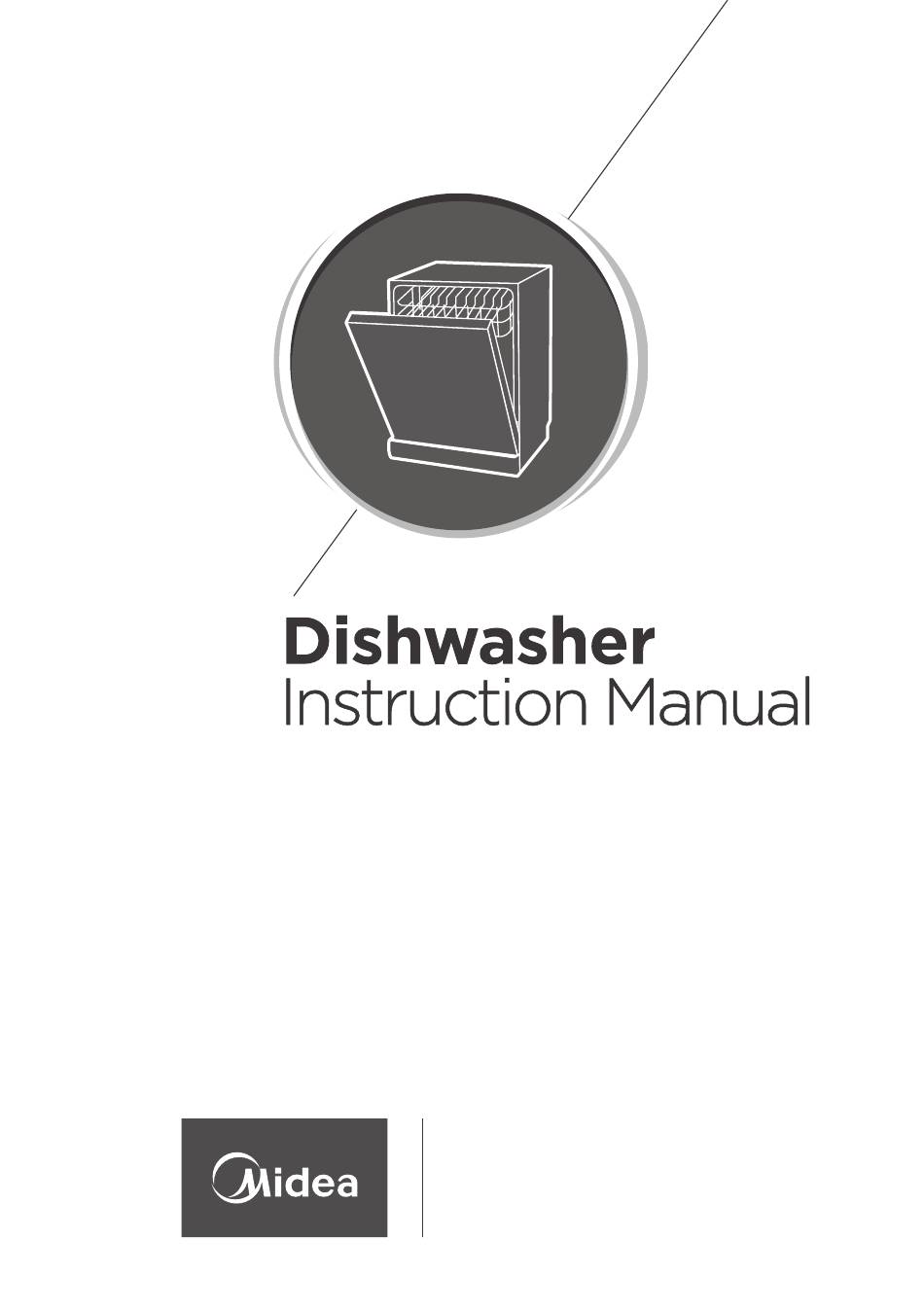

- Page 1 PART Ⅱ: Special Version WQP12-7605V Please read this manual carefully before using the dishwasher and Keep this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS USING YOUR DISHWASHER Control Panel Water Softener Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION... - Page 3 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” PART Ⅰ: Generic Version.) Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser Selecting a program and running...
-
Page 4: Using Your Dishwasher
USING YOUR DISHWASHER Control Panel Operation (Button) Press this button to turn on your dishwasher,the screen lights up. Power When pressing this button, corresponding indicator will be lit. Select the appropriate washing program, the selected program Program indicator will be lit. For small loads, you may use just the upper or lower rack to save energy. - Page 5 Display Intensive Heavily soiled items include pots and pans. With dried on food. This is the standard program suitable for normally soiled loads, such as pots, plates, glasses and lightly soiled pans. Program indicator Quick A shorter wash for lightly soiled loads that do not need drying.
-
Page 6: Water Softener
Water Softener The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is. -
Page 7: Preparing And Loading Dishes
Please check the section 3 “Loading The Salt Into The Softener” Please check the section 3 “Loading The Salt Into The Softener” of PART Ⅰ: Generic Version, If your dishwasher lacks salt. Ⅰ: of PART Generic Version, If your dishwasher lacks salt. NOTE: If your model does not have any water softener, you may skip this section. - Page 8 Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way:...
- Page 9 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).Position the dishes and cookware so that they will not get moved by the spray of water.
-
Page 10: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 11: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Rinse-Aid indicator To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the "open" (left) arrow and lift its dispenser, whilst avoiding it to it out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 12: Filling The Detergent Dispenser
Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle . -
Page 13: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Running Energy... -
Page 14: Starting A Cycle Wash
NOTE: EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242. Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2. -
Page 15: Forget To Add A Dish
Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: Open the door a little to stop the washing. After the spray arms stop working, you can open the door completely. 3. -
Page 16: Error Codes
ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes E1(The soak light Faucets is not opened, or water intake is Longer inlet time. restricted,or water pressure is too low. flicker fleetly) (The soak and quick Not reaching required... -
Page 17: Technical Information
TECHNICAL INFORMATION Height (H) 845mm Width (W) 598mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°) - Page 18 Product fiche Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010: Manufacturer MIDEA Type / Description WQP12-7605V Standard place settings Energy efficiency class Annual energy consumption 258 kWh Energy consumption of the standard cleaning cycle 0.90 kWh Power consumption of off-mode 0.45 W...
- Page 19 Foshan Shunde Midea Washing Appliances Mfg. Co., Ltd No.20, Gangqian Road, Beijiao,Shunde, Foshan, Guangdong, 5 28311 P.R.China...
